EPropulsion NAVY Tiller Handle Manuel utilisateur

NAVY TILLER HANDLE USER MANUAL

Nov, 2018 Version 1.0

Acknowledgement

Thanks for choosing ePropulsion products, your trust and support in our

company are sincerely appreciated. We are dedicated to providing high-

performance electric outboards, as well as thrusters, reliable lithium batteries

and accessories.

Welcome to visit www.epropulsion.com and contact us if you have any

concerns.

Using This Manual

Before use of the product, please read this user manual thoroughly to

understand the correct and safe operations. By using this product, you

hereby agree that you have fully read and understood all contents of this

manual. ePropulsion accepts no liability for any damage or injury caused by

operations that contradict this manual.

Due to ongoing optimization of our products, ePropulsion reserves the rights

of constantly adjusting the contents described in the manual. ePropulsion

also reserves the intellectual property rights and industrial property rights

including copyrights, patents, logos and designs, etc.

This manual is subject to update without prior notice, please visit our website

www.epropulsion.com for the latest version. If you find any discrepancy

between your products and this manual, or should you have any doubts

concerning the product or the manual, please visit www.epropulsion.com.

ePropulsion reserves the rights of nal interpretation of this manual.

This manual is multilingual, in case of any discrepancy in the interpretation

of different language versions, the English version shall prevail.

Symbols

The following symbols will help to acquire some key information.

Important instructions or warnings

Useful information or tips

Product Identication

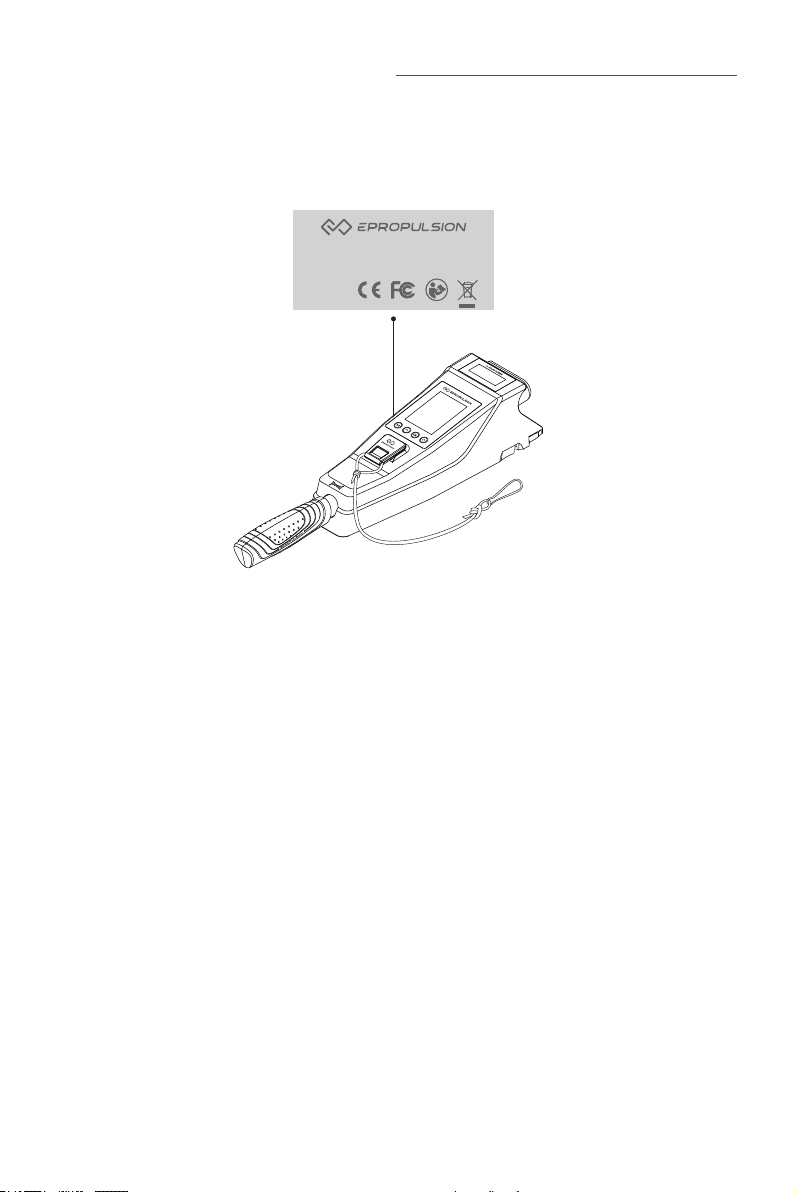

Below picture indicates the serial numbers of NAVY Tiller Handle. Please

note the position of the serial numbers and record them for access to

warranty service and other after-sale services.

Figure 0 -1

Model: NAVY Tiller Handle

Serial No.: DNTHXXXXXXX

Table of Contents

Acknowledgement .................................................................................... 1

Using This Manual...................................................................................... 1

Symbols ...................................................................................................... 1

Product Identication ................................................................................ 2

Table of Contents ....................................................................................... 3

1 Product Overview.................................................................................... 4

1.1 In the Package .................................................................................. 4

1.2 Parts and Diagrams .......................................................................... 5

1.3 Specication...................................................................................... 5

2 Mounting the Tiller Handle.................................................................... 6

3 Displaying...............................................................................................7

4 Charging............................................................................................... 11

4.1 Charging by solar power................................................................... 11

4.2 Charging by wired connection.......................................................... 11

5 Power Adjusting................................................................................... 13

5.1 Power Adjusting for Tiller Handle ..................................................... 13

5.2 Adjusting Maximum Forward/Backward Power ............................... 14

5.3 Recalibration .................................................................................... 15

6 Use of Kill Switch................................................................................. 17

7 Pairing Tiller Handle to the Outboard ............................................... 18

8 Warning Messages .............................................................................. 21

9 Warranty ................................................................................................ 24

9.1 Warranty Policies ............................................................................ 24

9.2 Out of Warranty............................................................................... 25

9.3 Warranty Claim Procedures ............................................................ 25

1 Product Overview

The NAVY Tiller Handle is used for starting and stopping the NAVY outboard

motor, adjusting the speed of the motor, conguring the battery parameters,

displaying the system information and messages, etc. The Tiller Handle is

wirelessly or wiredly communicates with the outboard control system built in

the main outboard motor.

1.1 In the Package

When you receive a set of NAVY Tiller Handle, unpack its package and

check if all the items below are included in the package. If there is any loss

or transport damage, please contact your dealer immediately.

Items Qty./Unit Figure

NAVY

Tiller Handle 1 set

User Manual,

Warranty

Card &

Invitation

Card

1 set

Kill Switch 2 pieces

Tiller Handle

Holder 1 set

Warranty

Invitation Card

1.2 Parts and Diagrams

Figure 1-1

1.3 Specication

NAVY Tiller Handle

Communication Wireless / Wired

Communication Distance ≤10 m

Weight 1.5 kg / 3.3 lbs.

Dimension (L x W x H) 574 mm x 120 mm x 100 mm /

22.6" x 4.7" x 4"

Throttle Handle

Buttons

Display Panel

Kill Switch

Communication Port

(Bottom)

Solar Panel

Forward/Reverse Icon Release Button

2 Mounting the Tiller Handle

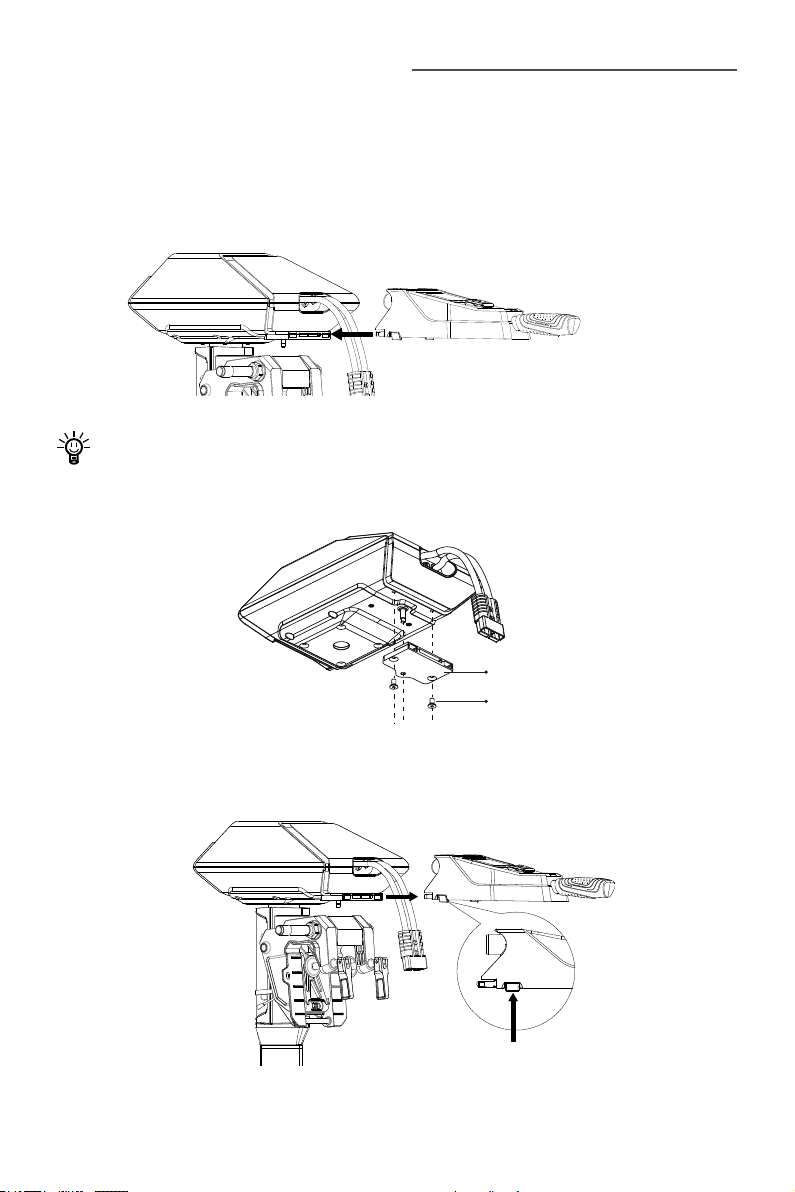

Before using the Tiller Handle, users should mount it to the outboard motor

by one simple step:

Align the Tiller Handle to the mounting recess of the outboard motor in the

direction of the arrow and plug in the Tiller Handle until a click sound is

heard.

Figure 2-1

If it is the first time to mount the Tiller Handle to the outboard, it is

necessary to install the tiller handle holder on the outboard (Figure 2-2)

before mounting the Tiller Handle.

Figure 2-2

To detach the Tiller Handle: press the release buttons (Figure 2-3) on both

sides of the Tiller Handle and plug it out.

Figure 2-3

Release Button

Tiller Handle Holder

M8 Screw

Not to jam the outboard cable

while mounting the tiller.

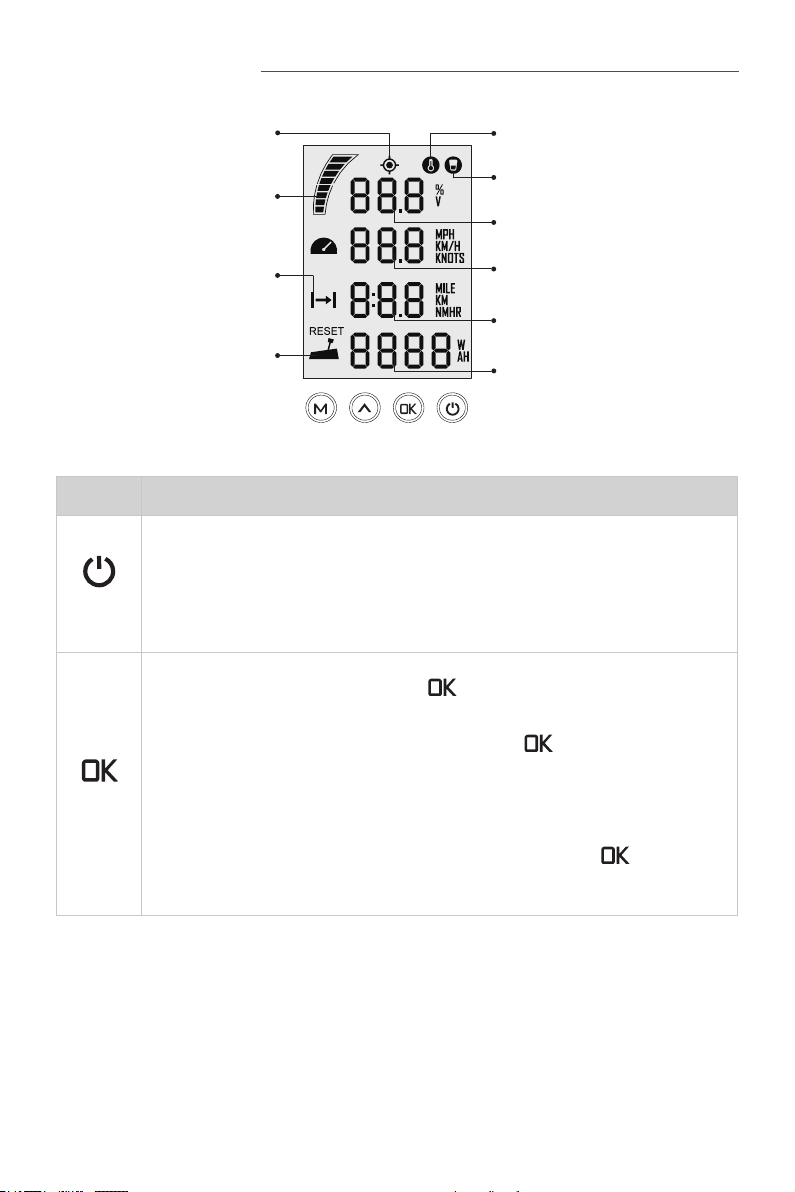

3 Displaying

Battery Level Indicator

Throttle Reset Indicator

Battery Level/Voltage

Kill Switch Status Indicator

Overheat Alert

Current Speed

Distance/Time

Throttle Power

GPS Status Indicator

Travelled Distance/

Time or Remaining

Distance/Time

Figure 3-1

Buttons Functions

“Power”

1. In power-off state, press and hold the power button to power

on the Tiller Handle.

2. In power-on state, press and hold the power button to power

off the Tiller Handle.

“OK”

1. On setting pages, press " " button to save the current

settings and switch to the next item.

2. On setting pages, press and hold “ ” button, and the

system will save your settings, the display will exit from

setting page and return to the home page.

3. In power-on state, when home page displays or all the

characters display on the page, press “ ” button

and hold 5s to enter the Tiller Handle pairing page.

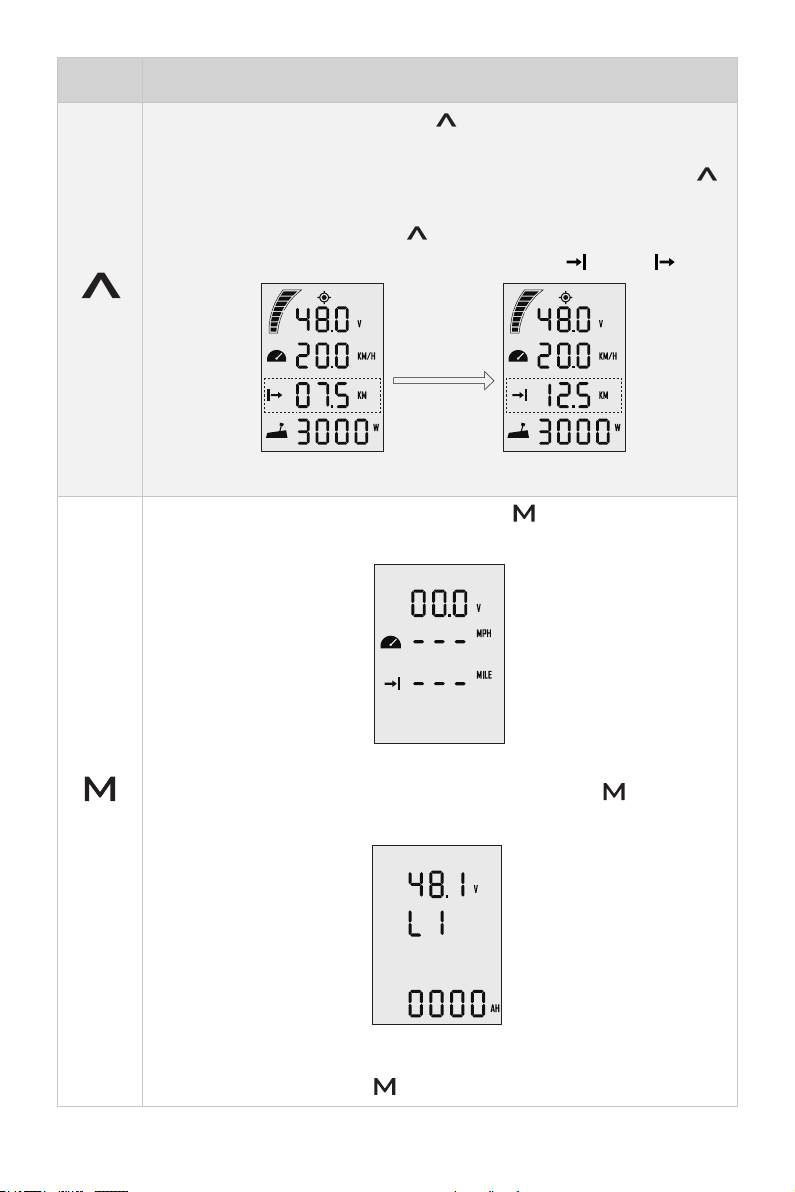

Buttons Functions

“Up”

1. On any setting page, press “

” button to view options for

current setting.

2. In power-on state, when home page displays, press “

”

button and hold 10s to enter the throttle calibration page.

3. On home page, press “

” button to switch the travelling

distance or time displaying icon between “ ” and “ ”.

press

“Up”

button

Main page 1 Main page 2

“Menu”

1. In power-on state, press and hold “ ” button to enter the

preference setting page.

Preference setting page

2. On preference setting page, press and hold “ ” button to

enter the battery setting page.

Battery setting page

3. On any page, press “ ” button to return home page.
