Epomaker Skyline 98 Manuel utilisateur

Skyline 98

1800 Compact Hot Swappable Wired Mechanical Gaming Keyboard Kit

Should you require more assistance please email us at support@epomaker.com

QUICK START GUIDE RKER

EPOMAKER Skyline 98

Caps Lock

1800 Compact Hot Swappable Wired Mechanical Gaming Keyboard Kit

This Quick Guide is an introduction to the use and functionality of the EPOMAKER Skyline 98

For in-depth guide of functionality of the customization software please refer to the manual that you can find in

the official epomaker website at https://epomaker.com/pages/software-downloads

Should you require more assistance please email us at [email protected]

Enter 4 5 6

Enter

MODEL:

SIZE:

NKRO:

SYSTEM:

CONNECTION:

EPOMAKER Skyline 98 WEIGHT:

385 x 140 x 30mm

Yes

Windows / Mac

USB-C

HOTSWAP:

KEYCAPS:

LAYOUT:

1140g ± 50g

YES

98 Keys

Made in China

Manufacturer: Shenzhen Changyun Technology Co., Ltd. EC

Address: Seventh Floor, Kai Daer Building, No.168 Tongsha Road,

Xili Street, Nanshan Disctrict, Shenzhen,Guangdong, CN

Email: [email protected]

Web: www.epomaker.com

REP

APEX CE SPECIALISTS LIMITED

Address: UNIT 3D NORTH POINT HOUSE, NORTH POINT BUSINESS

PARK, NEW MALLOW ROAD CORK, T23 AT2P, IRELAND

Contact: Wells

Tel: +353212066339

Email: [email protected]

FN+Esc Long press 3s to restore

the default setting

Fn + F1 Screen Brightness -

Fn + F2

Fn + F3

Screen Brightness +

Control Center

Fn + F4 Explorer

Fn + F5 Mail

Fn + F6 Home Page

Fn + F7 Previous track

Fn + F8 Play/Pause

Fn + F9 Next track

Fn + F10 Mute

Fn + F11 Volume -

Fn + F12 Volume +

Fn+PGUP Home

Fn+PGDN End

Fn+P PAUSE

Fn + I Prtsc

Fn + 0 Scroll

Fn+\| Toggle Backlight Eﬀects

Fn+Shift_R Toggle Backlight Colors

Fn+↑ Backlight Brightness +

Fn+↓ Backlight Brightness -

Fn+← Backlight Speed -

Backlight Speed +Fn+→

Lock/Unlock Win KeyFn+Win_L

Fn+Backspace Turn on/oﬀ Backlights

FN+Esc Long press 3s to restore

the default setting

F1 Screen Brightness -

Screen Brightness +

Control Center

F4 Explorer

F5 Mail

F6 Home Page

F7 Previous track

F8 Play/Pause

F9 Next track

F10 Mute

F11 Volume -

F12 Volume +

Fn+PGUP Home

Fn+PGDN End

Fn+P PAUSE

Fn + I Prtsc

Fn + 0 Scroll

Fn+\| Toggle Backlight Eﬀects

Fn+Shift_R Toggle Backlight Colors

Fn+↑ Backlight Brightness +

Fn+↓ Backlight Brightness -

Fn+← Backlight Speed -

Backlight Speed +Fn+→

Lock/Unlock Win KeyFn+Win_L

Fn+Backspace Turn on/oﬀ Backlights

WINDOWS SHORTCUT KEY MAC OS SHORTCUT KEY

WINDOWS SHORTCUT KEY

FN+Esc

+ FIO

Fn + F 12

Long press 3s to restore

the default setting

Screen Brightness -

Screen Brightness +

Control Center

Explorer

Mail

Home Page

Previous track

Play/Pause

Next track

Mute

Volume -

Volume +

Fn+PGUP

Fn+PGDN

Fn+l

Home

End

PAUSE

Prtsc

Scroll

Fn+Backspace

Fn+\l

Fn+Shift R

Fn+Win L

Turn on/off Backlights

Toggle Backlight Effects

Toggle Backlight Colors

Backlight Brightness +

Backlight Brightness -

Backlight Speed -

Backlight Speed +

Lock/Unlock Win Key

FN+Esc Long press 3s to restore

the default setting

Fn + F1 Screen Brightness -

Fn + F2

Fn + F3

Screen Brightness +

Control Center

Fn + F4 Explorer

Fn + F5 Mail

Fn + F6 Home Page

Fn + F7 Previous track

Fn + F8 Play/Pause

Fn + F9 Next track

Fn + F10 Mute

Fn + F11 Volume -

Fn + F12 Volume +

Fn+PGUP Home

Fn+PGDN End

Fn+P PAUSE

Fn + I Prtsc

Fn + 0 Scroll

Fn+\| Toggle Backlight Eﬀects

Fn+Shift_R Toggle Backlight Colors

Fn+↑ Backlight Brightness +

Fn+↓ Backlight Brightness -

Fn+← Backlight Speed -

Backlight Speed +Fn+→

Lock/Unlock Win KeyFn+Win_L

Fn+Backspace Turn on/oﬀ Backlights

FN+Esc Long press 3s to restore

the default setting

F1 Screen Brightness -

Screen Brightness +

Control Center

F4 Explorer

F5 Mail

F6 Home Page

F7 Previous track

F8 Play/Pause

F9 Next track

F10 Mute

F11 Volume -

F12 Volume +

Fn+PGUP Home

Fn+PGDN End

Fn+P PAUSE

Fn + I Prtsc

Fn + 0 Scroll

Fn+\| Toggle Backlight Eﬀects

Fn+Shift_R Toggle Backlight Colors

Fn+↑ Backlight Brightness +

Fn+↓ Backlight Brightness -

Fn+← Backlight Speed -

Backlight Speed +Fn+→

Lock/Unlock Win KeyFn+Win_L

Fn+Backspace Turn on/oﬀ Backlights

WINDOWS SHORTCUT KEY MAC OS SHORTCUT KEY

MAC OS SHORTCUT KEY

FN+Esc

FIO

Fl 1

Long press 3s to restore

the default setting

Screen Brightness -

Screen Brightness +

Control Center

Explorer

Mail

Home Page

Previous track

Play/Pause

Next track

Mute

Volume -

Volume +

Fn+PGUP

Fn+PGDN

Fn.+l

Fn+O

Home

End

PAUSE

Prtsc

Scroll

Fn+Backspace

Fn+\l

Fn+Shift R

Fn+t

Fn+Win L

Turn on/off Backlights

Toggle Backlight Effects

Toggle Backlight Colors

Backlight Brightness +

Backlight Brightness -

Backlight Speed -

Backlight Speed +

Lock/Unlock Win Key

https://www.reddit.com/r/Epomaker/

EPOMAKER

.4 .30 REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:

https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Push Straight

Down

Please be gentle. Be sure

the pins are aligned with

the slots.

Before installing switches, be sure the pins are clean and straight.

EPOMAKER

Included

Tools

Switch Puller

Remove Switches

Mechanical

Switch

Example of a switch

as seen from top

after you remove the

keycap to prepare for

switch removal.

Logo

Switch Shaft

Keycap Puller The Switch Puller tool aligns Vertically to the Switch to

unclip the plastic securing the switch to the plate.

Install Switches

I. Grab your Switch Removal Tool and align the gripping teeth

vertically (on the Y-Axis) at the center of the switch, as shown in

the example graphic above.

2. Grab the switch with the Switch Puller and apply pressure until

the switch releases itself from the plate.

3. Using firm but gentle force pull the switch away from the

keyboard using a vertical motion.

Check that all the switch metallic pins are perfectly straight and clean.

Align the switch vertically to have the Gateron logo facing north. The

pins should align themselves to the keyboard PBC.

Press the switch down until you hear a click. This means your switch

clips have attached themselves to the keyboard plate.

Inspect the switch to ensure it's properly attached to your keyboard,

and test it.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.

Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing

keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid

damage to the keyboard due to operating errors.

https://www.reddit.com/r/Epomaker/

EPOMAKER

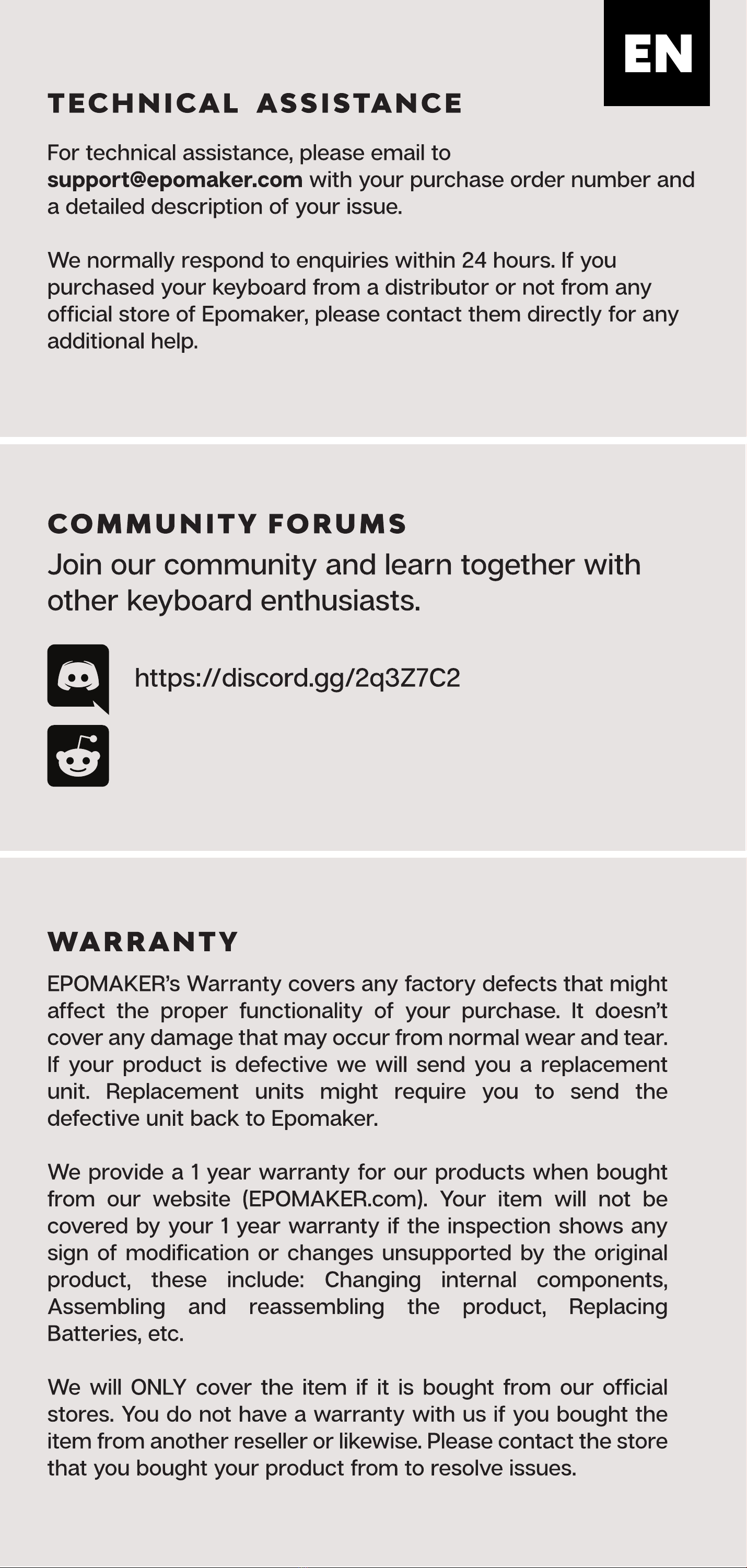

TECHNICAL ASSISTANCE

For technical assistance, please email to

[email protected] with your purchase order number and

a detailed description of your issue.

We normally respond to enquiries within 24 hours. If you

purchased your keyboard from a distributor or not from any

official store of Epomaker, please contact them directly for any

additional help.

COMMUNITY FORUMS

Join our community and learn together with

other keyboard enthusiasts.

https://discord.gg/2q3Z7C2

https://www.reddit.com/r/Epomaker/

WARRANTY

EPOMAKER's Warranty covers any factory defects that might

affect the proper functionality of your purchase. It doesn't

cover any damage that may occur from normal wear and tear.

If your product is defective we will send you a replacement

unit. Replacement units might require you to send the

defective unit back to Epomaker.

We provide a 1 year warranty for our products when bought

from our website (EPOMAKER.com). Your item will not be

covered by your 1 year warranty if the inspection shows any

sign of modification or changes unsupported by the original

product, these include: Changing internal components,

Assembling and reassembling the product, Replacing

Batteries, etc.

We will ONLY cover the item if it is bought from our official

stores. You do not have a warranty with us if you bought the

item from another reseller or likewise. Please contact the store

that you bought your product from to resolve issues.
