User Manual

EE072

Humidity and Temperature Probe

with Digital Interface

E+E Elektronik Ges.m.b.H. doesn‘t accept warranty and liability claims neither upon this publication nor in case of

improper treatment of the described products.

The document may contain technical inaccuracies and typographical errors. The content will be revised on a

regular basis. These changes will be implemented in later versions. The described products can be improved and

changed at any time without prior notice.

EMC note USA (FCC):

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

EMC note Canada (ICES-003):

CAN ICES-3 (A) / NMB-3 (A)

CONTENT

1 General .................................................................................................................................................4

1.1 Explanation of Symbols.................................................................................................................................4

1.2 Safety Instructions.........................................................................................................................................4

1.2.1 General Safety Instructions..................................................................................................................................4

1.2.2 Intended Use........................................................................................................................................................4

1.2.3 Mounting, Start-up and Operation........................................................................................................................4

1.3 Environmental Aspects..................................................................................................................................5

2 Scope of Supply ..................................................................................................................................5

3 Product Description ............................................................................................................................5

3.1 General..........................................................................................................................................................5

3.2 Dimensions....................................................................................................................................................6

3.3 Electrical Connection.....................................................................................................................................6

3.3.1 Modbus Version ...................................................................................................................................................6

3.3.2 CANopen Version ................................................................................................................................................7

3.4 Specification of the CAN Lines......................................................................................................................7

4 Installation ...........................................................................................................................................7

4.1 Wall and Ceiling Mount..................................................................................................................................7

4.2 Duct Mount ....................................................................................................................................................8

4.3 Recommendations for accurate Humidity and Temperature

Measurement ................................................................................................................................................8

5 Modbus.................................................................................................................................................9

5.1 Modbus Setup ...............................................................................................................................................9

5.2 Modbus Register Map .................................................................................................................................10

5.3 Modbus RTU Example ................................................................................................................................11

6 CANopen ............................................................................................................................................12

6.1 CANopen Setup ..........................................................................................................................................12

6.2 Function overview .......................................................................................................................................12

6.3 Electronic Datasheet (EDS) ........................................................................................................................13

6.4 Layer Setting Services (LSS) ......................................................................................................................13

7 Maintenance and Service .................................................................................................................13

7.1 Cleaning ......................................................................................................................................................13

7.2 Filter Cap Replacement...............................................................................................................................13

7.3 Protection during Site Cleaning Operations ................................................................................................14

7.4 Repairs ........................................................................................................................................................14

7.5 Configuration Interface ................................................................................................................................14

7.6 RH / T Adjustment and Calibration ..............................................................................................................14

7.7 Spare Parts .................................................................................................................................................15

8 Accessories .......................................................................................................................................15

9 Technical Data ...................................................................................................................................16

4User Manual EE072 Humidity and Temperature Probe with Digital Interface

1 General

This user manual serves for ensuring proper handling and optimal functioning of the device. The user

manual shall be read before commissioning the equipment and it shall be provided to all staff involved

in transport, installation, operation, maintenance and repair. The user manual may not be used for the

purposes of competition without the written consent of E+E Elektronik® and may not be forwarded to

third parties. Copies may be made for internal purposes. All information, technical data and diagrams

included in these instructions are based on the information available at the time of writing.

1.1 Explanation of Symbols

This symbol indicates safety information.

It is essential that all safety information is strictly observed. Failure to comply with this information can

lead to personal injuries or damage to property. E+E Elektronik® assumes no liability if this happens.

This symbol indicates instructions.

The instructions shall be observed in order to reach optimal performance of the device.

1.2 Safety Instructions

1.2.1 General Safety Instructions

■ Avoid any unnecessary mechanical stress and inappropriate use.

■ When replacing the filter cap make sure not to touch the sensing elements.

■ The device must be operated with the filter cap on at all times.

■ Installation, electrical connection, maintenance and commissioning shall be performed by qualified

personnel only.

■ Use the EE072 only as intended and observe all technical specifications.

■ Do not use EE072 in explosive atmosphere or for measurement of aggressive gases.

■ Do not apply the nominal voltage to the data lines.

1.2.2 Intended Use

The EE072 is intended for highly accurate humidity (RH) and temperature (T) measurement in

demanding process applications. The measured values and the calculated parameters are availabe on

Modbus RTU or CANopen.

The use of the EE072 in any other way than described in this manual bears a safety risk for people and

the entire measurement installation and is therefore not allowed.

The manufacturer cannot be hold responsible for damages as a result of incorrect handling, installation,

and maintenance of the equipment.

In order to avoid damage to the instrument or health hazards, the measuring equipment must never be

manipulated with tools that are not specifically described in this manual.

The sensor may only be utilized in accordance with the conditions defined in the technical data.

Otherwise, measurement inaccuracies will occur and equipment failures cannot be ruled out.

The steps recommended by the manufacturer for installation, inspections and maintenance work must

be observed and carried out for the safety of the user and for the functionality of the equipment.

Unauthorized product modification leads to loss of all warranty claims. This may be accomplished only

with an explicit permission of E+E Elektronik®!

1.2.3 Mounting, Start-up and Operation

The EE072 humidity and temperature probe has been produced under state of the art manufacturing

conditions, has been thoroughly tested and has left the factory fulfilling all safety criteria. The

manufacturer has taken all precautions to ensure safe operation of the device. The user must ensure

User Manual EE072 Humidity and Temperature Probe with Digital Interface

that the device is set up and installed in a manner that does not have a negative effect on its safe

use. The user is responsible for observing all applicable safety guidelines, local and international, with

respect to safe installation and operation on the device. This user manual contains information and

warnings that must be observed by the user in order to ensure safe operation.

■ Mounting, start-up, operation and maintenance of the device may be performed by qualified staff

only. Such staff must be authorized by the plant operator to carry out the mentioned activities.

■ The qualified staff must have read and understood this user manual and must follow the

instructions contained within.

■ All process and electrical connections shall be thoroughly checked by authorized staff before putting

the device into operation.

■ Do not install or start-up a device supposed to be faulty. Make sure that such devices are not

accidentally used by marking them clearly as faulty.

■ A faulty device may only be investigated and possibly repaired by qualified, trained and authorized

staff. If the fault cannot be fixed, the device shall be removed from the process.

■ Service operations other than described in this user manual may only be performed by the

manufacturer.

Disclaimer of Liability

The manufacturer or their delegated representative is only liable in case of intent or gross negligence.

The accountability is limited to the value of the order issued at the time to the manufacturer. The

manufacturer is not liable for damages, originated from disregarding the safety instructions or violating

the instructions of the manual or operating conditions. Consequential damages are excluded from any

liability.

1.3 Environmental Aspects

Products from E+E Elektronik® are developed and manufactured observing of all relevant requirements

with respect to environment protection. Please observe local regulations for the device disposal.

For disposal, the individual components of the device must be separated according to local recycling

regulations. The electronics shall be disposed of correctly as electronics waste.

2 Scope of Supply

■ EE072 – Humidity and Temperature Probe with Digital Interface according to ordering code

■ Inspection certificate according to DIN EN 10204-3.1

■ Quick guide (for Modbus version only)

3 Product Description

3.1 General

The EE072 is a robust probe for relative humidity and temperature measurement. Its IP65 rating and

the E+E proprietary protective sensor coating make it ideal for highest requirements. This is also

underlined by the wide humidity and temperature working ranges of 0...100 %RH and -40...80 °C.

The EE072 is typically implemented in demanding process and climate control applications like in

agriculture, life stock, food, pharma or clean rooms. A wide choice of filter caps allow for versatile

options in challenging industrial applications. Installation is simplified by various mounting options which

are supported by E+E accessories.

The EE072 is available with two different interface versions, either with CANopen/CAN or with Modbus

RTU over RS485. The M12x1 connector links the probe to the digital infrastructure.

6User Manual EE072 Humidity and Temperature Probe with Digital Interface

3.2 Dimensions

101.5 (4)

99.5 (3.92)

M12x1

(0.43)

Ø12 (0.47)

L = Filter length; refer to data sheet "Accessories"

Fig. 1 Dimensions of EE072 in mm (inch)

1.5

20 Ø5

1.5

122

Ø105

174

Fig. 2 Dimensions of optional radiation shield (ordering code HA010502) in mm

3.3 Electrical Connection

The relations of electrical potential between a bus system and an EE072 humidity/temperature sensor

are characterized by the following properties:

■ The bus connection is not electrically isolated from the supply connection

■ The individual EE072 node is not electrically isolated from the supply voltage

■ Each EE072 humidity/temperature sensor can be supplied separately

3.3.1 Modbus RTU Version

Pin number Function Wire colors for accessories:

- Coupling flange HA010705

- Connection cable HA010819/820/821

1Supply voltage brown

2B RS485 (D-) white

3GND blue

4A RS485 (D+) black

front view

M12 device plug

front view

1 2

front view

1 2

Tab. 1 Connection to the EE072 Modbus RTU version

User Manual EE072 Humidity and Temperature Probe with Digital Interface

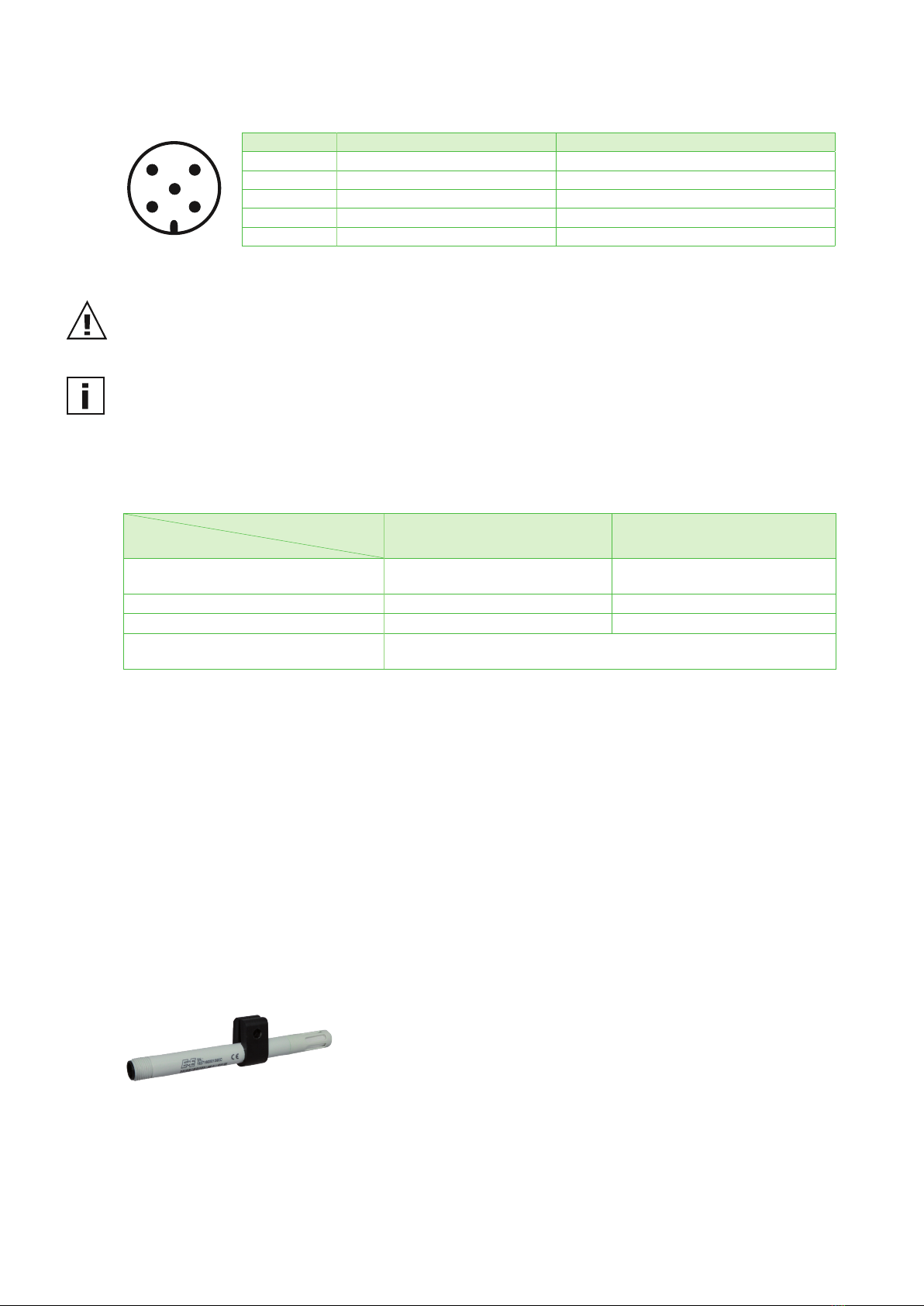

3.3.2 CANopen Version

Pin number Function Wire colors according to ISO 11898:

1CAN_SHLD Not in use

2CAN_V+ brown

3CAN_GND white

4CAN_H green

5CAN_L yellow

front view

M12 device plug

front view

1 2

front view

1 2

Tab. 2 Connection to the EE072 CANopen version, in accordance with CiA-303-1

In order to ensure a stable CANopen communication, the supply voltage must exceed the lower supply

voltage limit of 10 V DC within two seconds after power-on.

The EE072 triggers an alarm message if the supply voltage is outside the supply limits. The lowest

detectable voltage is 9 V and the highest 35 V.

3.4 Specification of the CAN Lines

The cables used for connecting the CAN bus nodes must comply with ISO 11898. Therefore, the lines

must have the following characteristics:

Bus system overall length

Parameter

< 300 m < 1000 m

Cable type LIYCY 2 x 2 x 0.5 mm2

twisted pair with shielding

CYPIMF 2 x 2 x 0.5 mm2

twisted pair with shielding

Line resistance 40Ω/km 40Ω/km

Line capacitance 130 nF/km 60 nF/km

Connection Pair 1 (white / brown): CAN_GND and CAN_V+

Pair 2 (green / yellow): CAN_H and CAN_L

Tab. 3 CAN cable specification

■ Only use cables that have an additional pair of wires for CAN_GND.

■ Trouble-free operation of the CAN bus is only possible with correctly connected CAN_GND.

■ Connectthebusterminationresistors.A120Ωterminatingresistormustbeconnectedateach

physical end of the bus system (main trunk).

4 Installation

4.1 Wall and Ceiling Mount

Best measurement performance is achieved when the entire probe is located inside the environment to

be monitored.

In such a case, the EE072 may be for instance fixed onto a wall with the mounting clip HA010211 (not

included in the scope of supply, see data sheet “Accessories”), or freely hang from the ceiling on the

connection cable.

Fig. 3 Optional wall and ceiling mount (ordering code HA010211)

8User Manual EE072 Humidity and Temperature Probe with Digital Interface

4.2 Duct Mount

The probe also can be installed into a duct using the plastic flange HA010202 or the stainless steel

flange HA010201 (not included in the scope of supply, see data sheet “Accessories”).

Fig. 4 Optional plastic flange (ordering code

HA010202)

Fig. 5 Optional stainless steel flange

(ordering code HA010201)

4.3 Recommendations for accurate Humidity and Temperature

Measurement

■ In case the EE072 probe is not entirely located in the environment to be monitored, large

temperature differences along the probe will lead to temperature gradients. These will have an

influence on the accuracy. Therefore, it is of paramount importance to minimize the temperature

gradients. The biggest part of the probe shall be located in the target environment and the rest shall

be thermally well insulated.

■ For outdoor applications the EE072 shall be equipped with a radiation shield (HA010502) which

provides protection from rain, snow and ice. This also causes a natural ventilation which largely

prevents overheating of the probe in the sun and thus a distortion of the measured values.

■ For highest accuracy of the measured humidity and the calculated parameters (e.g. wet bulb

temperature, dew point and others), the user can set the barometric pressure at the operating point,

using the EE-PCS Product Configuration Software (see „7.5 Configuration Interface“), via Modbus

protocol (see „5.1 Modbus Setup“) or via CANopen protocol. The factory setting is 1013.25 mbar.

■ Best accuracy is achieved with a velocity of min. 0.2 m/s of the air surrounding the probe. Depending

on the installation position, flow direction and flow velocity, the accuracy may decline. The following

table gives a concise overview. Please note that the vertical positioning with the sensing element

upside is the most sensitive one concerning accuracy. Because of possible self heating due to the

sensor electronics, it is crucial to have the indicated air flow velocity.

Flow direction of medium

> 0.2 m/s > 0.2 m/s

Polycarbonate > 0.2 m/s

Stainless steel > 2 m/s > 0.2 m/s

> 0.2 m/s Polycarbonate > 0.2 m/s

Stainless steel > 2 m/s

> 0.2 m/s > 0.2 m/s

Tab. 4 Mounting position, air velocity and accuracy

User Manual EE072 Humidity and Temperature Probe with Digital Interface

5 Modbus

5.1 Modbus Setup

Factory settings Selectable values (via EE-PCS)

Baud rate 9600 9600, 19200, 38400, 57600, 76800, 115200

Data bits 8 8

Parity Even None, odd, even

Stop bits 1 1, 2

Slave address 234 1...247

Tab. 5 Modbus default settings

Device address, baud rate, parity and stop bits can be set via:

1. EE-PCS, Product Configuration Software and the Modbus configuration adapter HA011018.

The EE-PCS can be downloaded free of charge from www.epluse.com/configurator

2. Modbus protocol in the register 60001 (0x00) and 60002 (0x01).

See Application Note Modbus AN0103 (available on www.epluse.com/EE072)

The serial number as ASCII-code is located at read register address 30001-30008 (16 bits per address).

The firmware version is located at register address 30009 (bit 15...8 = major release; bit 7...0 = minor

release). The sensor name is located at register address 30010.

Please note: When reading the serial number or the sensor name, it is always necessary to read all 8

registers, even if the desired information requires less.

Please note: For obtaining the correct floating point values, both registers have to be read within

the same reading cycle. The measured value can change between two Modbus requests, therefore

exponent and mantissa may get inconsistent.

Communication settings (INTEGER 16 bit)

Parameter Register number1) [DEC] Protocol address2) [HEX]

Write register: function code 0x06

Slave-ID Modbus address 0001 0x00

Modbus protocol settings3) 0002 0x01

1) Register number starts from 1.

2) Protocol address starts from 0.

3) For Modbus protocol settings see Application Note Modbus AN0103 (available on www.epluse.com/EE072).

INFO (read register)

Parameter Register number1) [DEC] Protocol address2) [HEX]

Read register: function code 0x03 / 0x04

Serial number (as ASCII) 0001 0x00

Firmware version 0009 0x08

Sensor Name 0010 0x09

1) Register number starts from 1.

2) Protocol address starts from 0.

Air pressure

Parameter Register number1) [DEC] Register address2) [HEX]

Read and write register: function code 0x03 / 0x10

Air pressure3) 5001 0x1388

1) Register number starts from 1

2) Register address starts from 0

3) Ambient pressure in mbar, with 2 decimal digits (e.g. 1008.25), (Default value 1013.25 mbar)

10 User Manual EE072 Humidity and Temperature Probe with Digital Interface

5.2 Modbus Register Map

The measured data is saved as a 32 bit floating point values (data type FLOAT) and as 16 bit signed

integer values (data type INTEGER).

FLOAT (read register):

Parameter Unit Register number1) [Dec] Register address2) [HEX]

Read register: function code 0x03 / 0x04

Temperature T

°C 1003 0x3EA

°F 1005 0x3EC

°K 1009 0x3F0

Relative humidity RH, Uw % RH 1021 0x3FC

Water vapour partial pressure e mbar 1101 0x44C

psi 1103 0x44E

Dew point temperature Td

°C 1105 0x450

°F 1107 0x452

°K 1147 0x47A

Wet bulb temperature Tw

°C 1109 0x454

°F 1111 0x456

°K 1145 0x478

Absolute humidity dv g/m³ 1113 0x458

gr/ft³ 1115 0x45A

Mixing ratio r g/kg 1121 0x460

gr/lb 1123 0x462

Specific enthalpy h

kJ/kg 1125 0x464

ft lbf/lb 1127 0x466

BTU/lb 1129 0x468

Frost point temperature Tf

°C 1131 0x46A

°F 1133 0x46C

°K 1149 0x47C

Ice bulb temperature Ti

°C 1237 0x4D4

°F 1239 0x4D6

°K 1241 0x4D8

1) Register number starts from 1

2) Register address starts from 0

INTEGER (read register):

Parameter Unit Scale3) Register number1) [Dec] Register address2) [HEX]

Read register: function code 0x03 / 0x04

Temperature T

°C 100 4002 0xFA1

°F 50 4003 0xFA2

°K 50 4005 0xFA4

Relative humidity RH, Uw % RH 100 4011 0xFAA

Water vapour partial pressure e mbar 10 4051 0xFD2

psi 1000 4052 0xFD3

Dew point temperature Td

°C 100 4053 0xFD4

°F 100 4054 0xFD5

°K 100 4074 0xFE9

Wet bulb temperature Tw

°C 100 4055 0xFD6

°F 100 4056 0xFD7

°K 100 4073 0xFE8

Absolute humidity dv g/m³ 10 4057 0xFD8

gr/ft³ 10 4058 0xFD9

Mixing ratio r g/kg 10 4061 0xFDC

gr/lb 10 4062 0xFDD

Specific enthalpy h

kJ/kg 1 4063 0xFDE

ft lbf/lb 1 4064 0xFDF

BTU/lb 1 4065 0xFE0

Frost point temperature Tf

°C 100 4066 0xFE1

°F 100 4067 0xFE2

°K 100 4075 0xFEA

Ice bulb temperature Ti

°C 100 4119 0x1016

°F 100 4120 0x1017

°K 50 4121 0x1018

1) Register number starts from 1

2) Register address starts from 0

3) Examples: For scale 100, the reading of 2550 means a value of 25.5. For scale 50, the reading of 2550 means a value of 51.

Autres manuels pour EE072

Table des matières

Manuels Instrument analytique populaires d'autres marques

Cocraft

Cocraft NLT04 Manuel utilisateur

M&C

M&C GENTWO PMA1000 Manuel utilisateur

MICRO-EPSILON

MICRO-EPSILON optoncdt 1700 Manuel utilisateur

CONDTROL

CONDTROL XP4 PRO Manuel utilisateur

Extech Instruments

Extech Instruments BR200 Manuel utilisateur

Dewetron

Dewetron DEWE-30-16 Manuel du produit

EXTOL PREMIUM

EXTOL PREMIUM 8820043 Instructions d'installation et d'utilisation

RIDGID

RIDGID SeeSnake Compact Manuel utilisateur

Teledyne

Teledyne 3000PA Manuel utilisateur

YDLIDAR

YDLIDAR TIA Manuel utilisateur

Olympus

Olympus IPLEX FX Series Manuel utilisateur

Bosch

Bosch GLM 50 C Professional Manuel utilisateur

Reflecta

Reflecta DigiEndoscope Manuel utilisateur

Chinavision

Chinavision CVACZ-G696 Instructions de montage

Fuji Electric

Fuji Electric ZKMA Manuel utilisateur

Teledyne

Teledyne 3300TA Manuel utilisateur

VOLTCRAFT

VOLTCRAFT IC-100HD Manuel utilisateur

RIDGID

RIDGID micro CA-25 Manuel utilisateur
