Eplus P436.CE Manuel utilisateur
ELECTRO-HYDRAULIC 4-POST PARKING LIFT
ASSEMBLY MANUAL
CE ASSEMBLY MANUAL
This manual has been prepared for workshop personnel expert in the use of the lift (operator) and technicians responsible
for routine maintenance (Maintenance fitter).
This manual must be read with User’s Manual.
The lifting, transport, unpacking, assembly, installation, starting up, initial adjustment and testing, extraordinary mainte-
nance, repair, overhauls, transport and dismantling of the lift must be performed by specialized personnel from the licensed
dealer or a service center authorized by the manufacturer.
ALL PACKING, LIFTING, HANDLING, TRANSPORT AND UNPACKING OPERATIONS ARE TO BE PERFORMED EXCLUSIVELY BY EXPERT
PERSONNEL.
SKILLED AND AUTHORIZED PERSONNEL ONLY SHOULD BE ALLOWED TO PERFORM THESE OPERATIONS, FOLLOW ALL INSTRUC-
TIONS SHOWN BELOW CAREFULLY, IN ORDER TO PREVENT POSSIBLE DAMAGE TO THE CAR LIFT OR RISK OF INJURY TO PEOPLE.
BE SURE THAT THE OPERATING AREA IS CLEARED OF PEOPLE.
.CE ASSEMBLY MANUAL
Step
1
To disassembly the package and
remove all components and accessories.
.CE ASSEMBLY MANUAL
Step
2

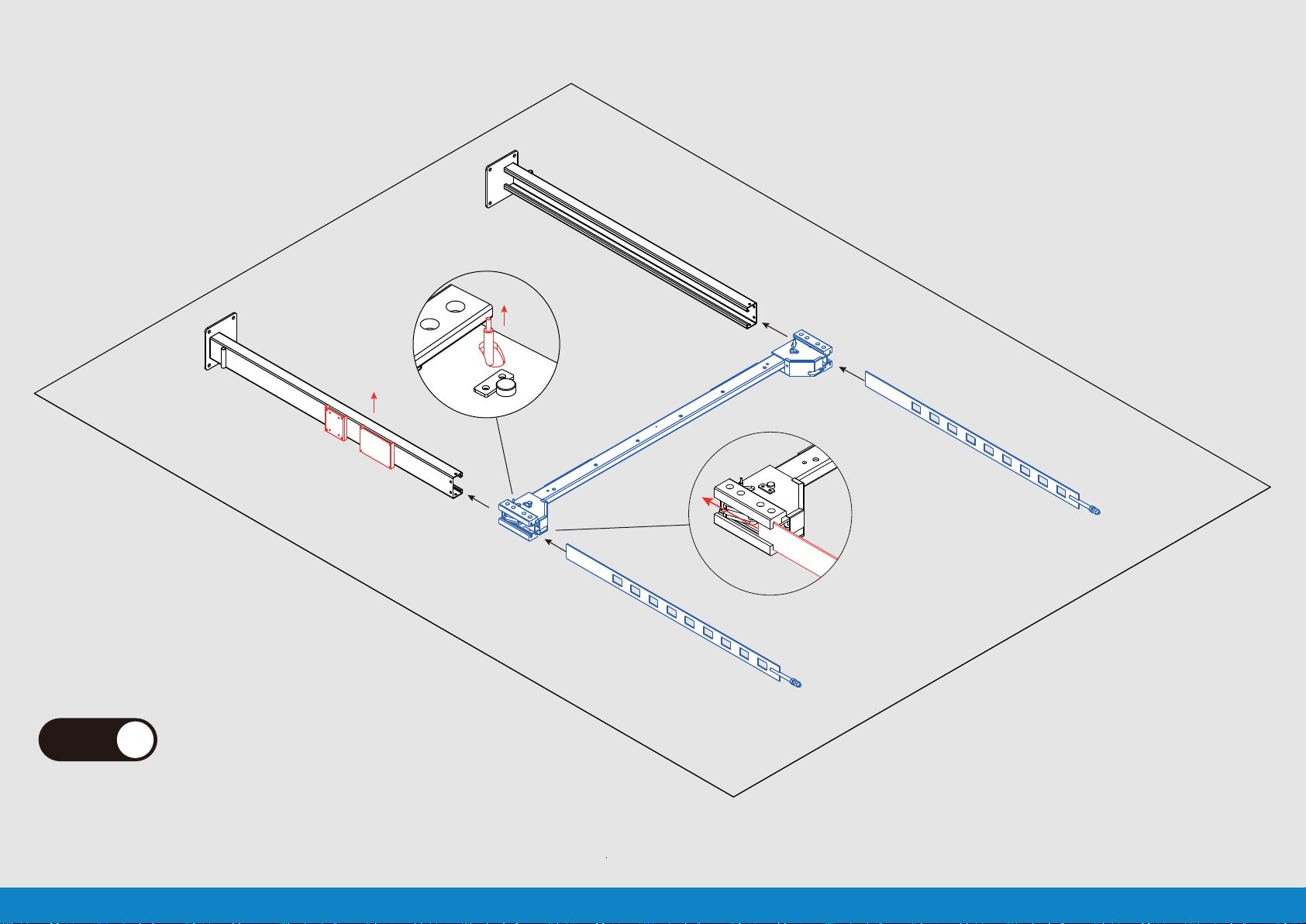

To install security lock plate and beam.
make slide block of beam assembly from the top of column slide into column.
Pay attention to the direction of the column and beam.
.CE ASSEMBLY MANUAL
5 mm
Step
3
To install the lock plate to the top plate with washers and nuts.
To install the top plate to the columns.
Pay attention to the direction of the top plate.
.CE ASSEMBLY MANUAL
Step
4
To lift up 4 columns.
.CE ASSEMBLY MANUAL
Step
5

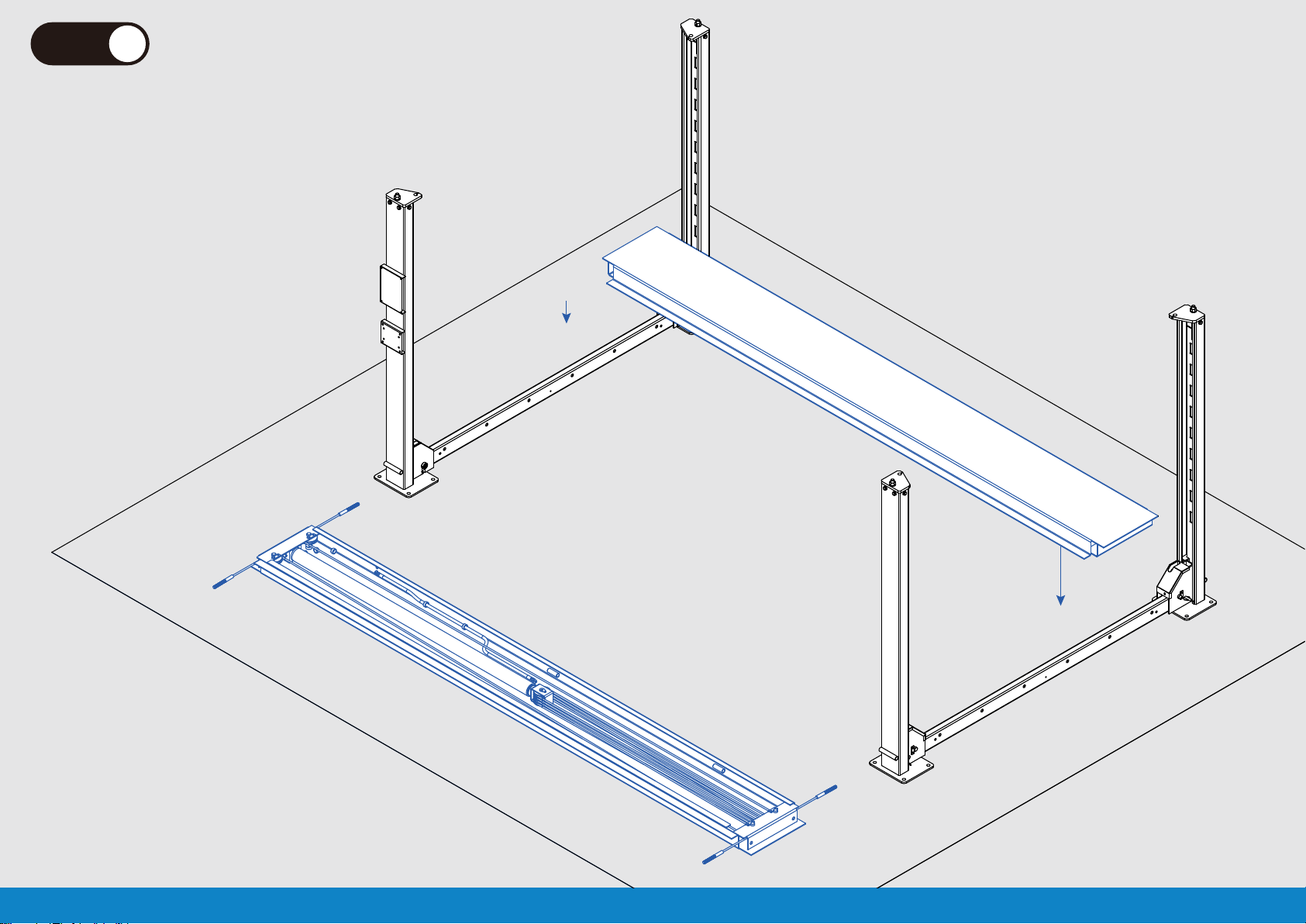

Place the sub runway.
Place the main runway upside down side of column.
.CE ASSEMBLY MANUAL
Step
6
Pull the piston rod of cylinder and pulley block
to the end,pull the steel cable tighten.
To install the oil pipe.
.CE ASSEMBLY MANUAL
Step
7
Place the main runawy.
.CE ASSEMBLY MANUAL
Step
8

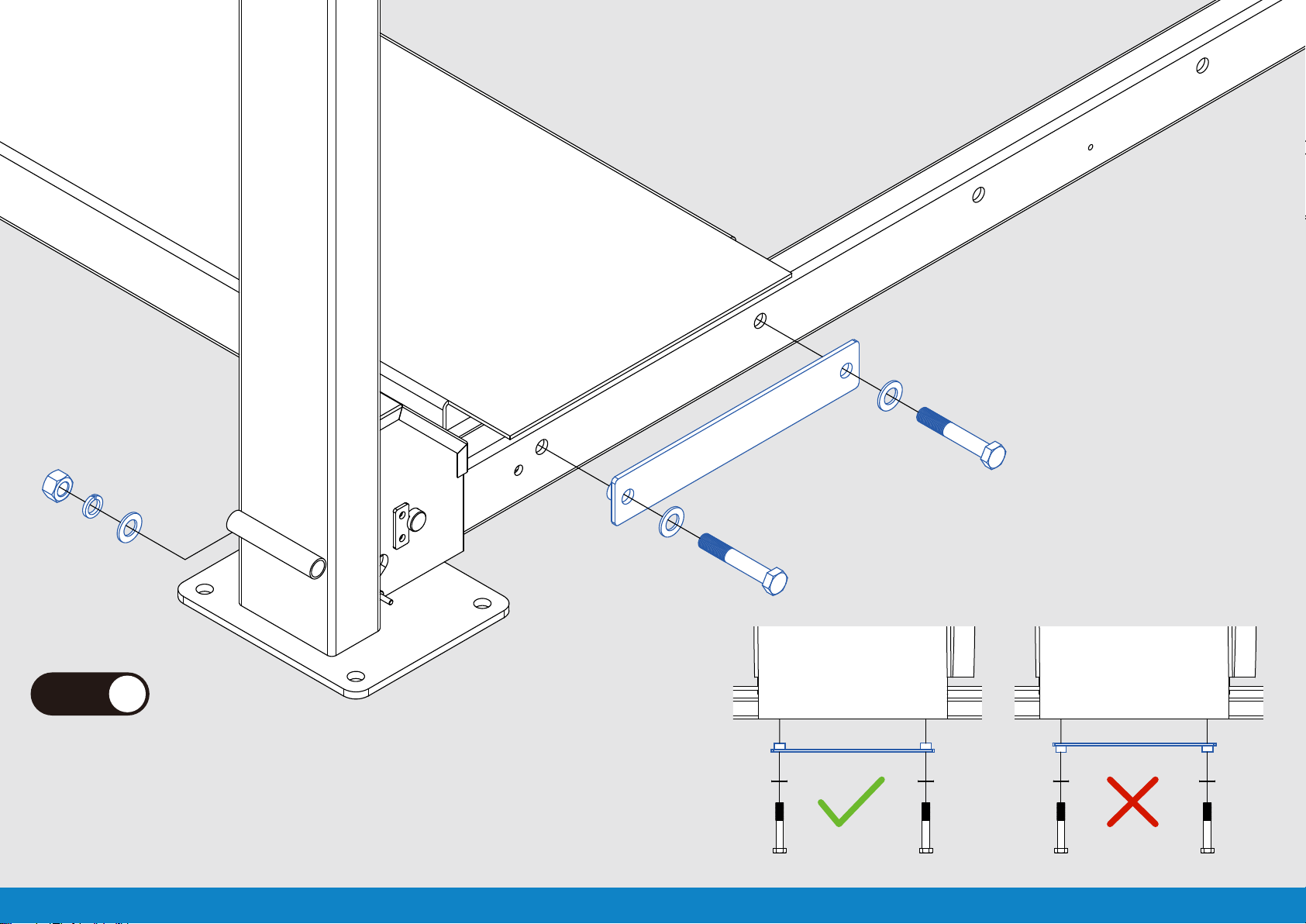

To fix the bottom plates and runways to the beam
with bolts and washers.
