Introduction

Thank you for purchasing the BlueRev Trio. We take great pride in bringing you a quality product that will offer you years of enjoyment.

The Trio is a one of a kind electric tricycle that has it all. With a powerful 500w front motor ona 24 inch wheel, the electric trike will get you moving

places fast. This tricycle hA mplw eoom to carry your belongings or other cargo with a large rear and front carrier. The Trio comes equipped with a

thumb throttle, pedal assist sensor, powerful hydraulic disc brakes and plenty more amazing features!

This manual contains details of the product, its equipment, and information on its operation and maintenance. Please read it carefully and familiarize yourself

with the e-bike before using it, in order to ensure safe use and prevent accidents. Be sure to retain this manual as reference to product knowledge and safe

riding.

The manual includes many warnings and cautions concerning the safe operation and consequences if safe operation is not performed in respect to operation

and maintenance of this product. All information in the manual should be carefully studied. If you have any questions, please contact us immediately.

The notes/warnings/cautions included within the dotted red boxes as shown to the left should be given special care when reviewing as they are directly

related to hazardous or dangerous situations if not avoided.

Because it is impossible to anticipate every situation or condition which can occur while riding, this manual makes no representation about the safe use of the

bicycle under all conditions. There are risks associated with the use of this bicycle that cannot be predicted or avoided. These risks are the sole responsibility

of the rider.

You should save this manual, along with any other documents that were included with your bicycle, for future reference. However, all content in this manual is

subject to change or withdrawal without notice. The maunfacturer makes every effort to ensure the accuracy of its documentation and assumes no responsibility

or liability for any errors or inaccuracies that may appear herein.

Using This Manual

TRIO USER MANUAL 02

TRIO USER MANUAL 03

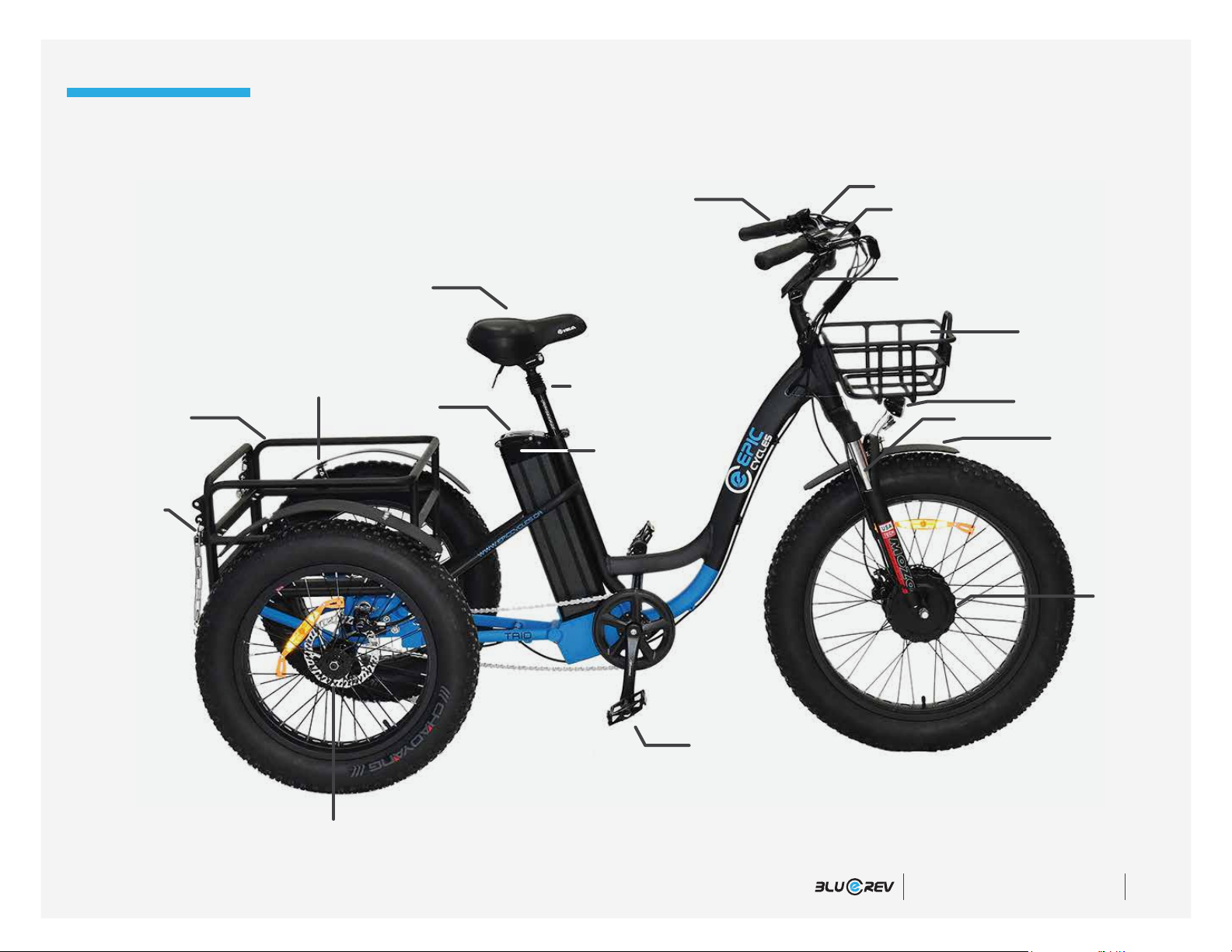

Parts Description

Handlebars

Seat/Saddle

Seatpost

Battery

Fork

Motor

Pedals

Display

Adjustable Stem

Rear carrier rack

Disc brakes

Chain latches

Brakes

Battery lock

& keys

Fenders

Front carrier rack

Front light

Front fender

To ensure your safety, make the following functional checks before driving:

1 - Normal operation of the light, brake and power cut system.

2 - Tire pressure (low pressure, will influence both autonomy and speed).

3 - Wheel axle tightening.

4 - Battery charging level.

5 - Braking system adjustment and free operation.

TRIO USER MANUAL 04

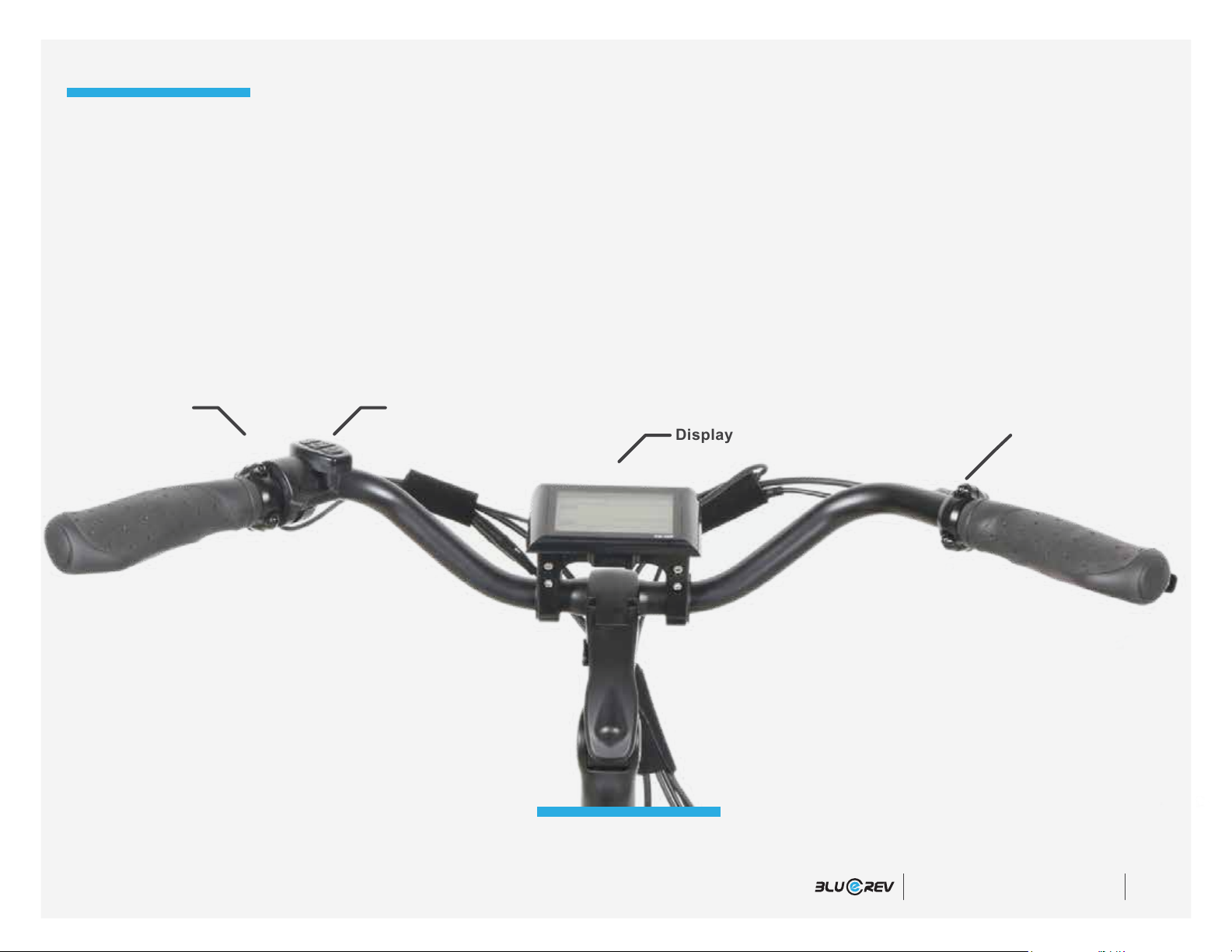

Display

Motor control

Front brake (North America)

Rear brake (North America)

Daily Checks

TRIO USER MANUAL 05

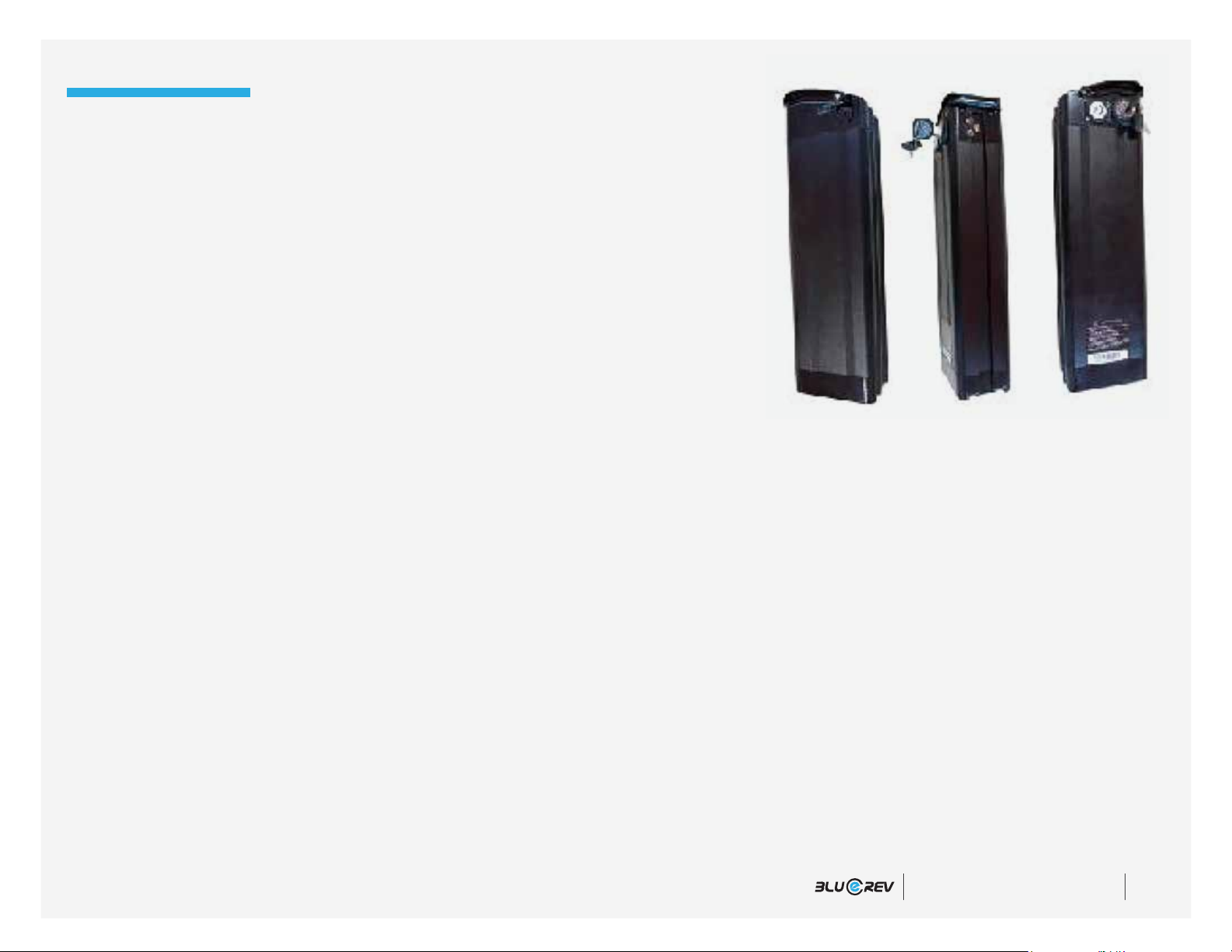

Charging tips

• The battery pack should be recharged after each use. There is no memory effect so you can charge the battery after short

periods of use without damage.

• The battery can be recharged on or off the bike.

• Remove the battery by turning the key and than pulling forwards and upwards carefully until the pack lifts off.

• The charger will automatically stop once the battery pack is full.

• Always charge in dry conditions and indoors away from direct sunlight.

• Check charger cables, charger, and battery for damage before beginning each charge.

With the battery removed

1. When the battery is removed, do not touch the “+”and“-”contacts, especially with wet hands or metallic objects.

2. Do not recharge the battery in the inverted position. If you do, you drastically reduce it’s lifespan.

3. Place the charger in a flat, secure place and connect the output plug to the socket in the battery box.

4. Then, connect the input plug (110V/220V terminal) to the power outlet, and the charging will start.

5. After the charging has finished, first, unplug the input plug (terminal 110V/220V), and then the output plug.

Battery Charging

TRIO USER MANUAL 06

Additional Charging Info

When the battery is charging on the bike

1. Switch off the power. The battery can be charged on or off the bike.

2. Plug the output lead of the charger into the socket of the battery case.

3. Plug the AC power input plug into the 110/220 volt household power socket to start charging.

4. After charging unplug from the wall outlet first and than from the bike charger socket.

NOTE: Always charge your battery at temperatures between 10 and 26 degrees celsius.

Duration of charging

1. When the input and output terminal are connected, the red indication light of the charger will be turned on, showing that

the power is being connected.

2. When the battery is charged for the first time, 8-10 hours should be spent for charging. When the yellow indication light of the

charger is turned on, showing that the battery basically full and it will switch to trickle charge mode to ensure that

over-charging will not occur, it takes 2-8 hours for normal charging.

3. This charger has a protection device for over-charging. Long time charging should not be more than 24 hours without

affecting the life time of the battery.

TRIO USER MANUAL 07

About Charging

If charging with the battery removed

1. Keep the charger in a safe place, away from children.

2. Do not use the battery when not fully charged. That will decrease its lifespan.

3. Do not charge the battery with any other charger than the original one provided.

4. The charger works with 110/220V. Please do not open it.

5. Avoid charger contact with liquids and/or metal objects. Always be sure it is safely stored/placed so that it can not

suffer damage from a fall/impact.

6. When in use, the charger should not be covered to prevent overheating, damage, or fire.

7. The charger is only for indoor use. Please keep it in dry and ventilated place.

8. If you notice a strange smell from the charger, or it is too hot, stop charging immediately, and contact the manufacturer.

TRIO USER MANUAL 08

Driving

Important tips while driving

1. In order to reduce consumption, increase autonomy, and extend the motors lifespan, use the pedals during the startups

and climbs.

2. Do not twist the throttle too fast. The vehicle should be accelerated slowly, to reduce consumption and the risk of

damage to the electrical system. It’s better to use the pedals to avoid sudden stops and startups, rather than only using

the throttle.

3. To increase security and reduce power consumption, is advised to avoid sudden stops and startups.

4. The vehicle controller has charge overload protection. If on overload, energy will be cut automatically and

restored when it returns to normal.

5. While driving, avoid using the throttle as your brake, as it may damage the motor.

6. The maximum load is 300-440lbs. Avoid driving with overload.

7. Do not drive too fast.

Important tips when parking

1. Turn off the power when pushing the vehicle manually, to avoid accidental acceleration and accidents.

2. It is recommended to park your Trio indoors. Do not forget to switch off the power and remove the key.

3. In a public place, the e-bike must be parked in accordance with local traffic rules. Do not forget to switch off

the power and remove the key.

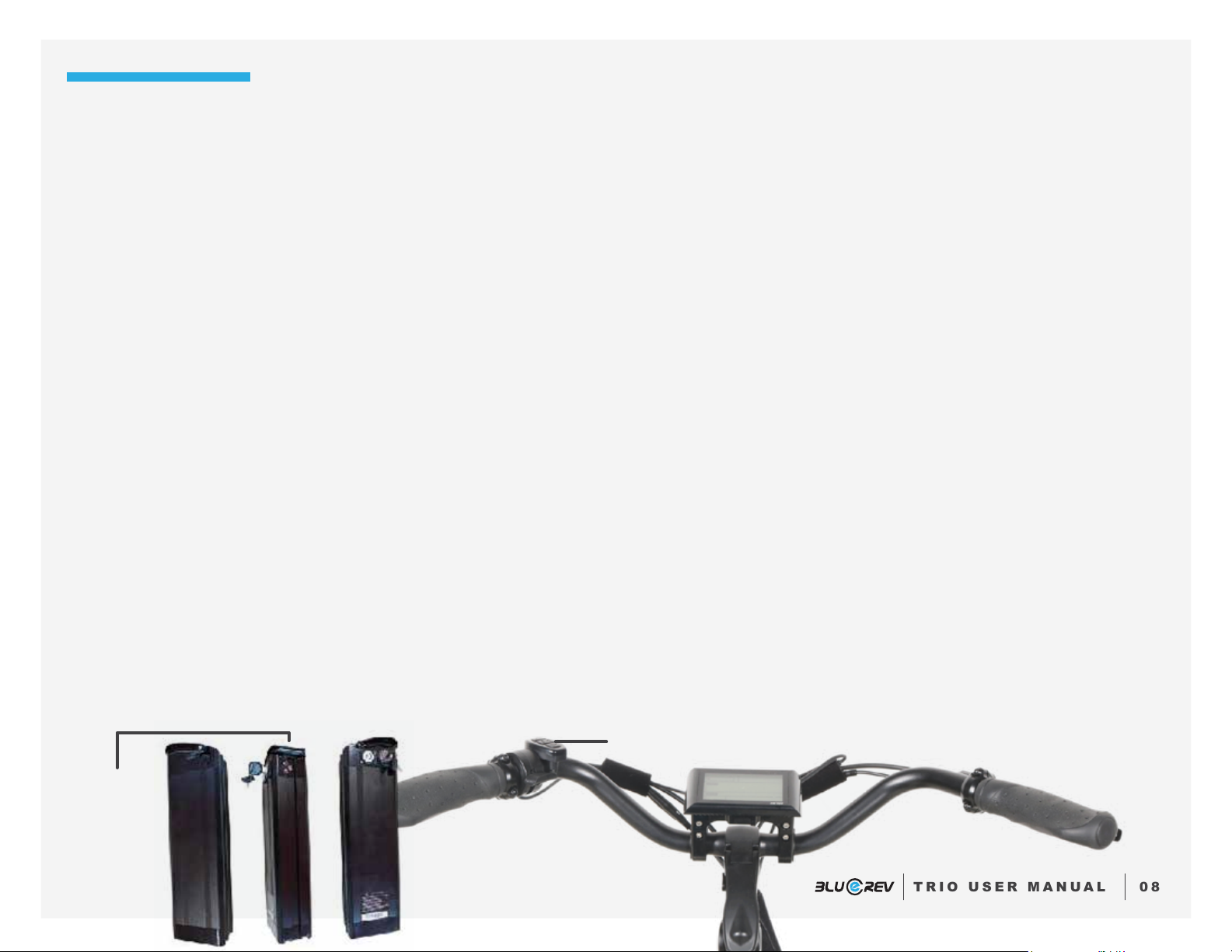

How to start up the vehicle

A. Press the battery ON/OFF button and battery power LED display to see the power capacity.

B. Hold down center button (M) on the handlebar until LCD screen turns on.

battery

button

on top

center button (M)

TRIO USER MANUAL 09

Average distance from one charge:

Standard battery: 14.5 Ah - 60-90Km; Upgrade: 17.5 Ah - 80-120km; Upgrade: 21Ah - 100-140km

Conditions of testing: wind speed: level 2-3, normal atmosphere temperature: 25 degrees,

Load: 90kg; Atmospheric pressure: 3.5kg/cm; Flat concrete surface; Battery: full.

Power consumption of one time charge: ≤0.5kWh

Economical speed: 18km/h

Rated load: 90 kg

Dead load: ≤30kg

Variables such as the load haul, road conditions, road surface, times of

start-up, times of stopping, wind direction, atmospheric temperature,

tire pressure and correct way of charging all affect range.

Driving Range

Safety Notes

1.4 ON/OFF the screen

Long press to turn off the screen.

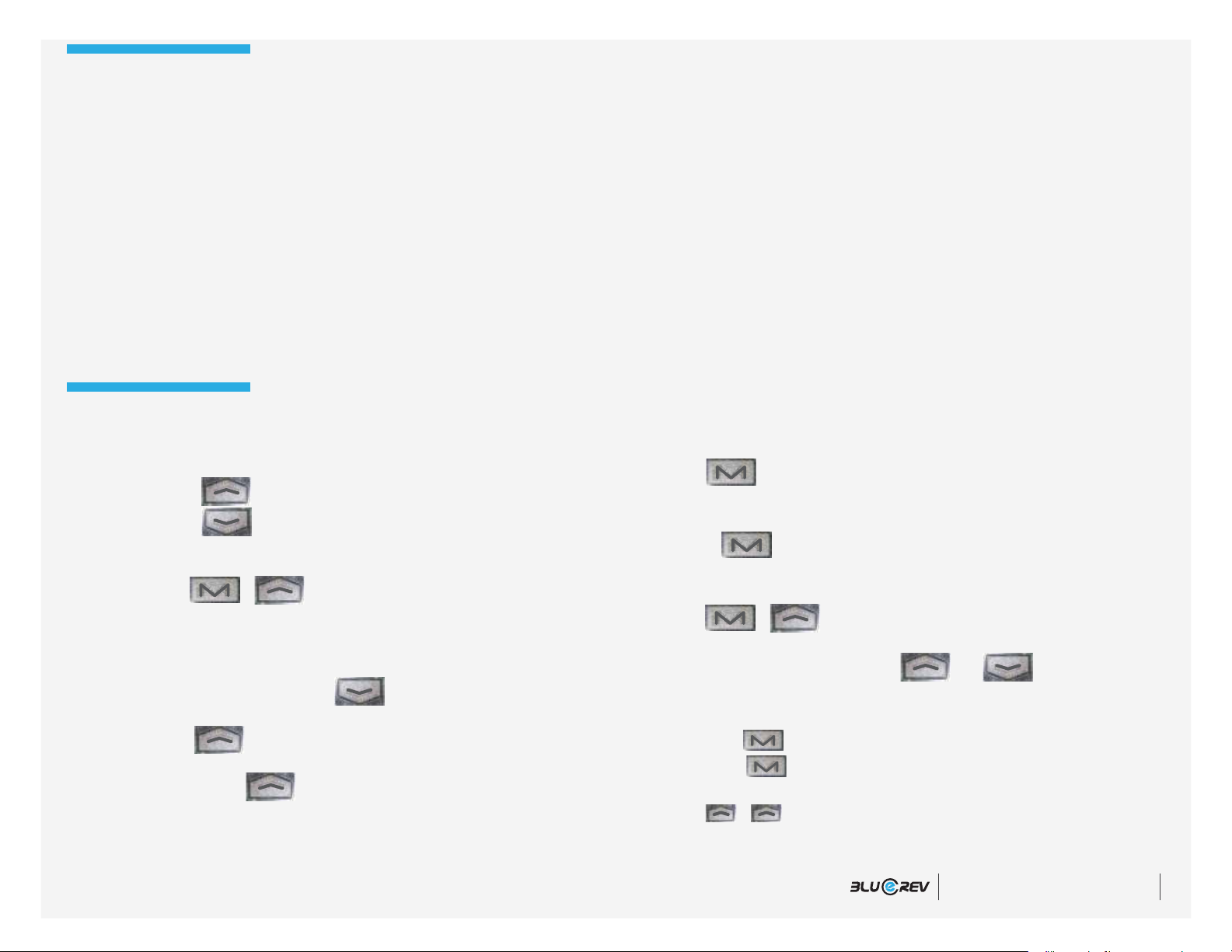

1.5 Change data in multi-function Area

Shortly press to change data.

1.6 Parameters setting

Long press + to start setting parameters, such as

wheel size (inch), and background lighting (Refer to P01-P16).

On the setting interface, shortly press , or

to plus/minus value. Values will be flashing after modifying,

choose the ones you want:

A. Long press to save the value, the shining would stop.

B. Short press to shift to the next parameter, and to

save current values at the same time.

C. Press + to exit setting parameters and to save

values. If not press these buttons, it would exit and save

parameters modified automatically 10s later.

1.1 Change PAS (Pedal Assist Sensor) grade

Suppose it’s PAS mode now,

shortly press , for PAS grade -1

shortly press , for PAS grade +1

1.2 Shift the speed display

Long press + , to shift the mode of speed unit to be

displayed (KM or Miles)

1.3 ON/OFF 6KM/H cruising, ON/OFF Headlight, Reset ODO

When e-bike stops, long press to enter 6KM/H cruising

mode. Stop pressing to exit the cruise mode;

Long press to turn ON/OFF

Headlight;

At P16, long press for 5 seconds to

reset ODO.

TRIO USER MANUAL 10

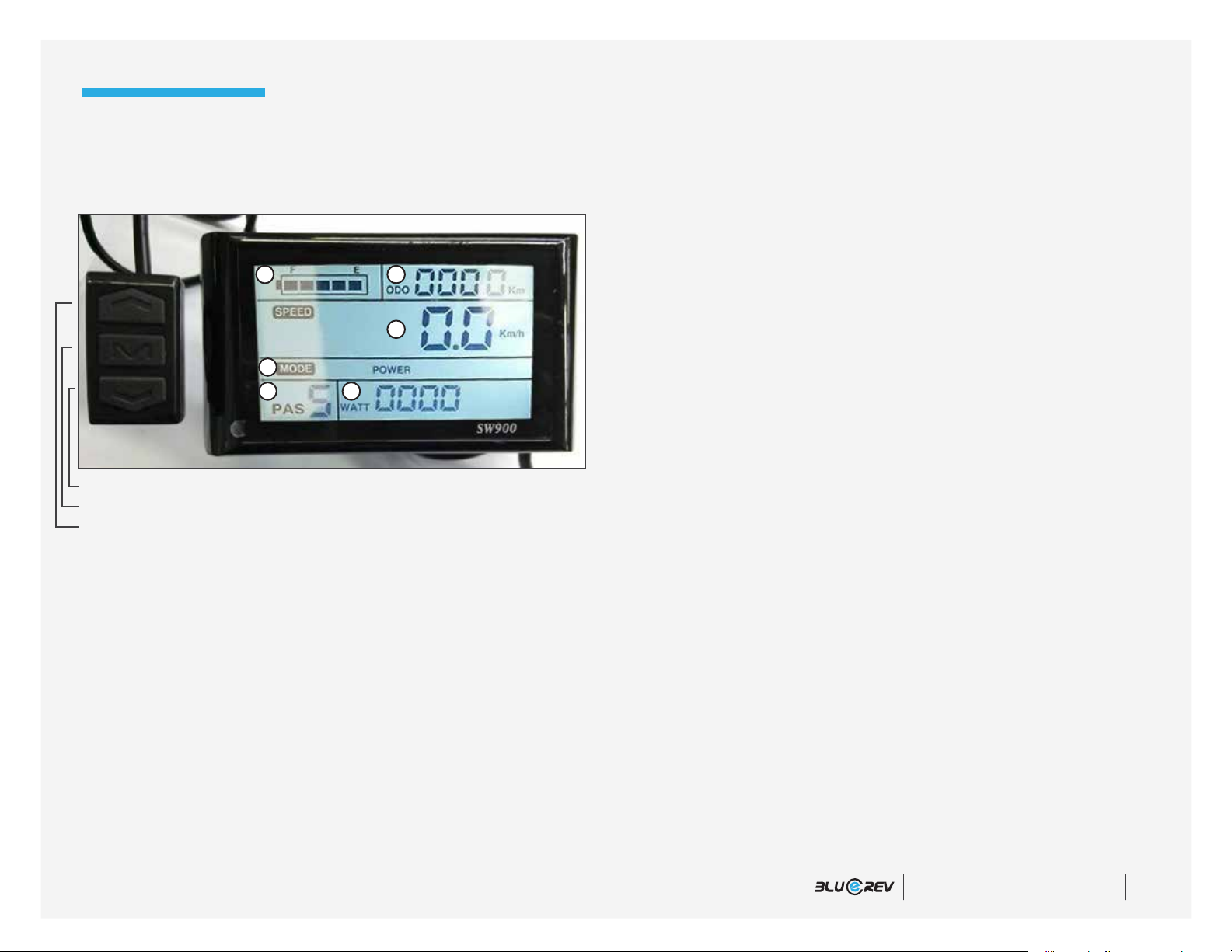

SW900 Computer Display

Three buttons on the left controls operation on the display

Additional setup notes

Up arrow:

1. Battery level - Displayed in blocks of five.

2. Odometer - Total mileage driven on the vehicle.

3. Speed - Current operating speed.

4. Current Power Mode (Eco, Standard, Power), depending on PAS

5. Pedal Assist Level (1 through 5) - the amount of assist you will receive, the

greater the number, the greater the assist.

6. Current power in watts - pay attention to this so you don’t run the battery empty.

Press Up and Down arrows together to enter Program Modes:

P01 - LCD display Brightness (15 levels)

P02 - Units in Miles or Kilometers - 0 is Kilometers; 1 is Miles.

P03 - Voltage of battery and motor that you are using, 48V is default.

P04 - Sleep time on display, choose between 0 and 60 minute. (0 means no sleep time)

P05 - Pedal Assist Mode, 0is for three grades of pedal; 1is for five grades of pedal assist.

five assist modes has a higher sensitivity to your pedal inputs versus the work outputs.

P06 - Wheel size, in this case set to 24” for Trio, important to correctly track speed

and mileage.

P07 - Speed measuring magnet, ranges from 1to 100. For the Trio it is set at factory for

500 watt motor, do not change this.

M (multi-function center button): long hold will turn on the display.

Down arrow:

1 2

5 6

P08 - Speed limit. Important depending on where you live, to adhere to local e-bike bylaws.

Europe - 15mph; USA - 28mph; Canada - 20mph (33kph). Speed can be set from

0-100, so maximum speed can be achieved, but observe local regulations is

recommended.

P09 - Zero start, or Non-zero start. 0setting is immediate response from throttle. 1setting is

delayed reaction from throttle.

P10 - Driving mode which determines which PAS. Three settings: 0, 1, 2. 0is driven by the

PAS with no throttle available. 1is driven completely by the throttle and there are no

PAS. 2is a combination of both pedal assist (PAS) and throttle.

P11 - Pedal Assist sensitivity in a range from 1to 24. 24 (the highest) means you will get the

most out of pedal assist which in turns gives you the best range and efficiency out of

the motor (less effort on motor) and battery.

P12 - Pedal assist start strength, how quickly the pedal assist kicks in. Range is 0to 5. 5

means the pedal assist immediately starts when you turn the pedals.

P13 - PAS Magnet. Three different settings, 5, 8and 12. 5 is default, you can leave it at the

default setting that is setwith your bike.

P14 - This is the amperage setting for your controller, settings between 1to 20 amps. You

may want to set this to the battery amperage. The stock battery is 13Ah so leave it set

at 13. If you upgrade the battery you have a maximum of up to a 20Ah battery.

P15 - Factory setting and cannot change.
