Envision H22W Manuel utilisateur

English

Operation Instructions

Thank you for purchasing this monitor, a high-resolution multi-scan color

monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING: (FOR FCC CERTIFIED MODELS)

This monitor has been tested and found compliant with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide proper protection against harmful interference to

a residential installation. This monitor generates, uses, and can radiate

radio frequency energy. Harmful interference to radio communication may

be led as a result if it‘s not properly installed and used. However, there is

no guarantee that interference will not occur in a particular installation. If

this monitor does cause serious interference to radio or television reception,

resetting the monitor may determine it. Moreover, users are encouraged to

correct interference by doing one or more of the following:

Reorient or relocate the receiving antenna.

Move the monitor and the receiver further away from each other.

Connect the monitor into an outlet on a circuit different from that to

which the receiver is connected.

Consult your local dealer or an qualied technician.

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power

supply cord and the provided shielded video interface cable with bonded

ferrite cores. Also, any unauthorized changes or modications to this monitor

would void the user‘s authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be

used to meet the emission level limits.

English

Content

Safety Precautions .............................................................................1

First Setup ..........................................................................................2

Quick Installation .............................................................................2-5

Front View of the Product...................................................................6

Rear View of the Product....................................................................6

Using On Screen Display (OSD) Functions.....................................7-9

Supporting Timing Modes.................................................................10

Technical Information........................................................................ 11

Care and Maintenance .....................................................................12

Troubleshooting................................................................................12

English

Safety Precautions

This monitor is manufactured and tested on a ground principle that a

user’s safety comes rst. However, improper use or installation may result

danger to the monitor as well as to the user. Carefully go over the following

WARNINGS before installation and keep this guide handy.

WARNINGS:

This monitor should be operated only at the correct power sources

indicated on the label on the rear end of the monitor. If you’re unsure of

the power supply in your residence, consult your local dealer or power

company.

Do not try to repair the monitor yourself as it contains no user-

serviceable parts. The monitor should only be repaired by a qualied

technician.

Do not remove the monitor cabinet. There is high-voltage parts inside

that may cause electric shock to human bodies, even when the power

cord is disconnected .

Stop using the monitor if the cabinet is damaged. Have it checked by a

service technician.

Put your monitor only in a clean, dry environment. Unplug the monitor

immediately if gets wet and consult your service technician.

Always unplug the monitor before cleaning it. Clean the cabinet with a

clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not

directly onto the glass screen.

Keep the monitor away from magnetic objects, motors, TV sets, and

transformer.

Do not place heavy objects on the cable or power cord.

For PLUG CABLE EQUIPMENT, the Socket-outlet shall be installed

near the equipment and shall be easily accessible.

English

First Setup

Congratulation for purchasing this monitor of high performance!

This monitor comes with the following accessories :

Power cable

D-Sub cable

User’s guide

Warranty Documents

Quick Installation

Installing & Removing the Base

Install Remove

English

Preparing To Install The Optional Wall Mount Arm (Not Included)

This monitor can be attached to a wall mounting arm you can purchase separately.

Turn the power OFF then dis-connect the cables from the monitor before performing

the procedure below. Lay the monitor face down on a soft surface.

1. Remove the base. It is attached to the stand by hooks.

2. Remove the 4 screws holding the stand to the hinge.

3. Remove the stand.

English

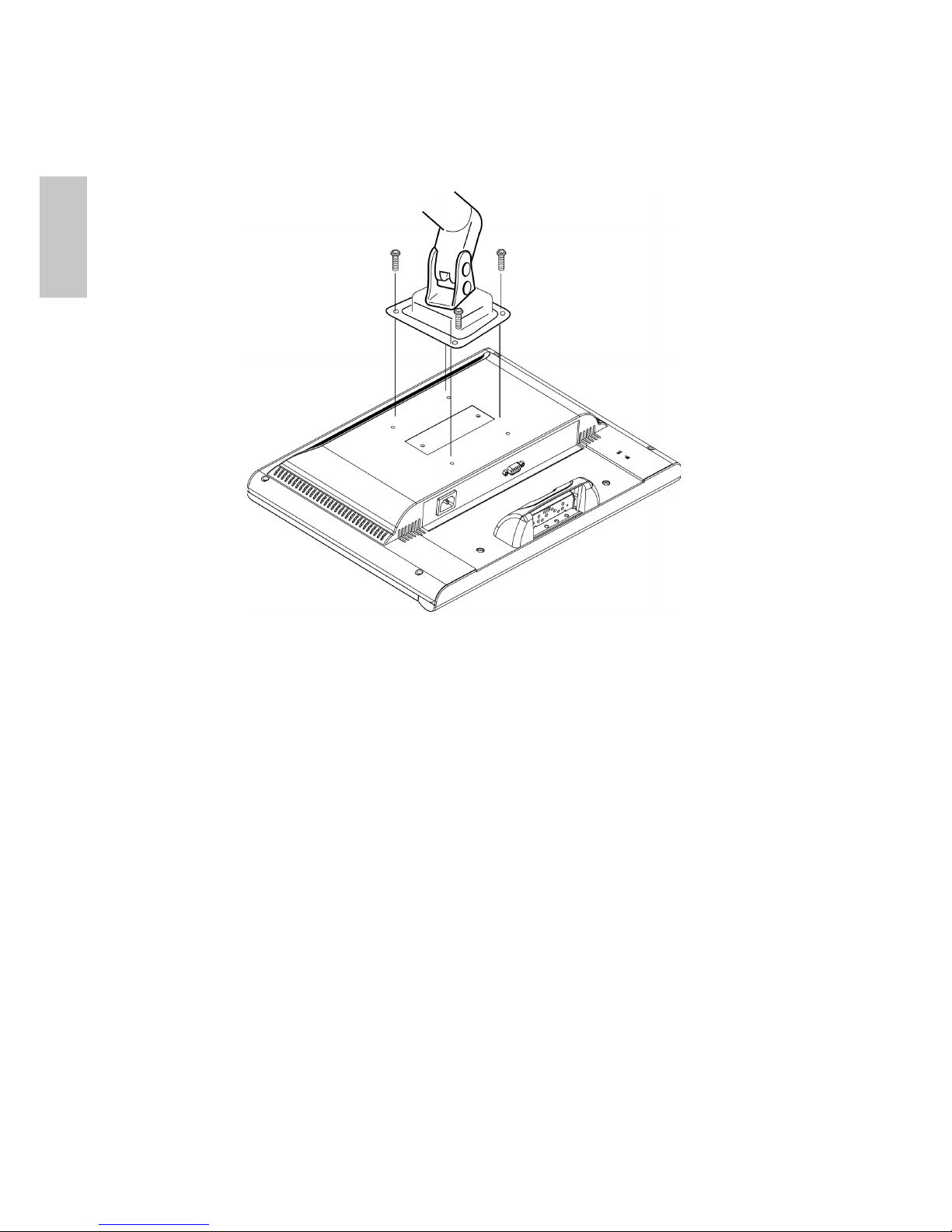

Attaching The Optional Wall Mount Arm (not supplied)

Follow these steps to nish installing the wall mounting arm:

1. Place the wall mounting arm onto the back of the monitor. Line up the holes of

the arm with the holes in the back of the monitor.

2. Insert the 4 screws into the holes and tighten.

3. Reconnect the cables. Refer to the user’s manual that came with the optional

wall mounting arm for instrucstions on attaching it to the wall.

NOTE

The ENVISION H22W is in compliance with the most current revision of the VESA

100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).

English

Connecting the Monitor

1. Connect power cord

Connect the power cord to a properly grounded AC outlet, then to the monitor.

2. Connect Analog video cable (D-Sub cable)

Make sure both monitor and computer are powered OFF. Connect the video

cable (D-Sub cable) to the computer, then to the monitor.

3. Power-ON computer and monitor

Power-ON the computer, then Power-ON the monitor.

4. Windows users: Setting the Timing Mode (Resolution and Refresh Rate)

Example: 1680 x 1050 @ 60 Hz

Resolution Right-click on the Windows desktop > Properties > Settings >

“Desktop Area”. Set the resolution.

Refresh Rate (vertical frequency) See your graphic card’s user guide for

instructions.

Connection Diagram

English

Front View of the Product

➊ OSD TURN ON/OFF ➍ CONFIRM SELECTION

➋ SCROLL DOWN/DECREASE ➎ POWER ON/OFF

➌ SCROLL UP/INCREASE ➏ LED INDICATOR

Rear View of the Product

➐ POWER INPUT

➑ VGA INPUT

➊ ➋ ➌ ➍ ➎ ➏

➐ ➑

English

Using On Screen Display (OSD) Functions

Display main menu.

Exit from OSD menu.

Auto adjust the image when not in OSD menu.

Conrm the selection.

▲or ▼

Select the desired item when in OSD menu.

When not in OSD menu, it is to immediately activate Contrast/

Brightness. It should be change to Contrast/ Brightness by pressing

button ▼or ▲.

▼ + ▲ Recall both of Contrast and Brightness.

+ ▼ Power Lock (when not in OSD menu)

+ ▲ OSD Lock (when not in OSD menu)

Main Menu

English

OSD Functions

Auto Image Adjust : Auto adjust Horizontal Position, Vertical Position,

Phase (Fine Tune) and Clock (H. Size) of the screen. Available in Analog

mode only.

Contrast : Adjust the foreground white level of screen image.

▲:increase contrast, ▼: decrease contrast.

Brightness : Adjust the luminance of the video.

▲: increase brightness, ▼:decrease brightness.

Color Adjust : Select the color temperature between 9300K, 6500K, 5400K

and User Color to meet user’s preference.

9300K : Adds blue to screen image for cooler white.

6500K : Adds red to screen image for warmer white and richer red.

5400K : Adds green to screen image for a darker color.

User Color : Individual adjustments for red (R), green (G), blue (B).

1. Press button 2 to select the desired color.

2. Press ▼or ▲button to adjust selected color.

Information : To display the information, regarding the current input signal

coming from the graphic card in your computer.

Note: See your graphic card user guide for more information about

changing the resolution and refresh rate.

Horizontal Size : Adjust the width of the screen image.

▼:decrease the width of screen image, ▲:increase the width of screen image.

H./V. Position : To adjust the horizontal and vertical position of the video.

H. Position : ▲:move screen to the right, ▼:move screen to the left.

V. Position : ▲: move screen up, ▼:move screen down.

Fine Tune : Adjust the delay time of data and clock.

Press ▲or ▼to adjust to your preference.

Sharpness : Adjust the clarity of a non-WSXGA (1680x1050) signal with

▼or ▲button.
