Envirologic EVO Cleaner Manuel utilisateur

Rev. 2021-10-26

Original user manual

from Envirologic AB

User manual




Contents
1. IMPORTANT INFORMATION.....................................................................................................2
Signs that are used in the manual.......................................................................................................................2
Intended use........................................................................................................................................................2
Robot type...........................................................................................................................................................2
Restrictions on use ..............................................................................................................................................2
2. SAFETY..................................................................................................................................3
Safety instructions...............................................................................................................................................3
Warnings..............................................................................................................................................................3
Emergency stop switch........................................................................................................................................3
Transportation of the robot ................................................................................................................................3
Moving the robot.................................................................................................................................................3
Recording (programming) and starting a robot program ...................................................................................4
Cleaning and maintenance..................................................................................................................................4
Risk of overturning ..............................................................................................................................................4
Battery short circuit.............................................................................................................................................4
Built-in safety devices..........................................................................................................................................4
3. TECHNICAL SPECIFICATIONS.....................................................................................................5
Parts overview.....................................................................................................................................................5
Technical data......................................................................................................................................................5
Accessories ..........................................................................................................................................................5
Reach...................................................................................................................................................................6
4. GENERAL INFORMATION .........................................................................................................7
Short functional description................................................................................................................................7
Starting the robot................................................................................................................................................7
Help system .........................................................................................................................................................7
Charging the robot ..............................................................................................................................................7
5. MANIPULATION .....................................................................................................................8
Manual mode ......................................................................................................................................................8
Moving the robot.................................................................................................................................................8
Joystick ................................................................................................................................................................8
6. TEACH.................................................................................................................................10
Markers..............................................................................................................................................................10
Recordings.........................................................................................................................................................10
Automatic wash.................................................................................................................................................11
Aborting.............................................................................................................................................................12
7. TEACHING HINTS ..................................................................................................................13
8. MAINTENANCE.....................................................................................................................14
9. EUROPEAN DECLARATION OF CONFORMITY ............................................................................15



1.Important information

Signs that are used in the manual

Intended use

The robot is designed to be safe to use provided it is operated in accordance with the user manual.

EVO Cleaner is an automatic cleaning robot that is intended to replace manual high-pressure cleaning, for

example cleaning of pens.

Any other use of the robot is inappropriate. If the instructions in this manual are ignored, this could lead to

accidents and harm to people, the environment or animals.

Robot type

Information in this manual applies to the robot type referred to as EVO Cleaner. A machine plate is attached

to the robot showing the CE mark, robot type, serial number, year of manufacture and other important

information, as shown in Figure 1.

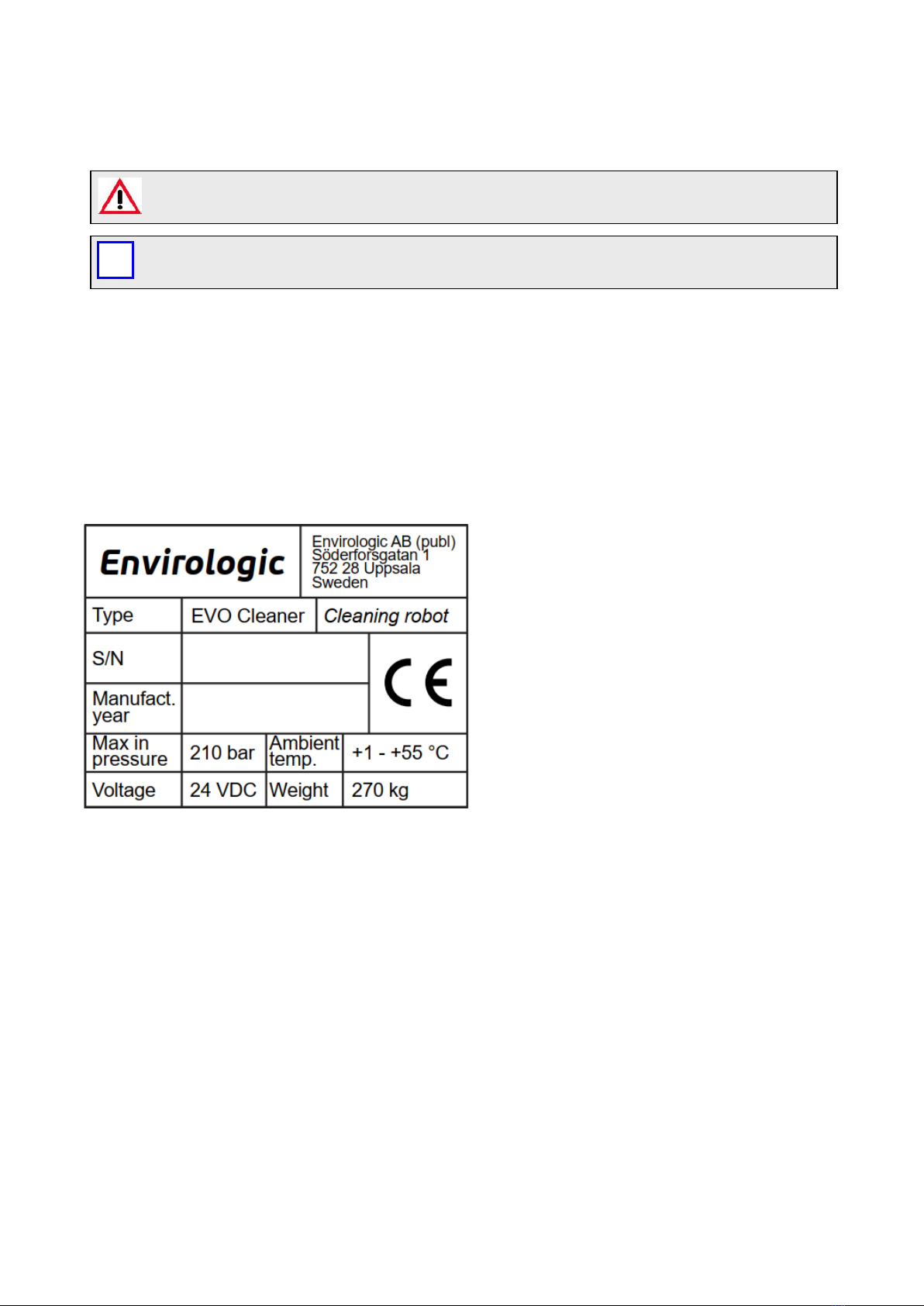

Figure 1, machine plate

Restrictions on use

• EVO Cleaner must only be used by trained staff

• EVO Cleaner must only be used in accordance with the instructions in this manual

Safety-related information is shown in a grey box marked with a red triangle

Important information is shown in a grey box marked with an information symbol

08xxxxxx

2021

2.Safety

Safety instructions

In this manual important information is provided regarding safe use and maintenance of the robot.

The user manual should be regarded as part of the product and should be kept accessible.

The robot is designed in conformity with applicable standards and directives. Up-to-date information on

these will be found in the declaration of conformity (CE document). The instructions in this manual must be

followed to ensure that the safety and performance of the robot will be maintained.

Warnings

The safety devices and warning labels on the robot are designed to prevent accidents. The main

responsibility for safe use lies with the persons that are using, maintaining or carrying out repairs on the

robot.

To ensure safe use, instructions and warnings should be followed and respected.

Emergency stop switch

As an additional precaution an emergency stop switch is installed, within easy reach below the operator

panel. If the switch is pressed the robot and the water jet will immediately stop.

Transportation of the robot

Moving the robot

It is important that the use of the robot complies with the safety instructions and warnings in this

chapter. Read this even if you are already familiar with the use of the robot.

If there are other health and safety requirements in the country of use, an appropriate

supplement to this manual will be created to meet these requirements.

•It is not permissible to remove or modify the design of safety devices on the robot and

accessories.

•Only qualified staff are allowed to repair the robot.

During transportation of the robot with a vehicle (for example with a truck or a trailer):

•The robot must only be transported in an upright position, turned on, safely fixed so that the

robot cannot overturn or suffer any other form of mechanical damage.

•If a malfunction is suspected due to a mishap while undergoing transport the robot must be

functionally checked before it is put into use.

•If needed, the robot should be lifted in the chassis.

•During transport, secure the robot by the chassis.

•The robot must only be moved when it’s turned on.

•The robot must only be moved with both hands on the handlebars when the clutch is used.

•Methods for moving the robot must be adapted to the ground and personal capabilities.

•If the ground is steeply inclined (upwards or downwards) the motor must be used, do not use

the clutch or the transport wheel!

Recording (programming) and starting a robot program

Cleaning and maintenance

Risk of overturning

Battery short circuit

Built-in safety devices

The robot has a built-in safety system with several different alarms. If a stopping alarm occurs, the robot will

immediately stop the operation, shut off the water jet and display an alarm text in the operator panel. The

alarm must be acknowledged before the operation can ultimately be restarted.

•Protection against current faults is provided by a fuse on the circuit board.

•Protection against low battery voltage is controlled by the computer and generates an alarm if this

occurs

•Protection against collision during operation is detected by each individual motor and generates an

alarm if the motor does not move as expected.

•Before cleaning, the section must be cleared of humans (except for the person carrying out

the recording) and animals; aisles and pens must be clear of obstacles, doors and gates must

be closed.

•Warning signs must be placed by the entrance of the section during cleaning.

•The person carrying out the recording must use ear defenders, respitory mask and safety

goggles. Other recommended equipment is protective clothing, boots and gloves.

•During recording the operator must keep a safe distance from the moving parts of the robot

and the high-pressure water jet.

•During recording the robot must be manipulated in such a way that the water jet or the

moving parts of the robot are not in contact with sensitive electronics or other sensitive

equipment.

•When using markers these must be firmly fixed and be able to remain in the same position

throughout the cleaning process.

•When using the double nozzle, the automatic wash must be restarted if the water flow is

interrupted. This to ensure that the correct valve in the double nozzle is open.

•Rinse the robot thoroughly after use. Do not use a high-pressure water.

•The batteries must be recharged in a well-ventilated area free of flammable materials.

•During maintenance the robot must be switched off.

•Only qualified personnel are allowed to carry out repairs on the robot.

•Do not transport the robot in the parking position if the ground leans more than 20 degrees

sideways.

•If the tower is turned 90 degrees from the center position and the telescope and the arm are

in their most extended positions, the ground should not lean more than 5 degrees (depending

also on whether the water jet is directed up or down).

•During cleaning behind the robot in the marked area in Figure 3, there is a risk of overturning

that is dependent on the ground and the position of the boom, telescope and arm. If working

in this area the recommendation is to have the telescope in its most retracted position.

•When using the transport wheel, the tower must be centered.

•

To avid short circuits when replacing the batteries, always first remove the connector from the

minus pole of the battery connected to the robot. Consequently, always reconnect this pole

last.

3.Technical specifications

Parts overview

Technical data

Total width: 680 mm (610 mm with special wheels)

Total length when retracted: 1930 mm

Total height when retracted: 1610 mm

Max reach of arm: 4015 mm

Effective working range: up to 6000 mm from center of unit

Weight: 270 kg

Power supply: 24 V DC (2 lead acid batteries at 12 V)

Electric motors: 24 V DC (7 in total)

Ambient temp: 1°C to 55°C (34°F to 131°F)

Storing temp.: Empty of water, -10°C to 60°C (14°F to 140°F)

Alarm: Alarm by SMS in the event of operational breakdown

Water supply: From external high-pressure cleaning unit

Nozzle: Rotor jet 0.55

Hose reel: 50 m high pressure hose (operated separately from the robot).

Connected to a normal cleaning unit.

Recommended water pressure: 180-210 bar (18-21 MPa)

Recommended water flow: 15-18 l/min

Sound power level

: 94 dB(A)

Accessories

Charger: see separate specifications supplied with the charger

Markers: design and quantity are dependent on the installation

Nozzle: alternative nozzles may be available depending on the working area

Measured on rotor with rotor jet nozzle and 190 bar water pressure

Telescope

Boom

Arm

Nozzle

Tower

Clutch handle

Emergency switch

Operator panel

Antenna

Hose reel

Magnetic switch

Batteries

Guidance wheel (front)

Transport wheel

Joystick connector

Charger connector

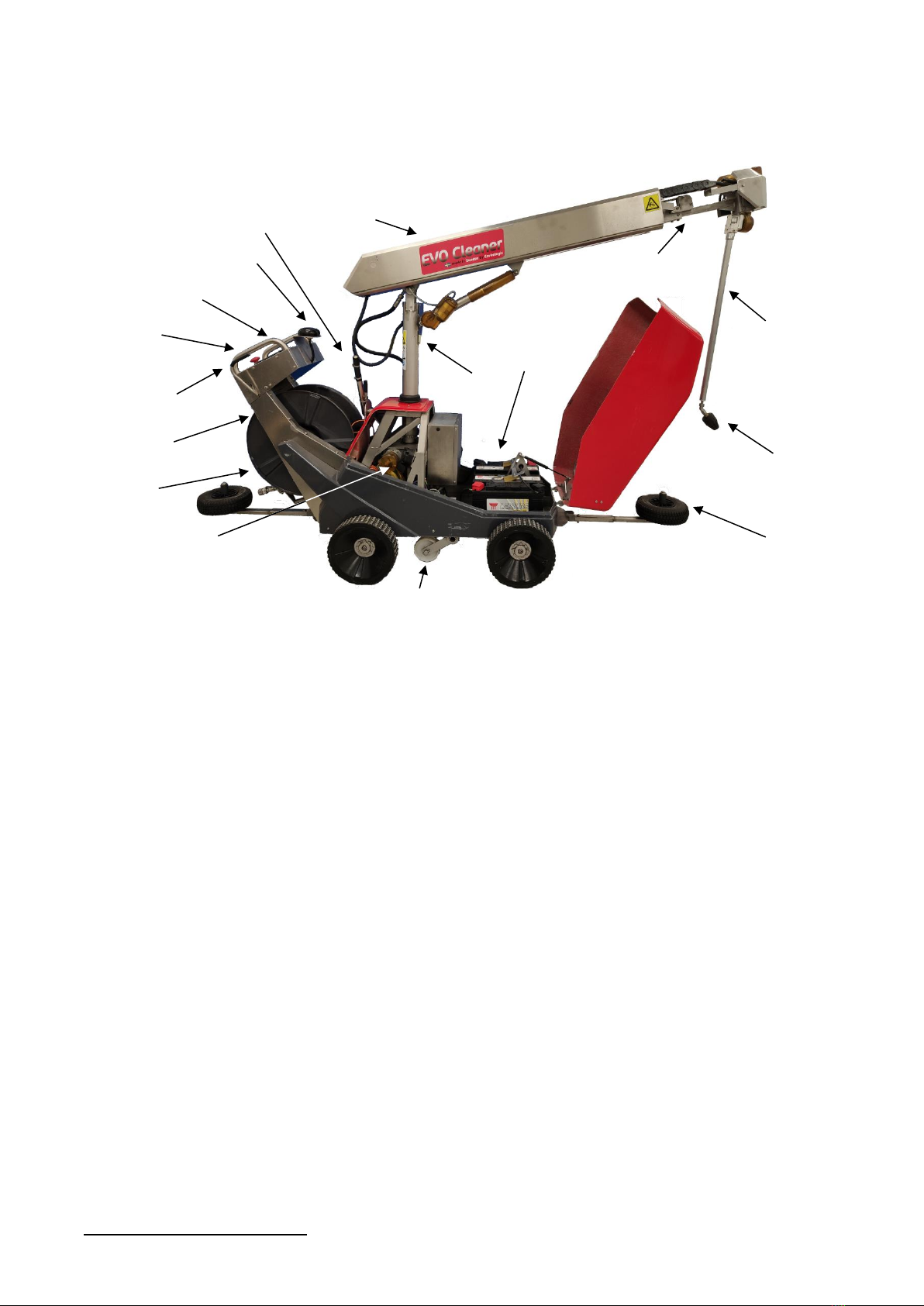

Figure 2, parts of the robot

Reach

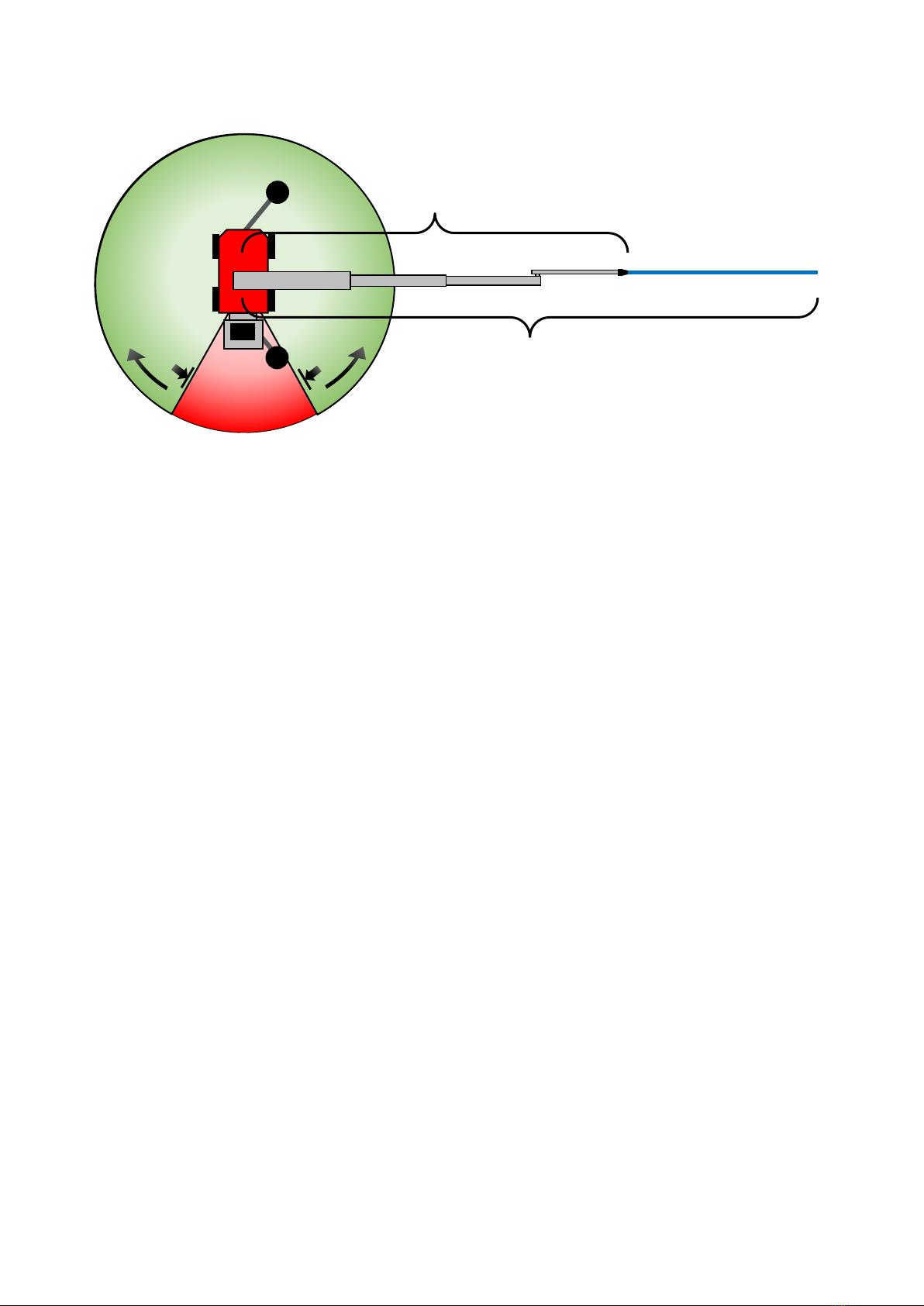

Figure 3, reach of the arm and safe tower working range

Telescope range: 4015 mm

6 m incl. water jet

(Zero nozzle being used)

400°

4.General information

This user manual, together with help texts in the operator panel, includes all the information needed for

preparing, making recordings (teaching), managing locations, programs and recipes, performing and ending

a cleaning process. It also includes necessary information on how to use the robot in the best and safest

way.

Short functional description

The cleaning robot obtains its 24 V power from two 12 V lead acid batteries. The robot cleans with high-

pressure water (warm or cold) with or without additives. The water is supplied from an external high-

pressure water supply via a 50 m hose installed on a hose reel that is operated separately by the robot

according to how the robot moves. The cleaning is carried out by a telescopic arm, moveable in all

directions, with a maximum reach of 4015 mm (effective working range including the water jet is 6000 mm).

By using the joystick, you can teach the robot to move and clean in a satisfactory way. After this teaching

operation the robot will be able to carry out the movements on its own as many times as are necessary to

achieve a satisfactory cleaning result.

Starting the robot

The main switch is found on the right-hand side of the operator panel. When the robot is switched on, the

startup process takes about 30 seconds. When the screen in Figure 4 is shown the robot is ready to operate.

Help system

Every screen has a button with a question mark, as seen in Figure 4. When pressing that button, relevant

help texts will be displayed on the screen.

Charging the robot

When charging the batteries, the cleaning robot must be switched off. The batteries cannot be charged

when the robot is on.

The charger must be connected to the robot before it is connected to the wall outlet. When the charger is

connected to the wall outlet only the orange status light should be turned on. See the charger manual for

details.

The cleaning robot shall always be connected to the charger when not used, in order to prolong battery life.

Figure 4, start screen

5.Manipulation

Manual mode

Manual mode means using the cleaning robot without a previous teaching process. Manual mode is used

for example when the robot is moved from its storage place to the house to be cleaned. Before moving, the

robot should be turned on. Manual mode is reached from the start screen. When in manual mode, the

cleaning robot can be operated using the buttons on the operator panel or the joystick.

We recommend that you use manual mode to become familiar with the joystick and the different

movements.

Moving the robot

The robot can be manually moved either by manpower or by using the motors for transport. For unpowered

transport, the robot is declutched using the clutch handle on the right-hand side of the handlebar. The

robot can also be manually operated using the transport motor from the operator panel or the joystick.

To make it easier moving or turning the robot, the transport wheel can be used, see Figure 2. This is also

controlled on the manual screen.

Also, take care to follow the instructions in the Safety section.

Joystick

The joystick is connected to the black socket, which can be found under the hood on the rear right-hand

side of the cleaning robot, see Figure 2. The plug must be turned 90 degrees for secure tightening when

connected. The joystick is used to control all motions of the cleaning robot, including turning water on and

off. See Figure 5 for an overview of the joystick.

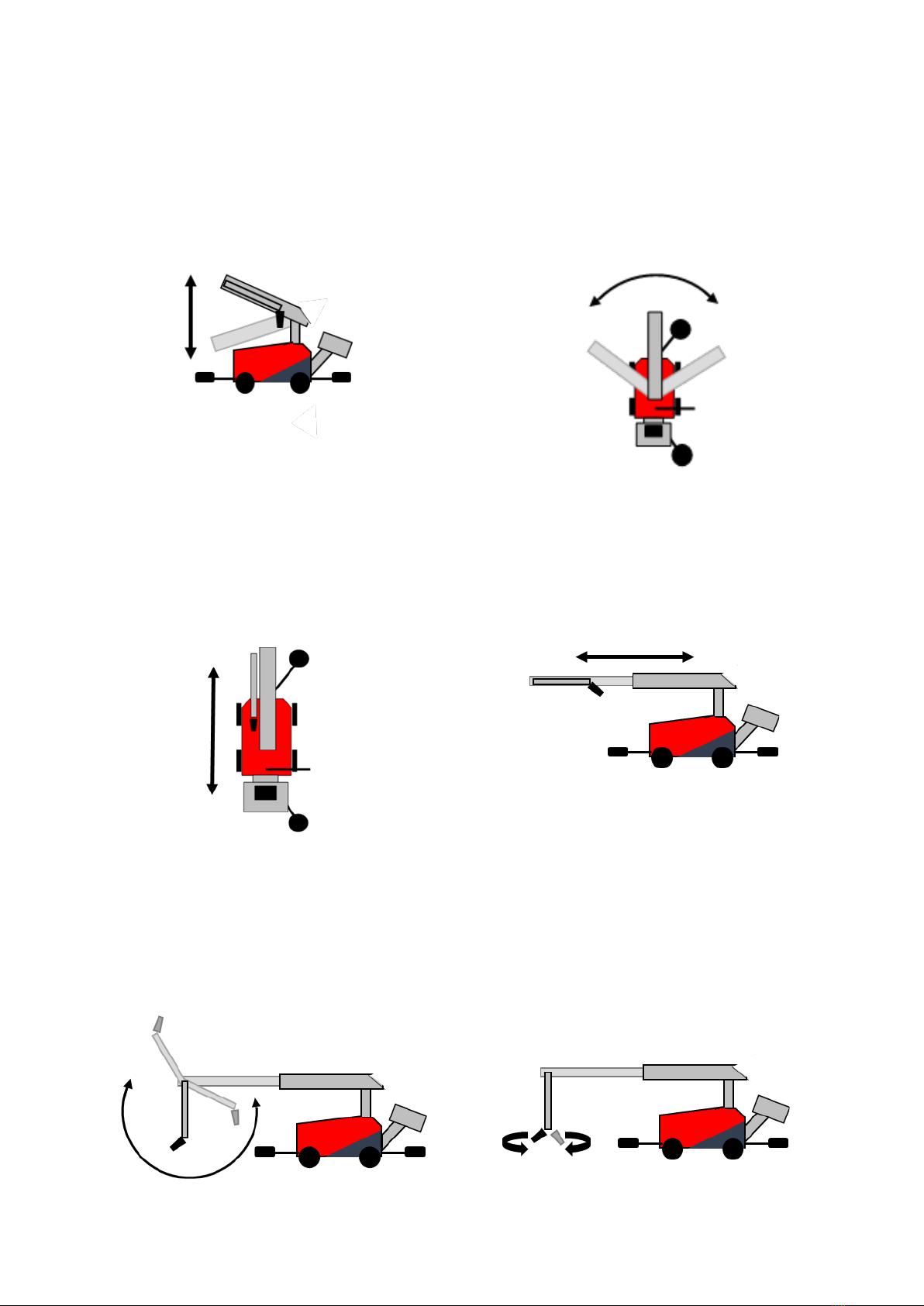

An overview of the different motions is given in Figure 6.

If the ground is inclined towards or away from you the motor must be used, do not use the

clutch or the transport wheel!

The joystick is needed during the teaching process. The joystick is connected to the cleaning robot

via a six-meter cable, which facilitates the teaching process and unwanted contamination by

manure or collision with the robot’s telescopic arm is avoided.

The directions of motion in this manual are described as seen from behind the robot

Backwards Forwards

Water on/off

Figure 5, joystick

Boom up/down

The boom moves about 100° from bottom (position

0) to top (position 1250). Parked position should be

horizontal (about position 700).

Move joystick shaft backwards/forwards

Tower right/left

The tower can go about 200° in both directions

(positions ±1000) from its parked forward position

(about position 0).

Move joystick shaft right/left

Robot forward/backward

Move joystick shaft forwards/backwards, while

pressing buttons 1 and 2 simultaneously

Telescope out/in

The telescope can run out of its parked position 0

to position 425.

Move joystick shaft forwards/backwards, while

pressing button 1

Arm out/in

The arm starts from its parked position parallel to

the boom (position about -55). The arm can go out

about 315° (to position 1100), so it points towards

the ceiling.

Move joystick shaft right/left, while pressing

button 1

Nozzle right/left

The nozzle can spin 360° in both directions. The

nozzle is parked when the arm is parked and

nozzle points downwards.

Move joystick shaft right/left, while pressing

button 2

Figure 6, motions

Autres manuels pour EVO Cleaner

Table des matières

Manuels Robotique populaires d'autres marques

STEMCenter USA

STEMCenter USA Pi-Bot v2.00 Manuel utilisateur

SunFounder

SunFounder PiDog Manuel utilisateur

Universal Robots

Universal Robots UR5 Manuel utilisateur

Universal Robots

Universal Robots E Series Manuel utilisateur

YASKAWA

YASKAWA MOTOMAN-MPL80 II Manuel utilisateur

EFORT

EFORT ECR5 Manuel d'instructions

Epson

Epson C8 Series Manuel utilisateur

WowWee

WowWee ROBOQUAD Manuel utilisateur

Milvus Robotics

Milvus Robotics SEIT 100 Manuel utilisateur

RoboMaster

RoboMaster AI Robot 2020 Standard Version Manuel utilisateur

fischertechnik

fischertechnik Mini Bots Manuel utilisateur

YASKAWA

YASKAWA MA2010 Manuel

Abicor Binzel

Abicor Binzel iCAT mini Manuel utilisateur

ABB

ABB OmniCore E10 Manuel utilisateur

YASKAWA

YASKAWA Motoman DX200 Manuel utilisateur

pitsco

pitsco Tetrix Max Manuel utilisateur

ECOVACS

ECOVACS DEEBOT R95 Manuel utilisateur

Feng Yuan

Feng Yuan Interstellar Warrior Manuel utilisateur
