Envig 400GPD Tankless RO System

Installation Instructions

Before Installation

Inspect the Package

Open the box and take out the system housing and all parts. Inspect them

according to the parts list to ensure nothing is left out or damaged during

shipping. If there are any parts cracked or broken, please do not proceed with

the installation and contact Envig by phone: 1-919-998-8772 Mon –Fri

8:00AM –5:00PM (EST). Identify and get familiar with all components for

quick installation.

Inspect Installation Space

1. Check to make sure there is a power outlet in the under sink

cabinet. If not, make arrangement for power supply before

installation.

Note: It is recommended to have the power supply on the wall of the

under sink cabinet to reduce the possibility of electric shock.

2. Check and ensure there is sufficient space in the under sink cabinet

to install the system. It is recommended not to place the housing

against cabinet wall, as there may be vibration when the system

works.

Inspect whether there is an existing drinking water faucet hole on your sink or

countertop with the right size for faucet installation. If not, it is recommended

to hire professional crew to drill a faucet hole.

Required Tools

Variable speed drill

Drill bit: ¼” (for drainpipe)

Adjustable wrench, pliers

Screwdriver

Tube cutter, utility knife or scissors

Flashlight

Towel or drain bucket

Specification

To achieve the optimal performance, it is highly recommended to use the

system within the operational parameters.

Model

Size

14.8” x 5.3” x 14.4” (376 x 135 x 368

mm)

Feed Water Pressure

14.5 –87 psi / 0.1 –0.4MPa

Feed Water Temperature

41 –104 °F / 5 –40 °C

Feed Water Requirement*

Municipal tab water

Max Daily Production Rate

400 GPD

Power Consumption

65W

Note: If you are using well water as the source, please ensure that the feed

water has been through a pre-filtration system and has the proper water

pressure.

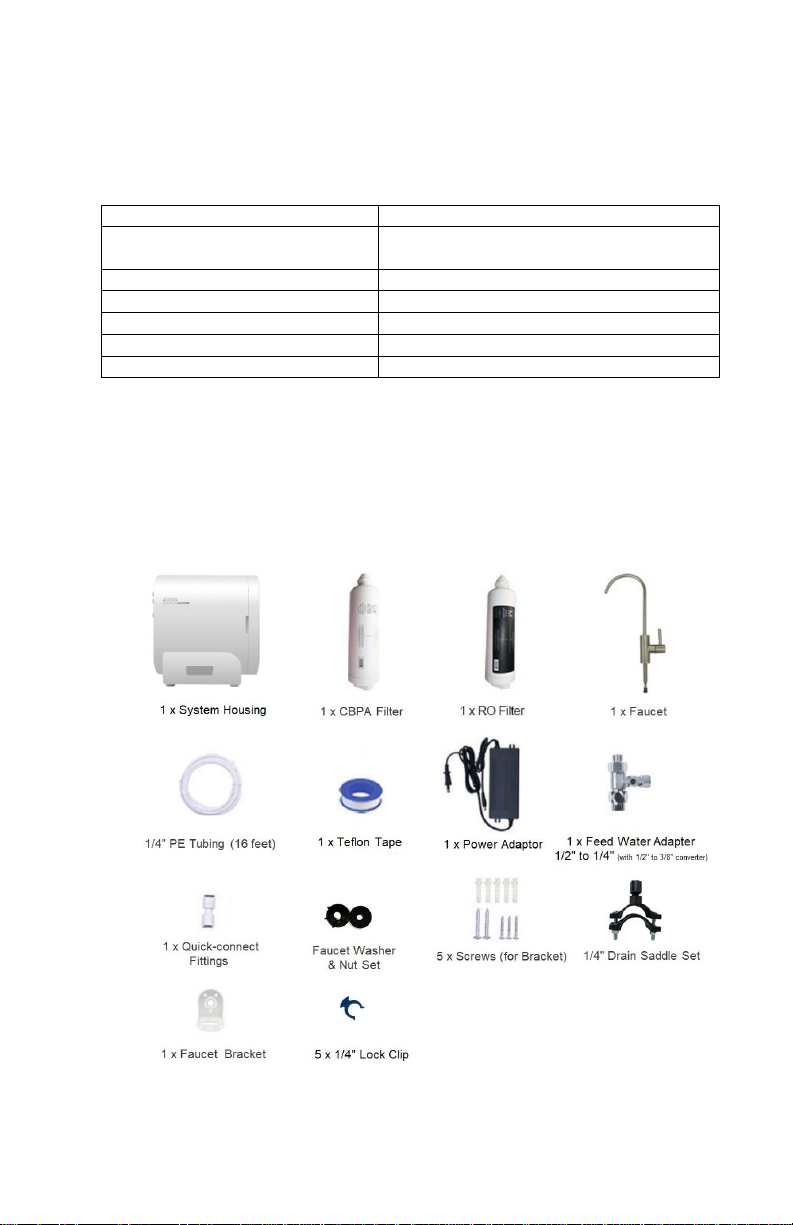

Parts List

Installation Tips

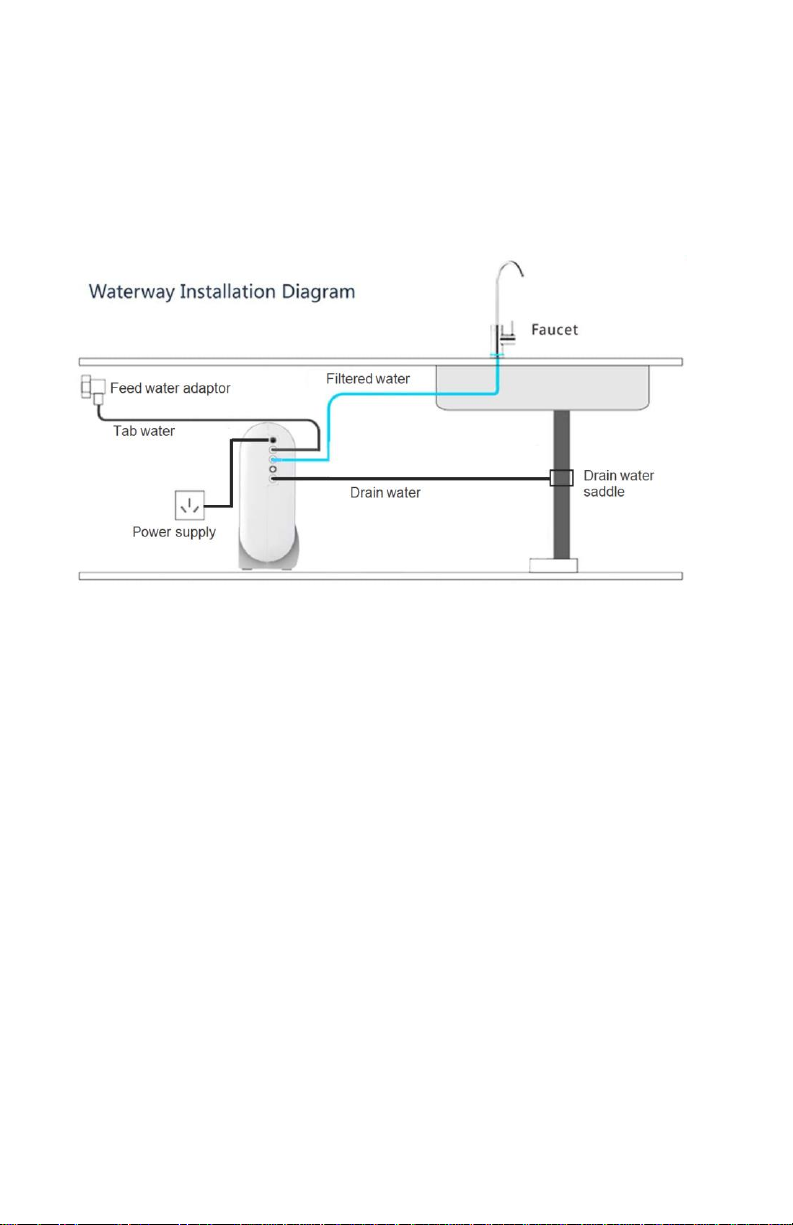

Connection Diagram

How to Connect and Disconnect Tubing to Quick-connect Fitting

To connect

Push the tubing fully into the fitting until it can’t be pushed further.

Note: If the tubing is not fully inserted, it may cause leakage.

When the tubing is fully inserted, hold the lock sleeve and pull

slightly to expose the space for lock clip. Put the lock clip on the

fitting. It will lock the tubing in place and prevent it from falling off.

To disconnect

Remove the lock clip from the fitting;

Use your thumb and index finger to press down the lock sleeve. In

the meantime, use your other hand to pull out the tubing from the

fitting.

Cut Tubing

One roll of tubing (16 feet) is provided. Cut it to a suitable length for each of

the connections. Make sure each of the tubing length after cutting can cover

the distance of the connection, and possibly leave some extra for future

moves of the system. Do not leave too much extra where it can get crimped.

Cut the tubing squarely and cleanly with a tube cutter, sharp utility knife or

scissors.

Installation Steps

Note:

Prior to installation, it is recommended to watch YouTube videos as

recommended.

Only COLD tab water should be used as the input tab water for the RO

system.

Do not install the system in direct exposure to sunlight, harmful chemicals, or

any circumstances that may damage the system.

Do not install the system outdoors.

Check to ensure there is sufficient space under the countertop to install the

system.

Step 1: Install the feed water adapter

1. Shut off the cold water supply. Turn the kitchen faucet to release the

water pressure.

Note: Make sure the water has stopped running before proceeding

to the next step.

2. Disconnect the cold water pipe from the cold water supply valve.

Note: Use towel or drain bucket to catch any water during the

disconnection.

3. Twist the feed water adapter onto the cold water supply valve and

tighten with an adjustable wrench.

Note: Apply Teflon tape to the positive side of the water supply

valve. If the cold water pipe is 3/8”, screw the ½” to 3/8” converters

to the feed water adapter. Use Teflon tape for the converter

connections.

4. Apply the Teflon tape to the positive side of the feed water adapter.

Twist the cold water (kitchen faucet) pipe onto the positive side of

the feed water adapter and tighten with an adjustable wrench.

Step 2: Install the RO Faucet

Note: If there is no hole in your kitchen sink or countertop, you have to drill

one with the right size. Professional service is highly recommended. For DIY,

please follow the recommendations as below.

a) Choose a diamond core bit for granite, or a carbide drill bit for

stainless steel. Do not use a hammer drill on natural stone,

glass or ceramic.

b) Drill a hole large enough to insert the faucet stem, but small

enough to hold the faucet base on the sink or countertop. 1 inch

diameter is recommended.

c) Make sure the space under sink is accessible for tubing

connection.

d) Follow all professional drilling guidance for the type of material

where the hole will be drilled. Be aware of the risk of chipping or

cracking if not done properly.

1. Insert the faucet spout into the faucet body;

2. Insert the faucet stem into the hole on the countertop/sink;

3. Under the sink, slip on the washer onto the faucet stem first, and

screw and tighten the nut carefully enough to lock the faucet firmly

onto the sink or countertop.

4. Insert the quick-connect fitting onto the faucet stem fully and firmly.

Step 3: Install the Drain Saddle

1. Choose a spot on the drainpipe that is convenient for installing the

drain saddle, and drill a ¼” hole. Be sure not to penetrate the

opposite side of the pipe;

Note: It is recommended to install the drain saddle on the vertical

section of the drainpipe. In some areas, the drain water tubing

needs to be connected to the drainpipe through the air gap.

Consumers need to purchase additional air gap accessories.

2. Unscrew the nut from the drain saddle. Slip the nut and then the

front plate of the drain saddle to one end of the tubing, place the

plate onto the drilled hole, and make sure to insert the drain tubing

into the drilled hole up to about 0.6”.

Note: Please read and follow sub-step 2 in Step 4 to get the drain

tubing.

3. Place the back plate of the drain saddle, tighten it with screws onto

the drain pipe.

4. Screw and tighten the nut on the drain saddle to secure the

connection.

Step 4: Position the RO System Housing and Connect Tubing

1. Place the RO system where you prefer. Measure the distance from

the back of the system to each of the connection points: faucet

stem, drain saddle and feed water adapter.

2. Cut the tubing into three sections long enough for each of the

connections.

3. Install the input water tubing. Connect the input water tubing from

the feed water adapter to the input water port. Make sure the tubing

is fully inserted on both ends. Use lock clips on both end to secure

the tubing.

4. Install the filtered water tubing. Connect the filtered water tubing

from the RO faucet fitting to the filtered water port. Make sure the

tubing is fully inserted on both ends. Use lock clips on both end to

secure the tubing.

5. Install the drain water tubing. Connect the drain water tubing from

the drain saddle to the waste water port. Make sure the tubing is

fully inserted. Use a lock clip to secure the tubing.

Step 5: Start up the System

1. Turn on the cold water supply valve. Check for leaks. Make sure

there is no leaking at joints, fittings, valves, faucet and tubing

connections.

2. Insert the power plug into power outlet, and turn on the system;

3. Turn on the faucet to let water run for 15 minutes. Then turn off the

faucet and wait for 30 minutes. After 30 minutes, turn on the faucet

again and let water run for another 45 minutes. The water then is

ready for drinking.

4. TOC, COD and TDS should be reduced for up to 99% after the first

15 minutes flushing. For system functioning verification, Envig TOC

meter (https://www.amazon.com/gp/product/B08HNJLMP4) is

recommended.

Note: The water is undrinkable during the first hour of flushing. To

preserve water, collect the flushing water for other purpose like

flowering, gardening, or toilet flushing etc.

Note: Be sure to carefully check the tightness of each part of the

system while flushing. Check and ensure all tubing is installed

correctly and completely.

Operation Manual

Display

Section 1: Working Mode Display

The filter indicators are solid white. When making water, the working indicator

is flashing white. The working indicator is solid white when the system stops

making water. The wireless indicator is for future features, and is not currently

used and should be ignored.

Section 2: Filter Life Reminder

Note: Filter life may vary depending on source water quality and water

usage. Please replace the filters according to the filter life indicators.

In normal situations, the composite CBPA filter can last 9-12 months, and the

RO membrane filter can last 18-24 months.

When a filter needs to be changed, the system will automatically prompt the

change by turning the filter indicator to flashing red and start the buzzing

alarm.

Operation

Filter Replacement Guide

Note: If the filter expires, please purchase and replace the filter immediately.

Otherwise, the filtration efficiency will decrease significantly and affect the

performance.

1. Turn off the power and water supply.

2. Twist the filter that needs to be replaced counterclockwise for 90

degree;

3. Remove wrappings and protective cap, if any, from the new filter;

4. Insert the filter into the filter housing, align the turning knob

horizontally in the direction of the unlock sign.

5. Twist the filter with a little force forward in the clockwise direction for

90 degrees, until the turning knob is aligned vertically with the filter

sign.

6. Reset the filter indicator and perform flushing after RO filter

replacement (please refer to the following steps).

How to Reset the Filter Life Indicator

1. Press and hold the power button for 6 seconds to start the reset

mode.

2. Short press the power button to switch between the filter indicators.

When the filter indicator is flashing, it is ready to be reset.

3. Press and hold the power button for 6 seconds and the reset is

completed.

4. Repeat this process for all the filters that need to be reset.

How to Flush the Filter after Replacement

After filter replacement, turn on the system power.

For CBPA filter: Turn on the faucet to flush for 5 minutes;

For RO filter: Turn on the faucet to let water run for 15 minutes. Then turn off

the faucet and wait for 30 minutes. After 30 minutes, turn on the faucet again

and let water run for another 45 minutes. The water then is ready for drinking.

Water in the first hour of flushing is undrinkable. You can preserve water by

using it for flowering, gardening, toilet flushing, etc.

System Maintenance

If you do not use the machine for a long time (more than 1 week), it

is recommended to turn on the faucet to flush for a while before

using it again;

Please replace the filter according to the filter life indicator;

Clean the system housing with a moist towel;

Keep the waste water pipe unobstructed to avoid damage to the

filter or internal components;

When the drain pipe is blocked, do not use the system. Please turn

off the power.

Check the system and water pipe fittings regularly for water leakage

to avoid any water damage;

Check regularly on the power supply and whether wires are loose or

damaged to avoid electric accident.

If you are using well water as the source, please ensure the feed

water has been through a pre-filtration system. Large particles in the

well water will clog the filters and shorten the filter life.

Limited Product Warranty

The warranty of our product covers defects in materials and workmanship

from the original date of purchase. During the warranty period, we will replace

or repair any part which is deemed to be defective at our discretion, provided

the product has not been subjected to tampering, alteration, negligence of

regular maintenance or improper use after delivery. The cost of repair or

replacement under those excluded circumstances shall be borne by the

consumer. This limited warranty does not cover filters and all other parts or

components that require regular replacement as a result of ordinary usage

under specified conditions. This limited warranty only applies if the system is

installed, used, and maintained in compliance with all instructions and

requirements enclosed with the system.

The manufacturer or reseller shall assume no liability for the determination of

the proper equipment necessary to meet your water quality requirements,

and we do not authorize others to assume such obligation on our behalf. You

must verify and test on your own risk the suitability of any information with

respect to the product for your specific application.

This limited warranty shall only be void if:

1. the system is not used under the specified conditions,

2. the cartridge filters are not replaced as recommended, or

3. the product is purchased from someone other than our official

website or authorized resellers.

Our sole obligation under this warranty shall be repair or replacement of a

non-conforming product or parts of this product, or at our discretion, return of

the product and a refund of the purchase price.

The warranties set forth herein are the only warranties made by us with

respect to the product. We make no warranties, expressed or implied,

Ce manuel convient aux modèles suivants

Table des matières

Manuels Domotique populaires d'autres marques

Truth Hardware

Truth Hardware Sentry II Manuel utilisateur

FIBARO

FIBARO FGWPA-111 Manuel utilisateur

Hezborg

Hezborg BGR8016B Manuel utilisateur

MYDLINK

MYDLINK Pro Series Manuel utilisateur

Panasonic

Panasonic KX-HNA101FX Manuel utilisateur

GamaBit

GamaBit Houseper Manuel utilisateur

nedis

nedis WIFILRF10C37 Manuel utilisateur

Veho

Veho TA45 Manuel utilisateur

Nexa

Nexa ZPR-111 Manuel utilisateur

Vimar

Vimar 00801 Manuel utilisateur

Leviton

Leviton 47604-F6 Manuel utilisateur

EVERSPRING

EVERSPRING AN180 Manuel utilisateur

Coltech

Coltech 18-1339 Manuel utilisateur

IDS

IDS NXT vegas Mode d’emploi

Vimar

Vimar 03975 Manuel utilisateur

iNels

iNels RFIM-20B Manuel utilisateur

EVA Logik

EVA Logik ZW30 Manuel utilisateur

Leviton

Leviton ODCØP-S0W Manuel utilisateur
