enua Wallmount Manuel utilisateur
Enua
Wallmount
Installation guide
enua.no
ENG/NOR
Authorized personnel only
10001
Product overview 3
4
Mounting set
5
Technical specifications
7
Safety instructions 6
Safety instructions for use
8-10
Installation guide
Assemble wall bracket
Start configuration
11
11
12
Table of contents
Light description over charging station
IMPORTANT:
Read carefully before use. Keep for future reference.

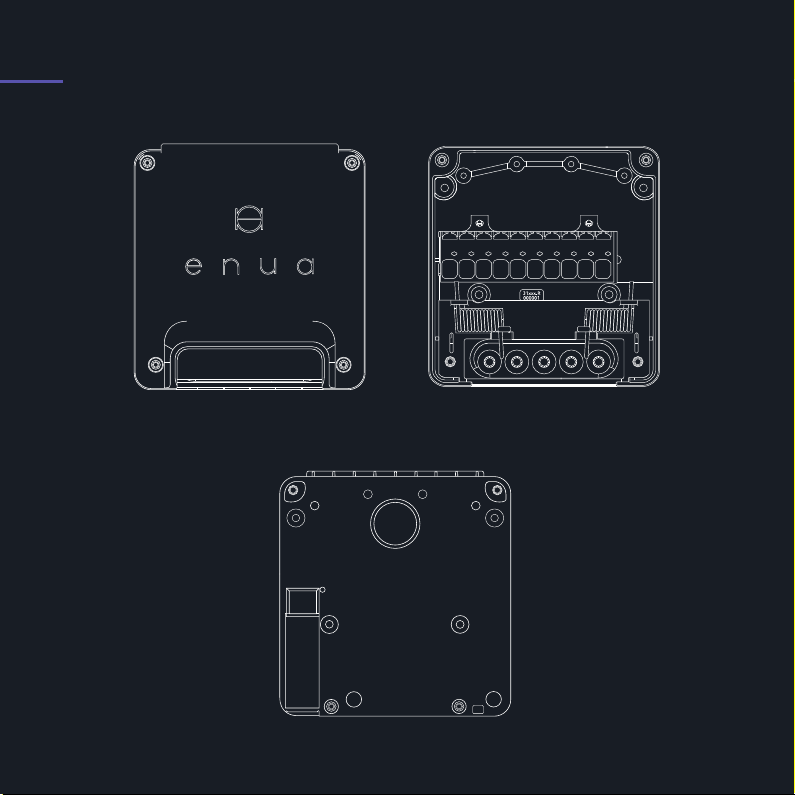

1. Product overview
Inside of wall bracket
Backside of wall bracket
Front cover
ENG 3

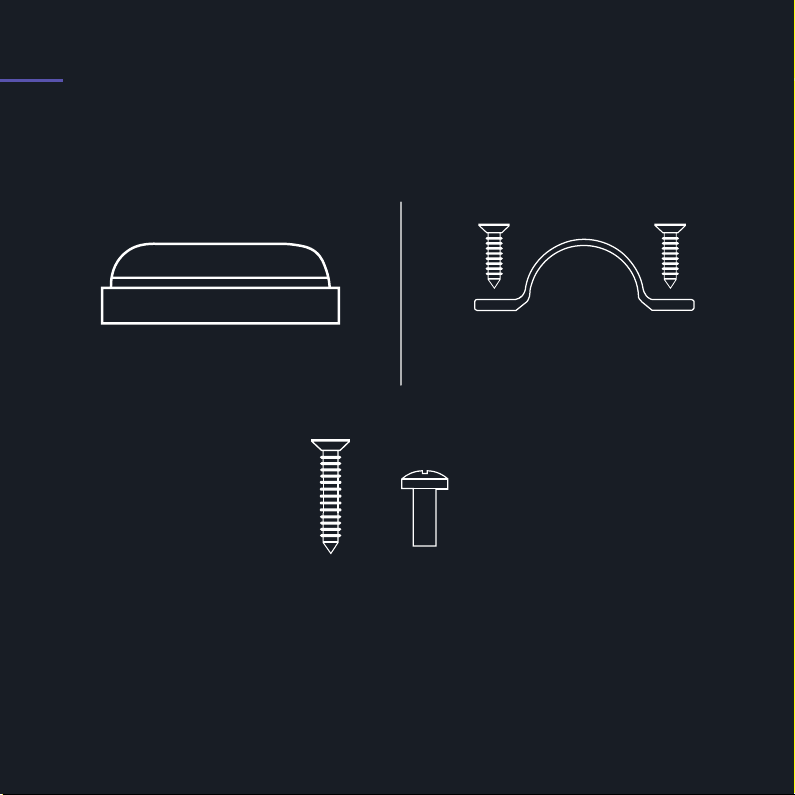

2. Mounting set
Nipples Cable clamp
Mounting screws
x4
2x 1x
ENG 4
ENG 5
3.Technical Specifications
Operating temperature:
Max. 80A fuse on
installation circuit
- 30 til +50C

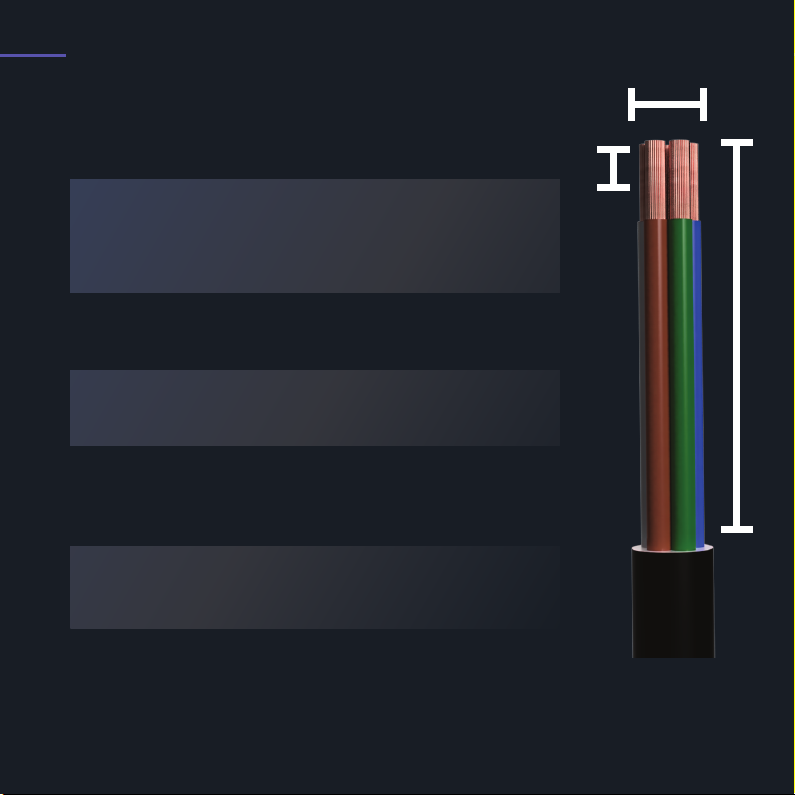

Weight:
Wire cross-section:
Cable dimension:
Length of cable:
Length of wire:
2.5-10mm2
10-20mm
200-270mm
19mm
0,6kg
Dimensions (mm) 143 x 135 x 76 (H x B x D)
Installation circuit
230VAC ± 10 %
400VAC ± 10 %
TN, IT og TT
Installation network voltage
7.4kW at 32 A/1-phase IT/TN
22kW at 32 A/3-phase (TN-network)
12.7kW at 32 A/3-phase (TN-network)
Max. power and charging outlets
IK9 impact protection
UL94 Fire classification
Equipment class I
Overvoltage category III
IP44 for indoor and outdoor use
Protection:
Overcurrent protection according to IEC 60364-4-43
RDC-DD 6mA according to IEC 62955
EVSE Mode 3 IEC 61851-1
Protection built into charging station:
General
200-270 mm
2.5-10mm
19 mm
4.Safety Instructions
Read through the instruction manual carefully before installing and using
the product. Pay attention to the following:
A certified professional should be responsible for the installation, mainte-
nance, and repair of the equipment. It is essential to comply with all local,
regional, and national electrical installation regulations.
The product should be placed on a stable location. Make sure the surface
has sufficient bearing capacity and that the entire backplate of the product
is covered by the wall mount.
It is not recommended to install the product in areas with a risk of explosion,
high temperature, or where it may come into contact with running water.
If damage or defects are detected on the product, it should not be installed
or used. It is also crucial to avoid changes to components or connection
cables, as this can pose a risk at high electrical voltage.
•
•
•
•
ENG 6
5.Safety Instructions for Use
When using the product, be aware of the following safety measures:
Damaged or defective products should not be used. Before use, always
check for any visible damage.
In case of fire, use CO2 to extinguish. Remember to disconnect the system
from the power grid before using water or foam.
Avoid submerging the product in water or other liquids. The wall mount
should also not be cleaned with running water or high-pressure cleaners.
Avoid using extension cords or adapters with the product. Do not insert
foreign objects into the product.
It is essential to ensure that children do not gain access to or play with the
product.
•
•
•
•
•
ENG 7
6. Installation Guide

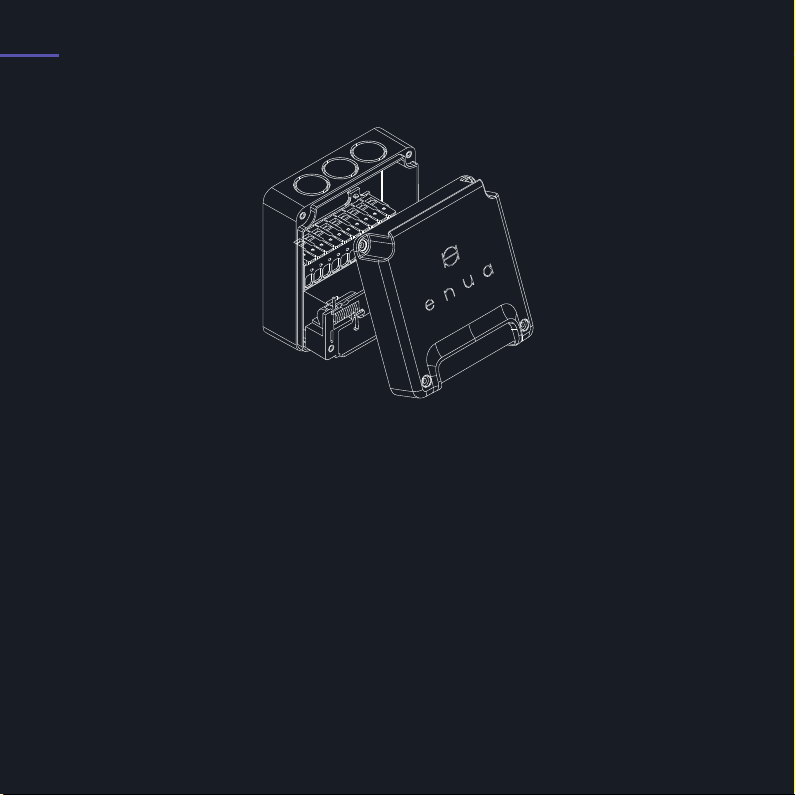

I. Remove the front cover
II. Mount the backplate and place the power cable
1. Find out where the cable going into the wall mount comes from. From five
different Snap out the plastic blind plugs where the cable is to enter the
wall mount.
2. The wall mount is mounted with four included wall screws.
3. Installation height of 130-150cm is recommended.
ENG 8
Installation Guide
ENG 9
Installation Guide
III. Mount the backplate and place the power cable
1. All wires should be stripped 19mm
2. When installing wall mounts, it must be protected by a max
80A type A 30mA RCD circuit breaker
Max cable dimension to the terminal port clamp 10mm2.
Minimum cable dimension to the terminal port clamp 2,5mm2.

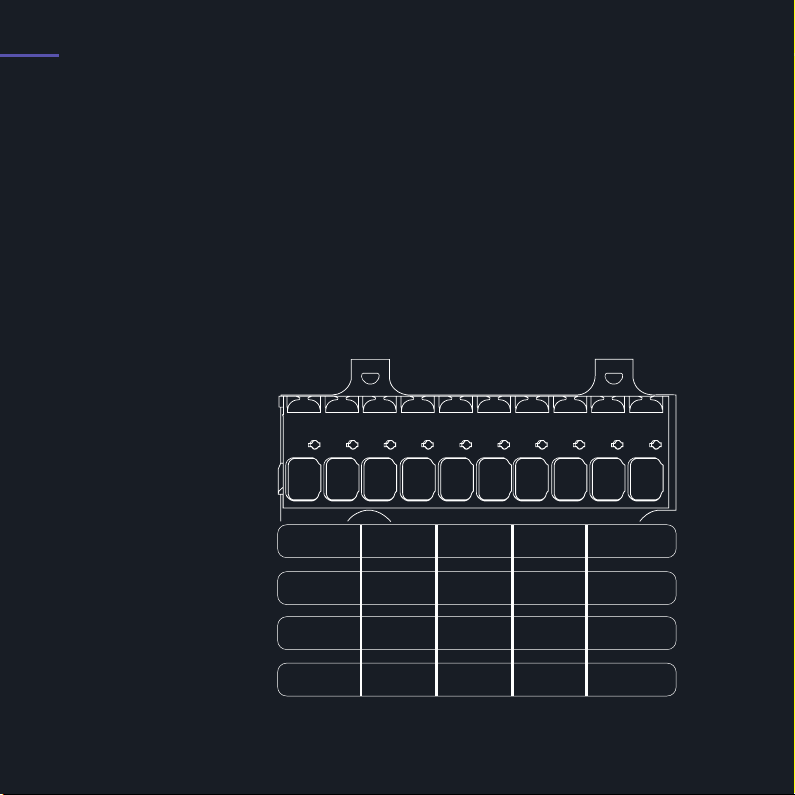

Connection overview:
L3/NA L3/NA L2/L3 L2/L3 L1/L2 L1/L2 N/L1 N/L1 PE PE
3- phase TN
3- phase IT
1- phaseTN
1- phase IT
L3 L2
L3
L1 N
L1 N
PE
PE
PE
PE
L1
L1
L2
L2
ENG 10
