Enttec PIXELATOR MINI Guide de l'utilisateur

Pixelator-Mini

KlingNet

Setup Guide

Kling Net Application Guide

This setup guide will step through using Arkaos’ Kling-Net Mapper

software in conjunction with an ENTTEC Pixelator Mini in order to map a

number of shapes.

This guide steps through the process of configuring the following pixel

products:

Pixel Product

Quantity

Product Number

12*12 WS2812b Pixel Tile

8PS144-125

60 px/m LED WS2812b strip

8PL60

-The pixel products in this guide have been connected to the Pixelator Mini through ENTTEC’s P-

Link System. Using this same system, Phero Battens can also be mapped.

Control Product

Quantity

Product Number

Pixelator Mini

70066

5V PLink Injector

73546

*DC Power should be provided locally at each Plink Injector.

Pixelator-Mini

KlingNet

Setup Guide

Configuration of the Pixelator Mini

After Plugging in your Pixelator Mini to your network, launch Enttec NMU on your computer to find

the IP address of the unit. From here you can open the web page:

Navigate to the settings tab within the web interface and select ‘Kling-Net’ in the dropdown menu.

Pixelator-Mini

KlingNet

Setup Guide

The first row of the outputs will allow you to configure your pixel ordering for each port using the

dropdown menu’s.

-Each port on the rear of the Pixelator Mini Should be thought of as a ‘virtual fixture’ and will appear

as such within the KlingNet Mapper software.

-If you want to disable a port so it does not show up in the KlingNet Mapper software, set it’s

dimensions to 0 Width and 0 Height.

-For the ports you do wish to use, enter the dimensionsof each shape you wish to create. Whilst doing

this you must remember that there is a maximum pixel per port limit of: 370 RGB LED’s & 256 RGBW

LED’s.

-The quantity of pixels used per port is shown in the Height * Width row directly below.

Pixelator-Mini

KlingNet

Setup Guide

After the number of pixels used per port are assigned, using the PixelPatch row select the way in

which your pixels have been connected to eachother. Hovering your cursor over the ‘Pixel Patch title

will show what layout corresponds to each number.

Once this has been completed click ‘Save Settings’, and wait for the page to refresh.

Your configuration should now appear in KlingNet Mapper.

Pixelator-Mini

KlingNet

Setup Guide

Configuration of Arkaos’ KlingNet Mapper

Open ‘Arkaos KlingNet Mapper’ (Ctrl+K from within the main MediaMaster Window) and ensure the

Test Pattern is Enabled on your output.

After all KlingNet devices have been discovered on the network, you will be presented with a list of

fixtures. Each of the Ports on the rear of the Pixelator Mini will show up as individual fixtures (each

with the same dimensions and pixel ordering as defined in the Pixelator Mini Web Interface). Drag

each of these shapes onto the test card and arrange them to suit using the mappers inbuilt tools.

Press ‘Send to Mapper’ when you’re confident everything lines up with your real world design.

Pixelator-Mini

KlingNet

Setup Guide

Rotate all ‘virtual fixtures’ to the correct orientation and scaling. By selecting each of them and

moving to the correct size for the canvas port and moving it to suit the correct positioning.

Once satisfied, if necessary use (Ctrl+shift+r) in order to re-size your canvas to be as close to your

mapped objects as possible. Following this, press the ‘Send Mapping to Mediamaster’ button.

Finally, within the Klingnet Mapper Software, set the output to ‘MediaMaster’ instead of the KlingNet

‘Test Pattern’.

Pixelator-Mini

KlingNet

Setup Guide

If MediaMaster is configured correctly to output to KlingNet Mapper your LED panels, dots and Pixel

Tape plugged into each Plink Port should function like independant5 KlingNet Fixtures.

Autres manuels pour PIXELATOR MINI

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Enttec Contrôleurs

Enttec

Enttec Evo Manuel utilisateur

Enttec

Enttec ODE MK3 Manuel utilisateur

Enttec

Enttec OCTO MK2 Manuel utilisateur

Enttec

Enttec DIN-ODE MK2 Manuel utilisateur

Enttec

Enttec S-PLAY MINI Manuel utilisateur

Enttec

Enttec OCTO Manuel utilisateur

Enttec

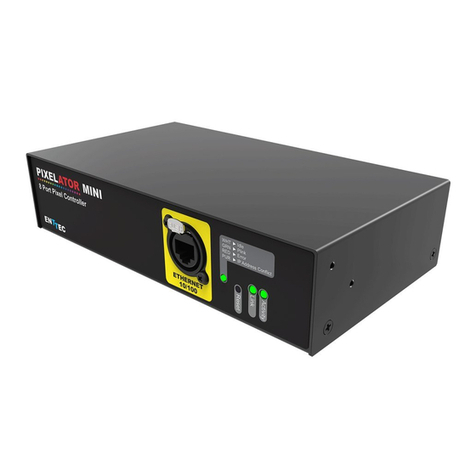

Enttec PIXELATOR MINI Manuel d'instructions
