EnGenius ECB7510 Manuel utilisateur

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

Package Contents

- 1*Enterprise AP ECB7510)

- 1*QIG

- 1*CD User’s Manual)

- 1*Power Adapter

- 2*Dual Band ANTs

ECB7510 set for speed – optimized for media, music, movies, gaming:

what-ever you’re into, the Simultaneous Dual Band N Wireless Device

will double the bandwidth and media-optimized performance so you can

enjoy it more smoothly, with less lag, all around.

ECB7510 is defined as multi-function WiFi system so it can satisfy all

different kinds of environment and let System Integrator have high

flexibility to build up Wireless Connection.

Features

Features Benefits

Multi mode Functions Access Point/WDS AP/ WDS Bridge

Dual concurrent N Allows simultaneous operation of 2.4GHz and 5GHz wireless network

WDS Wireless Distributed

System)

Make wireless AP and Bridge mode simultaneously as a wireless

repeater

Support Multi-SSID function Allow clients to access different networks through a single access point

and assign different policies and functions for each SSID by manager

Wireless security supports

WPA/WPA2-PSK/RADIUS &

64/128-bit WEP Encryption

Powerful data security

Power-over-Ethernet

IEEE802.3at)

Power supply via Ethernet cable which makes the setup more flexible

avoids restricting from wiring lines.

WPS button support Easy and secure to establishment of a wireless connection

Technical Specifications

Hard are Specification

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

Memory 64MB DDR 32+32)

Flash 8MB

PCB dimension 195mm x 132mm

Physical Interface - Ethernet x 1: 10/100/1000 Giga Ethernet RJ-45 802.3at support)

- Power Jack

- WPS Button WiFi Protected Setup)

- Reset Button

- EUP Power Switch

LEDs Status - Power Status

- 2.4G WLAN

- 5G WLAN

- WPS

- Ethernet

Power Requirements 12V1A

Top Panel LED status)

WPS 1 Link-> Associate Done, Processing->blink)

- WPS 5G->blue

- WPS 2.4G->orange

Power 1 Link-> blue static on)

2.4G WLAN 1 Link-> blue static on, traffic->blink)

5G WLAN 1 Link-> blue static on, traffic->blink)

Ethernet 1 Link-> blue static on, traffic->blink)

RF Specification

Frequency Band Radio I: 11b/g/n : 2.412～2.484 GHz

Radio II: 11a/n :5.18 ~ 5.24 & 5.26 ~ 5.32 & 5.5 ~ 5.7 & 5.745 ~ 5.825 GHz

Modulation

Technology

OFDM BPSK, QPSK, 16QAM, 64QAM)

DBPSK, DQPSK, CCK

Operating Channels 2.4G 11 for North America, 14 for Japan, 13 for Europe)

5G TBD)depend on what region

Wireless Setting Wireless Mode – 11b/ 11g /11n

Channel Selection Setting varies by Country)

Channel Bandwidth Auto, 20Mhz, 40Mhz)

Transmission Rate

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

-11g: Best. 54, 48, 36, 24, 18, 12, 11, 9, 6, 5.5, 2, 1 in Mbps

Guard Interval 800ns Guard Interval 400ns MCS Index

20MHz Mbps)

40MHz Mbps)

20MHz Mbps)

40MHz Mbps)

0 6.5 13.5 0 6.5

1 13 27 1 13

2 19.5 40.5 2 19.5

3 26 54 3 26

4 39 81 4 39

5 52 108 5 52

6 58.5 121.5 6 58.5

7 65 135 7 65

8 13 27 8 13

9 26 54 9 26

10 39 81 10 39

11 52 108 11 52

12 78 162 12 78

13 104 216 13 104

14 117 243 14 117

15 130 270 15 130

MCS 0 ≦ -82 dBm

MSC 7 ≦ -64 dBm

MSC 8 ≦ -82 dBm

2.412 ~ 2.472 GHz 11.n)

20MHz

MSC 15 ≦ -61 dBm

MCS 0 ≦ -79 dBm

MSC 7 ≦ -61 dBm

MSC 8 ≦ -79 dBm

2.412 ~ 2.462 GHz 11.n)

40MHz

MSC 15 ≦ -60 dBm

MCS 0 ≦ -82 dBm

MSC 7 ≦ -64 dBm

MSC 8 ≦ -82 dBm

5.18~5.825 GHz 11.n)

20MHz

MSC 15 ≦ -61 dBm

MCS 0 ≦ -79 dBm

MSC 7 ≦ -61 dBm

Receive Sensitivity

Typical)

5.18~5.825 GHz 11.n)

40MHz

MSC 8 ≦ -79 dBm

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

MSC 15 ≦ -60 dBm

IEEE802.11g 6 Mbps ≦ -90dBm

54 Mbps ≦ -70dBm

IEEE802.11a 6 Mbps ≦ -90dBm

2.412 ~ 2.462 GHz 11.b)

1~11Mbps ≧ 16 dBm

6~9Mbps ≧ 16 dBm

12~18Mbps ≧ 15 dBm

24~36Mbps ≧ 14 dBm

2.412 ~ 2.462 GHz 11.g)

48~54Mbps ≧ 13 dBm

MCS 0~1/MCS 8~9 ≧ 16 dBm

MCS 2~3/MCS10~11 ≧ 15 dBm

MCS 4~5/MCS/12~13 ≧ 14 dBm

2.412 ~ 2.462 GHz 11.n)

MCS 6~7/MCS14~15 ≧ 13 dBm

6~9Mbps ≧ 16 dBm

12~18Mbps ≧ 15 dBm

24~36Mbps ≧ 14 dBm

5.18~5.825 GHz 11.a)

48~54Mbps ≧ 13 dBm

MCS 0~1/MCS 8~9 ≧ 16 dBm

MCS 2~3/MCS10~11 ≧ 15 dBm

MCS 4~5/MCS/12~13 ≧ 14 dBm

Available transmit

power

The Max. Power will

be different

depending on local

regulations)

5.18~5.825 GHz 11.n)

MCS 6~7/MCS14~15 ≧ 13 dBm

Antenna *2 2.4G/5G MIMO ANT

Soft are Features

Setting

Topology Infrastructure

Operation Mode Access Point / Client Bridge / WDS AP/ WDS Bridge

LAN - DHCP Client

Wireless - Isolation

- Multiple SSID

- Output Power Control

- WDS

- Power saving Green technology)

- 64/128 bit WEP Encryption

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

- WPA Personal WPA-PSK using TKIP or AES)

- WPA Enterprise WPA-EAP using TKIP)

802.1x Authenticator

- - Hide SSID in beacons

- Wi-Fi Protection Setup WPS)

- MAC filter

- Best channel selection

Security - WEP Encryption-64/128/152 bit

- WPA Personal WPA-PSK using TKIP or AES)

- WPA Enterprise WPA-EAP using TKIP)

- 802.1x Authenticator AP mode)

- 802.1x Supplicant- TTLS CB mode)

- Hide SSID in beacons

- Multiple SSID with 802.1q VLAN tagging up to 4 SSIDs) AP mode)

- MAC Filter AP mode)

- L2 isolation AP mode)

- Wireless STA Client) connected list

- Lock to AP MAC CB mode)

QoS - WMM

- Application base

- Priority Queue

- Bandwidth Allocation

Management

Configuration Web-based configuration HTTP)/Telnet

Firmware Upgrade Upgrade firmware via web-browser

Keep latest setting when f/w update

Administrator Setting

Administrator password change

Reset Setting Reboot press 1 second)

Reset to Factory Default press 5 seconds)

System monitoring Status, Statistics and Event Log

SNMP V1, V2c

MIB MIB I, MIB II

Backup & Restore Settings through Web

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

Environment & Mechanical

Temperature Range 0 to 45° C - Operating, -10 to 70 ° C - Storage

Humidity

non-condensing)

15%～95% typical

Dimensions 154mm x 119mm

Applications:

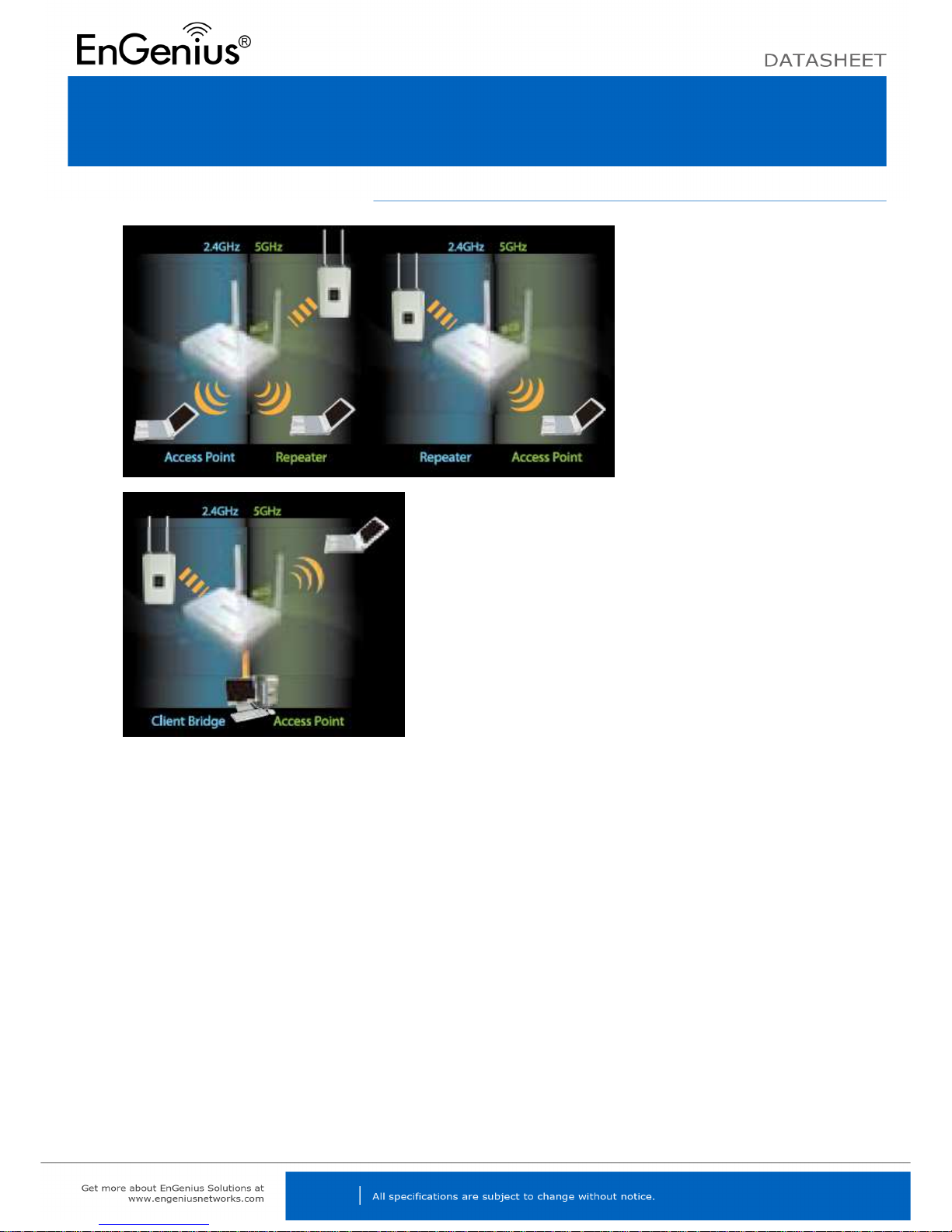

Operation Modes:

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n

ECB7510

Dual Mulit-Function Client Bridge

2.4GHz/5GHz 802.11a/b/g/n
