Enforcement Technology Group 60113 Manuel utilisateur

HANDHELD CELL PHONE RECORDER KIT

OPERATING MANUAL

Version#060113

TheHandheldCellPhoneRecorderKit isaversatileunitthatcanbeusedbylawenforcementinapplications

requiringtheneedtoallowmultipleteamstafftomonitorand/orrecordconversationstakingplaceovera

cellphone.

PleasenoteEnforcementTechnologyGroup,Inc.(ETGI)makesnorepresentationsconcerningthelegality

ofrecordingaudiosignalsofotherswithouttheirknowledgeand/orconsent.Weencourageyoutocheck

andcomplywithallapplicablelocal,state,andfederallawsandregulationsbeforeengaginginanyformof

surveillance.

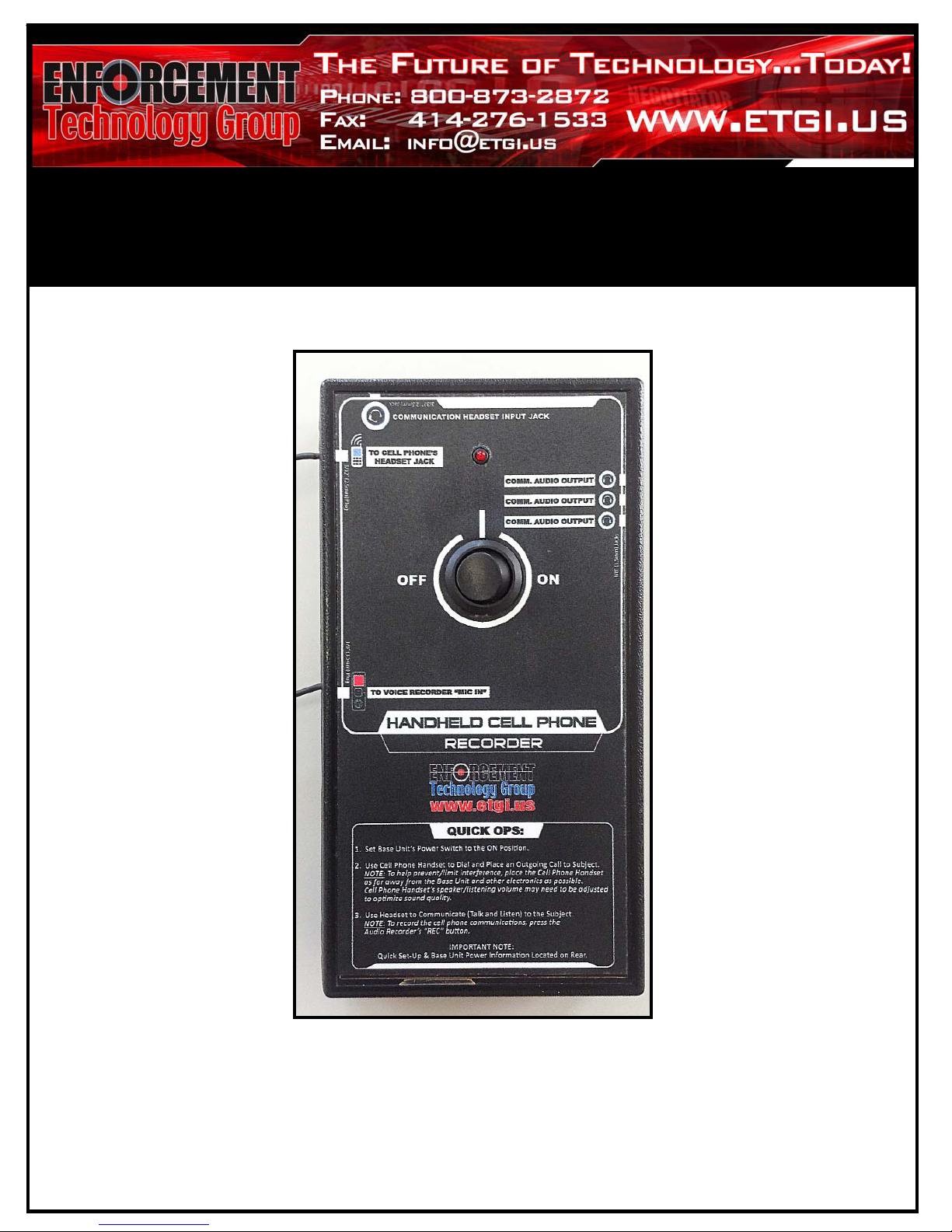

HANDHELDCELLPHONERECORDERKITCOMPONENTS**:

•(1)HandheldCellPhoneRecorderBaseUnitwith(4)AAalkaline batteries

•(1)Single‐CupPrimaryHeadsetwithMicrophone,AdjustableVolumeControlandmale3/32” (2.5mm)

Plug

•(2)Dual‐CupStereoMonitoringHeadphonewithAdjustableVolumeControlandmale1/8” (3.5mm)

Plug

•(1)DigitalVoiceRecorderKit;includes:DigitalVoiceRecorderwith1GBinternalHDMemory,1/8"

(3.5mm)MICINjack,USBport,USBcable(forPCconnection/file transfer)and(2)AAAalkalinebatteries

•(1)Unit/ComponentTransport/StorageCase

BASEUNIT&DIGITALVOICERECORDERBATTERYINSTALLATION:

1. RemovethebatterycompartmentcoverlocatedontherearoftheBaseUnit.

2. Install(4)AAalkalinebatteriesintothebatterycompartmentterminalsandreplacebattery

compartmentcover.NOTE: Checktoensurethatbatteriesareinstalledinaccordancewith thepolarity

(+/‐)configurationoftheterminals.Whenfreshbatterieshavebeen installedtheBaseUnitmaybe

poweredon/operatedforapproximately6‐8hours.

3. RemovethebatterycompartmentlocatedontherearoftheDigitalVoiceRecorder.

4. Install(2)AAAalkalinebatteriesintothebatterycompartmentterminalsandreplacebattery

compartmentcover.NOTE: Checktoensurethatbatteriesareinstalledinaccordancewith thepolarity

(+/‐)configurationoftheterminals.

CONNECTINGTHEPRIMARYHEADSET&

ACELLPHONETOTHEBASEUNIT:

1. InserttheSingle‐CupPrimaryHeadsetwithMicrophone's3/32"(2.5mm)plugintothe

“COMMUNICATIONHEADSETINPUTJACK"locatedonthetop/leftoftheBaseUnit.

2. InserttheBaseUnit's"TOCELLPHONE'SHEADSETJACK"cableleadplugintoaCellPhone's3/32"

(2.5mm)HeadsetJack.IMPORTANTNOTE: Adaptermayberequired.**

**IMPORTANTNOTE: CELLPHONEHEADSETJACKADAPTER

TheHandheldCellPhoneRecorderBaseUnitisdesignedtobeconnecteddirectlytoacellphoneequipped

witha2.5mm(3/32”)3‐pinheadsetjack.ToconnecttheBaseUnittoaCellPhoneequippedwitha1/8"

(3.5mm)headsetjack(whichincludesamajorityofBlackberry® andiPhone® models)theprovided2.5mmto

3.5mmadapterMUST beused.Cellphoneheadsetjacktypesandwiring/pinconfigurationsvaryasthereis

NO industrystandard.Foradditionalcompatibility/adapterinformation,pleasecontactusdirectlyat414‐

276‐4471oremailinfo@etgi.us.

CONNECTINGTHEDIGITALVOICERECORDER&

AUXILIARYAUDIOMONITORINGDEVICESTOTHEBASEUNIT:

1. InserttheBaseUnit's1/8"(3.5mm)"TOVOICERECORDER"MICIN"cableleadplugintotheDigital

VoiceRecorder's"MICIN"jack.NOTE: TheDigitalVoiceRecorderispoweredandoperatedseparately

fromtheBaseUnit.Checkthatbatterieshavebeeninstalledpriortooperations.

2. Connectupto(3)externalaudiomonitoring,distributionorrecordingdevicessuchasheadphones,

wirelesstransmitters,speakersordigitalvoicerecordersintotheBaseUnit's1/8"(3.5mm)"COMM

AUDIOOUTPUT"jack(s)(locatedonouter/right).NOTE:Duringoperations,thelistening/speaker

volumelevelofanexternalaudiomonitoringdeviceconnectedto theBaseUnitmaymay beincreased

ordecreasedbyadjustingthedevice’svolumecontroldialorvolume+/‐buttons.

OPERATIONS:

PlacinganOutgoingCall:

1. PowerontheBaseUnitbysettingthe“POWERON/OFF” switchtothe"ON"position.NOTE: AnLED

willturnontosignalthattheBaseUnitisactive/receivingpower.Iftheoutgoingcallistobe

recorded,checkthattheDigitalVoiceRecorderconnectedtothe BaseUnithasbeenpoweredonand

recordingfunctionhasbeenactivated.

2. Toplaceanoutgoingcall,enterthetelephonenumberofthepartythatistobereachedonthedial

padofthecellphonehandsetconnectedtotheBaseUnitandpressthecellphone’s“SEND” key.

NOTE: Tohelpprevent/limitcellularradiofrequency(RF)interferencesettheconnectedcellphoneas

farawayfromtheBaseUnitandotherelectronicdevicesaspossible.

3. Afterthecallisconnected,usetheheadsetconnectedtotheBaseUnittotalkandlistentothe

party.NOTE: Duringoperations,thelisteningvolumeleveloftheheadsetconnectedtothe“Primary

PartyHeadset” portmaybeincreasedordecreasedbyadjustingthedevice’svolumecontroldial.

Shouldanoperatorexperiencedifficultyhearingthepartyafter theheadsetvolumecontroldialhas

beensettoitshighestlevel,theoperatorshouldincreasethespeaker/volumeleveloftheconnected

cellphonehandset.

4. Todisconnectthecallinprogress,pressthecellphone’s“END”keyorpowerofftheBaseUnitby

settingthe“POWERON/OFF” switchtothe"OFF"position.NOTE: TheLEDwillturnofftosignalthat

theBaseUnitisinactive/notreceivingpower.AlwayspowerofftheBaseUnitafteroperations.

OPERATIONS(CONTINUED):

ReceivinganIncomingCall:

1. PowerontheBaseUnitbysettingthe“POWERON/OFF"switchtothe"ON"position.NOTE: AnLED

willturnontosignalthattheBaseUnitisactive/receivingpower.Iftheincomingcallistoberecorded,

checkthattheDigitalVoiceRecorderconnectedtotheBaseUnit hasbeenpoweredonandrecording

functionhasbeenactivated.

2. Pressthe“ANSWER”keyofthecellphonethatisconnectedtotheBaseUnittoanswertheincoming

call.NOTE: Tohelpprevent/limitcellularradiofrequency(RF)interferencesettheconnectedcell

phoneasfarawayfromtheBaseUnitandotherelectronicdevicesaspossible.

3. Afterthecallisconnected,usetheheadsetconnectedtotheBaseUnittotalkandlistentotheparty.

NOTE: Duringoperations,thelisteningvolumeleveloftheheadsetmaybeincreasedordecreasedby

adjustingtheheadset’svolumecontroldial.Shouldanoperatorexperiencedifficultyhearingtheparty

aftertheheadsetvolumecontroldialhasbeensettoitshighestlevel,theoperatorshouldincreasethe

speaker/volumeleveloftheconnectedcellphonehandset.

4. Todisconnectthecallinprogress,pressthecellphone’s“END”keyorpowerofftheBaseUnitby

settingthe“POWERON/OFF” switchtothe"OFF"position..NOTE: TheLEDwillturnofftosignalthat

theBaseUnitisinactive/notreceivingpower.AlwayspowerofftheBaseUnitafteroperations.
