ENERGY SISTEM Tower 2 Style Manuel utilisateur
1/7 energysistem.com
ENGLISH
Introduction 3 .....................................................................................................................................................................
Care and maintenance 3 ...................................................................................................................................................
Technical specifications 3 .................................................................................................................................................
AUDIO 3 ..........................................................................................................................................................................
SPEAKERS 4 ....................................................................................................................................................................
BLUETOOTH CONNECTIVITY 4 ........................................................................................................................................
ANALOGUE INPUTS 4 ......................................................................................................................................................
MEMORY CARD AND USB DECODER 4 ............................................................................................................................
FM RADIO 4 ....................................................................................................................................................................
POWER SUPPLY 4 ...............................................................................................................................................................
OTHER FEATURES 4 ........................................................................................................................................................
Product content 4 ...............................................................................................................................................................
Connectivity and commands 4 .........................................................................................................................................
Switching on and off the device 5 ...................................................................................................................................
Functions 6 ..........................................................................................................................................................................
Warranty 6 ...........................................................................................................................................................................
Warranty procedure 6 .......................................................................................................................................................
Trademarks 6 ......................................................................................................................................................................
Declaration of conformity 6 ..............................................................................................................................................
2/7 energysistem.com
3/7 energysistem.com
Introduction
Thank you for your trust in our company and for buying the new Tower 2 Style. We hope you enjoy it.
This sound tower with 25 W power has been created to satisfy all musical needs that users might have at home. It
features Bluetooth 4.1 technology, FM radio, MP3 player for removable storage units (USB sticks and microSD cards) as
well as a 3.5 mm audio-in.
Care and maintenance
Do not expose your Tower 2 Style to impacts, dust, humidity or high temperatures.
Do not use neither corrosive nor abrasive cleaning products.
Do not dismantle the device. All reparation works should be carried out exclusively by qualified staff of Energy
Sistem Technology, S.A.
Technical specifications
AUDIO
Sound system: 2.0
Power: 25 W
4/7 energysistem.com
Bass reflex
Frequency response: 30 Hz ~ 18 KHz
SPEAKERS
1 x Tweeter: 5 W, 1.5"
2 x Full range speakers: 15 W, 4"
BLUETOOTH CONNECTIVITY
Bluetooth 4.1, class II
Supported Bluetooh protocols: A2DP/ AVRCP
Operating frequencies: 2.4 GHz
Maximum output signal: 4 dBm
Up to 20 m distance range
ANALOGUE INPUTS
3.5 mm input (analogue stereo input)
MEMORY CARD AND USB DECODER
Decoder for microSD cards and USB sticks of up to 128 GB
Supported formats: WAV/ MP3
Supported file system: FAT/ FAT32
FM RADIO
80 cm antenna included
Frequency range (FM): 87.5 - 108 MHz
Auto search function with up to 50 station presets
POWER SUPPLY
Power supply: AC/DC power adapter: 100-240 V/ 50-60 Hz
Device adapter: IEC
Power cable length: 150 cm
Electricity consumption (medium volume level): 5 Wh
Electricity consumption (maximum volume level): 15 Wh
OTHER FEATURES
LED indicators (playback mode)
Wooden cabinet speakers
Product content
Tower 2 Style Bangkok
Quick guide
Audio cable (3.5 mm)
Power cable

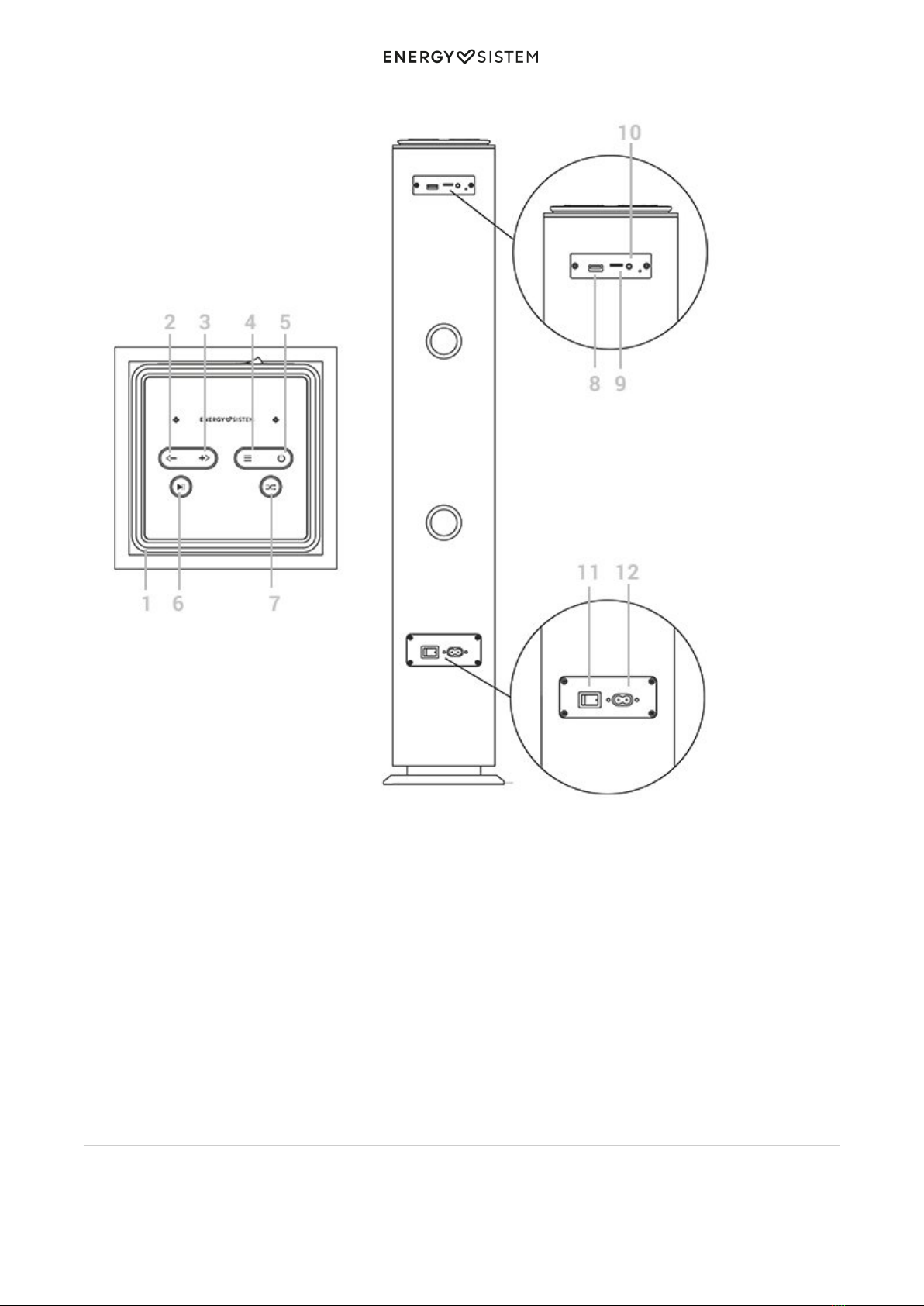

Connectivity and commands
5/7 energysistem.com
LED indicator1.
Volume -/ Back2.
Volume +/ Next3.
Playback mode4.
On/ Off5.
Play/ Pause6.
Repeat mode7.
USB playback port8.
MicroSD card slot9.
3.5 mm audio-in (AUX)10.
Power switch11.
Power connector12.
Switching on and off the device
Once the power cable has been connected to the back of your Tower 2 Style (12), connect the plug to the socket and
move the power switch (11) to the ON position. From that moment on, you just have to press and hold the On/ Off
button (5) on the top panel for 2 seconds to switch on or off the tower.
6/7 energysistem.com
Functions
Press the Playback mode button (4) to choose one of the different playback modes available: Bluetooth, USB, microSD,
FM and auxiliary input. The LED indicator (1) shows the selected mode: blue for Bluetooth, orange for MP3 playback via
removable USB sticks/microSD cards or auxiliary analogue input and green for FM radio.
Press Volume -/ Back (2) and Volume +/ Next (3) to adjust volume (press the button once) and switch to the
previous/next track (press and hold the button for 2 s).
Bluetooth: Pair your devices wirelessly within a distance range of 30 m. To do this, enable Bluetooth on your source
device and connect it to your "Tower 2 Style". You will hear a confirmation sound to let you know that both devices have
been paired correctly.
Removable storage units (microSD cards/ USB sticks): it plays MP3 and WAV files from removable USB sticks and
microSD cards of up to 128 GB. Press the Playback mode button (4) for 2 seconds to switch from one folder to another.
Press the Repeat mode button (7) to choose one of the repeat modes available. You will hear a voice telling you which
mode you've selected ("Random", "Repeat all" and "Repeat one").
Analogue input (AUX): your device features an analogue stereo input to connect external devices. This input has been
conceived for a 3.5 mm jack connector. The cable is provided with the product.
FM radio: once you have selected the FM radio function, press and hold the Playback mode button (4) for 2 seconds to
carry out an automatic search of all radio stations available. Press and hold Next (3) or Back (2) to select the radio
station that you prefer.
Warranty
Energy Sistem Technology, S.A. is liable for any lack of conformity that exists at the time the goods are purchased
during a period of 36 months. This warranty covers any defects in workmanship or materials and does not cover any
product failure due to accidents, misuse or alteration made by an unauthorized person. The special 36 month warranty
is valid for the European Union. For other countries please refer to your specific legislation or your local distributor.
Warranty procedure
Please visit www.energysistem.com/en/support and select your product to view the FAQ (Frequently Asked Questions),
user manual, quick guide, drivers and updates available as well as to submit a query to our Technical Support or
manage the warranty. You may also contact the distributor that sold the product by presenting the purchase receipt or
invoice.
Trademarks
All company, brand and product names are trademarks or registered trademarks of their respective companies.
Specifications are subject to change without notice.
© 2018 by Energy Sistem Technology, S.A. All rights reserved.
Declaration of conformity
Issuer's name: Energy Sistem Technology, S.A. - CIF: A53107488
Address: C/ Calpe, 1 - 03509 Finestrat, Alicante (Spain)
Tel: +34 966 830 324
We declare under our own exclusive responsibility that the product
Description: Tower speaker
Brand: Energy Sistem
Model: Tower 2 Style
Manufacturer: Energy Sistem Technology, S.A.
Manufacturing country: China
referred to in this declaration is in compliance with the essential norms and standards
7/7 energysistem.com
EN 50663:2017
EN 62479:2010
EN 62368-1:2020+A11:2020
EN 301 489-17 V3.2.2 (2019-12)
EN 301 489-1 V2.2.3 (2019-11)
EN 300 328 V2.2.2 (2019-07)
EN 303 345-1 V1.1.1 (2019-06)
EN 303 345-3 V1.1.0 (2019-11)
in conformity with the essential norms and standards of the Directive 2014/53/EU of the European Parliament and of the
Council of 16th April 2014.
Finestrat, 1st December 2020
Miguel Ángel Aragüez García
Innovation and Technology Director
