ENERGY SISTEM Mp3 sound system 400 Manuel utilisateur

ESPAÑOL

Manual de usuario / User manual

Manuel de l’utilisateur / Manual do usuario

ENERGY

MP3 Sound System 400

2.1 LOUDSPEAKER

ENGLISH

User Manual

ENGLISH

INTRODUCTION

Energy Sistem ® thank you for buying an Energy™ MP3 Sound System 400. We

hope you will enjoy it.

Stereo sound system with subwoofer and MP3, it plays from USB flash drive and

SD cards. Amazing deep bass balance with 40 W real power. With volume control,

deep and high pitch sound EQ. More than a loudspeaker.

We encourage you to read this manual in order to enjoy the product in a safe

manner and with the best performance.

CARE AND MAINTENANCE

≥ Do not expose your Energy™ MP3 Sound System 400 to shock, dust, humidity or

high temperatures.

≥ Do not use cleaners or scouring agents.

≥ Keep the unit clean and dust with a soft, dry cloth.

≥ Do not disassemble the device. Any repairs must be done by qualified service and

authorised staff by Energy Sistem Soyntec S.A.

≥ Keep your Energy™ MP3 Sound System 400 away from water or moisture, it can be

harmful to both speakers or for the amplifier device.

≥ Switch off your Energy™ MP3 Sound System 400 when not in use.

TECHNICAL DETAILS

≥ 2.1 sound system.

≥ Plays MP3 files from SD/SDHC/MMC cards with capacity up to 32 GB.

≥ USB memory decoder: plays MP3 files from USB memory drives with capacity up

to 32 GB.

≥ RMS power satellite: 10 W x 2.

≥ RMS power subwoofer: 20 W.

≥ Frequency response: 40 Hz ~ 20 KHz.

≥ Power supply: 110-220 V / 50-60 Hz.*

≥ Dimensions (HxWxD):

≥ Satellite speaker: 117 x 130 x 103 mm.

≥ Subwoofer: 212 x 198 x 215 mm.

≥ Weight: 2,75 Kg.

PRODUCT CONTENT

≥ Energy™ MP3 Sound System 400.

≥ 3,5 mm audio cable.

≥ User manual.

*Power supply:

MP3 Sound System 400 Black: 110-220 V / 50-60 Hz.

MP3 Sound System 400 Black & Red: 220 V / 50 Hz.

ENGLISH

GENERAL OVERVIEW

1. Left speaker.

2. Subwoofer.

3. Right speaker.

4. Bass control.

5. Treble control.

6. Volume control.

7. Power on LED indication.

8. In line.

9. Output for satellite speakers.

10. Power cable.

11. INPUT.

12. Backward.

13. Forward.

14. Play/pause.

15. MP3 indication LED.

16. USB port.

17. SD/SDHC cards port.

18. On/off switch.

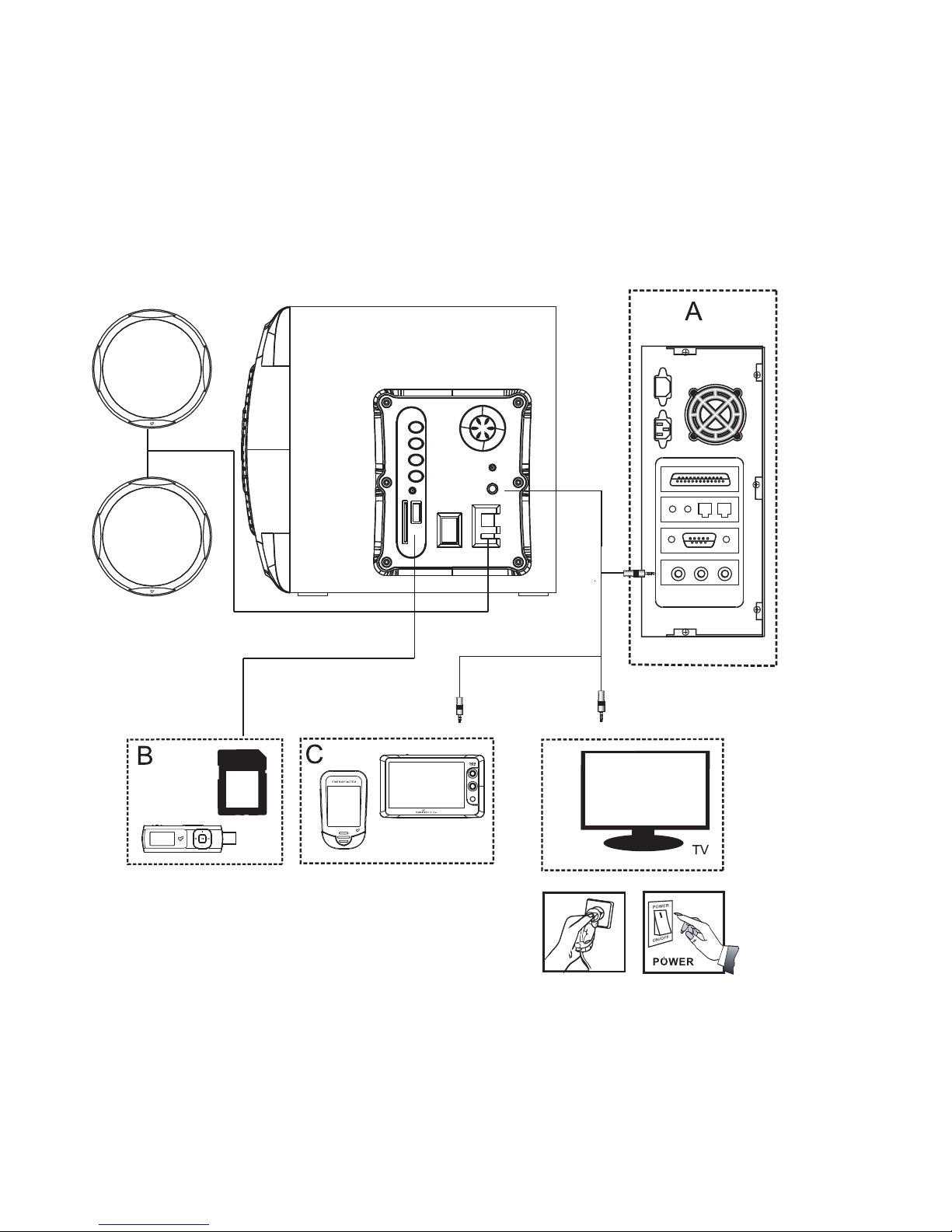

CONNECTION

ENGLISH

GENERAL FEATURES

Energy™ MP3 Sound System 400 plays MP3 files from Micro SD/MMC memory

cards or USB external memory. Also, they can be connected to any external audio

player (such as an MP3 player or laptop) and amplify the sound through your

speakers, thanks to the line input.

“LINE-IN” FUNCTION

To use playback line input, connect the audio cable “AUX” (8) into the output of an

audio device like an MP3 player, computer, etc ...

MP3 FUNCTION WITH EXTERNAL MEMORIES

In order to play MP3 files, insert an external memory such as a USB stick or a SD/

MMC memory card in the corresponding slots; (16) and (17) respectively.

If you switch off the Energy™ MP3 Sound System 400 or remove the external

memory, it will save the instant playing time in the internal memory of the device.

By this way, when you insert again the same external memory, the lecture will

continue at the same instant that you stop previously.

To change the song, please, use forward (13) and back (12) buttons

PLAYBACK ORDER

The folders included in the memories are read in writing chronological order and all

songs contained in these folders are read in alphabetical order.

For example: if after copying two folders of music called ‘A’ and ‘B’, we can copy

first folder ‘B’ and later folder ‘A’, so the first played song will be first song in

alphabetical order of ‘B’ folder.

Here you have a diagram of the reading order:

Technical support email address: support@energysistem.co.uk

Folders: writing order.

MP3 files: alphabetical order.

ENGLISH

WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time

the goods were purchased during a period of 36 months. Batteries are excluded from

the 36-month warranty, having a warranty period of 12 months.

This warranty covers any defects in workmanship or materials. This warranty doesn’t

cover any failure of the product due to accidents, misuse or alteration made by an

unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries,

please refer to your specific legislation or your local distributor.

WARRANTY PROCEDURE

1. Visit the Support section at http://support.energysistem.com and select your

product to view the FAQ (Frequently Asked Questions). The solution to your

problem is very likely to have been already published there. You will also be able

to download user manuals, user guides, drivers and updates. You can check the

availability of the user manual in your language at http://www.energysistem.com/

es-es/support/manuals

2. If you cannot find an appropriate solution in the Support section, you may send us

your enquiry or warranty service request by email: support@energysistem.com

3. Alternatively, you may prefer to contact the distributor from which you purchased

the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

Important: This warranty doesn’t cover any damage or loss to any data stored in the

product memory, therefore Energy Sistem’s Technical Service will not assume any

loss of the above mentioned information so it is recommended to make a backup of

your data and to remove any data or personal info from its internal memory before you

send the product, or to send it only with the original factory default values.

Trademarks. All company, brand and product names are trademarks or registered

trademarks of their respective companies.
