Energizer BC-5HU Guide des dimensions

Energizer SA

European Headquarters

8, impasse Colombelle

1218 Le Grand-Saconnex/Geneva, Switzerland

Tel. +41 (22) 9299 411 Fax +41 (22) 9299 438

TVA n° 146 652

Important Notice

This datasheet contains information specific to battery chargers manufactured at the time of its

publication.

Contents herein do not constitute a warranty.

Engineering Data

Energizer – Universal charger. Model No. BC-5HU

PRODUCT DESCRIPTION:

Description:

Computer Controlled Universal NiMH /NiCd Battery

Charger

Type:

Desk top type with direct plug-in type power unit

Technology of batteries:

Nickel-Cadmium / Nickel-Metal Hydride

Batteries Charged Size:

D, C, AA, AAA and 9V cell

Number of channels:

4 channels (2 for D/C/AA/AAA and 2 for 9V)

-for 2 or 4pcs. AA / AAA / C / D and 1-2pcs 9V Ni-MH/Ni-Cd

battery.

Plastic enclosure material:

Acrylonitrile Butadiene Styrene (ABS), type no. PA-765,

flame class: 94V-0, file E56070 or other equivalent.

Case color:

Silver for the cover

Dark grey for the base & bottom case

Primary:

Dimensions: (without power unit)

185mm(L) x 182mm(W) x 60mm(H)

Weight: (without power unit)

(Adaptor)

455 grams (approx.)

460 grams (approx.)

TECHNICAL SPECIFICATIONS:

Primary Voltage and Frequency

(Adaptor)

220 – 240V 50Hz (European, Australian, Asian market)

120V 60Hz (US market)

Primary Voltage (Charger)

18V DC 500mA

Output: AA/C/D - 2 x (2.8V 550mA)

AAA - 2 x (2.8V 280mA)

6F22 - 2 x (9.0V 12-16mA)*

*Remark: Charging current for 9V cell is 12mA at full load

of the charger and 16mA for 9V charging only.

Trickle charge (D/C/AA/AAA): 30mA ± 10mA

Energizer SA

European Headquarters

8, impasse Colombelle

1218 Le Grand-Saconnex/Geneva, Switzerland

Tel. +41 (22) 9299 411 Fax +41 (22) 9299 438

TVA n° 146 652

Important Notice

This datasheet contains information specific to battery chargers manufactured at the time of its

publication.

Contents herein do not constitute a warranty.

Type of end of charge detection:

1. -∆V detection 8mV ± 3mV

2. max timer control AAA/AA/C/D – 5.5hr

Safety features: a. -∆V charging cut-off

b. Safety timer to prevent over charge

c. Reverse-polarity protection (Mechanical arrangement to

prevent charging cells in reverse.)

Temperature: Storage temperature: -20oC to 55oC

Working temperature: -10oC to 35oC

Casing maximum temperature during charging

temperature rise: 35oC

Batteries maximum temperature during charging

temperature rise: 35oC

Description of the Leds: AAA/AA/C/D cell

Red LED - Rapid mode;

Green LED - Trickle mode

9V cell

Red LED – Standard charge mode

CHARGING TIME:

Fully charge 2 or 4pcs Ni-MH AAA 800mAh : 3h45

Fully charge 2 or 4pcs Ni-MH AA 2100mAh : 4h30

Fully charge 2 or 4pcs Ni-MH AA 2300mAh : 5 hours

Fully charge 2 or 4pcs Ni-MH AA 2500mAh : 5h30

Fully charge 2 or 4pcs C and D 2300mAh : 5 hours

Fully charge 1 or 2pcs Ni-MH 9V 150mAh : 12 hours

(the other charging slots are without

batteries)

18 hours

(all charging slots are loaded with batteries)

*Charge time will vary with the capacity, condition, and amount of charge

left in the battery to be charged.

Energizer SA

European Headquarters

8, impasse Colombelle

1218 Le Grand-Saconnex/Geneva, Switzerland

Tel. +41 (22) 9299 411 Fax +41 (22) 9299 438

TVA n° 146 652

Important Notice

This datasheet contains information specific to battery chargers manufactured at the time of its

publication.

Contents herein do not constitute a warranty.

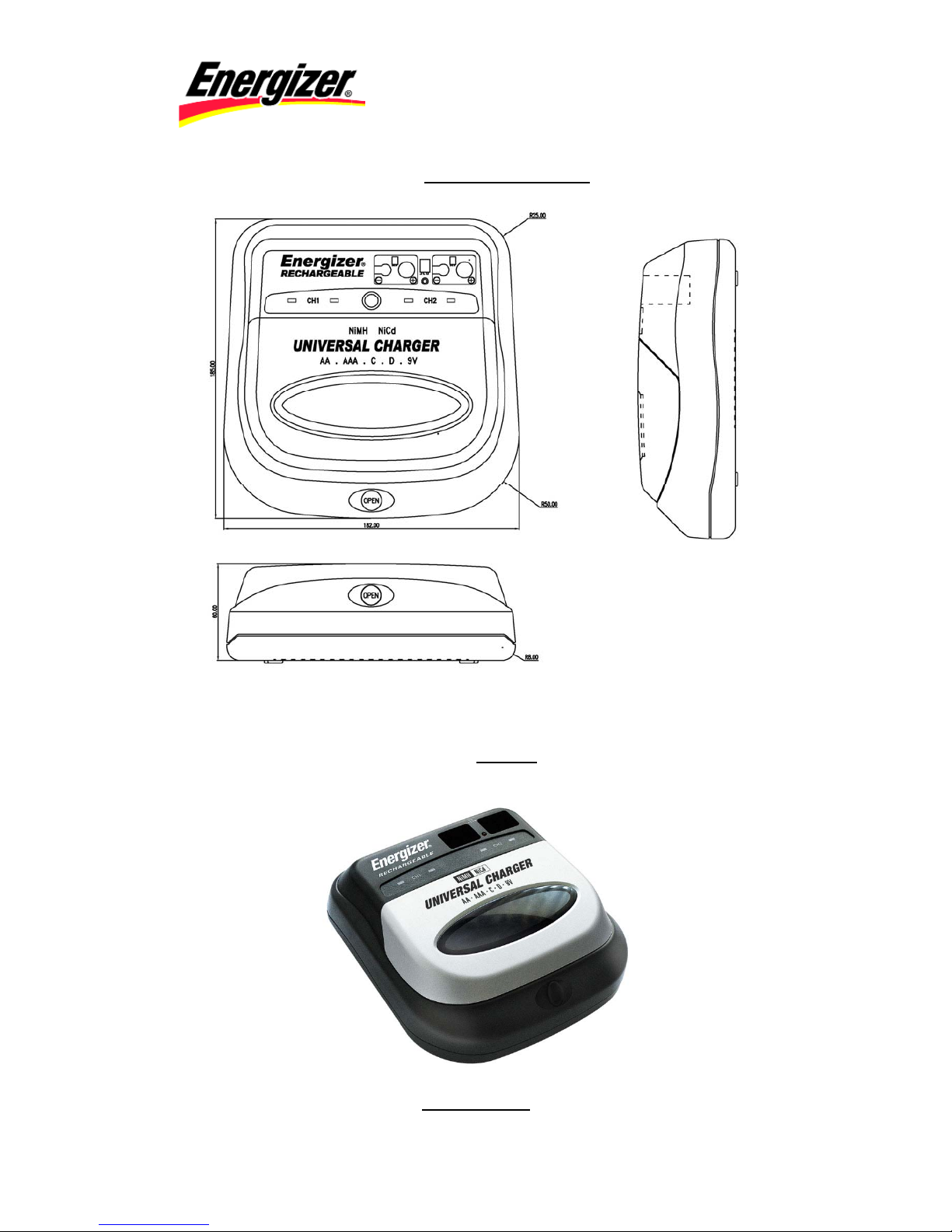

Drawing / Dimensions

Picture:
