Eneo APD-7SV2812MVA Manuel utilisateur

Installation Guide

1/3” Dome, Day&Night,

Eo-V(WDR)/Eo-A(D-WDR),

2.8~12mm, 750TVL, Infrared, 12/24V, IP67

APD-7SV2812MVA

APD-7SV2812MAA

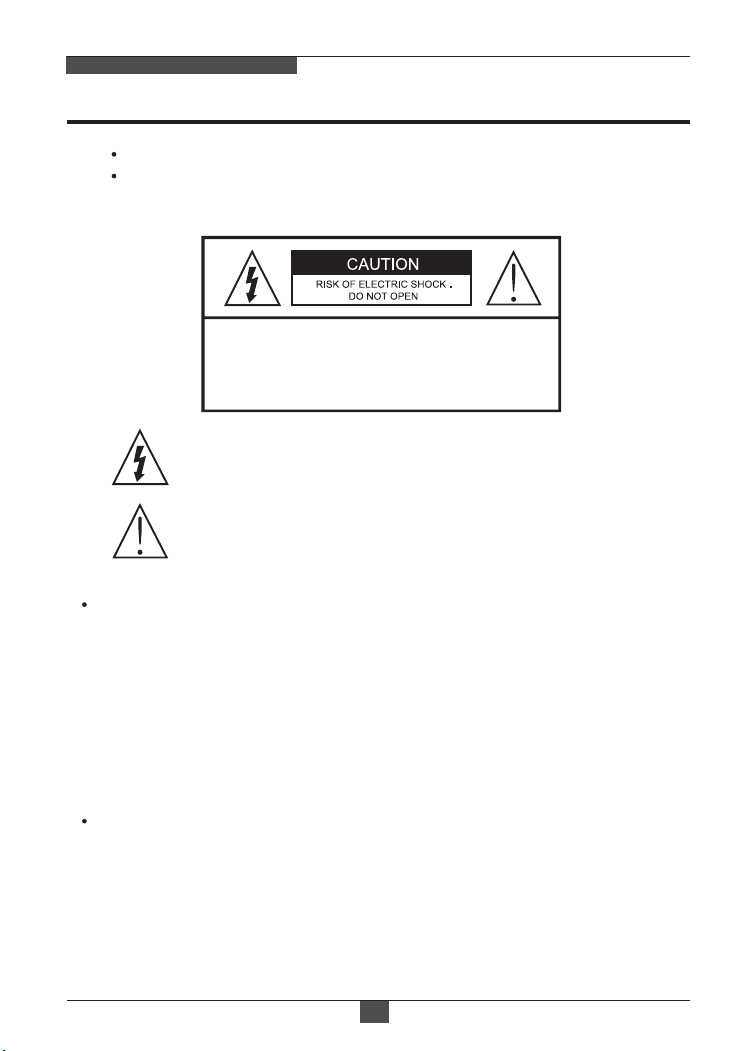

Safety Precaution

ULTRA CLEAR RESOLUTION CAMERA

CAUTION: TO REDUCE THE RISK OF ELECTIRC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

ULTRA CLEAR RESOLUTION CAMERA

Safety Precaution

NOTICE

The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

Avoid installing areas where has shock or vibration which results in the problems.

Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

Maintenance and repair have to be carried out only by authorized service centers.

Use only a mild detergent to clean the housing.

The camera should never be operated beyond the technical specifications.

This can lead to destruction.

The camera should never be operated in water.

ULTRA CLEAR RESOLUTION CAMERA

Contents

Safety Precaution

p.03~04

Contents

p.05

Features

p.06

Composition

p.07

Dimensions

p.08

Part Names

p.09

Installation Instructions

p.10~13

Operating Instructions

p.14~33

Specifications

p.34~35

ULTRA CLEAR RESOLUTION CAMERA

Features

Key Features

• 1/3” High density Sony CCD (960H)

• 750TVL High-Resolution

• True WDR (Wide Dynamic Range) : APD-7SV2812MVA

• D-WDR by ATR-EX : APD-7SV2812MAA

• TDN with Dual Filter Switcher

• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal Lens

• Improved noise reduction 2D+3DNR

• Improved IR-Optimizer

• DIS(Digital Image Stabilizer)

• Scene Preset, LSC(Lens shading compensation), Motion detection, E-Zoom,

Polygon Privacy mask(polygon mask up to 15), Defog, Sens-up, BLC/HLC

• Zoom & Focus Adjustment on 3-Axis Gimbal

• IR-LED 30pcs

• LED ON/OFF Control

• Up the Coaxial (UTC) communication

• RS-485 control

• OSD MENU & Video Sub-out port for easy installation & Maintenance

• Circuit protection against faulty connection in power polarity

• Isolated power supply against ground loop problem

• Operable up to -50ºC

• Anti-Scratch Hard Coated Clear bubble dome

• Flush mount (Optional mounting accessories are choosable)

• IP67 / IK10 Protection

ULTRA CLEAR RESOLUTION CAMERA

General Description

• With ICR mechanism,

- Enhances its sensitivity about 10x at night time

- Can accepts the infrared light

This is an ultra-clear resolution camera which realizes over 750TVL resolution

and a crisp color reproduction with SONY 960H CCD and Effio-V(Effio-A)

Enhanced image signal processor.

Features

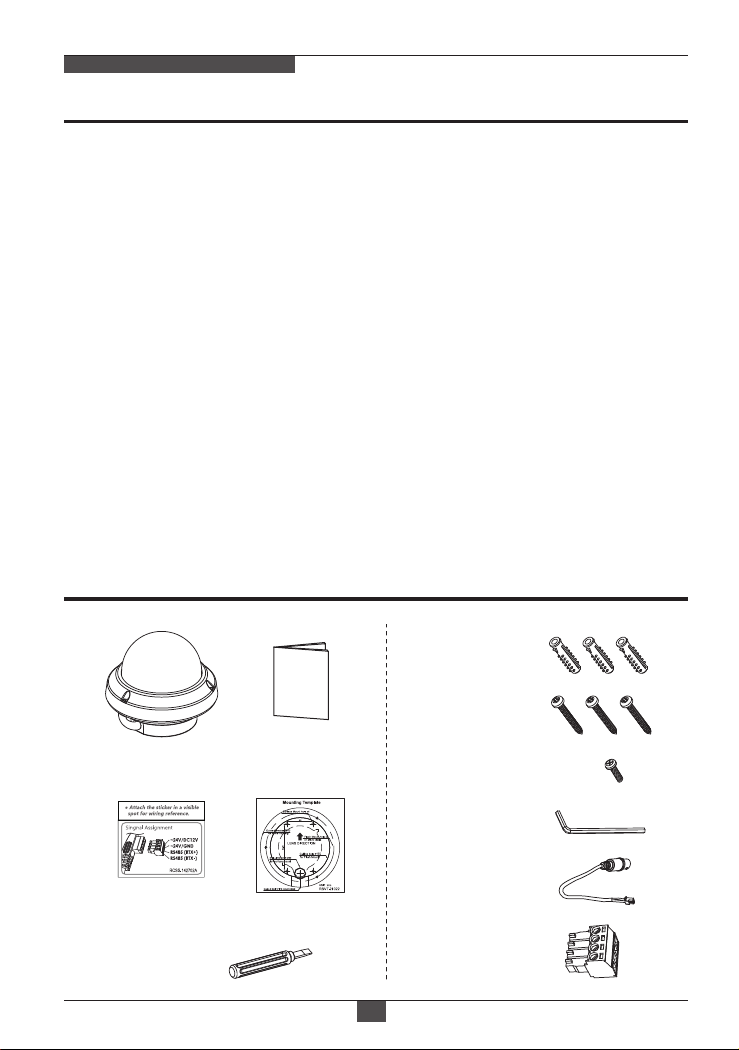

Composition

• With Effio-V/A series Enhanced digital imaging system,

- Delivers the crystal clear images providing 750TVL resolution in

conjunction with SONY 960H High density CCD.

- APD-7SV2812MVA is provided ‘TRUE WDR’ function

- APD-7SV2812MAA is provided ‘D-WDR by ATR-EX’ function

- Color signal processing provides the optimum balance between the

luminance and chroma signals for high color reproducibility even for

the detail scene which contains very high spatial frequency.

- Incorporates 2D+3DNR signal processing.

Mounting Template

Cable Signal

Sticker

Operating

Instruction

Torque Wrench:

3mm (1pc)

Video Sub-out

Cable (1pc)

Mounting Screw:

4 x 30mm (3pcs)

Plastic Anchor:

6 x 30mm (3pcs)

Dome Camera

Focus adjust

Driver (1pc)

Wiring Connector

(1pc)

Connector fixing Screw:

2.5 x 5mm (1pc)

ULTRA CLEAR RESOLUTION CAMERA

Dimensions

(unit : mm)

Ø140

119

PCD Ø120

Ø102

Ø140

3-Ø4.2

ULTRA CLEAR RESOLUTION CAMERA

Part Names

BUBBLE DOME

3-AXIS GIMBAL

DOME COVER

SAFTY WIRE

FLUSH MOUNT

FOCUS / ZOOM

LENS

POWER CABLE

OSD CONTROL

JOY STICK

VIDEO (BNC)

POWER CABLE

[ BOTTOM VIEW ]

POWER SUPPLY

CONNECTOR

POWER

CABLE

ULTRA CLEAR RESOLUTION CAMERA

Installation Instructions

1. Locate the mounting template at the installation position and drill the ceiling

or wall if needed.

2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench

supplied.

3. Set the camera’s viewing angle and adjust zoom/focus of lens

4. Put the dome cover to the dome base unit and tighten the assembly screws.

- Place the dome base unit on pre-drilled position and fix it through using mounting

screws (4x30mm).

- Route the power source cable and connect cables.

- In the case of installation with optional mounting accessories(Surface mount

or Tilted mount), the power cable should be fixed to the flush mount by using

the fixing screw and cable holder.

Mounting Screw

(4x30mm)

Plastic Anchor

(6x30mm)

Torque

Wrench

• Surface mount

• Pole mount adaptor

• Tilted mount

• Wall mount

(Requires additional

Surface mount)

• Tilted junction mount

■ Optional Mounting Accessories

BOTTOM
