Technical Information

omnigrad M TR 44, TR 45

Hygienic RTD temperature sensor assembly

With or without thermowell and M.I. replaceable insert

PCP (4...20 mA), HART®or PROFIBUS-PA®electronic safety

TheOmnigradMtypeTR44andTR45temperaturesensorsare

resistance thermometers especially designed for hygienic appli-

cations (food, pharmaceutical and fine chemicals industry).

They consists of a measurement probe with (TR 45) or without

(TR44)aprotectionwell, andahousing,which may contain the

transmitter for the conversion of the measured variable.

Due to their modular design, TR 44 and TR 45 fit to all sanitary

industrial processes

Features and benefits

•3-A

®and EHEDG certification

• SS 316L/1.4435 for "wetted" parts (BN 2 compliance on

request)

• Most common hygienic process connections supplied as

standard; other on request

• Customized immersion length

• Small probe diameter or reduced tip for fast response time (TR

44)

• Tapered or reduced tip and thermoconductive paste for fast

response time (TR45)

• Surface finishing down to Ra < 0.4 mm, with or without elec-

tropolishing

• Stainless steel, aluminum or plastic housing, all of which are eas-

ily cleanable and IP65 to IP67

• Replaceable mineral insulated insert (TR 45), which is installed

inside the thermowell, avoids plant shut down during the substi-

tution or the verification of the instrument

• PCP (4...20 mA, also with enhanced accuracy), HART®and

PROFIBUS-PA®2-wire transmitters

• Pt100 sensing element with class A accuracy (DIN EN 60751) or

1/3 DIN B

• Double Pt100, for redundancy purposes

• Pt100 with 4 wires connection, double Pt100 with 3 wires

• ATEX 1 or 1/2 GD EEx ia certification (TR 45)

• Material certification (3.1.B, ...)

• EA calibration certificate

• Ferrite content determination

• Sensor matching calibration

74-02

omnigrad M TR 44, TR 45

2Endress+Hauser

Areas of application

• Food industry: milk, beer, fruit juice, syrup, chocolate, oils/fats, powders, auxiliary services, storage

tanks/silos, CIP/SIP systems

• Biotechnology industry: fermenters, auxiliary services, CIP/SIP systems

• Pharmaceutical industry: fluids, acids, purified water, auxiliary services, CIP/SIP systems

• Fine chemicals industry: cosmetics, auxiliary services, CIP/SIP systems

Function and system design

Measuring principle In the Platinum RTD (Resistance Temperature Detector) thermometers the sensing element consists of an elec-

trical resistance with value of 100Ωat 0°C (called Pt100, in compliance with standard DIN EN 60751), which

increases at higher temperatures according to a coefficient characteristic of the resistor material (platinum). In

industrial thermometers that comply with the DIN EN 60751 standard, the value of this coefficient is α=

3.85*10-3 °C-1, calculated between 0 and 100°C.

Equipment architecture The Omnigrad M TR 44 and TR 45 temperature sensors are made up of a measurement probe, with (TR 45)

or without (TR 44) a protection well, and a housing (head), which may contain a transmitter or the terminals

for the electrical connection.

In TR 45 the probe is a sensing insert, placed inside the thermowell and spring loaded underneath it, so as to

improve the heat transfer.

As in TR 44, the sensing element (Pt100) is positioned close to the tip of the probe.

The (TR 45) thermowell is obtained from a 9 mm

diameter pipe. The final (sensing) part can be

straight, tapered, i.e. with its diameter smoothly

decreased by means of a swaging procedure, or

reduced (stepped).

In the TR 44, the sheath of the probe is developed

from a 8 mm or a 6 mm pipe. In the 8 mm, the final

(sensing) part always has a reduced (stepped) diam-

eter.Inthe 6 mm, theprobepipeis always straight.

The probe (TR 44) or thermowell (TR 45) can be

installed on the plant (pipe or vessel) by means of a

hygienic process connection, which can be chosen

among the most common types (see "System com-

ponents" section).

Both TR 44 and TR 45 with Varivent®process con-

nections, are built to 3-A®and EHEDG design cri-

teria, which allow the sensor to withstand any

stress caused by CIP (Cleaning In Place) and SIP

(Sterilization In Place) processes.

The electrical structure of the instruments always

complies with DIN EN 60751 standard rules.

The housing can be of different types and materials

(plastic, painted aluminium, stainless steel).

The way in which itfits to the rest of the probe and

the gland for the cable entry ensures a minimum

grade of IP65 (Ingress Protection).

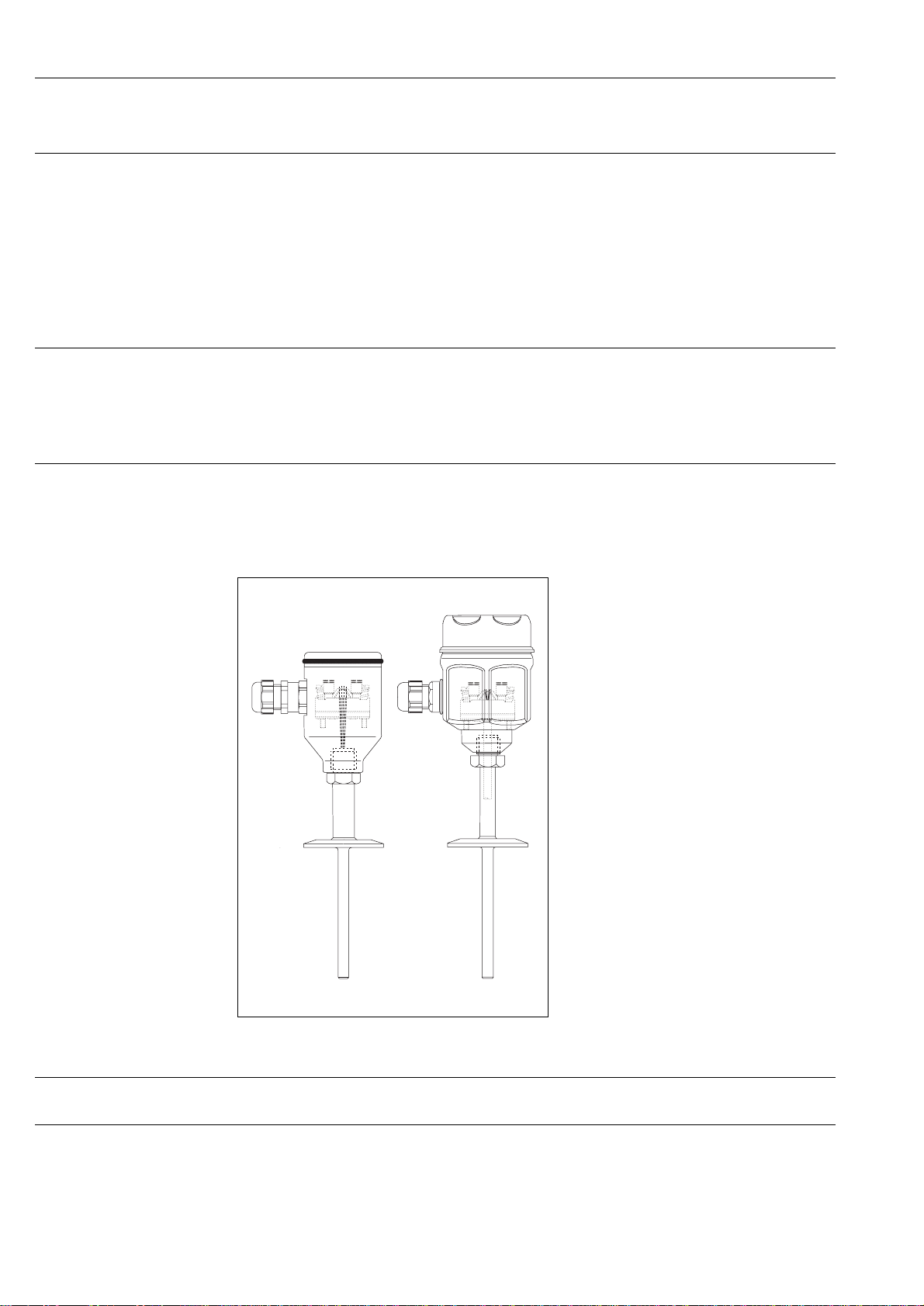

Fig. 1: TR 44 (left) and TR 45 (right)

Material Wetted parts in SS 316L/1.4435.

Weight From 0.5 to 2.5 kg for standard options.

omnigrad MTR 44, TR 45

Endress+Hauser 3

Electronics

The required type of output signal can be obtained by choosing the right head-mounted transmitter.

Endress + Hauser supplies state-of-the-art transmitters (iTEMP®series) built in 2-wire technology and with

4…20 mA, HART®or PROFIBUS-PA®output signal. All the transmitters are easily programmable with a per-

sonal computer through the ReadWin®2000 public domain software (for 4…20 mA and HART®transmitters)

or CommuWin II software (for PROFIBUS-PA®transmitters).

HART®transmitters can be programmed also with the DXR275 (Universal HART®Communicator) hand-held

operating module.

A PCP (4…20 mA) model (TMT 180) with enhanced accuracy is available and is particularly suita-

ble for hygienic applications.

E+H recommends the use of PROFIBUS dedicated connectors in the case of PROFIBUS-PA®transmitters. The

Weidmüller type (Pg 13.5 - M12) is provided as standard option.

For detailed information regarding transmitters, please refer to the relevant documentation (see TI codes at the

end of this document).

If a head-mounted transmitter is not employed, the sensor probe can be connected through the terminal block

to a remote converter (i.e. DIN rail transmitter).

Performance

Operating conditions Ambient temperature (housing without head-mounted transmitter):

• metal housings -40÷130°C

• plastic housings -40÷85°C

Ambient temperature (housing with head-mounted transmitter) -40÷85°C

Ambient temperature (housing with display) -20÷70°C

Process temperature

The measurement range (seebelow) can be limited due to the the gasket employed in the process connection.

Maximum process pressure:

• TR 44, TR 45 5 MPa (50 bar) at 20°C

• TR 44, TR 45 3.3 MPa (33 bar) at 250°C

• TR 45 2.4 MPa (24 bar) at 400°C

Lower maximum pressures can be due to the process connection (i.e. clamp, …).

Maximum flow velocity

The highest flow velocity tolerated by the sensor stem diminishes with increasing lengths of the well/probe

exposed to the stream of fluid.

Shock and vibration resistance

According to DIN EN 60751 3 g peak / 10÷500 Hz

Accuracy Probe maximum error

•cl.A

3σ= 0.15+0.0020ItI -50…250°C

3σ= 0.30+0.0050ItI 250…400°C

• cl. 1/3 DIN B

3σ= 0.10+0.0017ItI 0…100°C

3σ= 0.15+0.0020ItI -50...0 / 100...250°C

3σ= 0.30+0.0050ItI 250…400°C

(ItI = absolute value of temperature in °C)

Transmitter maximum error See relevant documentation (codes at the end of this document)

Display maximum error 0.1% of the set span + 1 digit

The "4 wires" configuration ensures no additional errors in case of long connecting cables (without head-

mounted transmitter). Generally speaking, there is a higher guarantee of accuracy in the

"4 wires" configuration.

Measurement range •TR44 -50…250°C

•TR45 -50…400°C

omnigrad M TR 44, TR 45

4Endress+Hauser

Response time Test in water at 0.4 m/s (according to DIN EN 60751; 23 to 33°C step changes)

Insulation Insulation resistance between terminals and probe sheath more than 100 MOhm at 25°C

(according to DIN EN 60751, test voltage 250 V) more than 10 MOhm at 300°C

Self heating Negligible when E+H iTEMP®transmitters are employed.

Installation

Omnigrad M TR 44 and TR 45 can be mounted on

the wall of pipes or vessels.

The counterparts for the process connections and

the respective gaskets or sealing rings, are generally

not supplied with the sensors, and are considered

to be the customer's responsibility (EHEDG and 3-

A®requirements must be fulfilled).

TheG1"connectionistheonlyexception for which

the sensor with the adaptor to be welded on the

plant can be supplied.

As a general rule, the sensors should be installed in

such a way that does not adversely affect their

cleanability.

With regard to ATEX-certified components (trans-

mitter, insert), please refer tothe specific documen-

tation (see the code at the end of this document).

The immersion length may affect the accuracy of

the sensors. If it is too low, an error might be gen-

erated in the measurement of the temperature, due

to the lower temperatures of the process fluid near

the walls, and to the heat transfer which occurs

through the sensor stem.

The incidence of such error could be not negligible

if there is a big difference between the process and

the ambient temperature.

To avoid this source of inaccuracy, probes with low

diameter must be employed, and the immersion

length (L) should be, if possible, at least about 80

mm. In small pipes, the axis line of the duct must

be reached, and even slightly exceeded, by the tip

of the probe (see figure 3).

Insulation on the outer part of the sensor reduces

the effect of the low immersion. Another solution

could be a tilted installation (see figure 2).

Fig. 2: General installation solutions

In case of two-phase flows, attention should be paidin the choice of the measurement point, which may cause

fluctuations in the detected temperature value.

Sensor type Response time Without thermo-

conductive paste With thermo-

conductive paste

TR 44 (∅ 6 or 8 mm reduced) t50 5 s -

t90 13 s -

TR 45 straight tip t50 20 s 10 s

t90 60 s 30 s

TR 45 tapered tip t50 12 s 5 s

t90 40 s 12 s

TR 45 reduced tip t50 7,5 s 3.5 s

t90 21 s 8 s

Insulation

h<d/2

omnigrad MTR 44, TR 45

Endress+Hauser 5

Suitable solutions for the installation of the sensors in small pipes are shown in figure 3.

In hygienic applications, a good, strict, installation rule consists in not to leave any dead spaces along the flow

of the process fluid.

The required flush-mounting can be achieved by the connection Varivent®, G1" LiquiphantM type (+ purpose

built adaptor).

The clamp flanges can also partly fulfil this requirement, if the Tri-Clamp®components 7IMPS or TL7IWWMS

(Instrument Tees) are used (see the related figure 4).

Fig. 3: Installation solutions in small pipes

For other connection arrangements, the diagram in figure 2 should be followed [h <= d/2].

For weld-in connections, care should be taken by the user in the execution of the welding on the process side

(suitable weld material, welding radius > 3 mm, absence of pits, folds, crevices, …).

The use of purely threaded, Ingold and metal-to-metal joints is not recommended by some hygienic design

standards(i.e. 3-A®Standard 74-02 and Document 8 from EHEDG). This is the reason why E+H Temperature

division doesn't suggest those solutions in "sanitary" applications. Moreover often metal-to-metal couplings can

only be used effectively once. Regarding corrosion, the basic material of the wetted

parts (SS 316L/1.4435) is capable to tolerate com-

mon corrosive media up to high temperatures.

When disassembling the sensors, new gaskets equiv-

alent to the originals and specific torques must be

employed for the re-assembling procedure. This will

ensure the stated IP (Ingress Protection) grade of the

enclosures.

To avoid problems due to condensation when the

ambient has ahigh humidity rate and the process is at

a low temperature, a plastic housing (i.e. model

TA20B) can be an effective choice.

Fig. 4: Installation with the Tri-Clamp®component 7IMPS

Varivent D=50 mm

for pipes DN25

Varivent D=31 mm

for pipes DN10/15

Microclamp

or miniclamp

omnigrad M TR 44, TR 45

6Endress+Hauser

System components

Housing The housing which contains the electric terminals or the transmitter, can be of different types and materials

(plastic, painted aluminium, stainless steel). The way in which it fits to the rest of the probe and the gland for

the cable entry ensures an IP grade of 65 at minimum (also refer to the figure below). All the heads supplied

have internal geometry according to DIN 43729 standard (form B), and thermometer connection M24x1.5.

Version IP66/IP67 of head type TA20A is the basic E+H aluminium housing for temperature sensors. It is sup-

plied in the E+H corporate colours, without any extra charge.

Head TA20B is a blackor white polyamide housing, sometimes defined with the code BBK in the Temperature

market.

In TA21E a screw cap is employed and is attached to the head body by a chain.

Head type TA20D (aluminium), also referred to as BUZH, is able to contain a terminal block and a transmitter,

or two transmitters at the same time.

HeadTA20JisthestainlesssteelhousingwithE+Hcorporatedesign.ItcanalsobeprovidedwithaLCDdisplay

(4 digits), operating with 4…20 mA transmitters.

TA20R is the head suggested by E+H Temperature division for hygienic applications, because it comes in stain-

less steel and because of its "clean" design.

TA20W (BUS type) is a round grey coloured head made of aluminium, with a clip for the cap closure.

The cable glands M20x1.5 and Pg 16 supplied with the housings, accept cable diameters from 7 to 12 mm.

Fig. 5: Housing protection grade (IP)

Head transmitter The head-mounted transmitters available are (see also the "Electronics" section):

• TMT 180 PCP 4…20 mA

• TMT 181 PCP 4…20 mA

• TMT 182 Smart HART®

• TMT 184 PROFIBUS-PA®

TMT 180 and TMT 181 are PC Programmable transmitters. TMT 180 can be supplied in a version with

improved accuracy (0.1°C vs. 0.2°C) in the bandwidth -50…250°C, and a model with a fixed measurement

range (specified by the customer in the order phase) is also available.

TMT 182 output consists of 4…20 mA and HART®superimposed signals.

For TMT 184, with PROFIBUS-PA®output signal, the communication address can be set via software or by

means of a mechanical dip-switch. The customer may specify the desired configuration in the order phase.

Fig. 6: TMT 180, 181, 182 (left), TMT 184 (right)

Housing type IP Housing type IP Housing type IP Housing type IP

TA20A 66

TA20B 65 TA20R 66

67 TA20W 66

TA20J-(without display) 66

67 TA20J-(with display) 66

67 TA20D 66 TA21E 65

110

120

Ø55

140

108

119

108

113

140

Ø 4.5

Ø44

Ø33

Ø 6.5

22.5

Ø44

Ø33

Ø 4.5

Ø44

Ø33

Ø6.5

26.8

Ø44

Ø33

omnigrad MTR 44, TR 45

Endress+Hauser 7

Extension neck Manufactured in stainless steel, the extension neck (part between the process connection and the housing) is

made up of a tube with a standard diameter of 15 mm and is 82 mm in length.

The upper connection of the neck permits adjustments to the orientation of the sensor head.

Process connection This can be chosen form the following types:

Standard connections are available in several sizes. Others (i.e. Neumo, APV) are available on request.

The process connection iscontinuously welded on the probe oron the well soas to obtain aminimum welding

radius of 3.2 mm between the lower surface of the connection and the sensor stem (according to EHEDG and

3-A®standards).

Please refer to paragraph on "Accessories" for information regarding availability of welding adaptors.

The Varivent®connections must be used with dedicated Tuchenhagen®in-line components or tank adaptors.

For Varivent®flanges with small nominal diameter, maximum immersion lengths for usual applications are

listed in the following table (also refer to figure 3).

Please be aware that in the past the Varivent®connection DN25 has been used also for pipes with nominal

diameter DN32.

ISO 2852 Clamp SMS 1147/8

Tri-Clamp®DIN11864-1-A

Varivent®DIN 11851

Weld-in cylindrical Weld-in spherical

G1" Liquiphant M Conical connection

metal-to-metal

G”1/2

Conical connection

metal-to-metal

M12x1.5

TR 44 (6 mm probe, straight tip) TR 45 (reduced tip)

Varivent®nominal diameter DN 10/15 DN 25 DN 10/15 DN 25

Suggested immersion length (L) 30÷50 mm

(low viscosity fluids)

17 mm

(high viscosity fluids)

17 mm 30 mm

(low viscosity fluids)

17 mm

(high viscosity fluids, special

option)

17 mm

(special

option)

omnigrad M TR 44, TR 45

8Endress+Hauser

Probe In TR 45, the measuring probe is constituted by a mineral insulated insert positioned inside the thermowell.

For its replacement, the insert length (IL) must be chosen depending on the immersion length (L) of the ther-

mowell. Should a spare part be required, please refer to the following table:

In TR 44 the protection well and the sensing part cannot be separated.

Theimmersionlengthisavailableinsomestandardvaluesoritcanbesuppliedin a "customized"versionwithin

a range (please see the product structures in the last pages of this document). Up to a length of 50 mm the TR

44 may have a probe with 6 mm diameter only.

For special versions of TR 45, where the immersion is shorter than 30 mm, the diameter of the thermowell, as

in the reduced tip, should be 5.3 mm.

The starting material for the wetted parts can be supplied in compliance of Basler Norm 2 (BN2), which

imposes a limited ferrite content and consequently enhances corrosion resistance, on request. In some sensor

configurations, the compliance with the requirements of BN2 can also be assured after the welding and

machining operations, that is in the finished product. The surface roughness (Ra) of the wetted parts is supplied

down to 0.4 mm. Surface roughness below 0.4÷0.5 mm has not been proven to be advantageous in hygienic

applications. Electro-polishing is an electrolytic treatment of the metal surface, which results in it being

cleaned, levelled and passivated.

To improve the heat transfer between the well and the internal sensing insert in the TR 45, a thermo-conduc-

tive compound can be fitted inside the thermowell, on request. The compound should not be requested for

immersion lengths longer than 300 mm, and where it would be used in temperatures of over 200°C.

Fig. 7: Standard wiring (3 wires)

Fig. 8: Functional components in TR 45

Sensor Probe tip Insert Insert diam. Extens. neck Insert length mm

TR 45 straight TPR 100 6 mm 82 mm IL = L + 92

TR 45 red./tapered TPR 100 3 mm 82 mm IL = L + 92

TR 45 straight TPR 100 6 mm E IL = L + E + 10

TR 45 reduced./tapered TPR 100 3 mm E IL = L + E + 10

1xPt100

3 wires

Red

White

Red

White

121.5

R= 3.2

Sensing

length

Sensing

length

Ø42

Ø33

Ø6

TW47 h d 13 01

omnigrad MTR 44, TR 45

Endress+Hauser 9

Fig. 9: TR 44 structure and tip designs

R= 3.2

Ø 5.3

Reduced

omnigrad M TR 44, TR 45

10 Endress+Hauser

Certificates & Approvals

Sanitary compatibility Certifications from external bodies:

• EHEDG Type EL certification (TNO report n. V3912). EHEDG accepted process connections are: Varivent®,

IDF type ISO 2853, APV (acc. DIN 11864), APV Inline, DIN 11851 (only in combination with EHEDG cer-

tified gasket from Siersema), Suedmo, Naue, Neumo.

•3-A

®Authorization no. 1144 for the declaration of compliance with standard 74-02. 3-A®accept all the

mentioned process connections.

Ex approval ATEX certificate KEMA 01 ATEX1169 X (1 or 1/2 GD IIC EEx ia T6...T1 T85...450°C) for TR 45.

Material certification The 3.1.B material certificate, according to standardEN 10204, is selectable directly from the sale structure of

the product. Other types of material certifications can be requested separately.

The "standard" one is a simplified and cost-effective version, in which the documentation about the origin of

the materials employed refers to each sensor. The "labelled" version also has a specific marking that relates to

the wetted parts of the sensor and ensures that the relevant data are placed in the archives by means of the

serial number of the thermometer.

Test report & calibration Regarding testing and calibration, the "inspection test report" consists of a declaration of conformity with the

essential points of standard DIN EN 60751.

The "Factory calibration" is carried out in the E+H EA (European Accreditation) accredited laboratory for tem-

perature calibrations, following an internal procedure. A calibration performed according to an EA accredited

procedure (SIT calibration) may be requested separately.

The calibration is executed on the thermometer insert, when that has been installed in the sensor (TR 45).

For TR 44 a minimum immersion length (120 mm) is required to ensure a precise calibration.

With the Sensor Matching Calibration, a preliminary Factory calibration of the sensor is carried out and subse-

quently the output curve of the transmitter is adjusted in order to minimize measurement error. In this way

some of the sensor errors (probe or "loop" probe+transmitter) are compensated for through the transmitter.

Further details

Maintenance Omnigrad M thermometers do not require specific maintenance. For the models supplied with process con-

nections including seals, the integrity of the sealing ring should be checked regularly and it must be substituted

when necessary.

In case of ATEX-certified components (transmitter, insert), please refer to the relevant documentation (see the

code at the end of this document).

Delivery time For small quantities (about 10 units) and standard options, generally 10 days.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Endress+Hauser Accessoires

Endress+Hauser

Endress+Hauser CLS15D Manuel utilisateur

Endress+Hauser

Endress+Hauser OxyMax W COS 41 Manuel utilisateur

Endress+Hauser

Endress+Hauser Turbimax CUS51D Manuel utilisateur

Endress+Hauser

Endress+Hauser Oxymax H COS21 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiphant Manuel utilisateur

Endress+Hauser

Endress+Hauser Indumax CLS54 Manuel utilisateur

Endress+Hauser

Endress+Hauser Oxymax COS61 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltapilot M FMB50 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Cleanfit P CPA472D Manuel utilisateur

Endress+Hauser

Endress+Hauser NAR 300 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline 800 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Solitrend MMP42 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Turbimax W CUS31 Manuel utilisateur

Endress+Hauser

Endress+Hauser CCS50D Manuel utilisateur

Endress+Hauser

Endress+Hauser Micropilot M FMR230 Manuel utilisateur

Endress+Hauser

Endress+Hauser Oxymax COS22D Manuel utilisateur

Endress+Hauser

Endress+Hauser OxyMax W COS 71 Manuel utilisateur

Endress+Hauser

Endress+Hauser CCS140 Manuel utilisateur

Endress+Hauser

Endress+Hauser Nivector FTI26 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Oxymax COS61D Manuel utilisateur

Endress+Hauser

Endress+Hauser Ceramax CPS341D Manuel utilisateur

Endress+Hauser

Endress+Hauser Turbimax CUS71D Manuel utilisateur

Endress+Hauser

Endress+Hauser Chloromax CCS142D Manuel utilisateur

Endress+Hauser

Endress+Hauser CCS240 Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur

Endress+Hauser omnigrad M TR 44 Manuel

Manuels Accessoires populaires d'autres marques
