Endress+Hauser Chloromax CCS142D Manuel utilisateur
Products Solutions Services
Operating Instructions
Chloromax CCS142D
Digital sensor with Memosens technology for
determining free chlorine
BA00419C/07/EN/13.15
71290810
Chloromax CCS142D Table of contents
Endress+Hauser 3
Table of contents
1 Document information ......... 4
1.1 Warnings ........................... 4
1.2 Symbols ............................ 4
2 Basic safety instructions ....... 5
2.1 Requirements for personnel ........... 5
2.2 Designated use ...................... 5
2.3 Workplace safety .................... 5
2.4 Operational safety ................... 6
2.5 Product safety ....................... 6
3 Device description, function ... 6
3.1 Measuring principle .................. 6
3.2 Effects on the measuring signal ........ 7

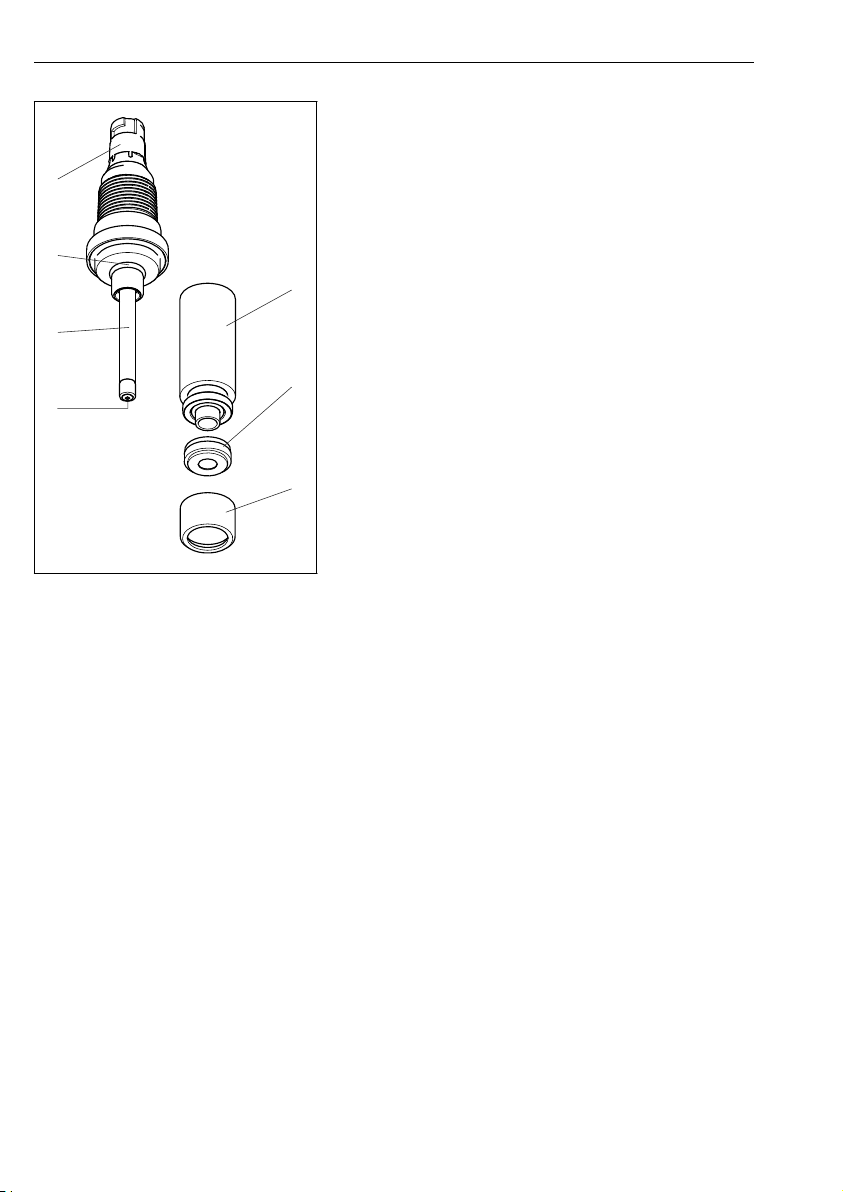

3.3 Sensor design ....................... 9
4 Incoming acceptance and
product identification ......... 11
4.1 Incoming acceptance ................ 11
4.2 Product identification ................ 11
4.3 Scope of delivery .................... 12
4.4 Certificates and approvals ............ 12
5 Installation .................... 13
5.1 Installation conditions ............... 13
5.2 Installing the sensor ................. 15
5.3 Post-installation check ............... 16
6 Electrical connection .......... 17
6.1 Connecting the sensor ............... 17
6.2 Ensuring the degree of protection ..... 17
6.3 Post-connection check ............... 18
7 Commissioning ................ 19
7.1 Function check ..................... 19
7.2 Sensor polarization .................. 19
7.3 Sensor calibration ................... 19
8 Diagnostics and
troubleshooting ............... 21
9 Maintenance .................. 23
9.1 Maintenance interval ................ 23
9.2 Clean sensor ....................... 23
9.3 Replacing the membrane ............. 24
9.4 Refilling the electrolyte .............. 24
9.5 Storing the sensor ...................25
9.6 Regenerating the sensor ............. 25
9.7 Reconditioning the sensor ............ 26
10 Accessories .................... 28
10.1 Connection accessories .............. 28
10.2 Installation accessories .............. 28
10.3 Accessories for maintenance and
calibration ......................... 28
11 Repairs ......................... 29
11.1 Return ............................ 29
11.2 Disposal ........................... 29
12 Technical data ................. 29
13 Installation and operation in
hazardous environment Class
I Div. 2 .......................... 32
Index ................................. 34
Document information Chloromax CCS142D
4 Endress+Hauser
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
Consequences of non-compliance (if
applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
Result of a step
Chloromax CCS142D Basic safety instructions
Endress+Hauser 5
2 Basic safety instructions
2.1 Requirements for personnel
Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
‣The technical personnel must be authorized by the plant operator to carry out the specified
activities.
‣The electrical connection may be performed only by an electrical technician.
‣The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
‣Measuring point faults may be repaired only by authorized and specially trained personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
2.2.1 General
Drinking water, process water and bathing water must be disinfected through the addition of
appropriate disinfectants such as chlorine gas or inorganic chlorine compounds. The dosing
quantity involved must be adapted to continuously fluctuating operating conditions. If the
concentrations in the water are too low, this could jeopardize the effectiveness of the
disinfection process. On the other hand, concentrations which are too high can lead to signs of
corrosion and have an adverse effect on taste, as well as generating unnecessary costs.
The sensor was specifically developed for this application and is designed for continuous
measurement of free chlorine in water. In conjunction with measuring and control equipment,
it allows optimum control of the disinfection process.
2.2.2 Hazardous environment in accordance with cETLus NI Cl. I, Div. 2 1)
‣Please note the control drawing and the specified application conditions in the appendix of
these Operating Instructions and follow the instructions.
2.2.3 Non-designated use
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Workplace safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
1) only if connected to CM444R-EA* or CM448R-EA*
Device description, function Chloromax CCS142D
6 Endress+Hauser
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.
2.4 Operational safety
1. Before commissioning the entire measuring point, verify that all connections are
correct. Ensure that electrical cables and hose connections are undamaged.
2. Do not operate damaged products, and safeguard them to ensure that they are not
operated inadvertently. Label the damaged product as defective.
3. If faults cannot be rectified:
Take the products out of operation and safeguard them to ensure that they are not
operated inadvertently.
2.5 Product safety
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.
3 Device description, function
3.1 Measuring principle
Free chlorine is determined as hypochlorous acid according to the amperometric measuring
principle.
The hypochlorous acid (HOCl) contained in the medium diffuses through the sensor
membrane and is reduced to chloride ions (Cl-) at the gold cathode. At the silver anode, silver
is oxidized to silver chloride. Electron donation at the gold cathode and electron acceptance at
the silver anode causes a current to flow which is in proportion to the concentration of free
chlorine in the medium at constant conditions.
The concentration of hypochlorous acid depends on the pH value. This dependency can be
compensated for by measuring the pH value in the flow assembly.
The transmitter uses the current signal to calculate the measured variable for concentration in
mg/l.
Chloromax CCS142D Device description, function
Endress+Hauser 7
3.2 Effects on the measuring signal
3.2.1 pH value
pH-dependency
Molecular chlorine (Cl2) is present at pH values < 4. Consequently, hypochlorous acid (HOCl)
and hypochlorite (OCl– remain within the range of pH 4 to 11 as components of free chlorine.
As hypochlorous acid splits up (dissociates) with an increasing pH value to form hypochlorite
ions (OCl–) and hydrogen ions (H+), the amounts of the individual components of free
effective chlorine change with the pH value. For example, if the amount of hypochlorous acid
is 97% at pH 6, it drops to approx. 3% at pH 9.
%
100
80
60
40
20
0
45 6 7 8 9 10 11
100
%
80
60
40
20
0
A
B
C
pH
OCl-
HOCl
A0002017
1 Principle of pH compensation
A Measured value with pH compensation
B Measured value without pH compensation
C pH compensation
For amperometric measurement using the CCS142D chlorine sensor, only the amount of
hypochlorous acid is selectively measured. This works as a powerful disinfectant in a watery
solution. In contrast to this, hypochlorite is an extremely weak disinfectant. Therefore, when
used as a disinfectant at higher pH values, the effectiveness of chlorine is limited. As
hypochlorite ions cannot permeate the sensor membrane, the sensors do not record this
value.
Device description, function Chloromax CCS142D
8 Endress+Hauser
pH compensation of chlorine sensor signal
To calibrate and verify the chlorine measuring system, a colorimetric reference measurement
must be carried out using the DPD method. Free chlorine reacts with diethyl-p-
phenylendiamine to form a red dye. The intensity of the red color increases proportionally to
the chlorine content. With the DPD method, the sample is buffered to a pH value of approx
6.3. Therefore, the pH value of the sample is not included in the DPD measurement. Due to
the buffer function in the DPD method, all components of free effective chlorine are recorded
and thus the total free chlorine is measured.
If pH compensation is switched on in the transmitter, the sum of hypochlorous acid (HOCl)
and hypochlorite corresponding to the DPD measurement is calculated from the chlorine
sensor's measuring signal that corresponds to hypochlorous acid (HOCl) and by taking into
account the pH value in the range of pH 4 to 9. For this calculation, the curve is stored in the
transmitter.
When free chlorine is measured with pH compensation switched on, always perform
calibration in pH-compensated mode.
When you use pH compensation, the measured chlorine value that is displayed and applied to
the device output corresponds to the DPD measured value even if the pH values fluctuate. If
you do not use pH compensation, the measured chlorine value corresponds to the DPD
measurement only if the pH value remains unchanged compared with the calibration.
Without pH compensation, the chlorine measuring system must be recalibrated when the pH
value changes.
Accuracy of pH compensation
The accuracy of the pH-compensated measured chlorine value is derived from the sum of
several individual deviations (chlorine, pH, temperature, DPD measurement etc.).
High levels of hypochlorous acid (HOCl) during chlorine calibration have a positive effect on
accuracy, whereas low levels of hypochlorous acid have a negative effect. The inaccuracy of
the pH-compensated measured chlorine value increases the greater the pH difference
between measuring mode and chlorine calibration or the more inaccurate the underlying
individual measured values are.
Calibration taking into account the pH value
The reference measurement (DPD method, photometer) determines the total free chlorine by
buffering to pH 6.3. In contrast to this, amperometric measurement determines only the HOCl
component.
During operation, pH compensation is effective up to a pH value of 9. However, there is hardly
any HOCl left at this pH value, and the measured current is very low. At this point, pH
compensation has the effect of increasing the measured HOCl value to the actual value of the
free chlorine. Calibration of the complete measuring system makes sense only up to a
pH value of the medium of 8 or 8.2.
Sensor pH value HOCl content Uncompensated value Compensated value
CCS142D-G 8.2 15 % 12 nA 80 nA
CCS142D-A 8.0 20 % 4 nA 20 nA
Chloromax CCS142D Device description, function
Endress+Hauser 9
Above these pH values, the total error of the measuring system is unacceptably high.
3.2.2 Flow
The minimum flow velocity of the membrane-covered sensor is 15 cm/s (0.5 ft/s). When
using the CCA250 flow assembly, this value corresponds to a flow rate of 30 l/h (8 gal/h)
(upper edge of float at level of red bar mark).
At higher flow rates, the measuring signal is virtually flow-independent. However, if the flow
rate falls below the specified value, the measuring signal depends on the flow. If an INS
proximity switch is installed in the assembly, this unpermitted operating status can be reliably
detected. This triggers an alarm or, if necessary, results in the dosing process being switched
off.
3.2.3 Temperature
Changes in the medium temperature also influence the measuring signal. An increase in
temperature causes the measured value to increase (approx. 4 % per K), while a reduction in
temperature causes the measured value to decrease. Therefore, the temperature should
remain constant after calibration. If the temperature has changed, a recalibration must be
performed.
The Chloromax CCS142D, when used with the Liquiline, enables automatic temperature
compensation (ATC). In this case, the temperature does not need to remain constant, and a
recalibration in the event of temperature changes is not required.
3.3 Sensor design
The sensor consists of the following function units:
• Measuring chamber
– to protect the anode and cathode from the medium
– with large volume of electrolyte for a long service life in combination with the large anode
and the small cathode
• Sensor shaft with
– large anode
– cathode embedded in plastic
– Temperature sensor
• Membrane cap with
– robust PTFE membrane
– special support grid between cathode and membrane for a specified and constant
electrolyte film and thus a relatively constant indication even at varying pressures and
flows
Device description, function Chloromax CCS142D
10 Endress+Hauser
3
4
5
6
7
1
2
A0026479
2 Sensor structure
1 Memosens plug-in head
2 O-ring
3 Large anode, silver/silver chloride
4 Gold cathode
5 Measuring chamber
6 Membrane cap with dirt-repellent membrane
7 Screw cap for securing the membrane cap
Autres manuels pour Chloromax CCS142D
1
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Endress+Hauser Accessoires
Endress+Hauser
Endress+Hauser Proline 300 Caractéristiques techniques
Endress+Hauser
Endress+Hauser Proline Promag H Caractéristiques techniques
Endress+Hauser
Endress+Hauser Deltapilot S FMB70 Instructions d'installation
Endress+Hauser
Endress+Hauser OUSAF46 Manuel utilisateur
Endress+Hauser
Endress+Hauser Waterpilot FMX21 Manuel utilisateur
Endress+Hauser
Endress+Hauser CCS240 Manuel utilisateur
Endress+Hauser
Endress+Hauser NAR 300 Manuel utilisateur
Endress+Hauser
Endress+Hauser Ceramax CPS341D Manuel utilisateur
Endress+Hauser
Endress+Hauser ISEmax CAS40D Manuel utilisateur
Endress+Hauser
Endress+Hauser CLS15D Manuel utilisateur
Endress+Hauser
Endress+Hauser Oxymax COS22 Series Manuel utilisateur
Endress+Hauser
Endress+Hauser Turbimax W CUS65 Manuel utilisateur
Endress+Hauser
Endress+Hauser Deltabar S FMD 77 Manuel
Endress+Hauser
Endress+Hauser Dipfit W CLA111 Manuel utilisateur
Endress+Hauser
Endress+Hauser Deltabar S PMD70 Manuel utilisateur
Endress+Hauser
Endress+Hauser Micropilot M FMR230 Manuel utilisateur
Endress+Hauser
Endress+Hauser Tophit CPS471 Manuel
Endress+Hauser
Endress+Hauser OUSAF11 Manuel utilisateur
Endress+Hauser
Endress+Hauser Turbimax CUS50D Manuel utilisateur
Endress+Hauser
Endress+Hauser CCS120D Manuel utilisateur
