OPERATING INSTRUCTIONS
Article no: 161034 Wheel set
ENDRESS Elektrogerätebau GmbH
Neckartenzlinger Str. 39
D-72658 Bempflingen
Telephone: + 49 (0) 71 23 / 9737-0
Fax: + 49 (0) 71 23 / 9737-50
Email: info@endress-stromerzeuger.de
www: http://www.endress-stromerzeuger.de
2
Table of Contents
1. OVERVIEW.......................................................................................................... 3
2. ASSEMBLY ......................................................................................................... 4
3. REPLACEMENT PARTS..................................................................................... 7
4. SERVICE ............................................................................................................. 7
3
1. Overview
4

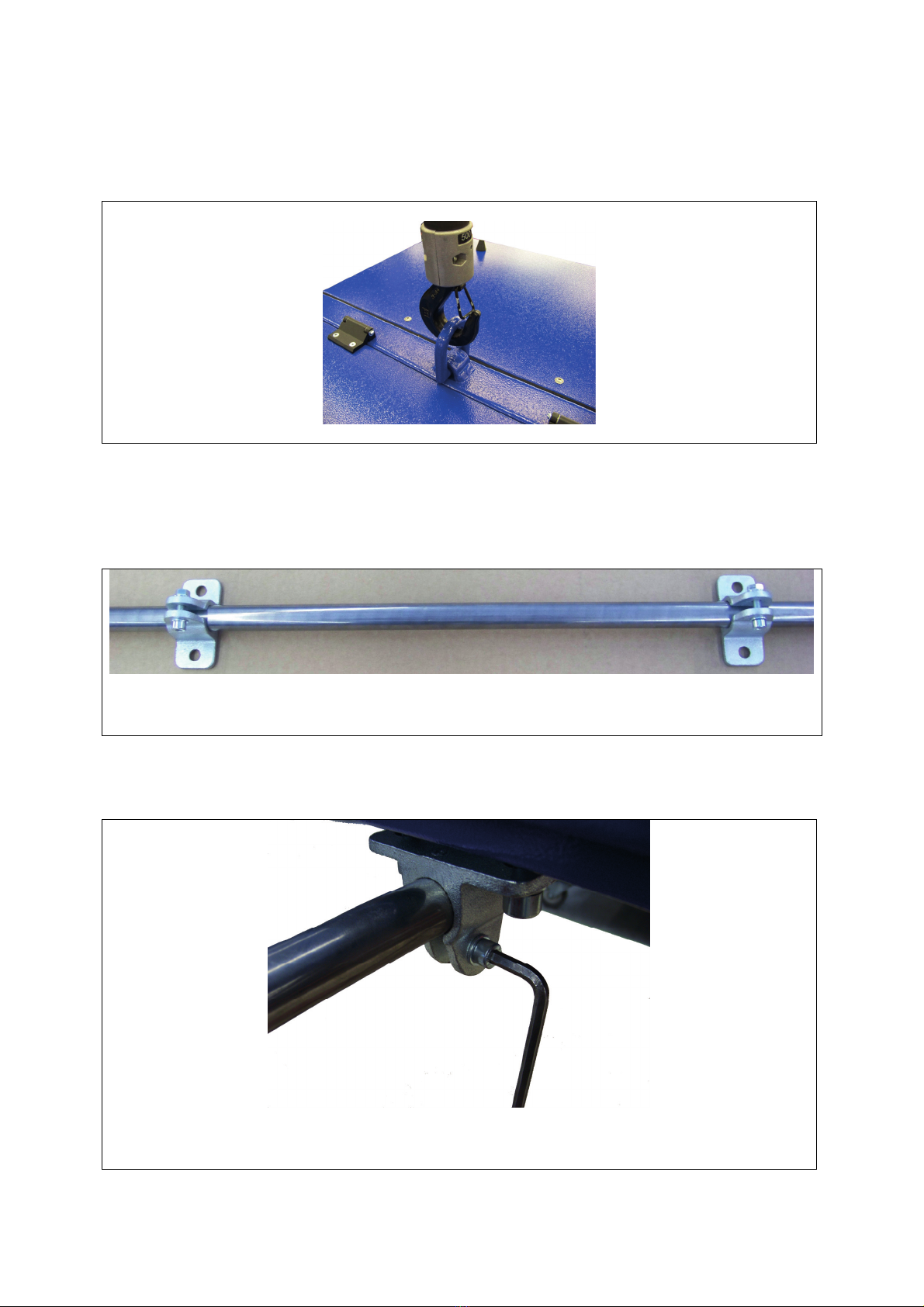

2. Assembly
Figure 1
1. Raise the device using a suitable crane (to about 50 cm above the floor)
(Fig. 1).
2. Push the holder for the shaft onto the axis (Fig. 2)
Figure 2
3. Mount the shaft on the underside of the generator and tighten screws (Fig. 3).
Figure 3
5
4. Adjust the shaft in such a way that it projects outwards by about 170 mm on
both sides of the shaft holder (Fig. 4).
Figure 4
5. Fasten the shaft to the shaft holder (Fig. 3).
6. Remove the rubber buffers when using the wheel set (Fig. 4).
7. Push the inner adjusting ring onto the shaft and tighten (Fig. 5)
Figure 5
6
8. Push the wheels onto the shaft and fasten with the outer adjusting ring (Fig. 6)
Figure 6
9. Fasten the drawbar to the front side of the generator using four screws (Fig. 7).
Figure 7
7
3. Replacement parts
Item Part number Quantity Article designation / manufacturer
10 E130793 4 Galvanised adjusting ring for a wheel set /
Endress
20 E134143 4 Cap screw M 10 x 60 / Endress
30 E134140 2 Shaft bracket H/950/25 / Endress
40 E131339 4 Cap screw M 10 x 60 / Endress
50 E134142 2 WHELL for the wheel set / Endress
60 E134141 1 Shaft A25x1000 / Endress
70 E506787/91 1 Drawbar Sgr. Die.-Line / Endress
4. Service
The Service Hotline offers you assistance on questions about service as well for
finding a current ENDRESS service station near you.
Phone +49(0) 7123 - 9737 – 0
Fax +49(0) 7123 - 9737 – 50
Email [email protected]
WWW www.endress-stromerzeuger.de
