Operation Instructions
Position and Function of Controls
Operators should be familiar with, and fully understand the controls and

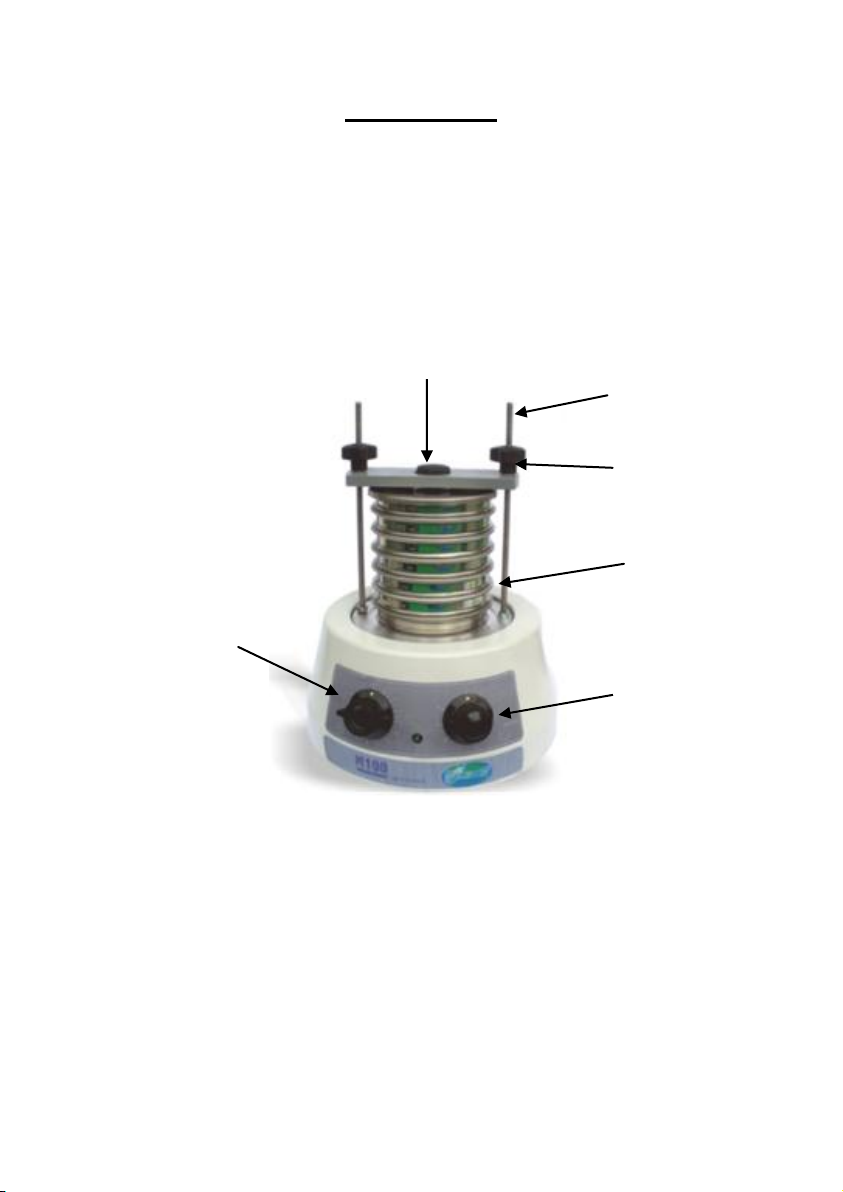

indicators before operating the machine. This should be done in conjunction with
the diagram on page 8.
1. Mains Inlet - Mains inlet with integral line filter. Ensure the IEC connector on
the mains lead is pushed fully into the mains inlet at the rear of the machine.
2. Fuse - This is a 2Amp. 1¼ inch long, quick acting ceramic fuse. It is important
that the recommended current rating is not exceeded and the fuse is replaced
with the same type and size. If the fuse blows after replacement then a fault
exists in the equipment which must be rectified.
3. Mains Connected Indicator - This is a green l.e.d that indicates electrical power
is connected to the equipment. The l.e.d. is illuminated when the IEC connector is
pushed fully into the inlet and power is switched on at the local outlet. If the l.e.d.
fails to light with the local outlet switch in the ON position then the fuse (3) has
blown or power is not present at the mains.
4. Amplitude Controller - Variable amplitude from 0 to 1½ mm (Max) depending
on number of sieves and sample weight.
