ENCAD 215360-01 Manuel utilisateur

NovaJet

800Series

NovaJet850

NovaJet880

PrinterQuickStartGuide

P/N 215360-01 Rev. AA

(Text P/N 215387-1 Rev. D)

ENCAD®, NovaJet®, CADJET®, Extreme Color Printing™, and Graphic

Outdoor Matched System™ (GO) are trademarks of ENCAD, Inc.

Other trademarks and registered trademarks are the property of their

respective owners.

No part of this manual may be copied or distributed, transmitted,

transcribed, stored in a retrieval system, or translated in any human or

computing language, in any form or by any means, electronic,

mechanical, magnetic or otherwise, or disclosed to a third party without

the express written permission of:

ENCAD, Inc., 6059 Cornerstone Court West, San Diego, CA 92121,

U.S.A.

Revision History

Rev.A August2000

Rev. B September 2000

Rev. C October 2001

Rev. D October 2001

ENGLISH

NovaJet800SeriesPrinterQuickStartGuide

Other reference materials

In addition to this guide, the following additional documentation is included with your

printer:

SystemCD-ROM- contains:

•Printer Reference Guide, which provides complete reference information regarding

the printer's options;

•Maintenance Guide, instructions for maintaining your printer;

•Graphic Troubleshooting Guide;

•Print Quality Guide;

•Windows Drivers;

•Print Server Software; and

•utility software.

ENGLISH

NovaJet 800 Series Printer Quick Start Guide

Contents

Unpackingyour printer...............................................................................5

Assemblingthe printer...............................................................................6

Removingprotective shippingmaterial .....................................................13

Connectingpower ....................................................................................14

Using the control panel ............................................................................14

Choosingmenu functions ........................................................................15

Settingthe language................................................................................15

Loadingmedia .........................................................................................15

Loadingmedia on theNovaJet880 ..........................................................18

Printing rigid media ..................................................................................20

Using the second feed roll .......................................................................23

Using the takeup roll................................................................................23

Movingthe carriage..................................................................................25

Installing the cutter ..................................................................................25

Cartridgesets ..........................................................................................26

Fillingtheinkreservoirs ...........................................................................27

Inspecting the ink cartridges....................................................................28

Installingink cartridges ............................................................................29

Priming the ink delivery lines ...................................................................31

Printing the color test ..............................................................................35

Printingtheprimepattern ........................................................................36

Cloggedjets.............................................................................................38

Aligning the ink cartridges .......................................................................39

Paperaxis calibration ..............................................................................42

Cartridgerecognition................................................................................43

Connecting the printerto your computer ..................................................44

Pausingthe printer ..................................................................................45

Cancelingaprint......................................................................................45

NovaJet800SeriesPrinter QuickStartGuide

Thispage is intentionally blank.

ENGLISH

NovaJet 800 Series Printer Quick Start Guide

NovaJet Quick Start

Congratulations on your purchase of a NovaJet wide format color printer. This

guide gives you details on the following:

•unpacking and assembling the printer

•loadingmedia

•fillingink reservoirs

•installingink cartridges

•installing the media cutter

•primingink system

•cartridge alignment

If your printer is a NovaJet 880, it has an adjustable platen which provides the

capability of printing on almost any coated rigid media up to .5 inches thick.

The key to printing rigid media is the ability to get it flat enough for high-quality

inkjet printing. The kit includes special flattening rollers that attach to the back of

the printer. These rollers give you an insertion point for the rigid media and also

help to flatten the rigid media to provide a good surface for inkjet printing.

When printing rigid media in the standard NovaJet 880 configuration, the media

exits the printer over the top of the dyer. To give rigid media the drying capabili-

ties of the 800 series dryer, special hardware is included. This hardware allows

the dryer to be rotated upward to point down on the rigid media as it exits the

printer. This feature provides excellent dry time to lamination for rigid media.

Make sure you review this entire guide before starting the installation process.

Unpacking your printer

Your printer is shipped in three separate boxes. If your printer is a NovaJet 880,

you may have fourth box containing the Rigid Media Kit. The Rigid Media Kit

can be shipped as a separate box four or included in the same box as the printer

head. The printer and stand boxes are quite large and heavy. We recommend

you have two people (or a forklift) move these boxes. Before assembly, you may

want to measure halls and elevators to determine whether the unit should be

assembled in the area where it will be used.

NovaJet800SeriesPrinter QuickStartGuide

Assembling the printer

1Open the box containing the stand/takeup. Remove the entire

contents of this box and place nearby for easy access. In the same

box, locate the screws for use in subsequent steps. There are two

types of screws: 1) Sixteen size 10-24 screws to attach the feet to

the stand legs and the stand legs to the printer; and 2) Eight size 8-

32 screws to attach the dryer brackets to the stand legs and the

dryer to the dryer brackets. (The 10-24 screws are a larger diameter

than the 8-32 screws.)

2Attach the feet to the stand legs using eight of the size 10-24

screws. Note that each foot has two casters, only one of which

locks. Lock the casters to prevent the stand from rolling during

subsequent assembly.

3Locate the box containing the printer head. It should already be open

with the underside of the printer facing up.

4One of the stand legs has a connector in the center of the leg. (See

the following illustration.) Pull the connector from the access hole in

the leg and remove the tiewrap holding the connector in place.

Attach the connector to the receptacle on the bottom of the printer

head. Orient the stand legs so that the roll holder brackets are

facing the center of the printer head and align with the holes in the

bottom of the printer head. Attach both stand legs to the printer head

using eight of the size 10-24 screws. Note: To help ensure that the

legs seat properly on the printer head, attach screws snugly in

opposite corners first. Then, when all screws are in place, tighten

them securely.

ENGLISH

NovaJet 800 Series Printer Quick Start Guide

CAUTION: Be careful not to pinch the cable when attaching the

leg.

Attach connector from

stand leg to printer head

Stand leg

Foot

5We recommend two people lift the printer. Remove the assembled

printer and stand from the box. Save the boxes and packing

materials in case you need to ship the printer.

NovaJet800SeriesPrinter QuickStartGuide

6Check to make sure the media sensors are plugged into their

respective connectors on the right stand leg. If your printer is a

NovaJet 850, continue with step 7. If your printer is a NovaJet 880,

go to step 9.

7Attach the brackets for the dryer to the stand legs using four of the

size 8-32 screws. Orient the brackets as shown below. Note: The

legs are shown below without the printer head. Attach the dryer

brackets after the printer head as been attached and the assembled

printer removed from the packing box.

ENGLISH

NovaJet 800 Series Printer Quick Start Guide

8Place the dryer on top of the dryer brackets while aligning the

guide pins on the bottom of the dryer with the holes on the dryer

brackets. Secure using four of the size 8-32 screws.

9Locate the box containing the Rigid Media Kit. Remove the entire

contents and place nearby for easy access.

10 Attach the left and right dryer brackets to the stand legs,using four of

the size 8-32 screws. Orient the brackets as shown below with pull

pins at the top of the brackets facing towards the inside of the printer.

NovaJet800SeriesPrinter QuickStartGuide

Note: The dryer brackets have slots for the screw holes. Use these

slots to position the dryer further away from the printer when using

thick roll media.

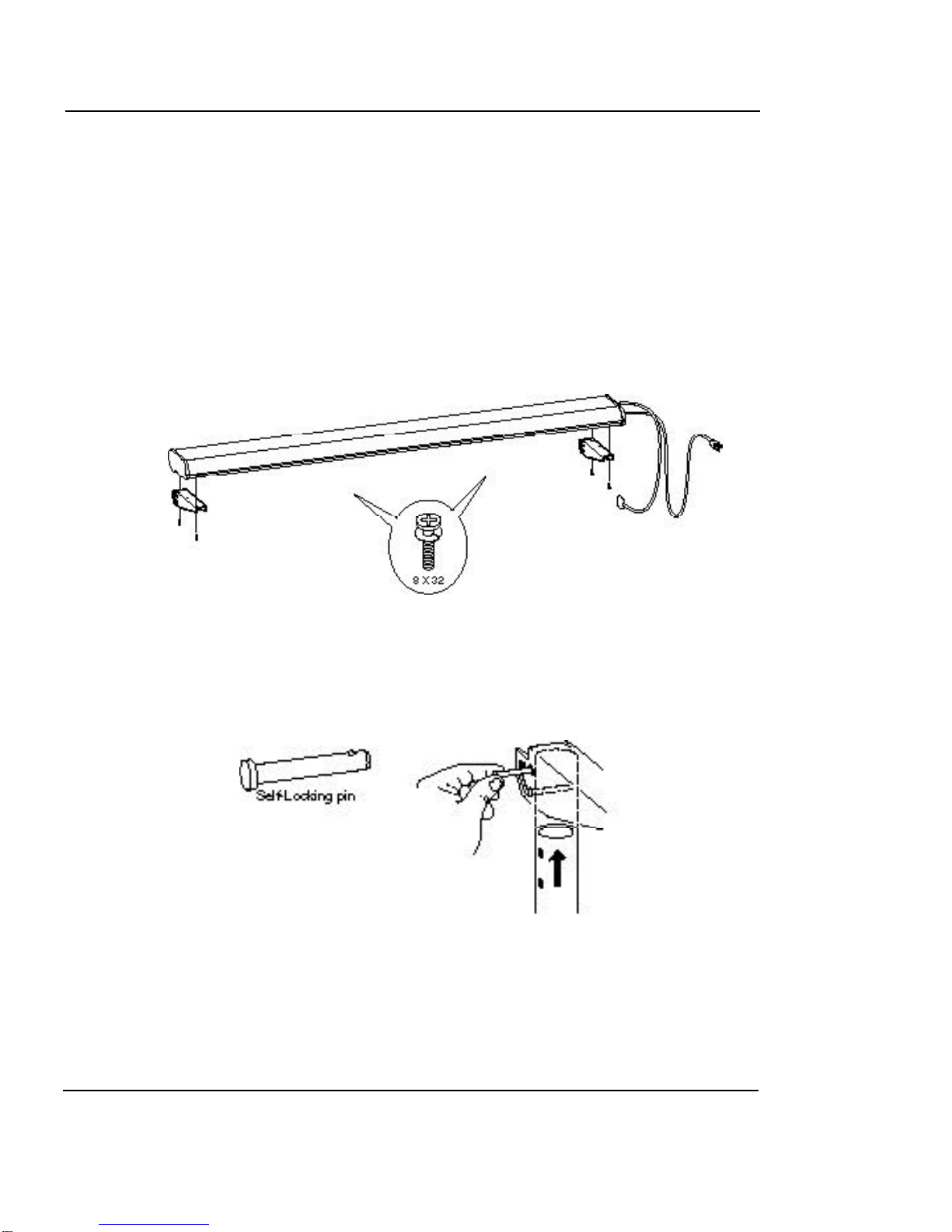

11 Locate the pivot brackets with attached risers. Remove the self-

locking pins securing the risers to the brackets. Place the self-

locking pins and risers nearby for installation in the next step.

12 Attach the two pivot brackets to the dryer using four of the size 8-32

screws. The small end of the sloping bracket should point away

from the printer.

13 Next, slide a riser into each of the pivot brackets. Align the two holes

on the riser with the two holes in the bracket. Secure with the two

self-locking pins on each bracket from the inside of the printer to the

outside.
