Enabling Devices Ultimate Switch Manuel utilisateur

Ultimate Switch - #1671, 1552 &1551

USER’S GUIDE

Our #1 best selling Switch!

Our exclusive Ultimate Switch is THE most universal, versatile, multi-

faceted switch. It’s designed to be used by even the most profoundly

challenged or neurologically impaired individuals. It requires only the

slightest touch for activation (10 grams of force), yet can easily

withstand the abuse of gross body movements or severe blows. Works

great as a head switch or for any part of the body. 19" Gooseneck and

universal clamp included.

Operation:

1. Using the mounting clamp, attach the Ultimate Switch to a Wheel

Chair, Table or Desk. Tighten the clamp enough to hold the

Ultimate Switch securely, but do not over-Tighten the clamp. (See

Photos).

2. Plug the Ultimate Switch into your switch adapted toy/device.

Make sure that the connection is tight. There should be NO gaps. If

you use an adapter for devices with ¼ inch jacks, make sure that it

is a MONO adapter, not stereo.

3. Actuate the Ultimate switch in order to turn on your toy/device.

Your toy/device will only remain activated while you hold the

Ultimate switch in the actuated position. Once you release pressure

on the Ultimate switch, the toy/device will turn off.

Troubleshooting:

Problem #1: The toy/device is not activating.

Action #1: Make sure that the connection to the toy/device is very

tight. There should be NO gaps. Make sure that you are using a

MONO adapter, if applicable.

Action #2: Try using your toy/device with a different switch in order

to rule out the toy/device as the source of the problem. You may need

to change the batteries in the toy/device.

Care of Unit:

The Ultimate Switch can be wiped clean with any household multi-

purpose cleaner and disinfectant. We recommend Simple Green, which

is a non toxic biodegradable all-purpose cleaner.

Do not submerge the unit, as it will damage the electrical

components.

Do not use abrasive cleaners, as they will scratch the surface of the

unit.

Rev 8/17/11

1. Clamping Options: Our mounting clamp is designed for mounting

to tubular (wheelchair, bedrail, walker, etc.) or flat surfaces such as

a table top or desk. For flat surface mounting use the included

wedge insert shoe stored in front of the locking knob on the clamp

(see Fig.1 & 2) Loosen locking knob slightly to remove wedge,

tighten knob once wedge has been removed.

Fig.1

Fig. 2

2. Using the mounting clamp, attach the Ultimate Switch to a Wheel

Chair, Table or Desk. Tighten the clamp enough to hold the

Ultimate Switch securely, but do not over-Tighten the clamp.

3. For some mounting applications the clamp will need to be mounted

horizontally, we have included a Gooseneck clamp mount adapter

for this use. To use the adapter you first must remove the

Gooseneck from the clamp, do this by loosening the set knob on

the back of the clamp. This is the same knob that holds the clamp

wedge (shown in Fig.1). Next depress the spring loaded pin on the

side of the clamp and pull the Gooseneck from the clamp (see

Fig.3). Attach the adapter to the Gooseneck and secure with the

included mounting screws as shown in (Fig. 4 & 5).

Fig.3

Fig.4 Fig.5

8/17/11

Ce manuel convient aux modèles suivants

Autres manuels Enabling Devices Aide à la mobilité

Enabling Devices

Enabling Devices 1910 Manuel utilisateur

Enabling Devices

Enabling Devices Put-Em-Arounds 9012 Manuel utilisateur

Enabling Devices

Enabling Devices Carnival Tube Manuel utilisateur

Enabling Devices

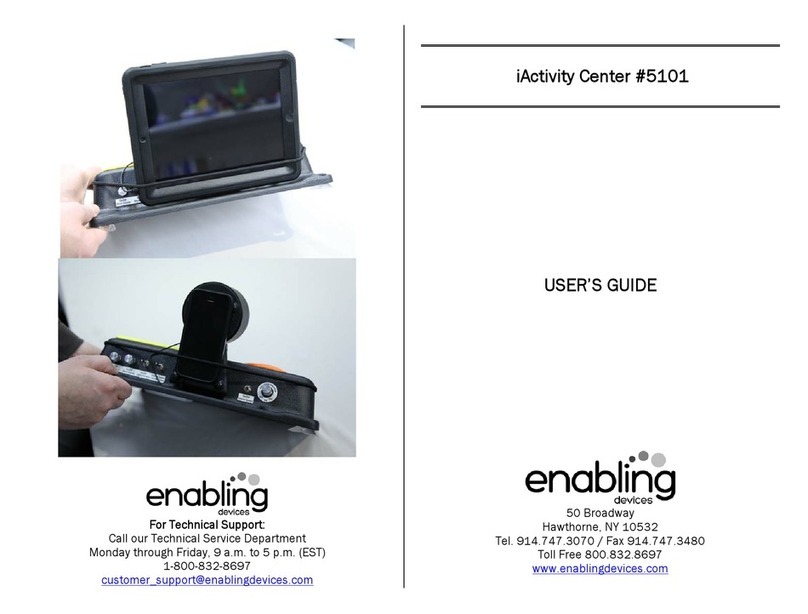

Enabling Devices iActivity Center Manuel utilisateur
