P008875-02A Rev. A Emulex Connects™ Servers, Storage and People

LPe15004, LPe16004, and

LPe16000B-series HBA

Installation Manual

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

means or translated to any electronic medium without the prior written consent of Emulex.

Information furnished by Emulex is believed to be accurate and reliable. However, no responsibility is assumed by

Emulex for its use; or for any infringements of patents or other rights of third parties which may result from its use. No

license is granted by implication or otherwise under any patent, copyright or related rights of Emulex.

Emulex, the Emulex logo, AutoPilot Installer, AutoPilot Manager, BlockGuard, Connectivity Continuum,

Convergenomics, Emulex Connect, Emulex Secure, EZPilot, FibreSpy, HBAnyware, InSpeed, LightPulse, MultiPulse,

OneCommand, OneConnect, One Network. One Company., SBOD, SLI, and VEngine are trademarks of Emulex. All

other brand or product names referenced herein are trademarks or registered trademarks of their respective

companies or organizations.

Emulex provides this manual "as is" without any warranty of any kind, either expressed or implied, including but not

limited to the implied warranties of merchantability or fitness for a particular purpose. Emulex may make

improvements and changes to the product described in this manual at any time and without any notice. Emulex

assumes no responsibility for its use, nor for any infringements of patents or other rights of third parties that may

result. Periodic changes are made to information contained herein; although these changes will be incorporated into

new editions of this manual, Emulex disclaims any undertaking to give notice of such changes.

Emulex, 3333 Susan Street

Costa Mesa, CA 92626

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

Table of Contents 3

Table of Contents

List of Figures ......................................................................................4

List of Tables .......................................................................................5

1. Introduction .....................................................................................6

Overview ................................................................................................ 6

Major Features .................................................................................... 6

Compatibility ...................................................................................... 7

Prerequisites....................................................................................... 7

HBA Identification ................................................................................ 7

2. Installation.......................................................................................8

Preparing the HBA for Installation ................................................................. 8

Installing the Adapter .............................................................................. 10

Attaching Media ..................................................................................... 11

Applying Power ...................................................................................... 13

Viewing the LEDs .................................................................................... 13

POST Conditions and Results ...................................................................13

3. References .................................................................................... 15

LPe15004, LPe16004, and LPe16000B–series HBA Specifications ........................ 15

FCC and Regulatory Notices....................................................................... 16

Declarations of Conformity........................................................................ 18

Laser Safety Notice ................................................................................. 20

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

List of Figures 4

List of Figures

Figure 2-1 Typical Optical Transceiver .............................................................. 8

Figure 2-2 Releasing the Latch on an Optical Transceiver........................................ 9

Figure 2-3 Removing an Optical Transceiver........................................................ 9

Figure 2-4 Removing the Bracket ....................................................................10

Figure 2-5 Installing an Optical Transceiver .......................................................12

Figure 2-6 Connecting a Fiber Optic Cable.........................................................12

Figure 2-7 Optical HBA LED Indicators ..............................................................13

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

List of Tables 5

List of Tables

Table 1-1 Software and Hardware Environments.................................................. 7

Table 2-1 Media Specifications ......................................................................11

Table 2-2 POST Conditions and Results ............................................................14

Table 3-1 LPe15004, LPe16004, and LPe16000B–series HBA Specifications ..................15

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

1. Introduction

Overview 6

1. Introduction

Overview

This manual describes the following Fibre Channel (FC) to Peripheral Component

Interconnect Express (PCIe) Emulex® host bus adapters (HBAs):

LPe15004, 8 gigabit per second (Gb/s)

LPe16000B, LPe16002B, and LPe16004, 16 Gb/s

The core technology of these HBAs is Emulex's 10th generation FC controller. The

controller is a multi-function PCIe Gen3 interface controller that is compliant to the PCI

Express Base Specification Rev 3.0 and PCI Express CEM Specification Rev 3.0. The

LPe16000B is a single-channel adapter, the LPe16002B is a dual-channel adapter, and

the LPe15004 and LPe16004 are four-channel adapters.

These HBAs support packet transfers at 2.5, 5.0, and 8 gigatransfers per second (2.5, 5.0,

and 8 GT/s) on the PCIe link (auto-negotiated with the system). The supported

physical PCIe connector is x8. The fully featured FC port is compliant to various

American National Standards Institute (ANSI) FC standards.

Note: Illustrations in this manual are only examples. The actual hardware may vary.

Major Features

Multi-function PCIe 3.0 device with one (LPe16000B), two (LPe16002B), or four

(LPe15004 and LPe16004) independent FC ports.

Auto-negotiation between 4-Gb/s, 8-Gb/s, or 16-Gb/s (LPe16000B, LPe16002B,

and LPe16004 adapters only) FC link speeds.

Complies with the PCIe base and CEM 3.0 specifications.

x8-lane standard Generation 3, PCIe interface at 2.5GT/s, 5GT/s, or 8GT/s

(auto-negotiated with the system).

ECC protection of high density RAM (single-bit correction, double-bit

detection).

SFP+ interface supporting optics with LC connections and digital diagnostics

capability.

Host interface support is provided through Emulex standard drivers.

The LPe15004 adapter supports Windows Server 2012, Windows Server

2008, Windows Hyper-V, Citrix, Kernel-based Virtual Machine (KVM),

VMware ESXi, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise

Server (SLES), Oracle Enterprise Linux (OEL), and Solaris S11 (x86 and

Solaris Sparc)

The LPe16000B-series adapters supports Windows Server 2008 R2 and WS 8,

Red Hat Enterprise Linux, VMware ESXi, and Solaris S11 (including

Comstar).

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

1. Introduction

Overview 7

The LPe16004 adapter supports Windows Server 2008 R2, Windows Server

2012, Linux 2.6 Kernel, VMware ESXi, Solaris 11 (including Comstar), Target

Mode Drivers (TM Kits 9.6 and 9.7), FreeBSD, and Debian.

Parts and construction are compliant to the European Union Directive of

Restriction of Hazardous Substances (RoHS).

Compatibility

Prerequisites

Use PCIe Gen 3 compliant systems that are x8 or x16 lane at up to 8 GT/s per lane.

HBA Identification

Each HBA ships with several numbers clearly marked on the board. Emulex

recommends recording these numbers before installation.

Serial number – assigned by Emulex. Use this number when communicating

with Emulex.

IEEE address – an Institute of Electrical and Electronics Engineers (IEEE) unique

64-bit identifier used for system configuration

World Wide Name (WWN) – derived from the IEEE) address, the FC industry

uses the WWN for FC connectivity.

Note: IEEE addresses and WWNs are assigned in sequential order. For example, if

an adapter has four ports, it has four IEEE addresses and four WWNs; one

for each port with the second, third and fourth IEEE addresses/WWNs

being the next successive number of the first.

Table 1-1 Software and Hardware Environments

Software Environments See the HBA’s website for compatible operating systems.

Hardware Environments LPe15004: PCIe 3.0 supports x8, x4, x2, and x1.

LPe16004, LPe16000B, and LPe16002B: PCIe 3.0 supports x8, x4, and

x1.

Note: HBAs are PCIe 3.0 and CEM 3.0 compliant systems and are

backwards compatible to 1.0a, 1.1, and 2.0 compliant

systems.

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

2. Installation

Preparing the HBA for Installation 8

2. Installation

The standard HBAs can be connected to fiber optic cables.

Preparing the HBA for Installation

The Emulex LPe16004, LPe16000B, and LPe16002B HBAs use removable optical

transceivers. If you need to change the bracket for an HBA installation, you must first

remove the optical transceiver(s), if installed, from the housing (cage). This procedure

explains how to remove the transceiver and bracket safely.

Note: The LPe15004 HBA comes with a low–profile PCIe bracket installed.The

low–profile mounting bracket is shorter than the standard bracket;

approximately 3.11 inches (7.9 cm) compared to 4.75 inches (12.06 cm) long.

Note: On the LPe15004 HBA, you can remove and change the bracket but you

cannot remove the optical transceiver.

Note: The LPe16004, LPe16000B, and LPe16002B HBAs come with a standard

full–height PCIe bracket installed.

To change the bracket:

1. Some HBAs have optical transceivers embedded in their cage assemblies. These

optical transceivers must be removed before the bracket can be removed. If the

HBA contains optical transceivers, continue with the following steps; otherwise,

proceed to step 4.

Caution: This is a delicate operation. Take care not to damage the optical

transceiver.

The HBA uses different types of optical transceivers. Figure 2-1 shows an example

of one type with the bail (handle) extended.

Figure 2-1 Typical Optical Transceiver

2. To remove a transceiver, pull the bail (handle) out and down to release the latch

and gently pull the transceiver out. Do not force it. After the latch is released, the

transceiver slides out easily.

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

2. Installation

Preparing the HBA for Installation 9

Figure 2-2 shows a transceiver with the latch released (bail extended) and another

transceiver latched in place.

Figure 2-2 Releasing the Latch on an Optical Transceiver

Figure 2-3 shows an extracted transceiver and another transceiver latched in place.

Figure 2-3 Removing an Optical Transceiver

3. Observing Electrostatic Discharge (ESD) precautions, store the transceiver in an

ESD-safe place.

LPe15004, LPe16004, and LPe16000B-series HBA Installation Manual P008875-02A Rev. A

2. Installation

Installing the Adapter 10

4. Remove the mounting bracket screws from the top of the HBA. Figure 2-4 shows

the screws that are removed from the bracket.

Figure 2-4 Removing the Bracket

5. Remove the bracket and store it for future use.

6. Align the new mounting bracket tabs with the holes in the HBA.

Note: Be careful not to push the bracket past the EMI compression tabs of the SFP

cage. Ensure the light emitting diodes (LEDs) are properly aligned with the

holes in the bracket.

7. Re-install the screws that attach the HBA to the bracket.

8. Re-install the transceiver by sliding it into the housing. When the latch engages, it

clicks.

9. Push the bail back into place.

Installing the Adapter

To install the adapter:

1. Turn off the computer if hotplug is not supported on the server. See your server

documentation to see if it supports Hot Plug/Hot Swap of PCIe adapter cards.

2. Remove the computer case.

3. Remove the blank panel from an empty PCIe bus slot. See “Preparing the HBA for

Installation” on page 8 to change the brackets if needed. Otherwise, proceed to

“Attaching Media” on page 11.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Emulex Adaptateur hôte

Emulex

Emulex 110 Manuel utilisateur

Emulex

Emulex LightPulse LPe12000 Manuel utilisateur

Emulex

Emulex LightPulse LPe1105-M4 HBA Manuel utilisateur

Emulex

Emulex LP11002 HBA Manuel utilisateur

Emulex

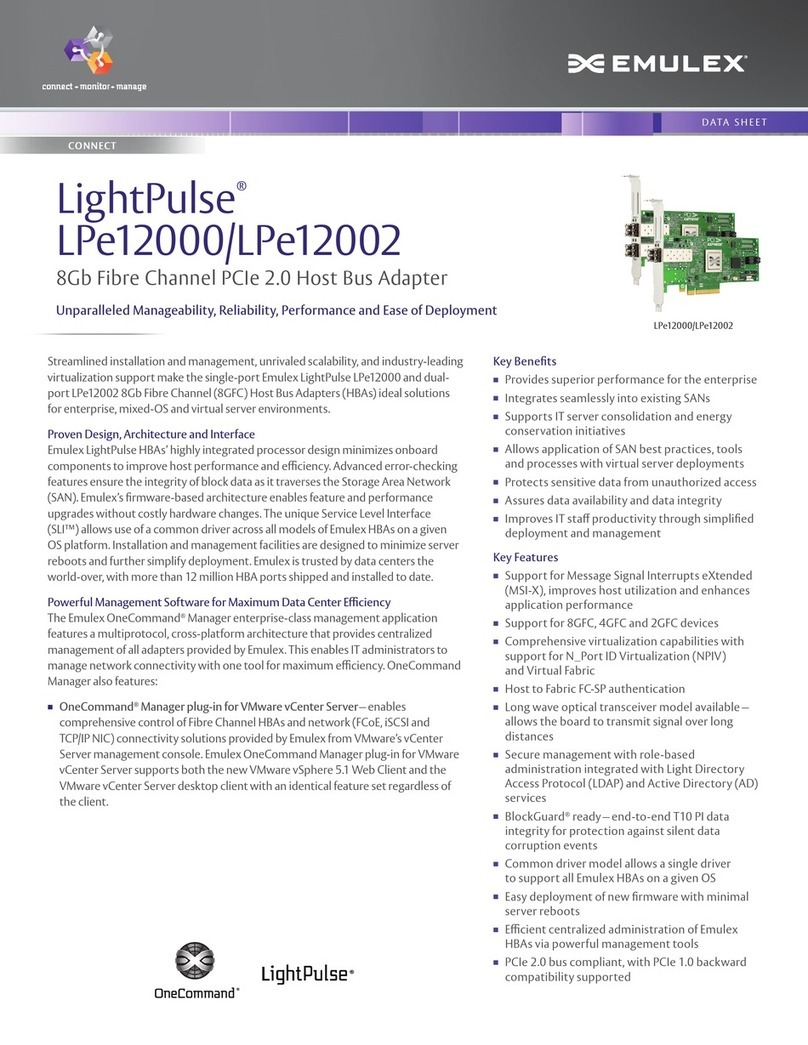

Emulex LightPulse LPe12000 Manuel utilisateur

Emulex

Emulex LightPulse LPe12000 Manuel utilisateur

Emulex

Emulex LPe1250 Manuel utilisateur

Manuels Adaptateur hôte populaires d'autres marques

Digital Equipment

Digital Equipment StorageWorks EK-KZPCM-UG Manuel utilisateur

ATTO Technology

ATTO Technology ExpressPCI UL4S Manuel utilisateur

Sun Microsystems

Sun Microsystems Sun StorEdge Manuel utilisateur

LSI

LSI LSI21320-R Manuel utilisateur

LSI

LSI Ultra160 Manuel utilisateur

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3321 Manuel utilisateur

Tekram Technology

Tekram Technology TR-824 Manuel utilisateur

ATTO Technology

ATTO Technology ATTO Celerity FC-81EN Manuel utilisateur

LSI

LSI S14037 Manuel utilisateur

Sonnet

Sonnet Tempo Ultra ATA66 Manuel utilisateur

Adaptec

Adaptec AHA-3940UW/OF Manuel utilisateur

HighPoint

HighPoint RocketRAID 600L Manuel utilisateur

Tekram Technology

Tekram Technology DC-820B Manuel utilisateur

HighPoint

HighPoint RocketRAID 174x Manuel utilisateur

Adaptec

Adaptec AHA-2944UW Manuel utilisateur

ATTO Technology

ATTO Technology ATTO Celerity FC-81EN Manuel utilisateur

ATTO Technology

ATTO Technology UL4D PCI Manuel utilisateur

IBM

IBM System Storage DS4000 Manuel utilisateur
