LP1050 Installation and Reference Manual

Table of Contents

Installation

Features

Compatibility

Prerequisites

Install HBA

Attach Media

Apply Power

View LEDs

Reference

Specifications

FCC Statement

Declaration of Conformity

Laser Safety

Emulex Documentation, Drivers and Software

Installation

Features

The LP1050 host bus adapter offers a highly integrated 2Gb/s Fibre Channel HBA for

use in servers based on either the conventional PCI or PCI-X 1.0a expansion bus

architectures. The LP1050 delivers exceptional performance through the use of a sixth

generation Emulex Thor controller. The Thor high-performance controller is a highly

integrated device that combines industry standard embedded ARM9 processors,

1Gig/2Gig SERDES and protocol technology into a single module. The LP1050 is a

single-channel HBA in a low-profile PCI (MD2) compliant card format.

Major Features

●Full duplex 2Gb/s Fibre Channel delivering up to 400MB/s

●Superior transaction processing performance

●Automatic speed negotiation

●Automatic topology detection

●Full fabric support using F_Port and FL_port connections

●Onboard hardware context cache for superior fabric performance

●Support for use of multiple concurrent protocols (SCSI and IP)

●Full support for both FC service class 2 and 3

●Full fabric support in x86 and Itanium environments

●Support for FC-Tape (FCP-2) devices

●66/100/133 MHz PCI-X 1.0a and PCI 2.3 compatibility

●End-to-end parity protection for high data integrity

●Robust suite of software supporting Windows Server 2003, Windows 2000,

Windows NT, Linux and NetWare

●3.3V signaling, 5V tolerant

●Optical small form factor (LC) interface

Compatibility

Software Environments Windows Server 2003, Windows 2000, Windows NT,

Novell Netware and Linux

Hardware Environments PCI hardware platforms: Itanium Processor Family

(for IA-64) and x86 (for IA-32) platforms

Emulex Documentation, Drivers and Software

Prerequisites

●PCI/PCI-X 32- and 64-bit data and addressing

●PCI bus computer with a clock rate up to 66 MHz

●PCI-X bus computer with a clock rate up to 133 MHz

●Media and connectors

Emulex Documentation, Drivers and Software

Install the Host Bus Adapter Board

Caution Emulex LightPulse®Host Bus Adapters (HBAs) contain

electronic components that can be damaged by static

electricity through an electrostatic discharge (ESD) event.

To prevent ESD damage, maintain constant contact with

any grounded metal surface. A grounding wrist strap is

useful for this purpose. Handle the card carefully at all

times and preferably by the edges. Avoid touching

electronic components and keep the card in the original

packaging until you are ready for installation.

1. Record IEEE and serial numbers.

Each host bus adapter (HBA) is shipped with a unique 64-bit identifier called

the IEEE address. The Fibre Channel industry uses a World Wide Name

(WWN) derived from the IEEE address, and this number is needed for Fibre

Channel connectivity. The IEEE address is used when configuring your system.

The serial number is used when communicating with Emulex. All numbers are

clearly marked on the board. We recommend that you record these numbers

before installation.

2. Turn off and unplug the computer.

3. Remove the computer case.

Note For best I/O performance, place the adapter into

an empty PCI-X slot that is running at 133 MHz.

Ensure that the PCI bus is not shared with another

PCI card that can lower the PCI slot clock rate.

4. Remove the blank panel from an empty 32- or 64-bit PCI or PCI-X bus slot.

Compare the removed panel to the bracket on the host bus adapter. Follow

steps 5-8 to change the bracket if they are different sizes. Otherwise, skip to

step 9.

Emulex Documentation, Drivers and Software

Note The host bus adapter comes with a standard PCI

bracket installed. The low-profile mounting bracket

is shorter than the standard bracket;

approximately 3.11 in. (7.9 cm) compared to 4.75

in. (12.06 cm) long.

If you need a low-profile bracket, contact Emulex

Product Information by phone at 800-EMULEX-3

(800-368-5393) or 714-885-3450, or by e-mail at

[email protected]. A low-profile bracket will be

shipped within one business day.

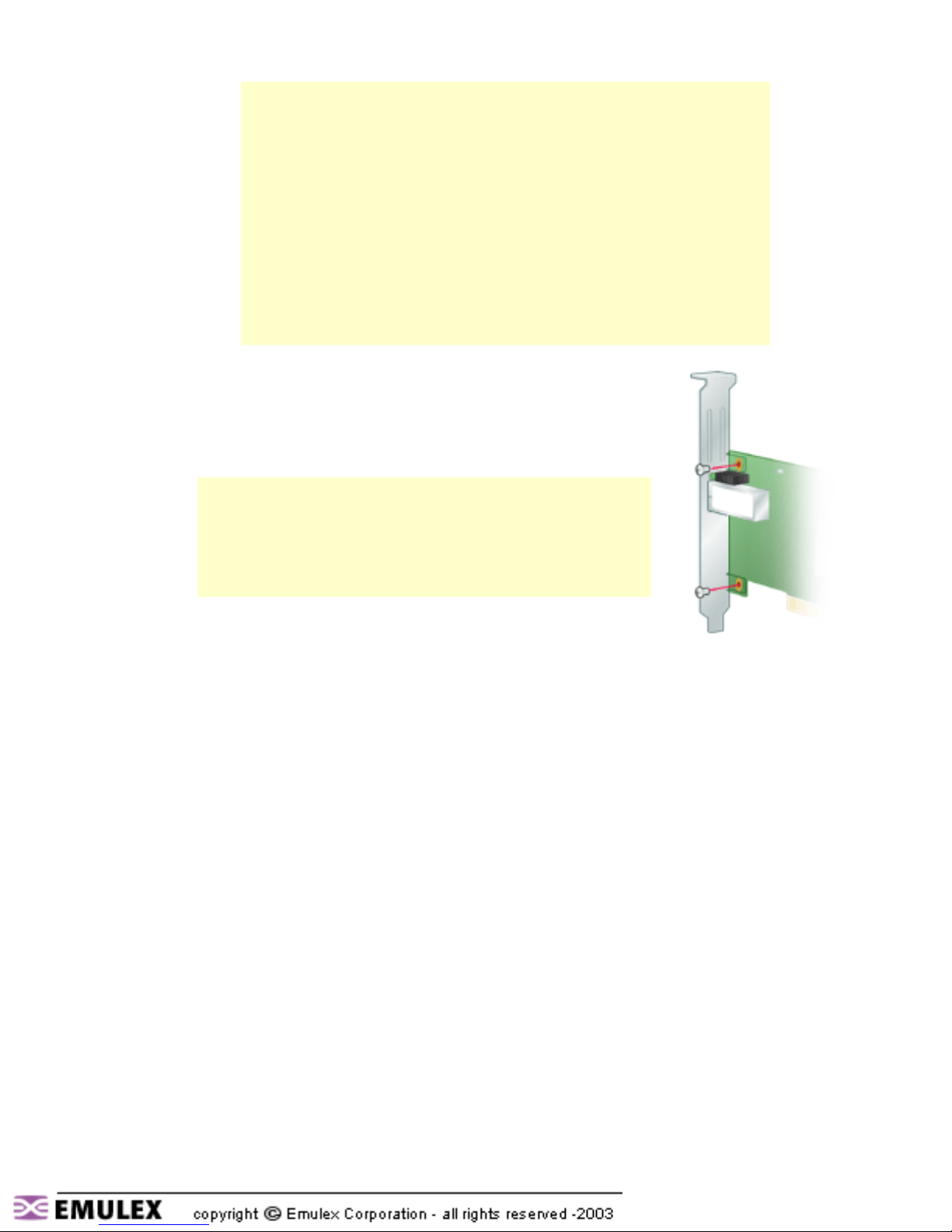

5. Remove the mounting bracket screws from the top of the

host bus adapter.

6. Remove the bracket and store it for future use.

7. Align the new mounting bracket tabs with the holes in the

HBA.

Note Be careful not to push the bracket past

the transceiver housing's grounding tabs.

Make sure the LEDs are properly aligned

with the holes in the bracket.

8. Replace the screws that attach the HBA to the bracket.

9. Insert the host bus adapter into the empty 32- or 64-bit PCI

or PCI-X bus slot. Press firmly until it is seated.

10. Secure the host bus adapter's mounting bracket to the case with the panel

screw or clip.

11. Replace the computer case and tighten case screws.

The host bus adapter is now installed in the PC and is ready for media attachment.

Emulex Documentation, Drivers and Software

Attach Media

Note The host bus adapter (HBA) will not allow normal data

transmission on an optical link unless it is connected to

another similar or compatible laser product (that is,

multimode to multimode.)

Use multimode fiber optic cable, with short-wave lasers, that adheres to the following

specifications:

Fiber Optic Cable Maximum Length Minimum

Length Connector

62.5/125 µm (multimode) 300 meters at 1.0625 Gb/s

150 meters at 2.125 Gb/s 2 meters LC

50/125 µm (multimode) 500 meters at 1.0625 Gb/s

300 meters at 2.125 Gb/s 2 meters LC

1. Connect the fiber optic cable to the LC

connector on the HBA.

2. Connect the other end of the cable to

the Fibre Channel device.

After the media is connected to the host bus

adapter, you are ready to apply power to the

computer.

Emulex Documentation, Drivers and Software

Apply Power

1. Verify that the host bus adapter is securely installed in the computer.

2. Verify that the correct media is attached.

3. Plug in and turn on the computer.

4. Observe LEDs for Power On Self Test (POST) results.

View LEDs

Green and yellow LEDs can be seen through openings in the host bus

adapter's mounting bracket. Green indicates power and yellow signifies

port activity. Each port has a corresponding set of green and yellow LEDs.

POST conditions and results are summarized in the following table.

Yellow

LED Green

LED State

OFF OFF Wake-up failure (dead board). Check the

3.3V LED near the top edge of the HBA

(component side).* If this LED is lit, the slot is

providing 3.3V power.

ON OFF POST failure (dead board)

Slow blink

(1 Hz) OFF Wake-up failure (dead board)

Fast blink

(4 Hz) OFF Failure in POST (dead board)

Flashing

(irregular) OFF POST processing in progress

OFF ON Failure while functioning

Emulex Documentation, Drivers and Software

ON ON Failure while functioning

Slow blink ON Normal operating condition - 1 GHz link rate

Fast blink ON Normal operating condition - 2 GHz link rate

OFF Slow blink Normal - link down or not yet started

Slow blink Slow blink Offline for download

Fast blink Slow blink Restricted offline mode (waiting for restart)

Flashing Slow blink Restricted offline mode, test active

*A light-emitting diode (LED) is located near the top edge of the board.

This LED indicates 3.3V power.

Emulex Documentation, Drivers and Software

Reference

Specifications

Parameter Range

Media Interface The Thor controller interfaces to the physical media through

an FC-0 Media Interface (FC-PI compliant transceiver), and

then connects through a single optical fiber LC connector.

Physical Dimensions Low-profile MD2 form factor, 6.600 inches by 2.536 inches,

and accommodates both the full-height and low-profile

bracket.

Power Requirements

In a PCI/PCI-X, 66-MHz host:

●3.2 watts (typical) @ +3.3 VDC

●4.8 watts (typical) @ +5.0 VDC

●8.0 watts (total typical)

In a PCI-X, 100/133-MHz host:

●3.7 watts (typical) @ +3.3 VDC

●5.2 watts (typical) @ +5.0 VDC

●8.9 watts (total typical)

Airflow 100 lf/min (minimum)

Temperature 32° to 113° F (0° to 45° C), Operating

-40° to 158° F (-40° to 70° C), Storage

Humidity 5% to 95% non-condensing

Agency Approvals for

LP1050

Class 1 Laser Product per DHHS 21CFR (J) & EN60825-1

UL recognized to UL1950

CUR recognized to CSA 22.2, No. 950

Baurt-certified by TUV to EN60950

FCC Rules, Part 15, Class A

Industry Canada, ICES-003, Class A

EMC Directive 89/336/EEC (CE Mark)

EN55022, Class A

EN55024

Australian EMC Framework (C-Tick Mark)

AS/NZS 3548:1995 Class A

Japan VCCI, Class A

Taiwan BSMI, Class A

Korea MIC, Class A

Emulex Documentation, Drivers and Software

FCC and Regulatory Notices

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

APPAREIL A` LASER DE CLASSE 1

LP10000DC-M2, LP10000-M2, LP1050DC-F2 and LP1050-F2 Models

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

Responsible Party: Paul Folino, Chief Executive Officer

Emulex Corporation (714) 662-5600

3535 Harbor Blvd. Costa Mesa, CA Corporation 92626 USA

Note:

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct the interference

at his own expense. Shielded cables must be used between this equipment and attached

peripheral devices. The reader is cautioned that changes or modifications made to the

equipment not expressly approved by Emulex could void the user's authority to operate this

equipment. The above statement applies to products marketed in the USA

This class A digital apparatus meets all requirements of the Industry Canada (IC) Interference -

Causing Equipment Standard (ICES-003).

Cet appareil numerique de la Classe A respecte toutes les exigences du reglement sur le

materiel brouilleur du Canada. This statement applies to products marketed in Canada.

Emulex Documentation, Drivers and Software

Table des matières

Autres manuels Emulex Adaptateur

Emulex

Emulex LPe15004-Series Manuel utilisateur

Emulex

Emulex LPe11004 HBA Instructions de montage

Emulex

Emulex OneConnect OCe14000-Series Manuel utilisateur

Emulex

Emulex LP982 Manuel d'installation et d'exploitation

Emulex

Emulex LP21000 Manuel utilisateur

Emulex

Emulex LP10000ExDC Manuel d'installation et d'exploitation

Emulex

Emulex LP1050Ex Manuel d'installation et d'exploitation

Emulex

Emulex LP10000 Manuel utilisateur

Emulex

Emulex LP9002S Manuel d'installation et d'exploitation

Emulex

Emulex LP1005DC-CM2 Manuel utilisateur

Emulex

Emulex OneConnect OCe14000-Series Manuel utilisateur

Emulex

Emulex NC551i Manuel utilisateur

Emulex

Emulex LPe1150 HBA Manuel utilisateur

Emulex

Emulex LP10000DC Manuel d'installation et d'exploitation

Emulex

Emulex LP11000 Manuel utilisateur

Emulex

Emulex OneConnect OCe14000-Series Manuel utilisateur

Emulex

Emulex LP1050DC Manuel d'installation et d'exploitation

Emulex

Emulex LP10000 Manuel d'installation et d'exploitation

Emulex

Emulex AW520A Manuel utilisateur

Emulex

Emulex LP10000 Manuel d'utilisation

Emulex

Emulex LP9802DC Manuel d'installation et d'exploitation

Emulex

Emulex OneConnect OCm11102-N-X Manuel du propriétaire

Emulex

Emulex LP9402DC Manuel d'installation et d'exploitation

Emulex

Emulex LPE11000 HBA Manuel utilisateur

Manuels Adaptateur populaires d'autres marques

PCB Piezotronics

PCB Piezotronics 090B274 Manuel utilisateur

Auvidea

Auvidea J20 Manuel du produit

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manuel utilisateur

Akribis

Akribis ITF-21-BISS-MIT Manuel utilisateur

Tenda

Tenda W54U Manuel utilisateur

ROHO

ROHO AGILITY Manuel utilisateur

PROLiNK

PROLiNK WN2001 Manuel utilisateur

Hawking

Hawking HUF2 Manuel utilisateur

Airlink101

Airlink101 AWLC4030 Manuel utilisateur

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manuel utilisateur

Philips

Philips SWA4554S/10 Manuel utilisateur

JVC

JVC TS-C9D2B Manuel d'instructions

NETGEAR

NETGEAR A6100 Manuel utilisateur

D-Link

D-Link DWA-121 Manuel utilisateur

Philips

Philips SWA2037 Manuel utilisateur

Basalte

Basalte 0610-20 Manuel utilisateur

Yealink

Yealink EHS40 Manuel utilisateur

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manuel utilisateur
