EMS AIRFLOW Prophylaxis Master Manuel utilisateur
QUICK GUIDE
AIRFLOW®PROPHYLAXIS MASTER
MAK
E
M
E
SMIL
E
.
DOWNLOAD ON MYEMS.DENTAL
General Instructions:
installation, cleaning,
reprocessing, maintenance ...
Treatment Recommendations
Guided Biolm Therapy
Extended use
of PIEZON
®
instruments for
Endodontology
and other
dental
applications.
EMS Dental
Installation & Maintenance
3
SUMMARY
EN p.4
ENGLISH
BG p.8
БЪЛГАРСКИ
DE p.20
DEUTSCH
FR p.40
FRANÇAIS
IT p.56
ITALIANO
ES p.28
ESPAÑOL
PT p.84
PORTUGUÊS
NO p.76
NORSK
SV p.104
SVENSKA
FI p.36
SUOMI
NL p.72
NEDERLANDS
DA p.16
DANSK
PL p.80
POLSKI
CS p.12
ČESKÝ
SL p.100
SLOVENŠČINA
SK p.96
SLOVENSKY
EL p.24
ΕΛΛΗΝΙΚΆ
RO p.88
ROMANIAN
HU p.48
MAGYAR
TR p.112
TÜRKÇE
ET p.32
EESTI KEEL
LV p.64
LATVIEŠU
LT p.60
LIETUVIŠKAI
RU p.92
РУССКИЙ
ID p.52
INDONESIA
TH p.108
ไทย
VI p.116
TIẾNG VIỆT
ZH p.120
英文
HR p.44
HRVATSKA
MS p.68
BAHASA MELAYU
PRESS
HARD
4
EH-142 Air hose to the cabinet / dental unit.
EG-110 Water hose to the cabinet / dental unit.
We thank you for your trust in our newest product AIRFLOW
®
Prophylaxis Master, which will guide you into the
world of our GBT - GUIDED BIOFILM THERAPY.
Register your new unit on www.myems.dental and get an extra year of warranty. This warranty is only
valid if you have completed your rst yearly maintenance within 12 months following purchase
.
Before installation, download & read complete instructions for use (myems.dental).
Connections
Install the batteries in the pedal.
Check cords are locked.
EH-142 Air Press hard
EG-110 Water
Power
WELCOME
EK-410 Wired pedal Optional
EM-145 AIRFLOW®Press hard
EM-146 PIEZON® Press hard
EN
5

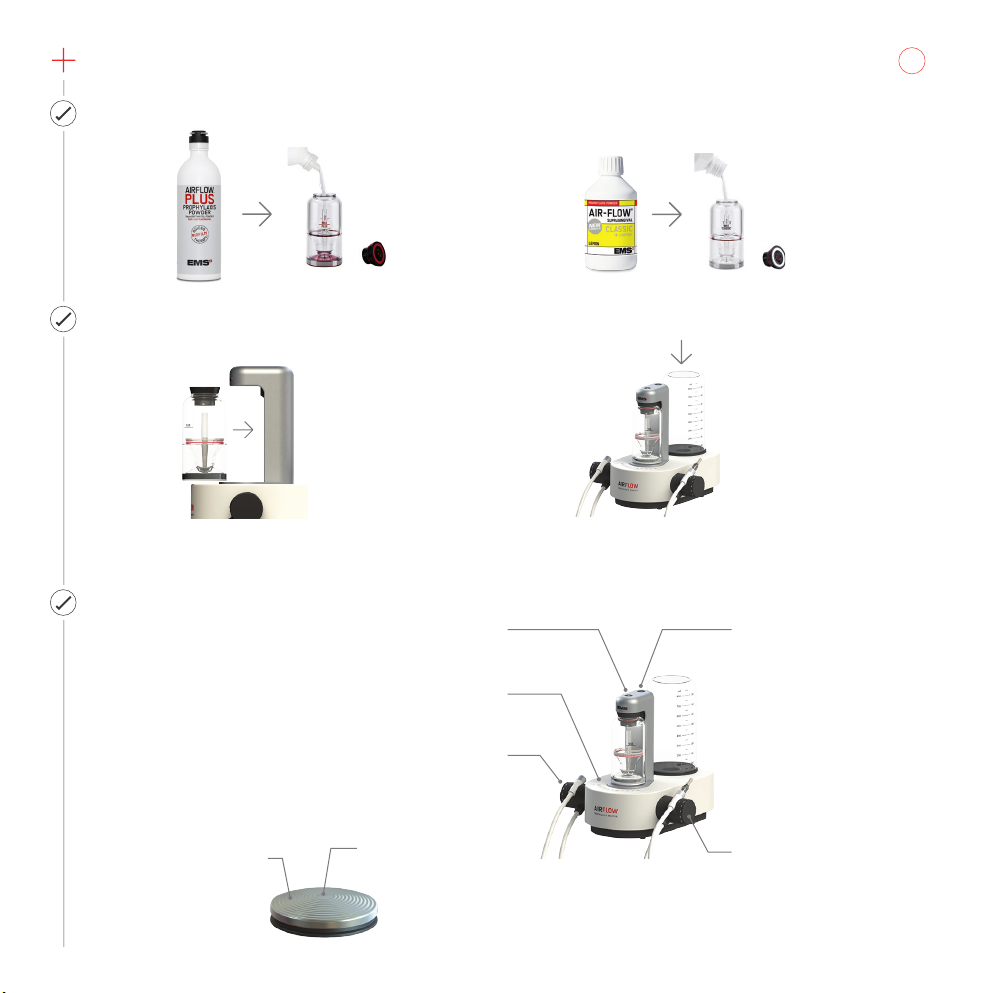

Insert the powder chamber.
Functions
The use of the PIEZON®Bottle is optional.
AIRFLOWPLUS:SubandSupragingival. AIRFLOW COMFORT: Supragingival on enamel only.
If the bottle is not placed onto the device then you
are connected to the external water supply.
ON/OFFAIRFLOW®pressure
Power set
®water
AIRFLOW® water
NORMAL Press gently BOOST Press hard
Hereby, Electro Medical Systems S.A., declares that this Medical Device
and all of its accessories having radio equipment are compliant with the
European Directive 2014/53/EU (RED Radio Equipment Directive). The full
text of the EU declaration of conformity is available in the Instruction for Use.
EN
H2O
10 10
NIGHT
CLEANER
10 10
6
3 4
1
1
2
2
3 41 2
CLEAN
END OF DAY Clean
EACH MORNING Rinse
BETWEEN Each patient
Place your water bottle
onto device
Place your blue bottle
CLEANER
Clean outside surface of device
with a cloth and alcohol
Set water to 10,
on both sides
Set water to 10,
on both sides
.
Reprocess your Handpieces
and instruments
Clip the 2 cords on the
CLIP+CLEAN over a sink
Clip the 2 cords on
the CLIP+CLEAN over
a sink
.
Press the pedal once,
Press the pedal once,
EN
PS
DS-016A
P
DS-011A
A
DS-001A
7
MAINTENANCE
TROUBLESHOOTING
Place the Easy Clean
into the handpiece.
Then take a syringe
Dry both sides of handpiece
with compressed air.
EN
H2O
AIR
1
2
3
4
2 3
1
Service needed
Stop using your device.
Missing cord
Check your cords connection.
Overheating
Wait for cooling.
If error repeats, call service.
Batteries low
Change pedal batteries.
Handpiece clogged
Use Easy Clean
CHECK IT
change it if needed.
Renew your PIEZON®light guide if
needed.
EACH YEAR Preventive maintenance
Send your device to your authorized EMS repair center.
Check instrument wear.
See back cover of your guide.
8
EH-142
EG-110
Благодарим ви за доверието към най-новия ни продукт AIRFLOW
®
Prophylaxis Master, който ще ви
въведе в света на GBT – GUIDED BIOFILM THERAPY.
Регистрирайте новото си изделие на www.myems.dental и ще получите допълнителна година
гаранция. Тази гаранция е валидна само ако сте извършили поддръжката през първата година
в рамките на 12 месеца след покупката
.
Преди монтаж изтеглете и прочете цялото ръководство за употреба (myems.dental).
Връзки
Поставете батериите в педала.
Проверете дали кабелите са заключени.
Натиснете силно
ДОБРЕ ДОШЛИ
По избор
EM-145 AIRFLOW®Натиснете силно
EM-146 PIEZON® Натиснете силно
BG
9
Въведете
Функции
Употребата на бутилката PIEZON®
AIRFLOW PLUS AIRFLOW COMFORT
®
®
AIRFLOW®
натиснете леко
Натиснете силно
BG
10
H2O
10 10
NIGHT
CLEANER
10 10
3 4
1
1
2
2
3 41 2
ПОЧИСТВАНЕ
В КРАЯ НА ДЕНЯ почистете
ВСЯКА СУТРИН Изплакнете
МЕЖДУ всеки пациент
.
.
BG
