Empire LPR2430-1 Guide de démarrage rapide

Page 1

PIONEER

VENTED DECORATIVE

GAS LOG SET

MODELS

LPR2430-1

FOR USE ON BURNER MODEL:

BF(L,M,R)(2124,30)

WARNING

FIRE OR EXPLOSION HAZARD

If the information in this manual is not

followed exactly, a re or explosion may

result causing property damage, personal

injury or loss of life.

— Do not store or use gasoline or other

ammable vapors and liquids in the

vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do

not use any phone in your building.

• Leave the building immediately.

• Immediately call your gas supplier

from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas supplier,

call the re department.

— Installation and service must be

performed by a qualied installer,

service agency or the gas supplier.

INSTALLER:

Leave this manual with the appliance.

CONSUMER:

Retain this manual for future reference.

CONGRATULATIONS on the purchase of your

new DECORATIVE VENTED GAS LOG SET!

Your Decorative Gas Log Set is designed

and intended for installation in an approved,

existing, fully vented, wood-burning replace,

with a gas hook-up.

The log placement shown in this manual

replicates the set-up shown in the brochure

and provides a great ame pattern.

IMPORTANT! Read these instructions

carefully before installing or operating this

gas appliance. These instructions should be

left with the homeowner for future reference.

WARNING

If not installed, operated and maintained

in accordance with the manufacturer’s

instructions, this product could expose you

to substances in fuel or from fuel combustion

which can cause death or serious illness.

WARNING

This log set is to be installed only in a sol-

id-fuel burning replace with a working ue

constructed of non-combustible material.

The vent damper must also have a damper

clamp attached to it to keep the damper from

accidentally closing during operation.

LPR2430-1 LOGS SHOWN ON BF(L,M,R)30

INSTALLATION INSTRUCTIONS

AND OWNER’S MANUAL

Page 2 39546-0-0518

LPR2430 ON BF(L,M,R)2124

39546-0-0518 Page 3

DESCRIPTION FRONT VIEW - BF(L,M,R)30

(Log L)

DESCRIPTION FRONT VIEW - BF(L,M,R)(2124,30) DESCRIPTION FRONT VIEW - BF(L,M,R)(2124,30)

(Log A) (Log I)

(Log B) (Log J)

(Log C) (Log K)

(Log D)

(Log E)

(Log F)

(Log G)

(Log H)

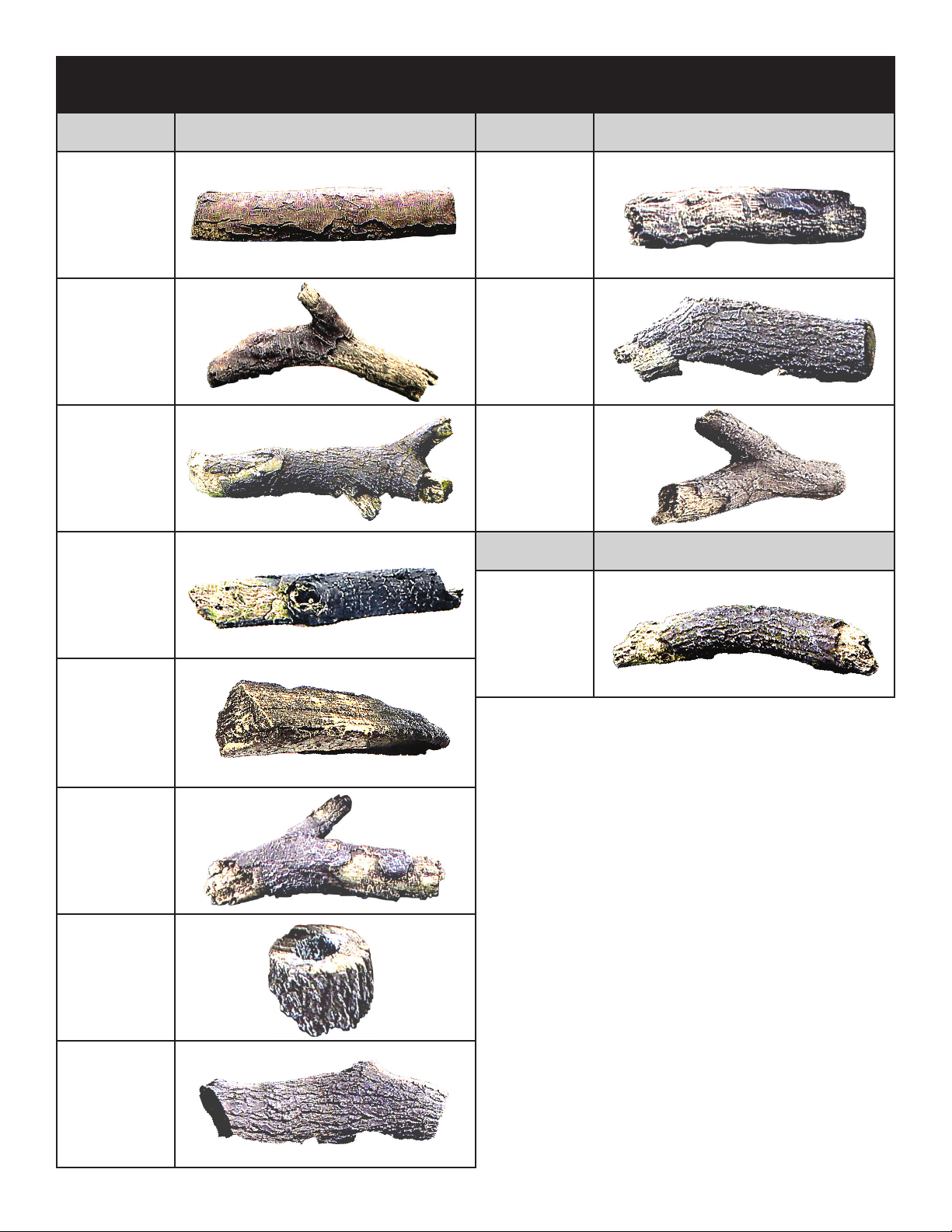

LPR2430-1 LOG IDENTIFICATION - BF(L,M,R)(2124,30)

NOTE: Logs are not shown to scale.

NOTE: Logs may differ from those shown.

39546-0-0518Page 4

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

TOP VIEW

FRONT VIEW

1. Place Fiber Heat Sink (included with burner) onto top rear log support.

39546-0-0518 Page 5

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

2. Place Log (A) onto top of Fiber Heat Sink.

TOP VIEW

FRONT VIEW

39546-0-0518Page 6

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

3. Place Log (B) onto front right side of Fiber Heat Sink and against top right side of burner pan.

TOP VIEW

FRONT VIEW

39546-0-0518 Page 7

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

4. Place Log (C) onto top left side of Log (A) and against top left side of Log (B).

TOP VIEW

FRONT VIEW

39546-0-0518Page 8

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

5. Place Log (D) onto top left side of burner pan, and left side of Log (B).

TOP VIEW

FRONT VIEW

39546-0-0518 Page 9

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

6. Place Log (E) onto top side of Log (D), and against left end of burner pan.

TOP VIEW

FRONT VIEW

39546-0-0518Page 10

TOP VIEW

FRONT VIEW

LPR2430-1 LOG PLACEMENT ON BF(L,M,R)2124

7. Place Log (F) onto front right side of Log (D) and against front left side of burner pan.
