Emmeti FEBOS - CRONO IMX Basic / WiFi Mode d’emploi

FEBOS - CRONO IMX

Basic / WiFi

INSTALLATION AND USE MANUAL

(Software V. 3.0.1)

TABLE OF CONTENTS

Thanks you for the trust you have shown by purchasing this produtc. Carefully read this manual which contains the specifications and all

the information useful for the correct functioning.

The information contained in this publication may be subject to changes at any time and without any notice whatsoever for technical and/

or commercial reasons as they arise.

Installation, regulation, maintenance and fault finding as well as all technical operations described in this document, have to be performed

by technical, qualified and trained personnel also in relation to the risks referred to the mentioned activities.

Warning!

Keep these manuals in a dry place avoiding in this way to spoil them.

ENEN

1. PRESENTATION ............................ 3

2. WARNINGS AND TECHNICAL DATA .. 6

3. INSTALLATION ............................. 7

3.1 Electrical connection diagram FEBOS-CRONO-TBR

(Cod. 07245103, Cod. 07245113)

3.2 FEBOS-CRONO electrical connection diagram with

external relays (Cod. 07245101, Cod. 07245111)

3.3 Wall mounting

SERVICE SECTION

4. FIRST START-UP ......................... 10

4.1 WiFi connection (Febos-Crono WiFi model)

4.2 System Map Configuration (Modbus network)

4.3 Setting inputs of the electrical powers

4.4 Setting the HP model and the System Recipe

5. SETUP ....................................... 18

5.1 Checking the HP inputs and outputs

5.2 Screen - 1.12 DEBUG

5.3 Screen 2.3 ROOM SET - SERVICE

5.4 HEAT PUMP screens - SERVICE

5.5 SANITARY HOT WATER screens – SERVICE

USER SECTION

6. GENERAL USER SETTINGS ......... 26

6.1 Screen lock

6.2 Access levels

6.3 Settings

6.4 WiFi connection (Febos-Crono WiFi model)

7. USER VISUALIZATION AND SET-UP .... 32

7.1 Registration to the emmeti portal - WEB APP

7.2 Heat Pump User Screens

7.3 Electrical Power User Screen

7.4 Screen 3.2 ALARM HISTORY

8. GUEST SCREENS

......................... 38

8.1 Screen 2.0 (Home)

8.2 Screen 2.1 ROOM SET

8.3 Screen 4.1 HEAT PUMP

8.4 Screen 5.1 SANITARY HOT WATER

8.5 Screen 6.1 ELECTRICAL POWERS

8.6 GRAPH screens

8.7 Active alarms

9. DISPOSAL ................................. 49

ENEN

1. PRESENTATION

Scheme of the Integrated Management System

The integrated management of the thermal system and heat pump

(HP) is carried out through an innovative SMART-MT regulator sup-

plied with it. The SMART-MT is connected to the HP management

electronics (PCB-Main) by a special PCB-Terminal Block board,

where the various inputs and outputs of the parts that make up the

system can be connected.

The SMART-MT allows you to customize residential comfort, accord-

ing to the various needs of using energy sources and terminal units.

Using the SMART-MT, in addition to the normal commands on the

mode and operating status of the HP, all the parameters relating to

the plant management algorithms can be set.

To complete the functions present in the SMART-MT it is possible to

connect, to the PCB-Terminal Block, a normal room thermostat for

the consent of the circulator and activation of the heat pump or, a

remote management panel "FEBOS 4.0" ( CRONO, WiFi) (optional ac-

cessory) which, in addition to the function of controlling the temper-

ature and room humidity of the main room of the residence, allows

the setting of user-managed parameters, to activate the main states

and operating modes of the HP and to report the main displays of

the SMART-MT.

Energy meter

Silence Thin Fan-coil

Dumy Floor dehumidifiers

Circulator

FEBOS-CRONO user terminal

Condensing boiler

3-way diverter valve

Eco Hydro Kit

ENEN

1. PRESENTATION

FEBOS 4.0

Is a new modular Hardware / Software platform developed for the

management of the MIRAI SMI heat pump and the control of room

comfort and the related flows and energy costs of the residence.

This platform consists of the following field devices:

Febos-Crono (BASIC/WiFi), Febos-Energy, Febos-Power and

Febos-Relay and a Cloud dedicated to their management.

Febos-Crono Basic

FEBOS-Power

FEBOS-Relay

FEBOS-Energy

Febos-Crono WiFi

Energy meter

Silence Thin Fan-coil

Dumy Floor dehumidifiers

Circulator

Condensing boiler

3-way diverter valve

Eco Hydro Kit

ENEN

1. PRESENTATION

FEBOS-CRONO basic

User terminal for controlling room temperature and humidity and

displaying and/or setting the MIRAI SMI 4.0 heat pump operating

parameters.

360° connectivity.

This is what makes the Febos-Crono world truly complete, the

plug in WiFi. The presence of the WiFi module allows performance

and independence, making it suitable for any type of installation.

In this way the room comfort system can be totally controlled

remotely (both user and service side) through a simple dedicated

web-app, using common devices such as smartphones, tablets

or PCs.

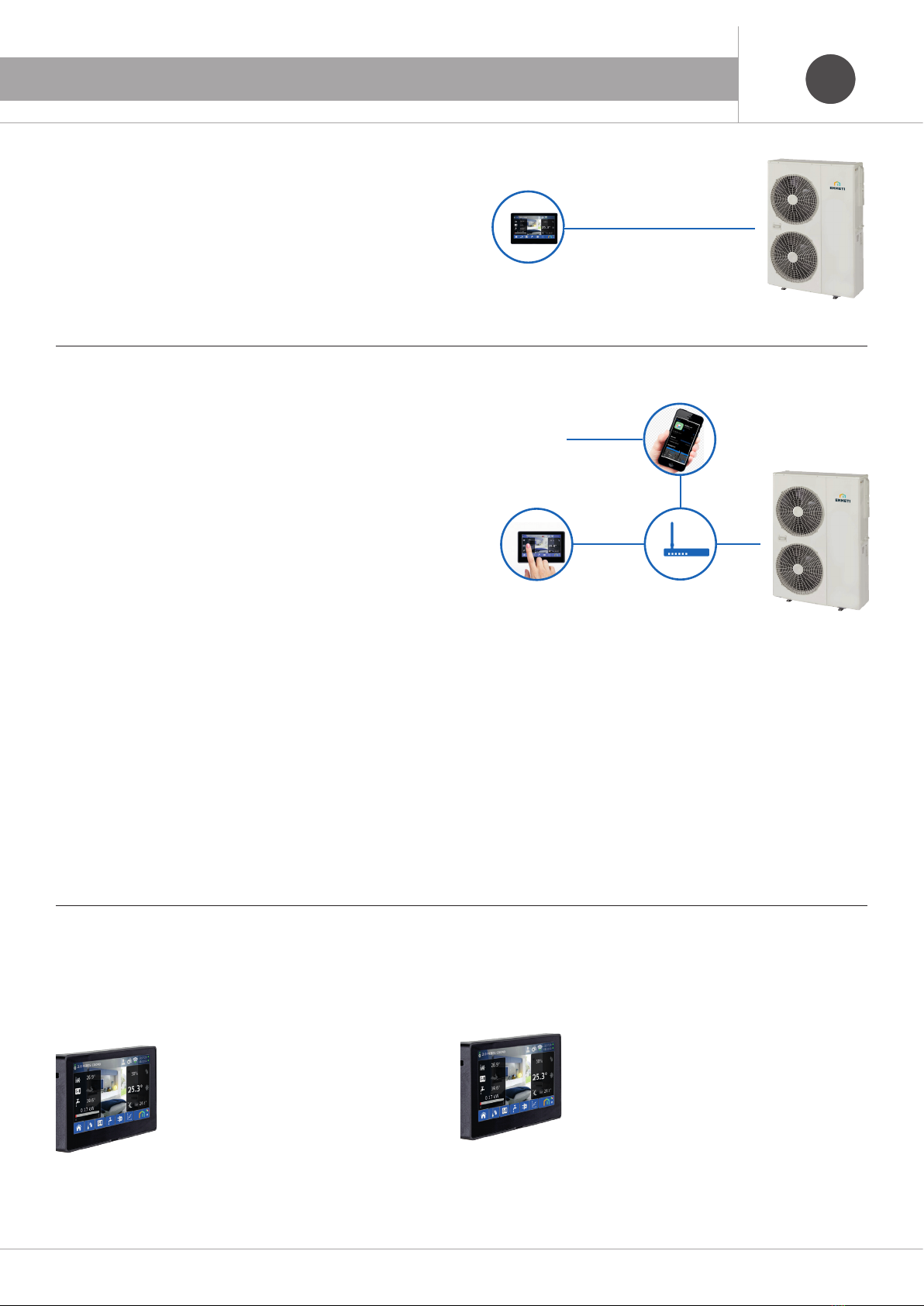

FEBOS-CRONO WiFi /FEBOS-CRONO

Web App

MIRAI SMI 4.0

Tablet or PC

FEBOS-CRONO WiFi user terminals differ from FEBOS-CRONO

Basic only due to the presence of a special internal plugin that

allows connectivity to the "Febos 4.0” System and allows control

from a dedicated web portal.

In the FEBOS-CRONO WiFi the internal information is transmitted

with Wireless technology to the home ADSL router that sends

them to the MT-CLOUD.

In this way the data is always updated and can be consulted at

any time on any device connected to the internet and wherever

you are using the appropriate WebAPP.

Technical characteristics

Plug hardware technical specifications present in

the Febos-Crono WiFi:

-WiFi module 802.11b/g/n 2.4 GHz WLAN MAC/BB processing

- Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

- Upgrade software via ethernet WiFi

User terminal to be connected to the RS-485 serial port of the PCB-Terminal Block terminal board of the HP

Supply voltage 24Vdc 3W

MIRAI SMI 4.0

FEBOS-CRONO Basic IMX

Cod. 07245101

Cod. 07245103 (Vers. TBR)

FEBOS-CRONO WiFi IMX

WiFi module on board

Cod. 07245111

Cod. 07245113 (Vers. TBR)

ENEN

2. WARNINGS AND TECHNICAL DATA

116

16 84 16

38,538,5

•Installation must be carried out by a qualified

person in strict compliance with the electrical dia-

grams and in compliance with current regulations

on electrical systems.

•Maintenance must be carried out by a qualified

person, therefore, inaccessibility to the connection

terminals must be guaranteed without the use of

special tools.

•Shut off the power supply before each mainte-

nance operation

•Do not install near any combustion device (e.g. stove).

•Do not install in places exposed to splashes (e.g. sink)

or steam (e.g. stove).

•Do not install in particularly dusty places.

•Do not obstruct the side openings.

•Do not install in places where chemical agents are

present (e.g. ammonia, sulphur, chlorine, ethylene,

acids).

•Do not install in a position where it is exposed to direct

sunlight.

•Do not touch with wet hands.

•Do not touch the display with tools.

Dimensions

116

16 84 16

38,538,5

Read this manual carefully before use and keep it for future reference.

Carefully read the manual supplied with the MIRAI SMI 4.0 heat pump

SAFETY WARNINGS

Compliance with the following Directives:

2014/30/UE; 2014/35/UE; 2014/53/UE; 1999/519/UE; 2012/19/UE; 2006/1907/UE

Febos-Crono

Power supply

Absorption

Connections

Digital inputs

Digital outputs

Built-in sensors

USB

Field work

Weight

Serial bus

Type

Communication

Protocol

Febos-Crono WI-FI

Frequency

Transmission power

Safety protocol

Covered area

24Vdc

3W max

2 20 AWG wired connectors

2 inputs dry contact type

2 OC max 24Vdc 100mA

temperature (0÷40°C) and

humidity (10÷99% RH)

micro B USB connector

0÷50°C

100 g

RS-485

Half duplex

Mod-Bus

2.4 GHz

15 dBm

WPA/WPA2

30m in open space

ENEN

3. INSTALLATION

Thermostat function

Relay output N.0.

max 5 A 230 V~ Supply

electric 230 V~

Switch

magnetothermic

In=0,2 A

Contact

presence

Contact

Window

White

Black Com

Gray

Section cable 0,5 mm2

(AWG20), shielded

maximum length 20 m

Section cable 0,5 mm2 (AWG20) braided and shielded

Maximum length 100m

Febos-Power

Cod. 07245140

Umidostat function

Relay output N.0.

max 5 A 230 V~

3.1 Electrical connection diagramFEBOS--CRONO-TBR (Cod. 07245103, Cod. 07245113)

NB: It is absolutely forbidden to lay signal cables (RS-485) together with power cables with

voltages >50 V.

The Febos-Crono power cable must be dimensioned in such a way as to guarantee a mini-

mum power supply voltage of 18Vdc.

TABLE OF CONTENTS ENEN

3. INSTALLATION

Humidistat function

Relay output N.0.

max 5 A 230 ~

Humidistat function

Relay output N.0.

max 5 A 230 ~

Supply

electric 230V ~

Switch

magnetothermic

In=0,2 A

Section cable 0,5 mm2

(AWG20), shielded

maximum length 20 m

Section cable 0,5 mm2 (AWG20) braided and shielded

Maximum length 100m

Red + 24v dc

Black - Gnd

YELLOW RS +

GREEN RS -

Window contact Contact presence

Cable section 0.5 mm2 lungh. max 100 m

White

Grey

Rose

Black

Violet

Yellow

Green

Red

Black

Cod. 07245140

Febos-Power

Cod. 07245150

Febos-Relay

3.2 FEBOS-CRONO electrical connection diagram with external relays (Cod. 07245101, Cod. 07245111)

NB: It is absolutely forbidden to lay signal cables (RS-485) together

with power cables with voltages >50 V.

The Febos-Crono power cable must be dimensioned in such a way as

to guarantee a minimum power supply voltage of 18VdC.

ENEN

3. INSTALLATION

Unhook the Febos Crono from the support base

Installation on a built-in box

Installation in Filo Muro

Before inserting the following two connectors, make sure

there is no voltage at the ends of the respective wires

(Power switch in OFF mode)

ATTENTION

Do not tighten the screws with excessive force, in

order avoid damaging the support base

Attach it firmly to the support base

Installazione a parete

Sganciare il Febos Crono dalla base di supporto

1 a Installazione a Filo Muro 1 b Installazione su scatola da incasso

ATTENZIONE

Non serrare le viti con eccessiva forza, al fine di evitare il danneggiamento della base di supporto.

 Riagganciarlo saldamente alla base di supporto.

Fissare la base di supporto alla parete facendovi passare i connettori, precedentemente collegati al circuito elettrico.

Il FEBOS-CRONO dev’essere installato ad una altezza di 1.5m dal pavimento in un luogo asciutto esente da correnti

d’aria, lontano da fonti di calore ( termosifoni , climatizzatori, finestre) in una posizione significativa per il controllo

del comfort ambientale come riportato di seguito. Evitare l’installazione nella vicinanza di campi o disturbi elettro-

magnetici.

1,5m

Rev. 0 - 10.2020

Emmeti S.P.A. Unipersonale

Via Brigata Osoppo, 166

33074 Fontanafredda (Pn)

Italy

T +39 0 434 567 973

F +39+0 434 567 870

www.emmeti.com

[email protected]

A Purmo Group brand

E700125200001

The FEBOS-CRONO must be installed at a height of 1.5m from the floor in a dry place free of air currents, away from heat sources (

radiators , air conditioners, windows) in a position significant for the control of the room comfort as follows. Avoid installation in the

vicinity of electromagnetic fields or disturbances.

Fix the support base

to the wall by letting

it pass the connectors,

previously connected

to the electrical circuit.

3.3 Wall mounting

The FEBOS-CRONO can be fixed to the wall in two ways: flush with the wall or on a recessed box.

ENEN

4. FIRST START-UP

It must be selected then press the icon

The factory configuration includes the MIRAI-SMI 4.0 HP and the

Febos-Energy, while no Febos-Crono Slave is available.

On the System Map the configured devices are represented with

a green background, those not configured on a grey background.

Press the respective icon to change its status, then OK.

The configuration of the Modbus network must be carried out on

the Febos-Crono Master.

Access the settings by pressing the Mirai-SMI 4.0

Febos-Energy Febos-Crono Slave

(indirizzi 11÷19)

Press OK again to confirm the changes.

4.1 WiFi connection

(Febos-Crono WiFi model)

Verify that date and time are aligned otherwise set them as de-

scribed in paragraph 6.3.5.

4.2 System Map Configuration

(Modbus network)

ATTENTION

When the Febos-Crono is powered up for the first time, it is

necessary to wait a few minutes before the display comes on.

Furthermore, a period of time of at least 1 hour of inactivity

(active screensaver) is required before the temperature and

humidity sensors go to full capacity and measure the ambient

values correctly.

For the following procedures, log on as Service

ATTENTION

At the first power supply of the Febos-Crono you need to wait

a few minutes before turning on the display.

Also you need to perform in sequence the following steps:

SERVICE

Mirai-SMI 4.0

Febos-Energy

Febos-Crono Slave

(indirizzi 11÷19)

Table des matières

Autres manuels emmeti Panneau de contrôle

emmeti

emmeti FEBOS-CRONO IMX Basic / Wifi Manuel utilisateur

Manuels Panneau de contrôle populaires d'autres marques

RDZ

RDZ PC-HRX Manuel utilisateur

STG-BEIKIRCH

STG-BEIKIRCH MZ3 Manuel technique

Efka

Efka Variocontrol V810 Manuel utilisateur

Cebora

Cebora 208-10 Manuel utilisateur

AMX

AMX AutoPatch CP-15 Manuel utilisateur

Satel

Satel CA-6 KLED-S Manuel utilisateur

Evolution

Evolution IQ plus 800 Manuel utilisateur

Fagor

Fagor 8040 TCO CNC Manuel utilisateur

Trane

Trane ComfortLink II XL950 Control Manuel utilisateur

AKO

AKO PROCool AKO-17635-2 Manuel utilisateur

ABB

ABB 6136/30M-101 Manuel utilisateur

Telikou

Telikou BK-603 Belt Pack Manuel utilisateur

Mapei

Mapei Mapeheat Thermo Touch Manuel utilisateur

Bosch

Bosch D9412GV4 Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries SC-SL4-AE2/1 Manuel utilisateur

Sminn

Sminn BOX L VF1L EI Manuel utilisateur

Balboa

Balboa TP600 Manuel utilisateur

Nice

Nice HSCU1 Caractéristiques techniques

emmeti FEBOS - CRONO IMX Basic / WiFi Mode d’emploi

Manuels Panneau de contrôle populaires d'autres marques
