2
Video: Indicatore dello stato del video, la luce fissa
indica la presenza di un segnale video di input
Ricevitore:
Power: Indicatore di alimentazione, luce fissa
significa alimentazione accesa
Link: Indicatore dello stato di comunicazione, luce
fissa indica che la comunicazione dei dati fra
trasmettitore e ricevitore è regolare
VII: Riparazione e assistenza
Per qualsiasi problema di funzionamento rivolgersi
al servizio Assistenza tecnica Emme Esse al numero
0309938200.
I, Product Introduction
The whole set of device includes a sender and a
receiver, which can transmit real-time HDMI video
audio signal to remote display.
The products can be widely used in computing
and surveillance systems, big screen advertisement
system, education system etc.
II: Product Specification:
Size: 79mm(L) X 64mm(W) X
26mm(H)
Weight: 0.2kg
Extension distance: Max up to 50meters
Cable type: Cat5e, Cat6
Resolution: Max 1920*1080
Video type: HDMI
Antistatic: 8KV
Connector: HDMI, RJ45
Power supply: DC12V/1A
OS support: N/A
III: Packing Instruction:
When you open the packing, you will find:
1, 1*Transmitter
2, 1*Receiver
3, 2*HDMI cable
4, 2*DC12V power adaptor
5, 1*User manual
IV: Installation

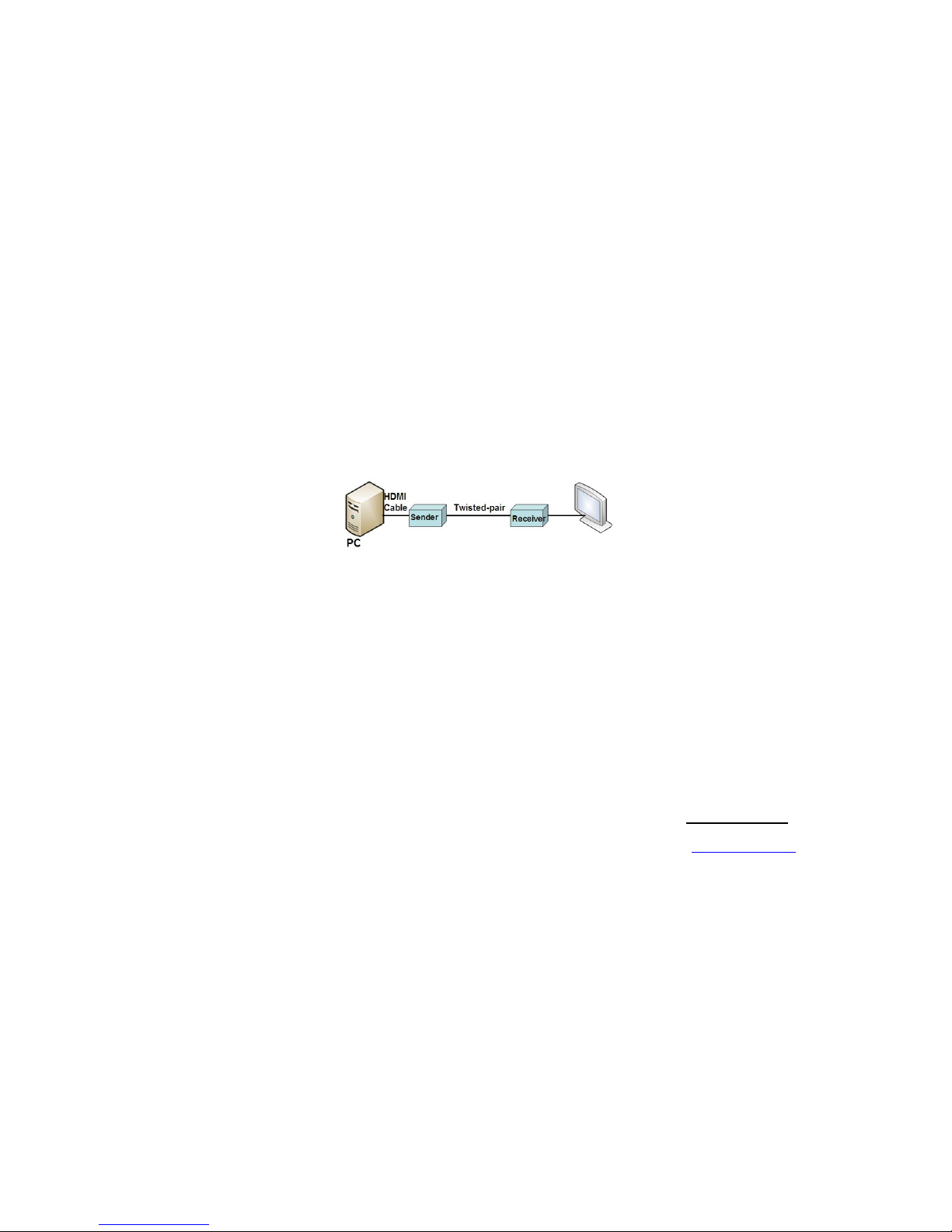

1, Application map
2, Installation steps
Before installation, please prepare the
equipments needed in advance, and make sure the
cable sequence is 568B standard as bellow: orange-
white(1), orange(2), green-white(3), blue(4), blue-
white(5), green(6), brown-white(7), brown(8), and
then switch off the power before installation and
follow the steps bellow:
1,Connect sender to computer with HDMI cable
2, Connect remote monitor to receiver
3, Connect sender and receiver with UTP cable
4, Install the power adaptor for sender and receiver,
switch on the power supply, and then turn on
computer.
Notes:
The product is low voltage device, better use in
voltage-stable and no interference environment.
Also please keep away from the high voltage
equipment, electricity cables that with high
interference during installation cabling, and must
use STP cable and connect to ground if use in strong
environment.
V: Coding switch
1: Turn to 1 for 3D
2: Turn to 2 for 2D
VI: LED indicator
Sender:
Power: power supply indicator, constant lighting
means power is on.
Video: video status indicator, constant lighting
means there's video signal input
Receiver:
Power: power supply indicator, constant lighting
means power is on
Link: communication status indicator, constant
lighting means the data communication between
sender and receiver is normal
VII: Repair and Service
For any problem, please contact Emme Esse
technical support at +390309938200
Distributed by:
Emme Esse S.p.A
Via Moretto, 46 – 25025 Manerbio (BS)Italy
Tel. +39 030 9938500
Site: www.emmeesse.it
