Quick Start Guide
00825-0100-4701, Rev DE
August 2022
SmartPower™ Solutions
Safety Messages
NOTICE
This guide provides basic guidelines for the SmartPower family of products. It does not provide
instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or
installation of wireless devices. Refer to the wireless device's manuals and Quick Start Guides (QSG) for
more instruction. This guide is also available electronically on Emerson.com/Rosemount.
WARNING
Explosions could result in death or serious injury.
Installation of this power module in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Review the Product
Certifications section for any restrictions associated with a safe installation.
•Before connecting a handheld communicator in an explosive atmosphere, ensure the instruments
are installed in accordance with intrinsically safe or non-incendive field wiring practices.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
•The power module may be replaced in a hazardous area. The power module has surface resistivity
greater than one gigaohm and must be properly installed in the wireless device enclosure. Care
must be taken during transportation to and from the point of installation to prevent electrostatic
charge build-up.
CAUTION
Each Black Power Module contains two “C” size primary lithium-thionyl chloride battery and each
Green Power Module contains one “D” size primary lithium battery. Primary lithium batteries are
regulated in transportation by the U. S. Department of Transportation, and are also covered by IATA
(International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD
(European Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure
compliance with these or any other local requirements. Consult current regulations and requirements
before shipping.
Safety Data Sheet (SDS) Location
1. To find the safety data sheet, do one of the following:
•Scan QR code
•Select this link https://www.emerson.com/en-us/catalog/emerson-sku-701p-green-
smartpower-module
2. On the Smart Power module product page open documents and drawings → data sheets
and bulletins
Quick Start Guide August 2022
2 Emerson.com/Rosemount
Contents
Warning on product labels........................................................................................................... 5
Physical installation...................................................................................................................... 6
Verify operation........................................................................................................................... 8
Disposal/recycling of depleted power modules.......................................................................... 11
Product Certifications.................................................................................................................12
August 2022 Quick Start Guide
Quick Start Guide 3
Quick Start Guide August 2022
4 Emerson.com/Rosemount
1 Warning on product labels
The Rosemount 701P power modules each have a warning printed on them.
In each case the warning text is the same. Below is a figure that shows each
label.
The text of the warning is: “WARNING Potential Static Hazard, Use Caution
when Handling. Risk of Fire, Explosion or Severe Burn Hazard. DO NOT
Recharge, Disassemble, Heat above 100 °C, Incinerate or Expose Contents to
Water. Li metal content approx 5g.”
Figure 1-1: Warning Label on 701PBK
Figure 1-2: Warning Label on 701PGN
August 2022 Quick Start Guide
Quick Start Guide 5
2 Physical installation
There are two types of power modules that will be discussed in this
document. They are the black power module (701PBK) and the green power
module (701PGN).
2.1 Installing Black power module (701PBK)
Prerequisites
Install the HART® device according to standard installation practices and the
manufacturer’s instructions, being sure to use an approved thread sealant
on all connections.
Procedure
1. Unscrew the power module cover from the wireless device.
2. Connect the power module to the wireless device. The power
module has a keyed connection to prevent improper connection.
Note
Wireless devices should be powered up in order of proximity from
the Smart Wireless Gateway, beginning with the closest device to the
Gateway. This will result in a simpler and faster network installation.
3. Connect the power module to the wireless device. The power
module has a keyed connection to prevent improper connection.

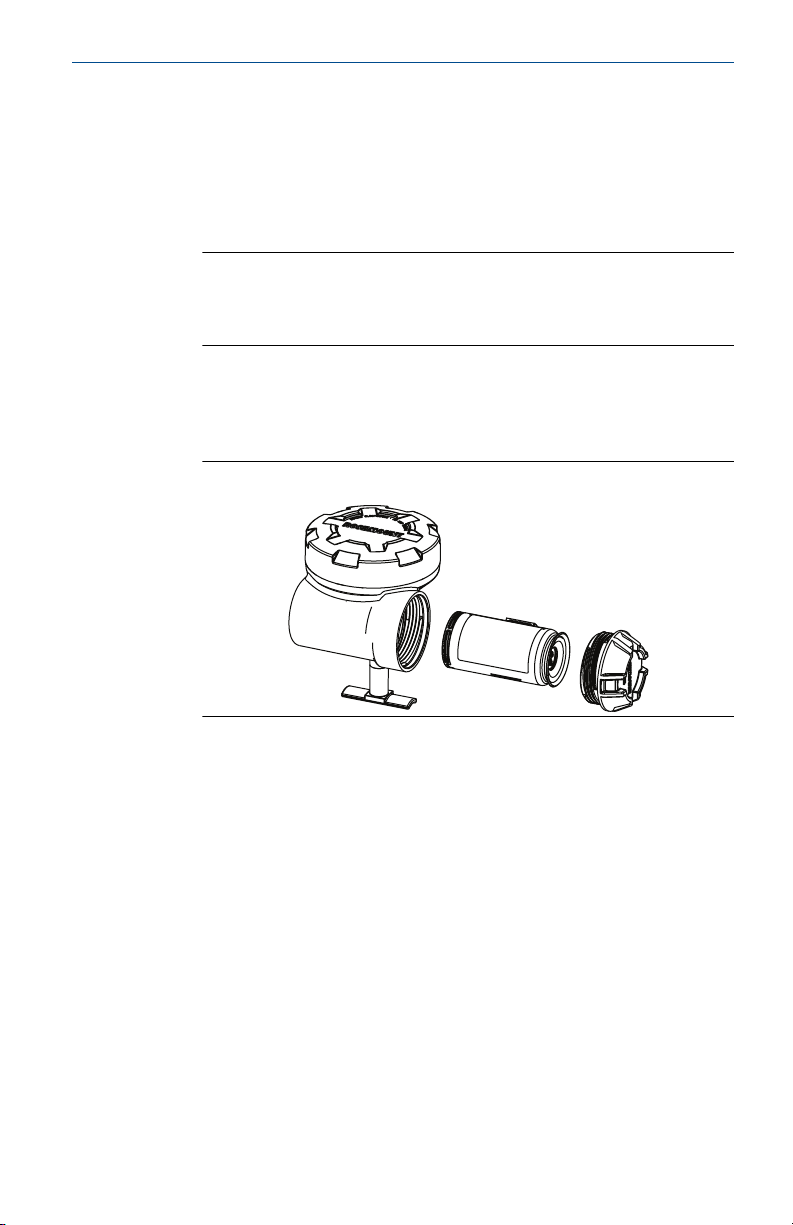

Figure 2-1: Black Power Module Installation
2.2 Installing Green power module (701PGN)
Prerequisites
Install the HART device according to standard installation practices and the
manufacturer’s instructions, being sure to use an approved thread sealant
on all connections.
Quick Start Guide August 2022
6 Emerson.com/Rosemount
Procedure
1. Unscrew the power module cover from the wireless device.
2. Connect the green power module to the wireless device. The green
power module has a keyed connection to prevent improper
connection. If the Green power module is placed into the housing the
wrong way, it will not fit entirely into the housing.
Note
Wireless devices should be powered up in order of proximity from
the Smart Wireless Gateway, beginning with the closest device to the
Gateway. This will result in a simpler and faster network installation.
3. Close the housing cover and tighten. Ensure the power module cover
is fully tightened to prevent moisture ingress. The lip of the polymer
power module cover should be in contact with the surface of the
polymer enclosure to ensure a proper seal. Do not over tighten.
Figure 2-2: Green Power Module Installation
August 2022 Quick Start Guide
Quick Start Guide 7
3 Verify operation
Operation can be verified in four locations: by using the Field
Communicator, at the Gateway via the Wireless Gateway’s integrated web
server, via AMS Wireless Configurator, or with the wireless device’s LCD
display.
3.1 Verify operation using Field Communicator
If you are able to communicate to the wireless device via a Field
Communicator, the power module is powering the device and working
correctly. Figure 3-1 shows how to connect a Field Communicator to a
wireless device with either the black or green power module.
Figure 3-1: Connect to Device
$&%1 2 3
4 5 6
7 8
0
9
A. Communication terminals
B. Handheld communicator
C. HART modem
Quick Start Guide August 2022
8 Emerson.com/Rosemount
Figure 3-2: Field Communicator
3.2 Verify operation using Emerson Wireless Gateway
If the wireless device was configured with the Network ID and Join Key, and
sufficient time has passed for network polling, the transmitter will be
connected to the network. To verify device operation and connection to the
network with the Smart Wireless Gateway’s integrated web server, open the
Smart Wireless Gateway’s integral web interface and navigate to the
Explorer page. If the wireless device has joined the network, the power
module is functioning properly.
Note
It may take several minutes for the device to join the network.
3.3 Verify operation using AMS Device Manager
When the device has joined the network, it will appear in the AMS Device
Manager as illustrated in Figure 3-3.
August 2022 Quick Start Guide
Quick Start Guide 9

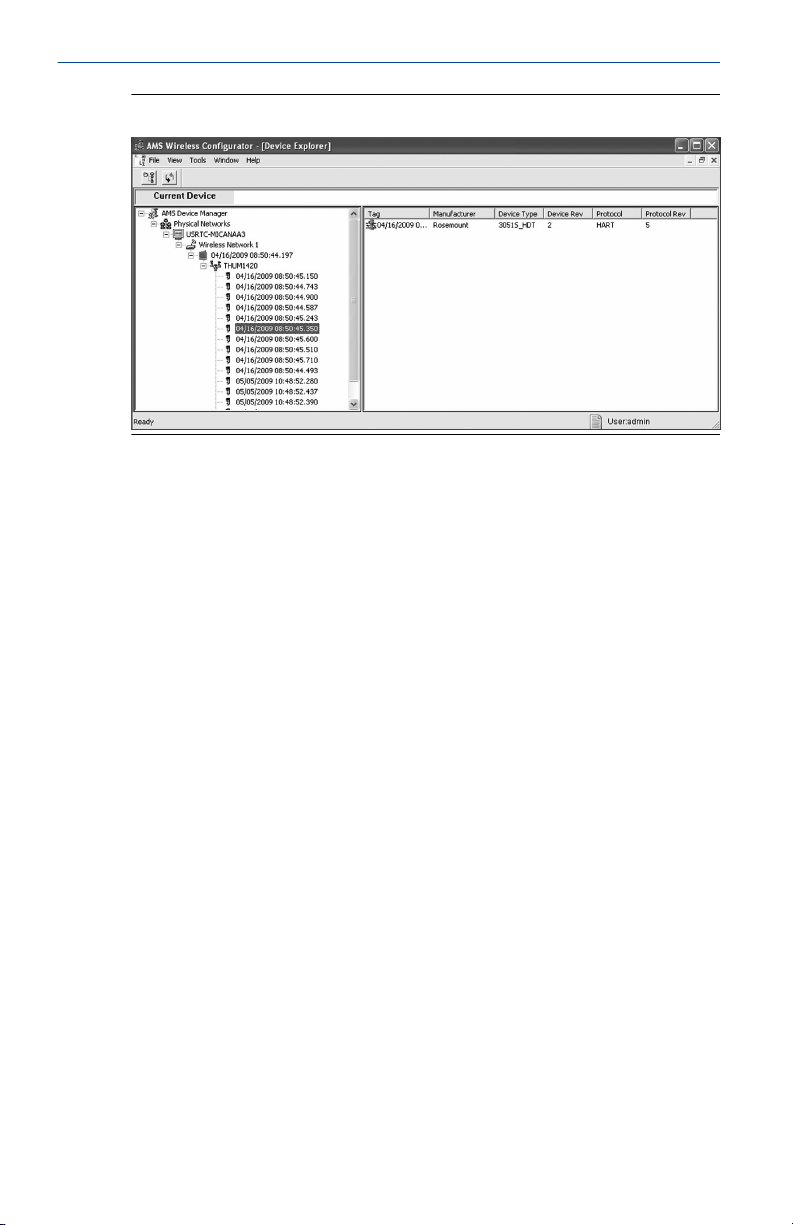

Figure 3-3: AMS Device Manger
3.4 Verify operation using wireless device LCD Display
If the wireless device that you are connecting the power module to has an
LCD display, it can be used to verify operation. When the power module is
first connected to the wireless device, the LCD display will turn on for
approximately 40 seconds. If the LCD display turns on after the power
module is installed, the power module is functioning properly.
3.5 Troubleshooting
If the wireless device does not turn on after the power module is installed,
the power module may be depleted. Replace the power module and see if
the wireless device turns on. If not, refer to the troubleshooting section of
the wireless device's manual.
