Emerson Copeland EazyCool CO2 Manuel utilisateur

CC7.8.9/0519/E 1/7

Date of last update: May-19

Ref: CC7.8.9/0519/E

Application Engineering Europe

COPELAND EAZYCOOL™ CO2 REFRIGERATION UNIT

QUICK INSTALLATION GUIDE

1 Introduction

This quick installation guide provides information on Copeland™EazyCool CO2refrigeration units and

describes the first steps for successful commissioning. It is not intended to replace the application guidelines,

to explain the functionality of the refrigeration unit or to help optimize the system parameters.

2 First steps

WARNING

Hot surfaces! Burning! If the temperature on the bottom of the compressor (crankcase)

is below 20°C, the crankcase heater is automatically activated. Do not touch the

crankcase heater.

When the low-pressure side piping has been finalized and the electrical supply has been connected by

qualified personnel, please follow the steps below in preparation for commissioning:

Safety:

✓Verification of necessary safety devices in the system

✓Visual inspection of the refrigerant pipes and especially of all connections

✓Visual inspection of the electrical wiring of the supply line

✓Checking the refrigeration unit and connected cooling stations for damage of any kind

✓Ensuring that no section of the system is under safety charge with dry air

Functionality:

✓Switch on the device main switch (Q01)

✓Switch on the disconnector for the single-phase power supply (F2)

✓Switch on the safety chain transformer isolator switch (F5)

✓Switch on the disconnector for the crankcase heater (F4)

✓Switch on the RCCB for online monitoring (F1.1 = power supply to the router), if available

Figure 1: Switch on control system & small electrical components

CC7.8.9/0519/E 2/7

3 Pressure resistance test and leak test

CAUTION

The system must be properly evacuated before filling the cooling circuit with refrigerant.

This should result in a reduction of the residual moisture content to approx. 50 ppm.

Evacuation should be carried out to less than 3 mbar and, if necessary, the vacuum

should be broken with dried nitrogen.

Depending on the installation, pressure strength tests and leak tests must be carried out on different pressure

layers. The shut-off of system sections may be necessary.

Several shut-off devices are installed in the CO2refrigeration unit. These are suction and pressure shut-off

valves of the compressor, high-pressure control valves at the gas cooler outlet, flash-gas bypass valves

between the liquid receiver and suction line, shut-off valves at the liquid receiver and shut-off valves in the

liquid line at the outlet from the refrigeration unit.

It is the responsibility of the user to decide which barriers are to be opened/closed in order to carry out the

pressure tests. For the evacuation process, it is recommended that all shut-off devices be opened and

evacuated from both sides via the connections on the suction side and the connection on the liquid receiver.

The shut-off valves at the discharge port, on the suction side of the compressor, at the outlet of the liquid

receiver and the shut-off valve in the liquid line can traditionally be operated manually.

To open the high-pressure control valve and the flash-gas control valve, please follow the instructions in

section 4 next page.

Figure 2: Shut-off valves in the CO2refrigeration unit

Position

Description

Copeland Stream

compressor

Discharge mufler

Gas cooler/condenser

Flash tank

Filter-dryer

Sight glass

Ball valve

OW5 oil watch

Pressure relief valve

HPV

High pressure valve

BPV

Bypass valve

High-pressure limiter

INV

Compressor inverter

Suction pressure

Discharge pressure

Liquid receiver pressure

Suction gas temperature

unit

Suction gas temperature

compressor

Discharge line temperature

Gas cooler temperature

Oil temperature

Ambient temperature

B10

Cabinet temperature

CC7.8.9/0519/E 3/7

4 Evacuation

IMPORTANT

The evacuation procedure is based upon achieving an actual system vacuum standard

and is NOT TIME DEPENDENT! The installation has to be evacuated with a vacuum

pump before commissioning. Proper evacuation reduces residual moisture to 50 ppm.

The installation of adequately sized access valves at the furthest point from the

compressor in the suction and liquid lines is advisable. The system must be evacuated

down to less than 3 mbar. If required break the vacuum with drynitrogen. Pressure must

be measured using a vacuum pressure gauge on the access valves and not on the

vacuum pump. This serves to avoid incorrect measurements resulting from the pressure

gradient along the connecting lines to the pump.

IMPORTANT

Care must be taken that all components (solenoids, expansion devices, regulators, shut

off valves, etc…) in the refrigeration cycle, which separate a part of the installation when

de-energized, are manually opened to guarantee successful evacuation in the whole

piping system.

NOTE: The controller must be turned on before starting the evacuation.

NOTE: For proper evacuation, both the HPV and BPV regulating valves must be opened using the

evacuation mode in the unit controller.

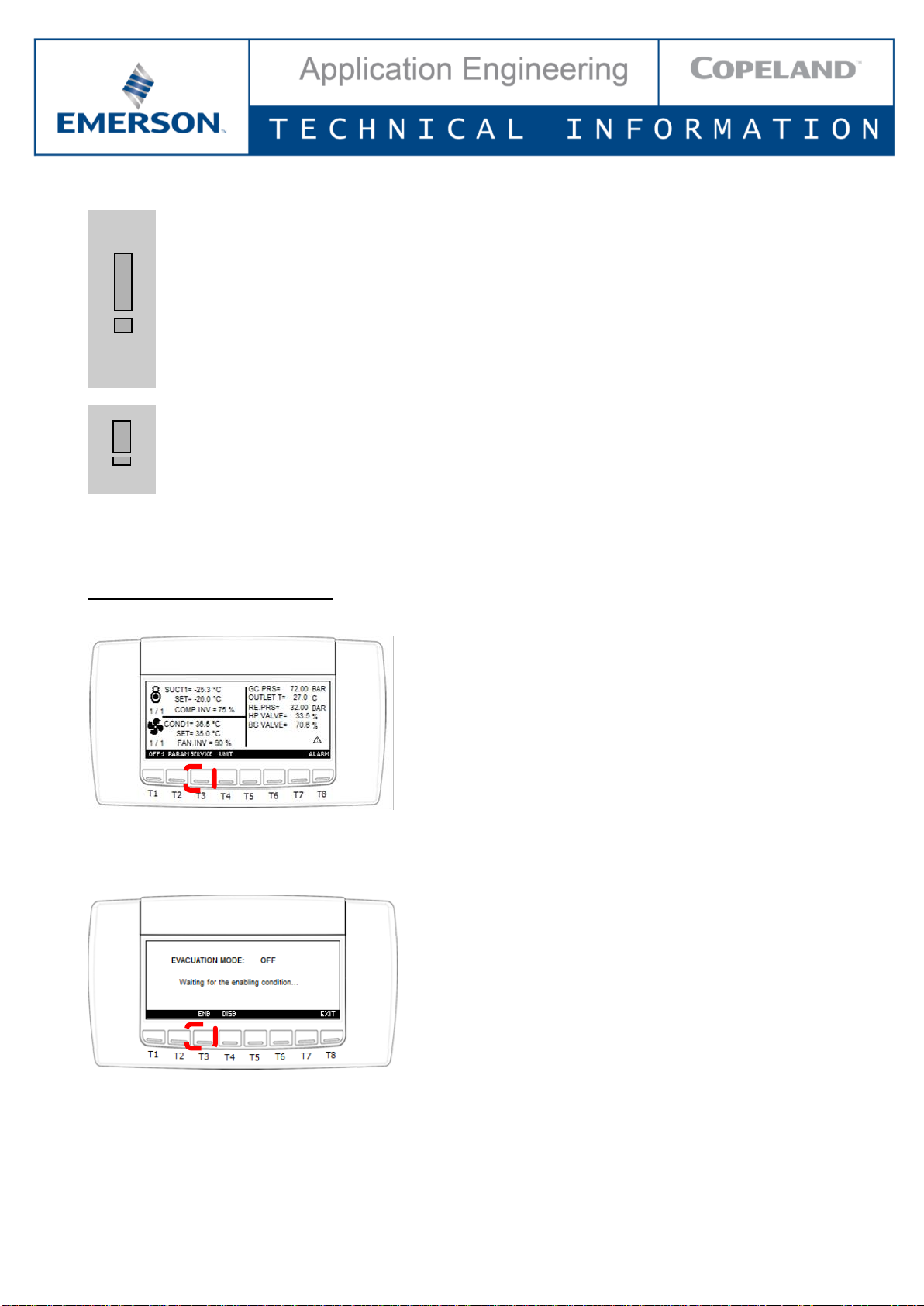

To activate the evacuation mode:

1) Press the SERVICE key to enter the "Service" menu

Figure 3: Service key

2) Use the UP and DOWN keys to select the "Evacuation mode" sub-menu

3) Press ENB to enable the evacuation mode (see Figure 4):

Figure 4

CC7.8.9/0519/E 4/7

Starting the evacuation function:

The evacuation mode will start when pressing the ENB key only if all 3 of the following conditions are met:

▪Suction pressure probe P1 value < SPF6

▪Gas cooler (condenser) pressure probe P2 value < SPF6

▪Flash tank pressure probe P3 value < SPF6

NOTE: SPF6 = Pressure setpoint to stop evacuation mode (factory-set to 10 bar).

The ENB key will remain visible all the time. If the evacuation function is enabled but one of the above

conditions is not met, the following message will be displayed:

▪"Enabling condition for Evacuation Mode not met, waiting for it"

Subsequently:

1) The HP and BP valves open directly 100% (the evacuation mode has priority over the valves override

function).

2) The compressor is switched off (safety timers are ignored).

3) The fan is switched off, while auxiliary outputs are not influenced (safety timers are ignored).

4) The alarms are disabled except for the communication alarms.

Stopping the evacuation function:

The evacuation mode will be deactivated when

1) One of the 3 pressures probes P1, P2 & P3 > SPF6 or

2) the DISB key is pressed.

When the evacuation function is stopped, the controller returns to its previous status, ie, Off or regulation.

NOTE: As long as the evacuation function is active, the evacuation label will flash on the main display

–see Figure 5 below. After pressing the EXIT key, the previous screen will be displayed again.

Figure 5

NOTE: If one of the 3 probes (suction pressure, gas cooler pressure or flash tank pressure) is not

configured or in error, the evacuation mode cannot be executed.

CC7.8.9/0519/E 5/7

5 Charging the CO2refrigeration unit

CAUTION

High pressures! Risk of system damage! Only use pressure gauges that are suitable

for the required pressure positions. Check the connection hoses for suitability for CO2

pressure levels.

After leakage tests and evacuation have been performed, the system can be filled with R744 refrigerant. In

order to avoid the formation of dry ice, the system must be filled with gas on both sides first. Gaseous filling to

10 bar is common practice.

NOTE: Only pressure gauges and connection hoses suitable for high-pressure refrigerants can be

used.

Figure 6: Pressure gauges and connection hoses

After filling to approximately 10 bar on both sides, liquid CO2can be filled into the liquid receiver. After

pressures in the refrigeration system and the CO2tank have equalised, the missing refrigerant must be refilled

in gaseous form via the suction side.

For this purpose, the isolating switches for compressors (F1) and fans (F3) must be switched on and the

release for the frequency inverter (SB1) must be activated.

Figure 7: Enabling compressors, fans & frequency inverter

The refrigeration unit starts automatically. First the gas cooler fans start up, then the compressor switches on

and starts controlling according to suction pressure. The filling process via the suction side can be completed.

The system should be charged according to the liquid level in the bottom sight glass on the liquid receiver. As

soon as the bottom sight glass is completely charged with liquid CO2, a sufficient refrigerant charge is available.

The influence of the ambient temperature is negligible, as the pressure in the liquid receiver is regulated and

therefore the temperature in the receiver is constant. At low pressure in the refrigerant bottle, the evaporation

pressure "SETC1" can be set low to enable filling from the suction side.

During normal operation, the upper sight glass should not contain liquid refrigerant. Refrigerant in the upper

sight glass would be an indication of system overfilling. During pumpdown however, refrigerant maybe present

in the upper sight glass.

CC7.8.9/0519/E 6/7

6 Setting up the evaporating temperature

The CO2refrigeration unit is controlled according to the suction pressure. The required evaporating

temperature can be set under parameter SETC1.

1) Press the PARAM key to access the programming menu

2) Use the UP and DOWN keys to select the Pr1 menu and press Pr1 to confirm

3) Select SETPOINT

4) Select setpoint "SETC1" using the SET key

5) Use the UP and DOWN keys to adjust SETC1 to the desired value

6) Press SET to apply the setting

7) Press EXIT to leave the menu

NOTE: The setpoint for the gas cooler fan is factory-set and should not be changed.

7 Setting up the liquid receiver pressure

1) Press the PARAM key to access the programming menu

2) Use the UP and DOWN keys to select the Pr1 menu and press Pr1 to confirm

3) Select GAS COOLER

4) Select parameter GC20 "Medium pressure vessel setpoint" using the SET key

5) Use the UP and DOWN keys to adjust GC20 to the desired value

6) Press SET to apply the setting

7) Press SET to select parameter GC78 "Bypass/medium pressure vessel pressure with compressor OFF"

8) Use the UP and DOWN keys to adjust GC78 to the desired value

9) Press SET to apply the setting

10) Press EXIT to leave the menu

GC20 "Medium pressure flashtank setpoint": Setpoint for the pressure in the liquid receiver in normal

control mode.

GC78 "Bypass/medium pressure vessel Pressure with compressor OFF": Maximum pressure in the liquid

receiver during standstill of the refrigeration unit. When this pressure is reached, the refrigeration unit starts to

maintain the medium pressure within an acceptable range, even if there is no cold demand from the cooling

stations.

8 Setting up pumpdown

If parameter SPF4 is set to "yes" a pumpdown will be performed before stopping the compressor. If it is set to

"no", only the manual pumpdown and the automatic pumpdown during the bypass optimization function will

be performed.

SPF1 Compressor setpoint during pumpdown

Range: -70°C to -10°C

Unit: [°C]

Parameter

Description

Level

Min value

Max value

Factory

setting

SPF1

Differential to be subtracted from

the compressor setpoint

Pr1

20K

SPF2

Compressor frequency during

pumpdown

Pr1

(min speed

25 Hz)

100%

(max speed

60 Hz)

SPF3

Pumpdown maximum time

Pr1

0 min

25 min

3 min

SPF4

Automatic pumpdown

Pr1

yes

SPF5

Pumpdown offset

Pr2

0°C

40°C

20°C

Table 1: Pumpdown parameters

CC7.8.9/0519/E 7/7

The pumpdown function of the CO2refrigeration unit does not work in the same way as in units using standard

refrigerants. Based on the ambient temperature and the compressor setpoint, the controller calculates two

different pumpdown setpoints:

▪Setpoint based on ambient temperature = TAmb–SPF5

▪Setpoint based on compressor setpoint = SETC1 –SPF1

The lowest pumpdown setpoint will always be applied. The following diagram illustrates the controller logic:

Figure 8: Controller logic for the pumpdown function

NOTE: The pumpdown setpoint will never be lower than what parameter RC02 allows.

-18°C < 0°C

Controller will perform

pumpdown down to -18°C

Ambient condition:

TAmb = 20°C

SPF5 = 20K

Compressor setpoint:

SETC1 = -10°C

SPF1 = 8K

Pumpdown setpoint based

on ambient temperature:

TAmb –SPF5 = 0°C

Pumpdown setpoint based on

compressor setpoint:

SETC1 –SPF1 = -18°C

Autres manuels Emerson Ventilateur

Emerson

Emerson Northwind Contemporary Snugger CF805SAW01 Manuel utilisateur

Emerson

Emerson RUSTICO CF160RTI00 Manuel utilisateur

Emerson

Emerson MONTEREY II Manuel utilisateur

Emerson

Emerson Northwind TRADITIONAL SNUGGER CF704SAB02 Manuel utilisateur

Emerson

Emerson CF935BQ Manuel utilisateur

Emerson

Emerson CF773BS00 Manuel utilisateur

Emerson

Emerson HF1160WW 00 Manuel utilisateur

Emerson

Emerson CF921ORB00 Manuel utilisateur

Emerson

Emerson DC BUILDER ES Series Manuel utilisateur

Emerson

Emerson HF948BS02 Manuel utilisateur

Emerson

Emerson CF921BS01 Manuel utilisateur

Emerson

Emerson CAMDEN CF3600AP Manuel utilisateur

Emerson

Emerson CF875 Manuel utilisateur

Emerson

Emerson CFDR Series Manuel utilisateur

Emerson

Emerson ZURICH CF935ORB Manuel utilisateur

Emerson

Emerson CURVA SKY CF144BS00 Manuel utilisateur

Emerson

Emerson CURVA CF252LGRT00 Manuel utilisateur

Emerson

Emerson CF24000SCK00 Manuel utilisateur

Emerson

Emerson WELLAND CF610VS00 Manuel utilisateur

Emerson

Emerson Copeland 270 Manuel

Emerson

Emerson CF205BS01 Manuel utilisateur

Emerson

Emerson ATOMICAL CF930WW01 Manuel utilisateur

Emerson

Emerson Laclede Eco LED CF995BS01 Manuel utilisateur

Emerson

Emerson CF713ORB00 Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage

Litex Industries

Litex Industries E-CGL52CB5C1 Manuel utilisateur
