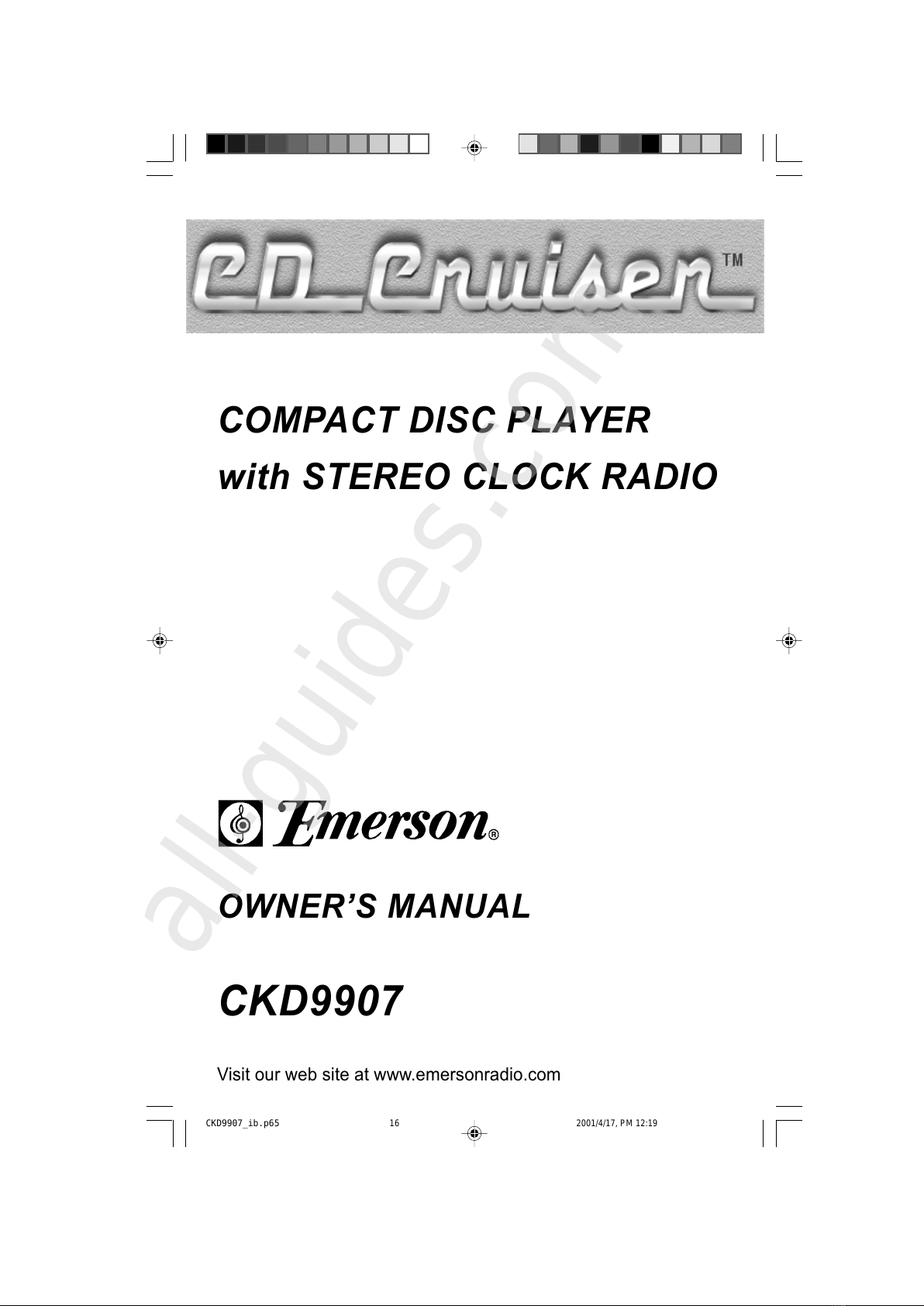

COMPACT DISC PLAYER

with STEREO CLOCK RADIO

CKD9907

OWNERS MANUAL

Visit our web site at www.emersonradio. om

CKD9907_ib.p65 2001/4/17, PM 12:1916

All manuals and user guides at all-guides.com

all-guides.com

Thank You..........

for purchasing this CD Cruiser Stereo Clock Radio with Compact Disc Player from

Emerson. This compact unit will wake you up to an electronic bu er alarm, the

AM/FM radio, or your favorite artists on compact disc. It also features a sleep to

music timer that lulls you to sleep to the radio or CD player and then switches the

power off automatically. The battery back up system maintains the correct time

and alarm settings in the event of a power interruption. Two dynamic speakers

provide excellent sound for such a compact si e unit, and all of the important controls

are top mounted for the most user friendly operation.

The serial number of your unit can be found on the bottom of the cabinet. We

suggest that you record the serial number in the space provided below in case

this information is ever needed at a future date.

Model Number: CKD9907

Serial Number: ________________________________

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

DANGEROUS VOLTAGE

Uninsulated Dangerous Voltage, that may be of sufficient

magnitude to constitute a risk of electric shock to persons is present

within this product's enclosure.

ATTENTION

The Owner's Manual contains important operating and maintenance

instructions.

For your safety, it is necessary to refer to the manual.

CLASS 1 LASER PRODUCT

APPAREIL Á LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCKS

DEFEATED.

AVOID EXPOSURE TO BEAM

This product contains a low power Laser Device.

CKD9907_ib.p65 2001/4/17, PM 12:191

All manuals and user guides at all-guides.com

IMPORTANT NOTES

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference

that may cause undesired operation.

 Do not attempt to clean this unit with

chemical solvents as this might

damage the finish. Use a clean dry

cloth.

 Operate controls and switches as

described in the manual.

 Store your CDs in a cool area to

avoid damage from heat.

 Places exposed to direct sunlight or

close to heat radiating appliances

such as electric heaters, on top of

other stereo equipment that radiates

too much heat, places lacking

ventilation or dusty areas, places

subject to constant vibration and/or

humid or moist areas.

Avoid installing the unit in locations desc ibed below :

CKD9907_ib.p65 2001/4/17, PM 12:192

All manuals and user guides at all-guides.com

PREPARATION FOR USE

UNPACKING AND SET UP

 Remove the unit from the carton and remove all packing material from the unit.

 Remove any descriptive labels or stickers from the top or front of the cabinet.

Do not remove any labels or stickers from the back or bottom of the cabinet.

 Press the CD Open button to open the CD door. Remove the white transit card

from the CD compartment, if applicable. This card is used to prevent the laser

pick up from moving during shipment. It must be removed from the CD

compartment before you insert a disc.

 Remove the twist tie from the AC power cord and extend the cord to its full

length.

 Unwind the lead wire FM antenna and extend it to its full length.

 Place the radio on a level surface such as a stand, desk, table or shelf, convenient

to an AC outlet, and away from direct sunlight or sources of excess heat, humidity,

moisture, dust or vibration.

BATTERY BACK UP SYSTEM

This clock radio has a battery back up system that will maintain the time and alarm

settings in the event of a temporary power interruption. The system requires one

9-volt battery, not included.

Open the battery door on the bottom of the cabinet and connect a 9-volt battery to

the battery terminals inside the compartment. It can only be connected one way.

Push the battery into the battery compartment and replace the battery door.

If the power is interrupted the clock display goes off and the unit will not operate.

However the battery will maintain the time and alarm settings, and when the power

is restored the time and alarm settings will be correct.

CKD9907_ib.p65 2001/4/17, PM 12:193

All manuals and user guides at all-guides.com

POWER FAILURE INDICATION

If the battery is exhausted, or there is no battery installed and the power is interrupted,

the time and alarm settings will be lost. When power is restored the clock display

will return to its default setting 12:00 and begin counting forward from that point. If

you notice that the time on the display is incorrect, check your alarm settings as

well. If they are also incorrect this indicates that the power was interrupted and the

battery is exhausted. Replace the battery with a new one and reset both the time

and alarm settings.

POWER SOURCE

This radio is designed to operate on 120V 60H AC house current only. Attempting

to operate this radio from any other power source may cause damage to the unit,

and such damage is not covered by your warranty.

Be sure that the AC outlet you use is always live. Do not connect this unit to an

outlet that is controlled by a wall switch.

This unit has a polari ed AC plug with one wide

blade and one narrow blade. This plug will only

fit into a matching polari ed AC outlet. This is a

safety feature to reduce the possibility of electric

shock. If this plug will not fit in your AC outlet,

you probably have an outdated non-polari ed

outlet. You should have your outdated outlet

changed by a qualified, licensed electrician. Do

not file the wide blade on the plug, or use an

adapter to make the plug fit into your outlet. This

defeats the safety feature and could expose you

to electric shock.

CKD9907_ib.p65 2001/4/17, PM 12:194

All manuals and user guides at all-guides.com

LOCATION OF CONTROLS

1. POWER On/Off Button.

2. Power On Indicator.

3. SLEEP Button.

4. VOL ME Control.

5. DISPLAY Mode Button.

6. RANDOM Button.

7. ALARM (SET/ON/OFF) Switch.

8. CLOCK Adjust Button.

9. CD Door.

10. AC Power Cord.

11. FM Wire Antenna.

12. Battery Compartment (at bottom cabinet).

13. F NCTION (CD/AM/FM/B ZZER) Switch.

14. CD PROG (Program) Button.

15. CD REPEAT Button.

16. CD SKIP + / HO R Button.

17. T NING Control.

18. CD SKIP  / MIN TE Button.

19. CD PLAY/PA SE Button.

20. CD Door OPEN Button.

21. SNOOZE Button.

22. CD STOP Button.

23. Tuning Dial.

24. Speakers.

25. ALARM On Indicator.

26. AM Indicator.

27. LED Display.

28. FM STEREO Indicator.

29. CD RANDOM On Indicator.

30. SLEEP On Indicator.

31. CD REPEAT On Indicator.

32. CD PROG (Program) On Indicator.







!

"

#

% &

'





$

! ! ! '

CKD9907_ib.p65 2001/4/17, PM 12:195

All manuals and user guides at all-guides.com

all-guides.com

OPERATING INSTRUCTIONS

SETTING THE CLOCK

When the unit is first connected to the AC outlet the display will show 12:00 and

will begin counting forward from that point. If no back up battery is installed the

display will revert to this 12:00 default setting every time the AC plug is removed

from the outlet, or whenever the power is interrupted.

To set the display to the co ect time:

1. Depress and hold the CLOCK button. The time display begins to flash.

2. While holding the CLOCK button, depress the SKIP + / HOUR button to adjust

the display to the correct hour. Release the button when the correct hour appears.

NOTE: Be sure to set the clock to the correct AM or PM hour by observing the

AM indicator in the upper left corner of the display. If the AM indicator is On

the time displayed is AM. If the AM indicator is Off, the time displayed is PM.

3. Depress the CLOCK and SKIP  / MINUTE buttons to adjust the display to the

correct minute, and then release the buttons. The display stops flashing and the

clock begins to run.

Setting The Wake Up Time

The ALARM switch (SET-ON-OFF) is located on the left side of the cabinet.

1. Slide the ALARM switch to the SET position. The clock display changes from

the correct time to the wake up time and begins to flash.

2. Depress the SKIP + / HOUR button to adjust the display to the desired wake up

hour, AM or PM, then release the button.

3. Depress the SKIP  / MINUTE button to adjust the display to the desired wake

up minute, and then release the button.

4. Confirm that the wake up time flashing in the display is correct and then slide

the ALARM switch to either the ON or OFF position.

CKD9907_ib.p65 2001/4/17, PM 12:196

All manuals and user guides at all-guides.com

LISTENING TO THE RADIO

The FUNCTION selector (CD-AM-FM-BUZZER) is located on the right side of

the cabinet.

1. Slide the FUNCTION selector to either the AM or FM position.

2. Press the POWER button to turn the radio On.

3. Rotate the TUNING control to find the desired station.

NOTE: If you tune to an FM station that is broadcasting in stereo, the FM

STEREO indicator will come On.

4. Adjust the VOLUME control as desired.

5. When you are finished listening, press the POWER button to turn the radio

Off.

Antenna Info mation

The AM antenna is located inside the cabinet.

If AM reception is weak try changing the position

of the cabinet until you find the position that

provides the best reception.

Make sure that the FM lead wire is fully

extended. If FM reception is weak try changing

the position and direction of the antenna until

you find the position that provides the best

reception.

CKD9907_ib.p65 2001/4/17, PM 12:197

All manuals and user guides at all-guides.com

CD OPERATION

NORMAL PLAYBACK

1. Slide the FUNCTION selector to the CD position.

2. Press the POWER button to turn the unit On.

3. Press the CD door OPEN button. Place

your disc on the center spindle with the

printed label side facing up and gently press

down on the disc near the center hole to make

sure that it is firmly locked in place on the

spindle.

4. Close the CD door, pressing down on the right

side marked CLOSE to make sure that the

door locks properly. The disc will spin as the

player reads the Table of Contents on the

disc. The disc stops and the display shows

the total number of tracks for about 5 seconds

and then returns to the correct time display.

5. Press the PLAY/PAUSE button to begin playback. The display shows 01

and playback begins on track 1. After 5 seconds the display returns to the

correct time. Playback continues until all tracks have been played. To see the

track number during playback presses the DISPLAY button. The track number

appears for 5 seconds and then the correct time reappears.

6. When all tracks have been played the player stops. To stop playback before

the disc ends press the STOP button at any time.

7. Press the CD door OPEN button to open the door. Remove your disc and

close the door. Return your disc to its protective storage case.

8. Press the POWER button to turn the power Off.

PAUSE OPERATION

To pause momentarily press the PLAY/PAUSE button during playback. The

sound stops but the disc continues to spin. The track number flashes for 5 seconds

and then the correct time reappears. Press PLAY/PAUSE button again to

cancel pause and resume normal playback.

CKD9907_ib.p65 2001/4/17, PM 12:198

All manuals and user guides at all-guides.com

SKIP TRACK AND MUSIC SEARCH FUNCTIONS

 To begin playback from a specific track

After inserting your disc press the SKIP + / HOUR or SKIP  / MINUTE button

until the desired track number appears on the display, then press the PLAY/

PAUSE button to begin playback on that track.

 To skip tracks during playback

Press the SKIP + / HOUR or SKIP  / MINUTE button repeatedly during playback

until the desired track number appears on the display, then release the button.

The player moves ahead or back to the beginning of the desired track.

 To search for a specific part of a track

During playback depress and hold the SKIP + / HOUR or SKIP  / MINUTE

button. The player searches rapidly forward or backward through the track and

the track number appears on the display. When you reach the desired point on

the track release the buttons. Normal playback resumes at that point and the

display returns to the correct time.

REPEAT PLAYBACK

 To repeat a single track

Select the track to be repeated with the SKIP + or SKIP  buttons, then press the

REPEAT button once. The REPEAT indicator flashes. Press PLAY/PAUSE

to begin playback. The selected track will be repeated continuously.

 To repeat the entire disc

Press the REPEAT button twice. The REPEAT indicator remains On. Press

PLAY/PAUSE button to begin playback. The entire disc will be repeated

continuously.

NOTE: The repeat function can be activated while the disc is playing or while

the disc is stopped.

 To cancel repeat playback

Press the STOP button or press the REPEAT button until the REPEAT

indicator goes Off.

CKD9907_ib.p65 2001/4/17, PM 12:199

All manuals and user guides at all-guides.com

Autres manuels pour Cd Cruiser CKD9907

Table des matières

Autres manuels Emerson Lecteur CD

Emerson

Emerson PD6871 Manuel utilisateur

Emerson

Emerson HD8120 Manuel utilisateur

Emerson

Emerson HD9971 Manuel utilisateur

Emerson

Emerson Hello Kitty HK25 Manuel utilisateur

Emerson

Emerson HD7098 Manuel utilisateur

Emerson

Emerson CD Cruiser HD2700 Manuel utilisateur

Emerson

Emerson SpongeBob Squarepants SB250 Manuel utilisateur

Emerson

Emerson PD5098 Manuel utilisateur

Emerson

Emerson SpongeBob Squarepants SB250A Manuel utilisateur

Emerson

Emerson SpongeBob Squarepants SB280 Manuel utilisateur

Emerson

Emerson CD Cruiser HD2800 Manuel utilisateur

Emerson

Emerson PD6900 Manuel utilisateur

Emerson

Emerson PD6920 Manuel utilisateur

Emerson

Emerson SpongeBob SquarePants SB260 Manuel utilisateur

Emerson

Emerson PD6850 Manuel utilisateur

Emerson

Emerson CKD1137 Manuel utilisateur

Emerson

Emerson Nickelodeon SpongeBob SquarePants SB110A Manuel utilisateur

Emerson

Emerson HD7097 Manuel utilisateur

Emerson

Emerson Cd Cruiser CKD9907 Manuel utilisateur

Emerson

Emerson PD6517 Manuel utilisateur

Emerson

Emerson HD9116 Manuel utilisateur

Emerson

Emerson PD5201 Manuel utilisateur

Emerson

Emerson GirlPower PD5208 Manuel utilisateur

Emerson

Emerson PD3812BK Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur
