EmberGlo AR60T Guide de référence
Wiring for AR60T
Quality Designed for Proven Performance Printed in USA
8471 13B
AVOID ERROR IN PARTS SELECTION. When ordering use
complete EMBERGLO Part Number and Description. Furnish
Model Number, Bill of Material Number and Serial Number (if
available) from the specifi cation plate found on the product.
IMPORTANT: Availability of parts as well as specifi cations are
subject to change without notice. Please consult factory for item
availability.
SAFETY INFORMATION TERMS: The following terms are used to identify hazards, safety precaution of
special notations and have standard meanings throughout this manual. They are printed in all capital letters
using a bold type face as shown below, and preceded by the exclamation mark symbol. When you see the
safety alert symbol and one of the safety information terms as shown below, be aware of the hazard potential.
DANGER: Identifi es the most serious hazards which will result in severe personal injury or
death.
WARNING: Signifi es a hazard that could result in personal injury or death.
CAUTION: Identifi es unsafe practices which would result in minor personal injury or product and
property damage.
CAUTION: This steamer to be used with
distilled water only (demineralized). Without treated
water, deposits can build up in steam generators causing
reduced steam volume and eventual stoppage of steam
production. Clogged or limed steam generators caused
by use of non-distilled water will not be covered under the
terms of the warranty.
AR Series -Self Contained Water Reservoir and Pump -
Stainless steel construction, Top injecting, portable, removable
water drawer, manual pump or timer, 6′ - 3 wire cord.
Special Note: The AR Series requires distilled or demineralized
water. Clogged or limed generators caused by use of non-
treated water will not be covered under the terms of the
warranty
Specifi cations:
• 120 volts 60HZ AC 1500 watts, max 13 amp
• Automatic timer operation
• Closed generator ▪ Single shot operation
• Drawer style steamer ▪ End of cycle buzzer
EmberGlo
A Div of Midco® International Inc.
4140 West Victoria Street
Chicago, Illinois 60646
toll free 866.705.0514
tel 773.604.8700
fax 773.604.4070
web www.emberglo.com
e-mail [email protected]
Warranty card must be fi lled in and returned to EmberGlo (or
Midco) to validate warranty.
This manual contains suffi cient information for installation of the
EmberGlo Steamer in normal locations.
In the United States, installation must conform with local codes,
PURCHASER: Retain these instructions for future use.
Post, in a prominent location near the broiler, instructions for
turning off gas valves in case gas odor is detected and any
other instructions as advised by your local gas supplier.
CAUTION: Cooking equipment should be used in
an environment protected by an automatic fi re suppression
system. Consult the National Fire Protection Association NFPA
Code 96 or the latest edition of Standards for Installation of
Equipment for Removal of Smoke and Grease-Laden Vapors
From Commercial Cooking Equipment.
WARNING: Improper installation, adjustment,
alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating
and maintenance instructions thoroughly before
installing or servicing this equipment.
Warranty
See the back of the AR60CTS manual (8471-13) for warranty.
This warranty does not apply to damages resulting from
accident, misuse, abuse or alteration.
No equipment may be returned without written authorization
from EmberGlo (or Midco). Returned goods must be shipped
prepaid to the factory.
U
L
®
Discontintued Steamer
615
AR60T - Wiring
Front Open
Self Contained Water Supply
Counter Top Steamer
with Timer
2EmberGlo A Division of Midco International Inc 8471 13B
DANGER: READ AND UNDERSTAND THIS BULLETIN THOROUGHLY BEFORE
STARTING ANY TROUBLE SHOOTING. AN INADVERTENT SERVICE ERROR COULD RESULT
IN SEVERE PERSONAL INJURY OR DEATH. ONLY A TRAINED EXPERIENCED SERVICE
TECHNICIAN SHOULD ATTEMPT ANY REPAIR PROCEDURE.
Qualifi ed serviced agencies are available at most locations - Refer to EmberGlo listing of
AUTHORIZED SERVICE AGENCIES included in Standard Equipment Catalog.
Note: Before attempting service, unplug power cord. For service or examination, all “working parts”
of the steamer are exposed by removing fi rst the cabinet top, then the back. The wiring diagram and
spare cleanout gasket is located on inside of back.
Electric Switch/Thermostat
- The on-off switch should audibly “click” when operated manually. To determine if electrically
operative, a continuity check should be made.
- The overheat protection fuse is set for a single use and is non-adjustable and should not be
repaired. Replace if defective with a non-adjustable, non-repairable fuse
- The thermostat is adjusted at the factory default setting. It is not recommended to re-adjust the
setting. If found defective it is recommended to replace.
Pump System
The pump system is an electrical vibrator type which is controlled by the main timer. It supplies
power to the solid state (#606) recycle timer. A failure in this circuit may be traced from the main
timer thru the solid state timer. Please note that the “on” time of the solid state timer may be as short
as .1 second and then 10 seconds “off”. See the schematic for test points. If the pump is operating
but not pumping, check that the fi lter mounted on the inlet side of pump is not clogged, if so, remove
and clean. If still not streaming, refer to the “Steam Generator” section of this manual.
Timers
There are three timers in this system.
1. Push-button Automatic Reset - times length of cycle in minutes and supplies power to the solid
state timers. To determine if timer is functioning properly a volt meter or test lamp may be used.
See schematic for test points.
2. Solid State Programmable Recycle #606 - times length of shot (.1 second adjustable) and time
between shots (10 seconds adjustable). To determine if timer is functioning properly, a volt
meter or test lamp may be used. See schematic for test points.
3. Solid state delay interval programmable timer - 6013 - buzzer item delay and buzzer time.
Factory set at .1 second delay and 10.0 second on time. To determine if timer is functioning
properly, a volt ohmmeter or test lamp may be used. See schematic for test points.
Model AR60T (Discontinued Steamer) - Wiring Information
EmberGlo A Division of Midco International Inc
8471 13B 3
Model AR60T (Discontinued Steamer) - Wiring Information
1. Unit will not heat up; light out.
a. No power.
b. Plug out.
c. Loose internal connection.
d. Defective switch.
2. Unit will not heat up; light on.
a. Defective thermostat.
b. Loose heating element connection.
c. Defective generator unit.
d. Defective thermal fuse or open
3. Unit heats up light will not light.
a. Defective light in switch.
b. Loose connection.
4. Unit heats up; does not steam.
a. No water in pan.
b. Defective pump.
c. Cam, pins or linkage broken or disengaged.
d. Leak in inlet tube.
e. Dip tube spring assembly misaligned.
f. Clogged steam generator.
Note: If electrical trouble is other than loose connections, it is recommended that parts be replaced
rather than repaired.
Trouble
Chart
+-
+-
L2 L1 G
Gnd
LEGEND
Symbol Description
Toggle Switch
Push Button
Switch
Thermostat
Generator
Over Heat
Protection Fuse
Diode
Buzzer
5600-65
Electric
Pump
Ready Light
Power
Light (PWR)
Timer
6013
Timer
Shot
606
Load
BLK
BLK
BLK
BLK
BLK
RED
RED Motor
WHT
WHT
WHT
COM
NO
NC
12
Load
PWR
Input
Input
Service to be performed by
qualified personnel only
Plug for 240V AC to be Supplied by Installer
AR60T 240V AC is for Export ONLY
BLK
AR60T Wiring for
120/240 VAC / 60 Hz - Steamer

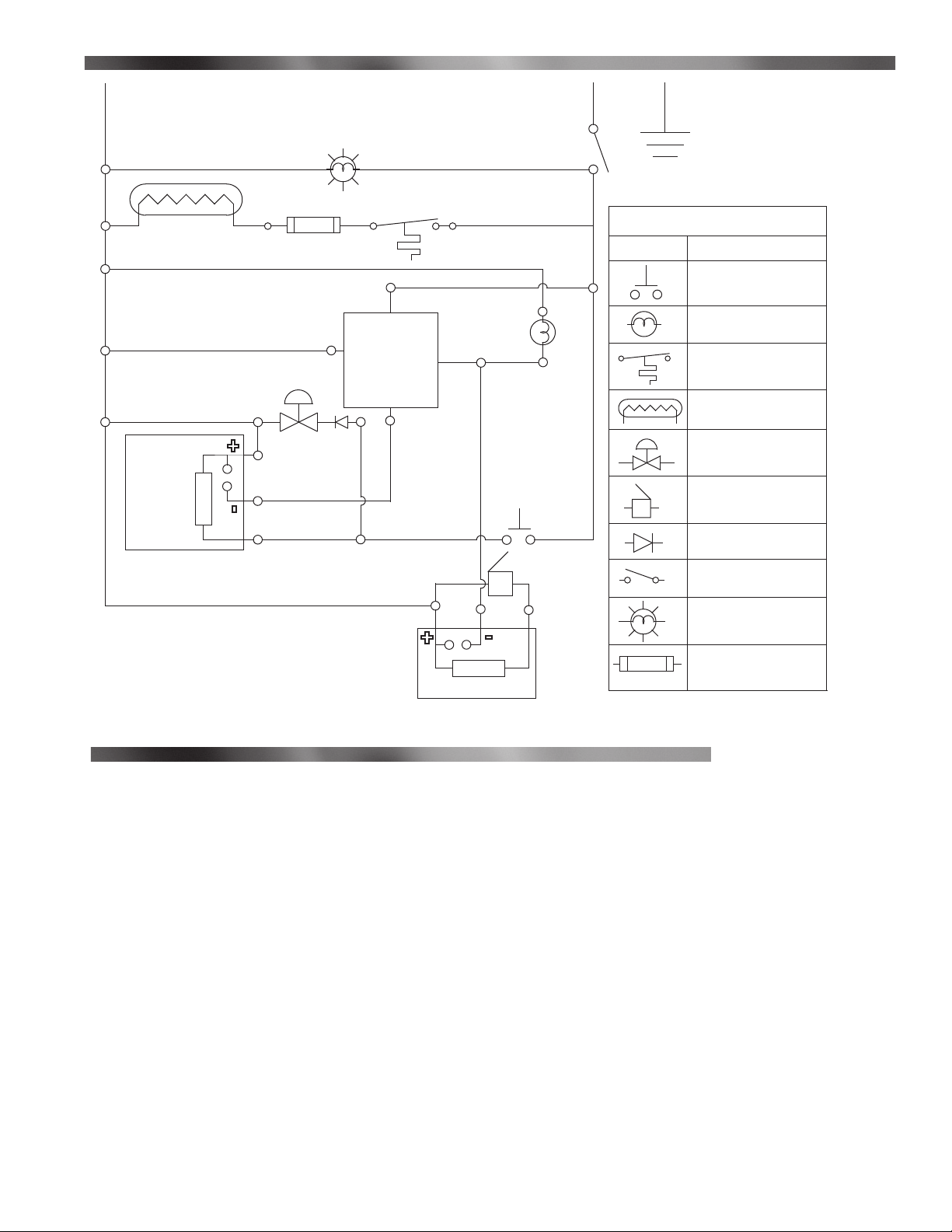

Figure 1. Wiring for AR60T Steamer
EmberGlo A Division of Midco International - 4140 West Victoria Street - Chicago, Illinois 60646
toll free: 866 705 0515 - tel: 773.604.8700 - fax: 773.604.4070 - web: www.emberglo.com - e-mail: [email protected]
4Printed in USA
8471 13B
615
Model AR60T (Discontinued Steamer) - Wiring Information
