Elytone EMA?120704?2U Manuel utilisateur

PoweronModeselector3positions:12V,Audio,ON

Inputsourceselector3positions:LINEIN,GlobalA,GlobalB

LEVEL/Volume:R,L2Channel/oneLEVEL/Volumeswitch.

OutputFunction2Positions:STEREO,BRIDGEmode

PowerKeyButton:Poweron/offselector

PowerLED:Poweron/off/stand‐bymodeindicator

ChannelLED:AllChannelsstateindicator



2.1ACPOWERSWITCH:

ACPoweron/off:Turnon/offwithACPowerSwitch



2.2.PoweronMode‐3Positions:12VTrigger,Audio,ON



12V:12VTrigger(power)modeisexternalcontrolpowerfeature.EMA–12070ispowered

fromexternal12VDC.Without12Vinputpowerprovidedafter10mins,thedevicewillgo

intopower‐offmode.



AUDIO:Audio:Audio(power)modeisthatthepoweron/offmodeandstand‐bymodeare

controlledbyPowerKeybuttonandAudiosensingcontrol.



AfteritisswitchedonbypressingPowerKeyButton,thedeviceissupposedtodetectallau‐

diosignalsandthengointoPowerOnmodeonceitreceivesanysignal(s);Thedevicegoes

intoPowerOffmodebypressingPowerKeyButton.



ThisdevicewillgointoStand‐bymode10minsafterthelastaudiosignalhasbeengone.

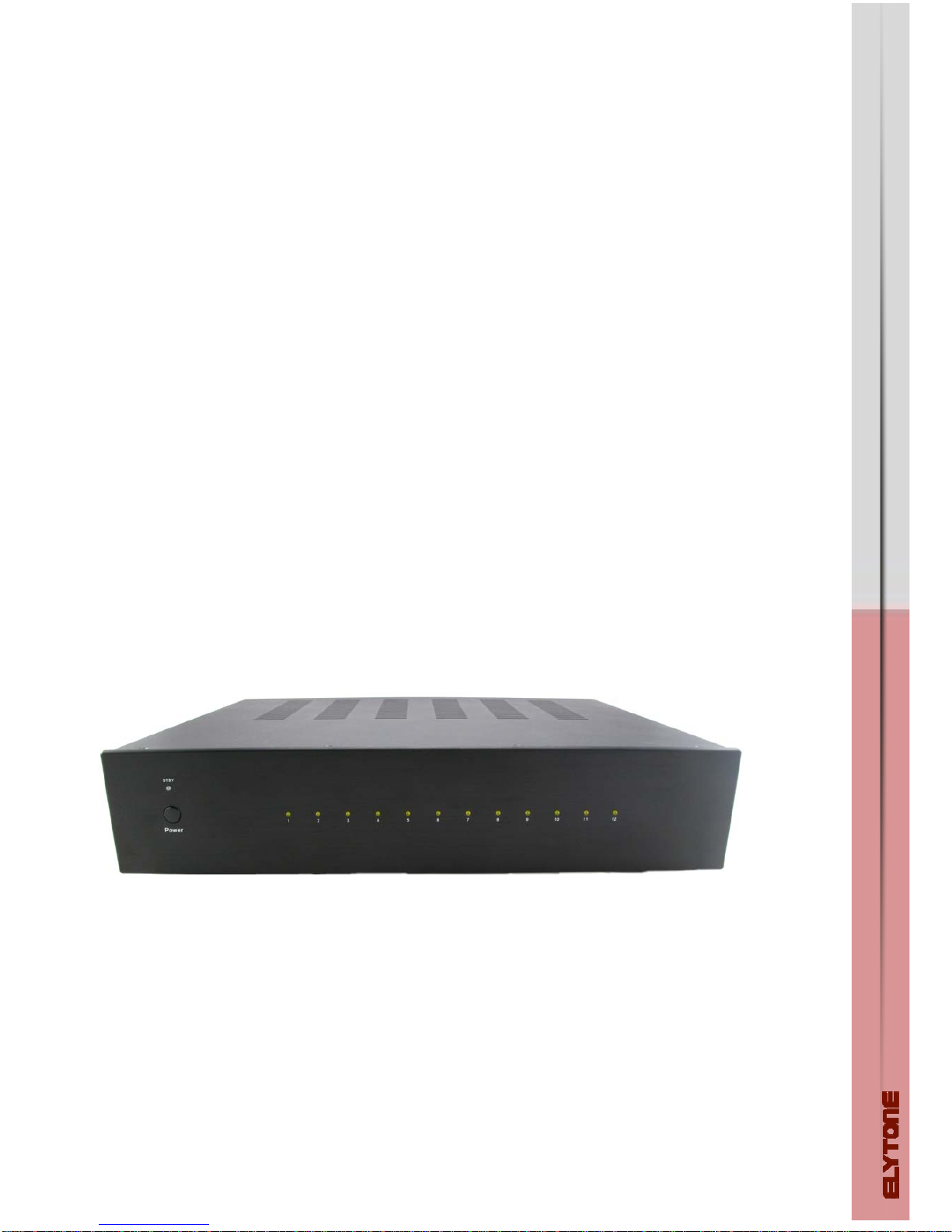

Multi Channel Amplifier OperatingInstructions

EMA‐120704‐2U/EMA‐61508

1.FunctionInstruction:

2.OperatingInstructions:

ON:Onmodeisthatswitchingon/offthedevicebypressingPowerKeybutton.The

devicegoesintoPowerOnmodebypressingPowerKeyButton;whileitgoesinto

PowerOffmodebypressingPowerKeyButtonagain.



2.3Inputsourceselector3positions:LINEIN,GlobalA,GlobalB

LINEIN:Audiosignalinput(s)shouldconnectwithCH1‐12 RCA JACK separatelyand

audioinputselectorsareswitchedtoLineINposition.Thechanneloutputwillprovide

LINEINoutputsignal(s).



GlobalA:Audiosignalinput(s)shouldconnectwithGlobalARCAJACKandaudioin‐

putselectorareswitchedtoGlobalAposition.ThechanneloutputwillprovideGlobal

Aoutputsignal(s).



GlobalB:Audiosignalinput(s)shouldconnectwithGlobalARCAJACKandaudioinput

selectorareswitchedtoGlobalBposition.ThechanneloutputwillprovideGlobalB

outputsignal(s).



2.4LEVEL/Volume:

‐Every2channels(R/L)usethesameLEVEL/Volumecontrolswitch.

2.5OutputFunction2Positions:STEREO.BRIDGE

STEREO:WhenOutputFunctionSelectorisswitchedtoSTEREOmode ,thisdevicepro‐

vides 70W4Ω 12 Channel output. 

BRIDGE:WhenOutputFunctionSelectorisswitchedtoBRIDGEmode ,thisdevicepro‐

vides 150W8Ω6 Channel output.



2.6PowerkeybuttonandLED:

BluecolorLED:Poweronmode

RedcolorLED:PowerofforAudioStand‐bymode



2.7ChannelLEDAllChannelsstateindicator

TheLEDsonthefrontpanelindicatetheamplifiersoperatingstate.Eachchannelhas

oneLED,foreachzone.



CH1‐12:GreencolorLED:Thedevicewillautomaticallyturnoffthechannel

AMPoutputandthatChannelLEDlightwillbeoff5minsafternoanyAu‐

diosourceonthatchannelisdetected..



CH1‐12:IfanyAMPOutputisinprotectmode,itsChannelLEDlightwill

blinkgreenlighttoindicatethischannelisinprotectmode;Whilethepro‐

tect modeisoff,thedevicewill resumenormaloperation.
