Elsner elektronik KNX R Mode d’emploi

Installation and Adjustment

Elsner Elektronik GmbH Control and AutomationTechnology

Herdweg 7

D – 75391 Gechingen Phone +49 (0) 70 56 / 93 97-0 info@elsner-elektronik.de

Germany Fax +49 (0) 70 56 / 93 97-20 www.elsner-elektronik.de

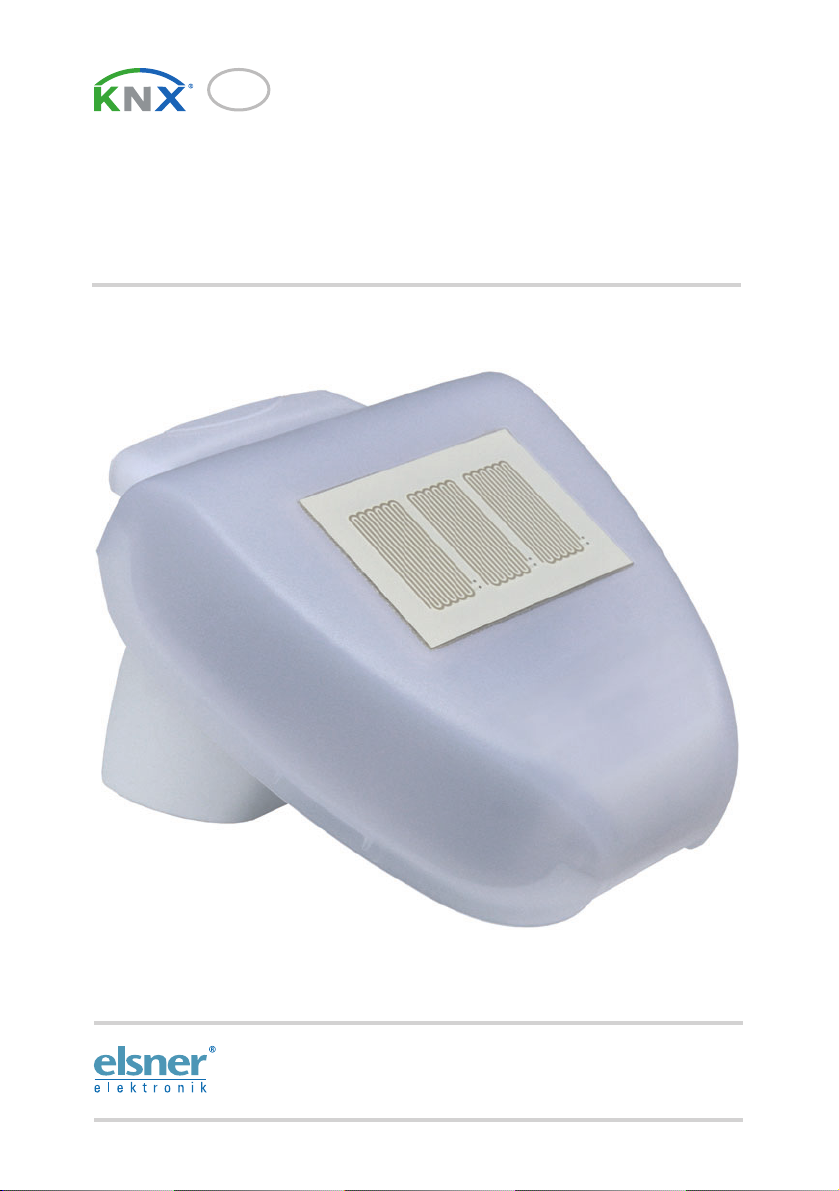

KNX R

Rain Sensor

1 Content

Elsner Elektronik GmbH • Herdweg 7 • D-75391 Gechingen • Germany

Rain Sensor KNX R • from software version 1.00, ETS programme version 1.1

Errors excepted. Subject to technical changes.

1. Description ........................................................................................... 3

1.1. Technical specifications ........................................................................................... 3

2. Installation and commissioning ........................................................... 4

2.1. Notes on installation ................................................................................................ 4

2.2. Location ..................................................................................................................... 5

2.3. Mounting the sensor ................................................................................................ 5

2.3.1. Attaching the mount ..................................................................................... 5

2.3.2. View of rear side and drill hole plan ........................................................... 7

2.3.3. Preparing the sensor .................................................................................... 8

2.3.4. PCB Layout .................................................................................................... 9

2.3.5. Mounting the sensor .................................................................................. 10

2.4. Notes on mounting and commissioning .............................................................. 11

3. Maintenance ....................................................................................... 11

4. Transmission protocol ....................................................................... 12

4.1. Listing of all communication objects .................................................................... 12

5. Setting of parameters ........................................................................ 14

5.1. General settings ..................................................................................................... 14

5.2. Logic ........................................................................................................................ 15

5.2.1. AND Logic 1 / 2 / 3 / 4 .................................................................................. 16

5.2.2. Linkage inputs of AND logic ...................................................................... 17

5.2.3. OR Logic 1 / 2 / 3 / 4 .................................................................................... 18

5.2.4. Linkage inputs of OR logic ......................................................................... 18

2 Content

Elsner Elektronik GmbH • Herdweg 7 • D-75391 Gechingen • Germany

Rain Sensor KNX R • from software version 1.00, ETS programme version 1.1

Errors excepted. Subject to technical changes.

3 Description

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

1. Description

The Rain Sensor KNX R registers precipitation and transfers the status to the KNX

system. One switching output as well as AND and OR logic gates are available. The

sensor system, the evaluation electronics and the electronics of the bus connection are

mounted in a compact housing.

Functions:

•Precipitation perception: The surface of the sensor is heated so that only

drops and flakes are recognised as precipitation but not fog or dew. If it stops

raining or snowing, the sensor dries quickly and the precipitation message

ends

•1 switching output

•4 AND and 4 OR logic gates with each 4 inputs. Every switching incident as

well as 8 logic inputs (in the form of communication objects) may be used as

inputs for the logic gates. The output of each gate may optionally be configured

as 1 bit or 2 x 8 bits

Configuration is made using the KNX software ETS. The programme file (format

VD2), the data sheet and the manual can be downloaded from the Elsner Elektronik

homepage on www.elsner-elektronik.de in the “Service” menu.

1.1. Technical specifications

Housing Plastic material

Colour White/translucent

Mounting On-wall

Protection category IP 44

Dimensions approx. 96 × 77 × 118 (W × H × D, mm)

Weight 230 V AC version: approx. 240 g,

24 V DC version: approx. 170 g

Ambient temperature Operation -30…+50°C,

Storage -30…+70°C

Operating voltage Available for 230 V AC or 24 V DC (20 V AC).

An appropriate 20 V AC power supply unit can be

obtained from Elsner Elektronik.

Cable cross-section Massive conductors of up to 1.5 mm² or conductors

with fine wires

Current 230 V AC version max. 20 mA,

24 V DC version max. 100 mA,

Residual ripple 10%

Data output KNX +/- bus terminal plug

BCU type Own micro controller

PEI type 0

Group addresses max. 254

4 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

The following standards have been considered for the evaluation of the product in

terms of electro magnetic compatibility:

Transient emissions:

• EN 60730-1:2000 Section EMV (23, 26, H23, H26) (threshold category: B)

• EN 50090-2-2:1996-11 + A1:2002-01 (threshold category: B)

• EN 61000-6-3:2001 (threshold category: B)

Interference resistance:

• EN 60730-1:2000 Section EMV (23, 26, H23, H26)

• EN 50090-2-2:1996-11 + A1:2002-01

• EN 61000-6-1:2004

The product has been tested for the above mentioned standards by an accredited EMV

laboratory.

2. Installation and commissioning

2.1. Notes on installation

Warning, mains voltage!

National legal regulations are to be observed.

Installation, inspection, commissioning and troubleshooting of the

device must only be carried out by a competent electrician.

Disconnect all lines to be assembled, and take safety precautions against accidental

switch-on.

The device is exclusively intended for appropriate use. With each inappropriate change

or non-observance of the instructions for use, any warranty or guarantee claim will be

void.

After unpacking the device, check immediately for any mechanical damages. In case of

transport damage, this must immediately notified to the supplier.

If damaged, the device must not be put into operation.

If an operation without risk may supposedly not be guaranteed, the device must be put

out of operation and be secured against accidental operation.

The device must only be operated as stationary system, i.e. only in a fitted state and

after completion of all installation and start-up works, and only in the environment in-

tended for this purpose.

Allocations max. 255

Communication objects 34

Heating rain sensor approx. 1,2 W (230 V and 24 V)

5 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

Elsner Elektronik does not assume any liability for changes in standards after publica-

tion of this instruction manual.

2.2. Location

Select an assembly location at the building where precipitation may be collected by the

sensor unobstructedly. Do not assemble any construction components above the sen-

sor from where water may drop on to the rain sensor after it has stopped raining or

snowing.

2.3. Mounting the sensor

2.3.1. Attaching the mount

The sensor comes with a combination wall/pole mount. The mount comes adhered by

adhesive strips to the rear side of the housing.

Fasten the mount vertically onto the wall or pole.

Fig. 1

The rain sensor must be mounted onto a ver-

tical wall (or pole).

Wall

pole

Fig. 2

The rain sensor must be mounted horizon-

tally in the lateral direction.

Horizontal

6 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

Fig. 3

When wall mounting: flat side on wall, crescent-

shaped collar upward.

Collar

Fig. 4

When pole mounting: curved side on pole, collar

downward.

Collar

Fig. 5

An additional, optional accessory available from

Elsner Elektronik is an articulated arm for flexib-

le wall, pole or beam mounting of the sensor.

Fig. 6

Example uses of the hinge arm mounting: With

the hinge arm mounting, the sensor peeps out

from beneath the roof overhang.

7 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

2.3.2. View of rear side and drill hole plan

Fig. 7

Example uses of the hinge arm mounting: Fit-

ting to a pole with worm drive hose clips

Langloch 7,5 x 5 mm

Fig. 8 a+b

Drill hole plan

Dimensions of rear side of

housing with bracket. Sub-

ject to change for technical

enhancement.

8 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

2.3.3. Preparing the sensor

The sensor cover snaps in on the left and right along the bottom edge (see Fig.). Re-

move the cover. Proceed carefully, so as not to pull off the wire connecting the PCB in

the bottom part with the rain sensor in the cover (soldered cable connection in case of

230 V AC version, cable with plug in case of 24 V DC version).

Push the bus connection cable through the rubber seal on the bottom of the sensor and

connect bus +/- to the provided clamps.

For 24V devices the connection cable must be plugged in between the cover and circuit

board.

Fig. 9

1 Cover with rain sensor

2) Cover Snaps

3 Bottom part of housing

Unsnap cover and

remove upwards

9 Installation and commissioning

Rain Sensor KNX R • Date of issue: 05.11.2010 • Technical changes reserved. Errors reserved.

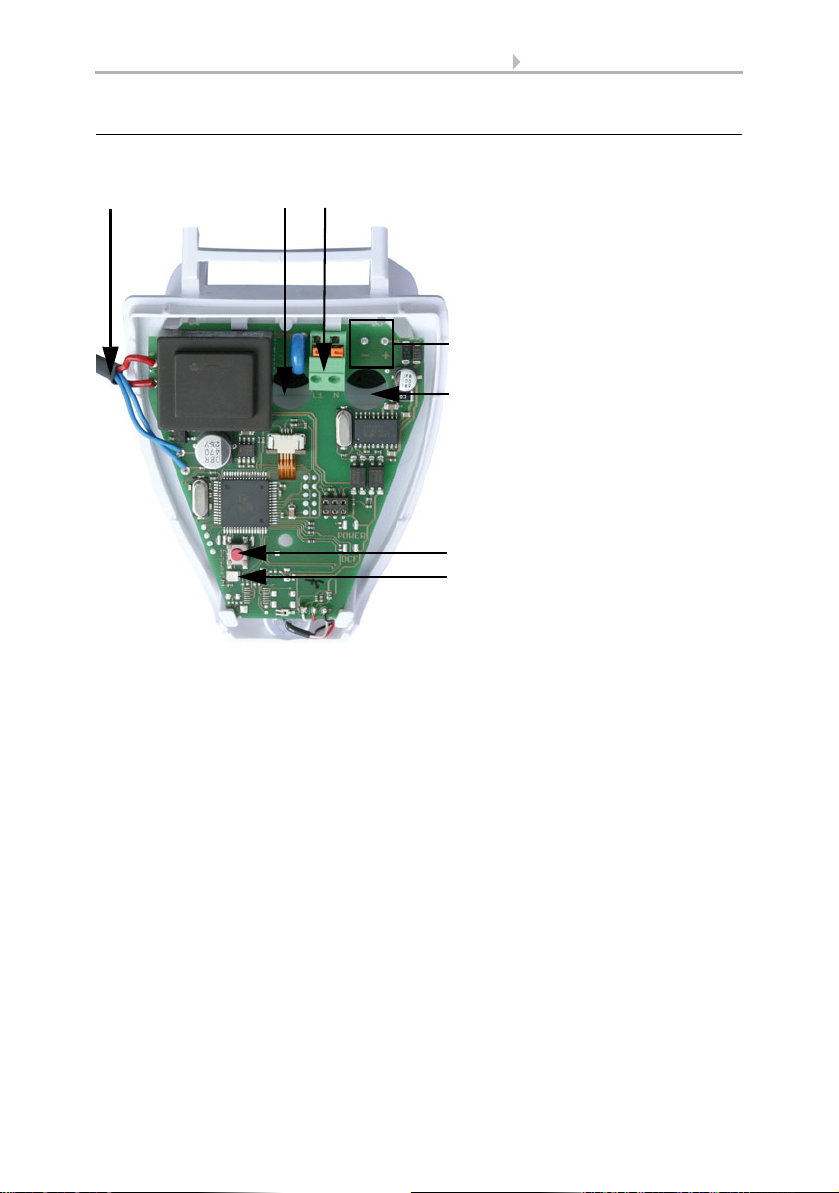

2.3.4. PCB Layout

230 V AC version

Fig. 10

1) Cable connection to the rain

sensor in the housing cover

2) Opening for the cable for the

voltage supply

3) Tension clamp for voltage

supply (230 V AC), suitable for

massive conductors of up to

1.5 mm² or conductors with

fine wires

4) Slot for KNX clamp +/-

5 Opening for the bus cable

6) Programming pushbutton for

the teach-in of the device

7) Programming LED
