USER MANUAL

Elo Touch Solutions

1523L and 1723L Touchmonitors

SW601951 Rev B

User Manual: 1523L, 1723L

SW601951 Rev B, Page 2 of 26

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language or computer language, in any form or by any means, including, but not limited to, electronic,

magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Affiliates

(collectively "Elo") makes no representations or warranties with respect to the contents herein, and specifically

disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of Elo to

notify any person of such revisions or changes.

Trademark Acknowledgments

Elo (logo), Elo Touch Solutions, IntelliTouch, iTouch, are trademarks of Elo and its Affiliates. Windows is a trademark

of Microsoft Corporation.

User Manual: 1523L, 1723L

SW601951 Rev B, Page 3 of 26

Table of Contents

Chapter 1: Introduction...........................................................................................4

Chapter 2: Installation.............................................................................................5

Chapter 3: Mounting................................................................................................9

Chapter 4: Operation.............................................................................................12

Chapter 5: Technical Support.............................................................................17

Chapter 6: Safety & Maintenance......................................................................19

Chapter 7: Regulatory Information...................................................................21

User Manual: 1523L, 1723L

SW601951 Rev B, Page 4 of 26

Chapter 1: Introduction

Product Description

Your new touchmonitor combines the reliable performance of Elo Touch Solutions touch

products with the latest developments in touch technology and display design. This combination

of features creates a natural flow of information between the user and the touchmonitor.

This touchmonitor incorporates a 16.2M color, active matrix thin film transistor LCD panel to

provide high quality display performance. Its LED backlight significantly reduces power

consumption and eliminates mercury (compared to CCFL-backlit panels). Other features that

enhance this LCD monitor’s performance are Plug & Play compatibility, on-screen display

(OSD) controls, and a family of optional peripherals including magnetic stripe reader (MSR),

webcam, and radio-frequency identification (RFID) module.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to

maximize the life of your unit, to ensure user safety, and to prevent risks. See the Safety &

Maintenance chapter for more information.

This manual contains information that is important for the proper setup and maintenance of the

unit. Before setting up and powering on your new touchmonitor, read through this manual,

especially the Installation, Mounting, and Operation chapters.

User Manual: 1523L, 1723L

SW601951 Rev B, Page 5 of 26

Chapter 2: Installation

Unpacking the Touchmonitor

Open the carton and verify that the following items are present:

•Touchmonitor with removable protective sheet for its face

•User Manuals CD

•Japanese language regulatory information pamphlet

•Quick Install Guide

•VGA cable

•DVI cable

•USB cable

•Audio cable

•AC-DC power adaptor

•North American power cable

•European power cable

User Manual: 1523L, 1723L

SW601951 Rev B, Page 6 of 26

Stand Positions

The stand of the touchmonitor can be converted between two positions: the low profile

“hostess” position and the high profile “upright” position. The touchmonitor ships in the low

profile “hostess” position.

Low profile (“hostess”) position

User Manual: 1523L, 1723L

SW601951 Rev B, Page 7 of 26

To convert the stand into the high profile “upright” position, secure the thumbscrews into the

high or “H” screw-holes in the bottom of the base.

Upright position

To convert the stand into the low profile “hostess” position, secure the thumbscrews into the low

or “L” screw-holes in the bottom of the base.

Connector Panel & Interfaces

User Manual: 1523L, 1723L

SW601951 Rev B, Page 8 of 26

Touchmonitor Connections

1. Connect the DVI or VGA video cables between the monitor’s DVI/VGA input connectors and

your DVI/VGA video source, respectively. Tighten the video cable’s screws for best

performance.

2. Connect the USB touch cable between the monitor’s USB connector and your PC’s USB

port.

3. Connect the audio cable between the monitor’s Audio In jack and your audio source.

4. Select the correct power cable for your region. Connect the power adaptor’s input connector

to the AC power source. Connect the power adaptor’s DC output connector to the monitor’s

input power jack.

5. The touchmonitor ships in an OFF state. Press the power button to turn it on.

Installing the Touch Technology Software Drivers

Some software installation is required for your iTouch Plus touchmonitor to work with your

computer. No additional drivers are required for your projected-capacitive touchmonitor with

Windows 7 and 8 operating systems, it uses Windows HID drivers.

To download latest touch drivers

Visit elotouch website.

2.Select the operating system from “Operating System” dropdown menu.

3.Select the technology from “Technologies” dropdown menu.

4.Click on the driver version required for your touchmonitor.

5.Click “Accept” once you are directed to the “Driver License Agreement” page.

6.Enter you email address, Click on “Next Step”. Your driver download will start automatically.

7.If you are a new user, fill in the required information and Click on “Register”. Your driver

download will start automatically.

User Manual: 1523L, 1723L

SW601951 Rev B, Page 9 of 26

Chapter 3: Mounting

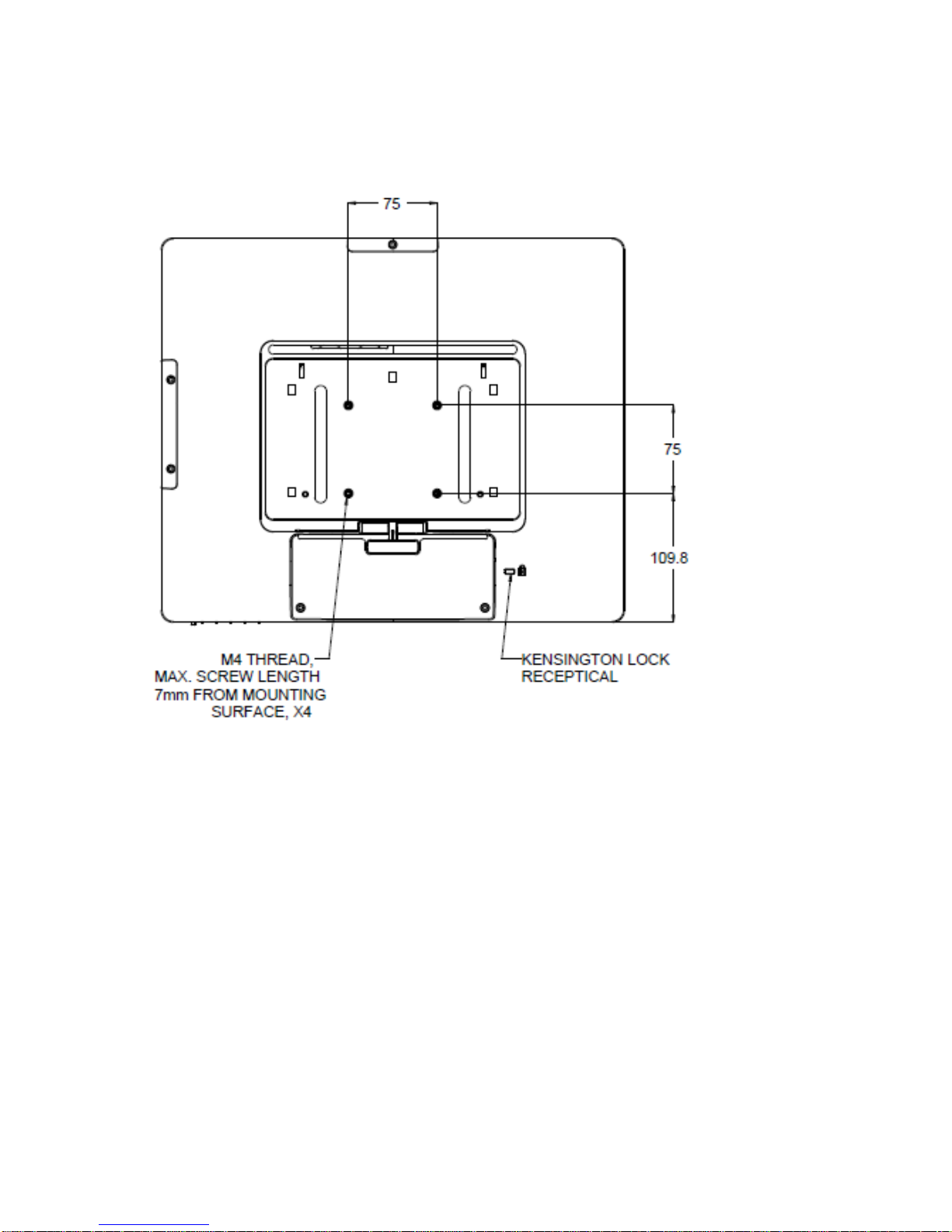

Rear VESA Mount

For the 15-inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided

on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this

mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C.

User Manual: 1523L, 1723L

SW601951 Rev B, Page 10 of 26

For the 17-inch touchmonitor, a four-hole 75x75mm mounting pattern for M4 screws is provided

on the rear of the monitor. Remove the stand using a Phillips screwdriver to access this

mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-B, 75, C.
