Elite Screens ZPM-RT2 Manuel utilisateur
Rev. 110719-AZ 1 www.elitescreens.com
ZPM-RT2
Remote Control Kit for Spectrum 2 Series
User’s Guide –V2.1
Thank you for purchasing the ZPM-RT2 kit. The ZPM-RT2 kit allows your Spectrum 2 Series electric screen the
ability to control it using a Radio Frequency or Infrared remote control, and a wired or wireless 5-12volt
projector trigger with the included accessories list below.
What’s included:
ZMP-RT2 accessories/parts list
A. Infrared (IR)
remote x 1 pc
B. Radio
Frequency (RF)
Remote x 1 pc
C. AAA
batteries
x 4 pc
D. Wired 5-12
volt projector
trigger x 1 pc
E. IR “eye”
receiver x 1 pc
F. Wireless 5-12v
3.5 mm mono to
USB trigger cable
x 1 pc
G. Wall box (circuit board housing)
Red+
Green -
67”-95”
51”
Rev. 110719-AZ 2 www.elitescreens.com
Fig.1
IR/RF remote
UP
STOP
DOWN
ZPM-RT2 Installation & Control Instructions

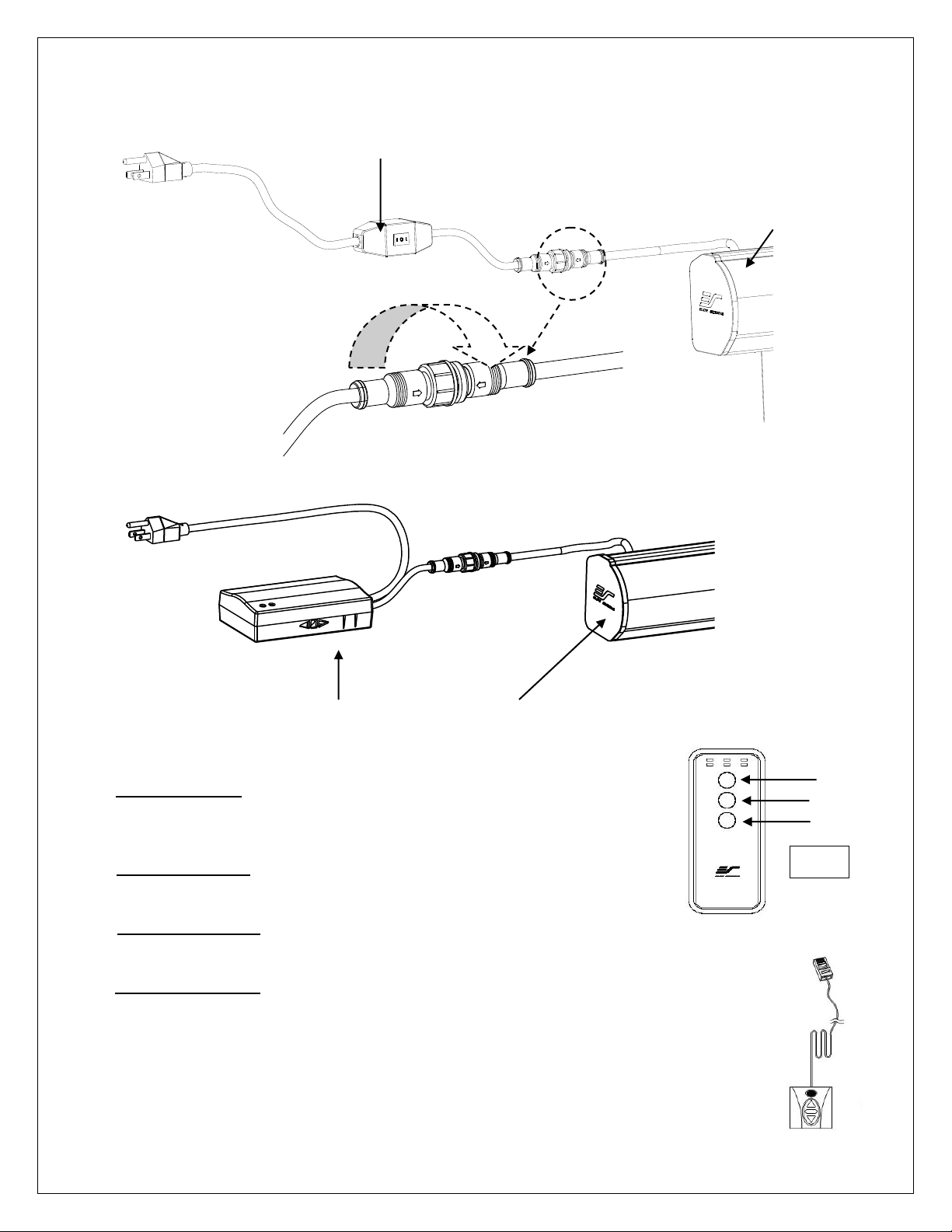

1. Disconnect the 3 Way Control Switch from the Spectrum 2 Screen as shown below.
3 Way Control Switch
Screen
2. Connect the Wall Box (G) to the screen as shown below.
Wall box (G) Screen
6 ways to control your Spectrum 2 screen:
1. IR remote control (Item A, Fig 1): The Infrared functions by direct line of sight
contact with a beam range of 30 feet. Aim the IR remote at the circular window
located on the left side of the screen
2. IR “Eye” Receiver (Item E, Fig 2): The IR “Eye” Receiver plugs directly into
the wall box’s RJ45 input port.
3. RF Remote Control (Item B, Fig 1): The radio waves eliminate the need for a direct line of sight with a
range of 100 feet.
4. 3-Way Wall Switch: This accessory is not included but can be purchased separately to use as
a manual keypad switch to control the UP/STOP/DOWN functions of the screen. It connects to
the RJ45 port of the wall box. Part number ZSP-WB-W
IR Eye Receiver (Item, E)
Rev. 110719-AZ 3 www.elitescreens.com
Connect the IR Eye Receiver (E) to the Wall Box (G) for high wall or ceiling installations.
Wall Box (G)
IR Remote (A)
IR Eye Receiver (E)
5. 5-12 volt trigger (Item E, Fig 3): The built-in 5-12V trigger input allows your screen to synchronize its drop
& rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when
the projector powers down. The 5-12 volt RJ45 cable connects to your projector’s trigger output via a separate
cable that may or may not be provided by the manufacturer of the projector. The trigger feature will not work
without an output cable from the projector, but it can be tested by connecting the Red (+) and Green (-) cable to
a 9-volt battery.
12 Volt Trigger (Item, E)
Connect the 12 Volt Trigger (E) to the Wall Box (G) for set up to your projector.
6. Wireless 5-12 volt trigger (Item F, Fig 4):
The RF remote control serves as a dual purpose,
independently as a handheld remote control, or in
conjunction with the Wireless 5-12 volt trigger cable. The
radio frequency technology can be programmed to send a
wireless signal to synchronize its drop/rise with the
projector’s power cycle.
DC 5-12V
out
The back of the
projector
Wireless5-12V trigger cable
UP
Stop
Down
Fig. 4
5-12 Volt Trigger Cable –3.5mm to USB
Fig.2
Rev. 110719-AZ 4 www.elitescreens.com
Wireless 5-12v 3.5mm mono to USB trigger cable (F)
Here’s how to set up your Wireless 5-12 volt trigger | Synchronization Instructions
Step1: Connect the 3.5 mm wireless 5-12 volt trigger cable to the RF remote.
Step 2: Connect the USB end of the wireless 5-12 volt trigger cable to your projector’s USB DC output port
Step 3: Make sure to unplug your screen from the power outlet
Step 4: Hold the UP button on your RF remote
Step 5: While holding the UP button, plug the screen back to the power outlet
Step 6: Wait 5 seconds and then release the UP button
Step 7: Your 5-12V wireless trigger should now be activated with your screen and ready to be used and able to
control your screen with your projector’s power cycle. Repeat the steps again if not successful.
(Please be aware, the projector on/off cycle may take longer to fully activate. It usually takes around 20-
30seconds for full off and on cycle each time)
For a local Elite Screens contact or Technical Support, please visit
www.elitescreens.com
