Lunette 2 Series
Curved Fixed Frame Projection Screen
User’s Guide
Important Safety and Warning Precautions
Please follow these instructions carefully to ensure proper maintenance and safety with your Lunette
Series Fixed Frame Curved Screen
1. When hanging the screen up, please make sure that no other objects – such as power switches, outlets,
furniture, ladders, windows, etc., occupy the space designated for your Fixed-Frame screen.
2. Regardless if the screen is hung on or installed into the wall; make sure that the proper mounting anchors
are used and that the weight is supported appropriately by a strong and structurally sound surface just as any
large and heavy picture frame should.
(Please consult a home improvement specialist for the best advice on installation.)
3. Frame parts are made of high quality velour-surfaced aluminum and should be handled with care.
4. When not in use, cover the screen with a furniture sheet to protect it from dirt, grime, paint, or any other
impurities.
5. When cleaning, use a soft cloth moistened with warm water to remove any marks on the frame or screen
surface.
6. Never attempt to use any solutions, chemicals, or abrasive cleaners on the screen surface.
7. In order to avoid damaging the screen, avoid touching it directly with your fingers, writing tools, or any
other sharp or abrasive objects.
8. Spare parts should be placed out of reach of small children in accordance with household safety guidelines.
CAUTION:
The projection screen frame is made of high-quality aluminum alloy and should be handled with care.
Use a soft cloth with warm water to remove any spots on the screen material surface.
To avoid damaging the screen material, never attempt to use any solutions, chemicals, or abrasive
cleaners on the screen itself, and never attempt to touch the screen with your fingers or sharps/abrasive
objects.
2/3/2016 www.elitescreens.com2

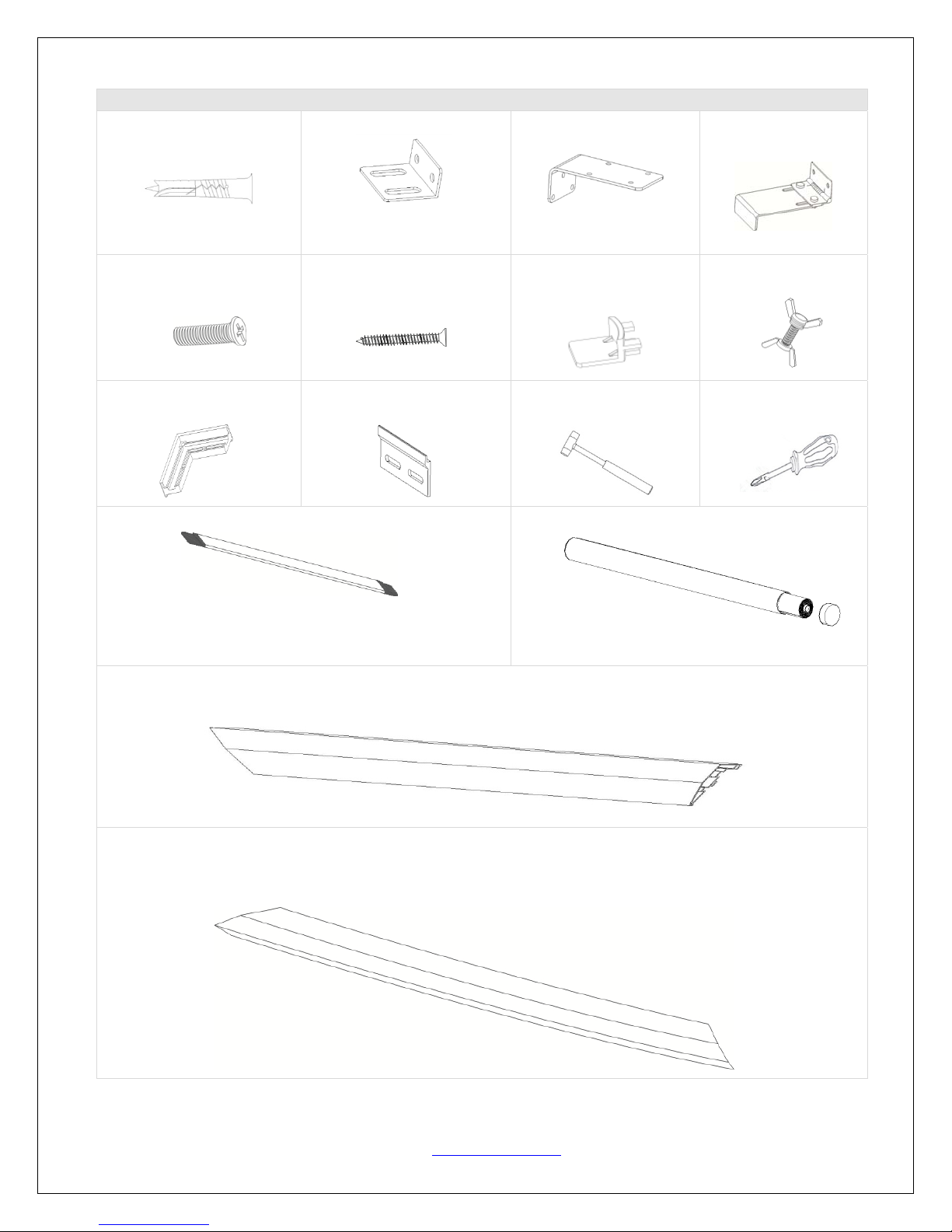

Hardware and Parts List
A. Dry-wall anchor
x 12 pcs
B. 1.77” L –Bracket x 2-4 pcs C. 3.54” L-Bracket
x 0-2 pcs
D. Lower Bracket
x 2pcs
E. M5x15 screws
x 8 pcs
F. Wood screws
x 12 pcs
G. Plastic clip plate x
1 bag
H. Butterfly screws
x 4 pcs
I. Elbow joint
x 4pcs
J. Wall bracket
x 1 pcs
K. Rubber Mallet
x 1 pcs
L. Screwdriver
x 1 pcs
M. Center Support Bar x 1-2 pcs
Notes
1.Centersupportbarmaybepackedwiththescreenmaterial.
2.Models165”andaboveincludes2pcs
N. Screen Material x 1pcs
O. Vertical Upright Frame x 2 pcs
P. Horizontal Curved Frame x 2 pcs
125”modelsandabove=2pcs
Under125”=0pcs
125”modelsandabove=2pcs
Under125”=4pcs
2/3/2016 www.elitescreens.com3
Frame Assembly and Screen Material Installation

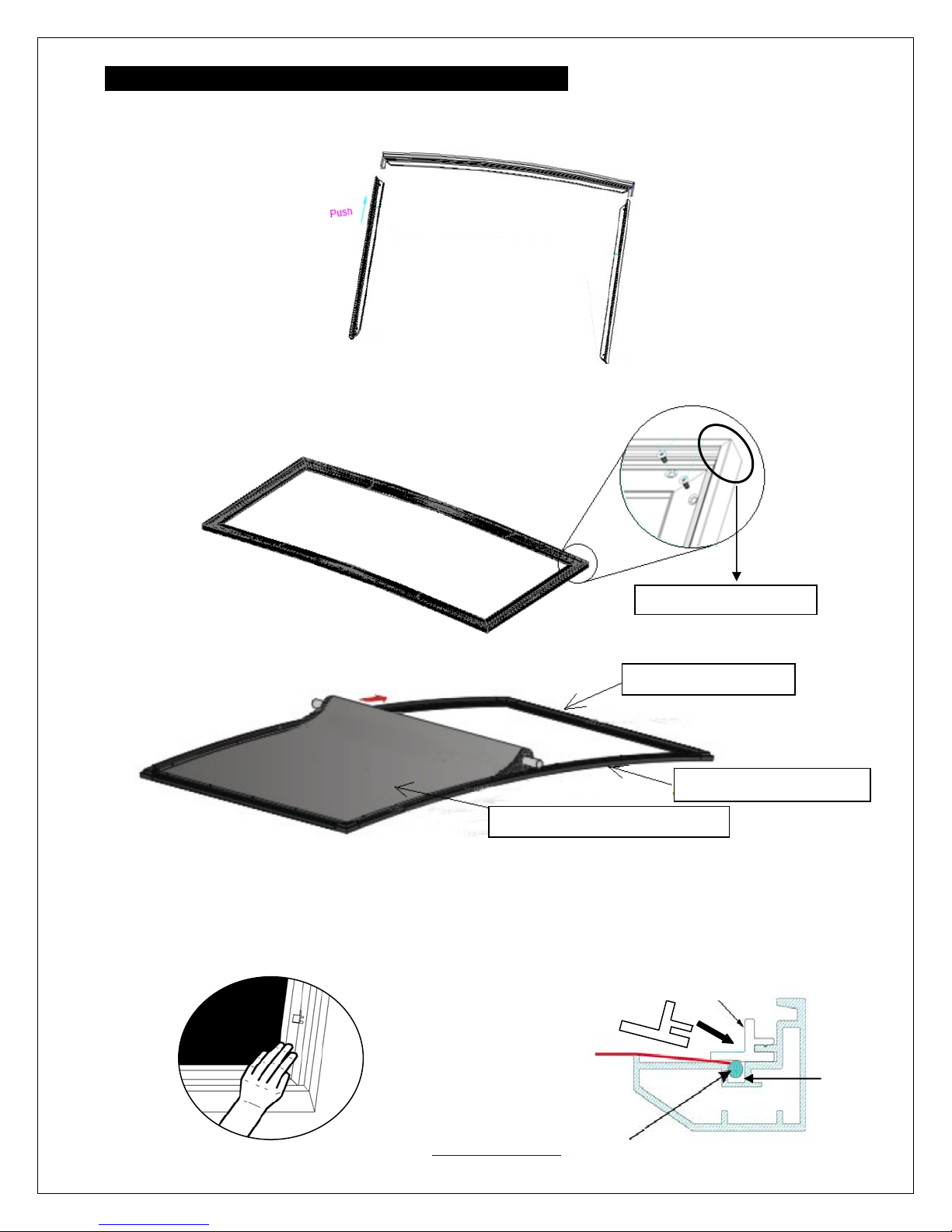

1. Insert both Elbow Joints (I) into each Horizontal Curved Frame (P) and join all four frame parts
together as shown below.
2. After making sure that all four corners join at right angles (forming a perfect rectangle), fasten the four
angles together by using M5x15 screws (E).
3. Layout the Screen Material on a clean and dry surface. Then, gently roll out the screen material over the
back of the fixed frame.
4. Attach the fix plates.
(1)
Stretch the material to the corner and insert the screen material’s edge in the groove of the frame. While
one hand holds the material in place the other hand snaps in the push plate (Fig.4-Fig.5).
Vertical Upright Fame
Horizontal Curved Frame
Back of the screen material
Minimalgapisnormalhere
(Fig.4)
Insertpushplatein
Screenmaterialedge (Fig.5)
Schematiccrosssectionoftheframe
Plate
Framegroove
2/3/2016 www.elitescreens.com4

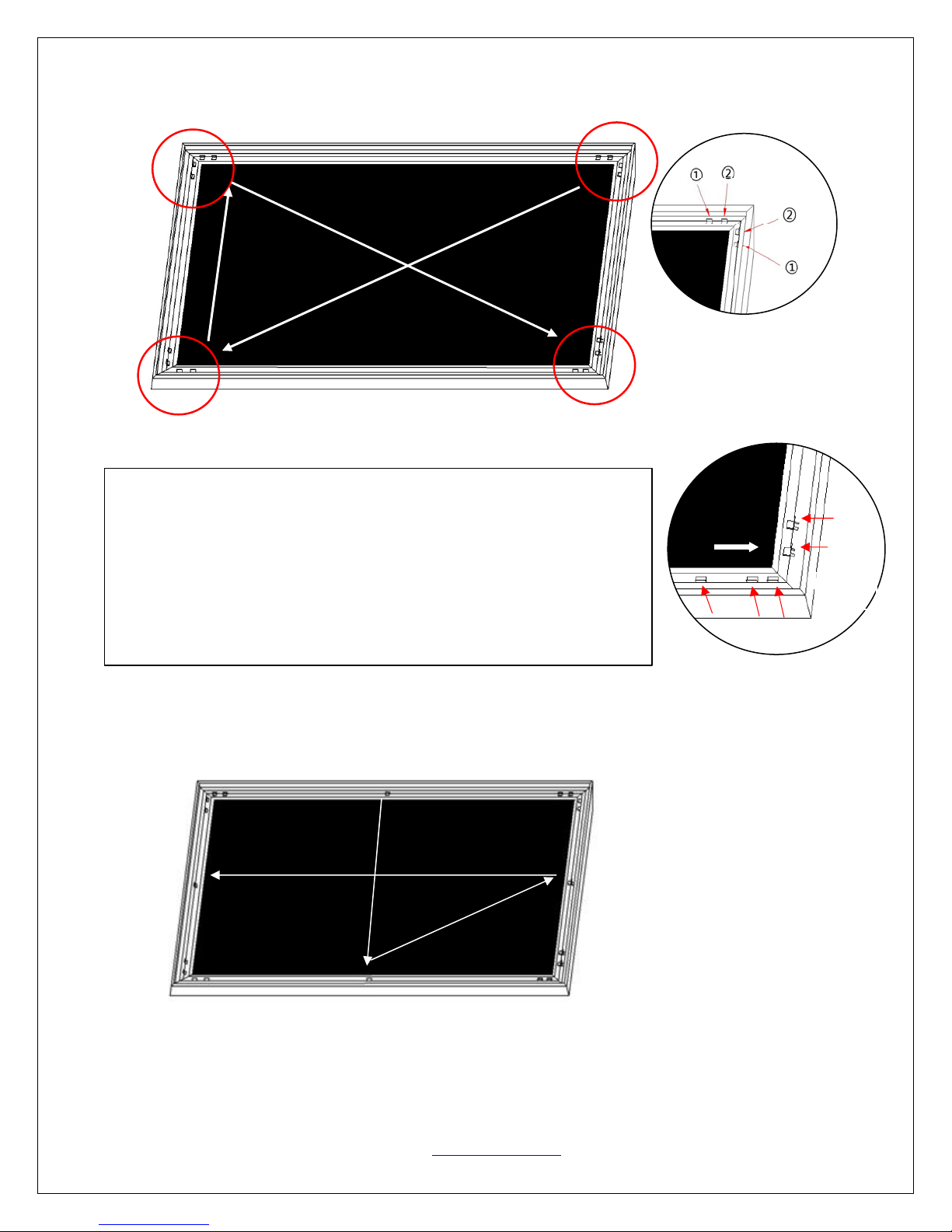

(2) Begin by securing the four corners in the following sequence A→B→C→D (Fig.6).
(3) Insert the fix the plates as shown on Fig. 5. Fix plate ① is about 10cm away from the frame’s corner. Fix
plate ② is about 5cm away. (Fig.7)
(4) Place a fix plate in the center of each side in the following order E→F→G→H.(Fig.9)
(5) Next, fasten a fix plate on the center of each frame side in the following order
I→J→K→L→M→N→O→P as shown in Fig.10.
A
C
Fig.7
B D
(Fig.6)
Tip for attaching the last corner (D):
1. Position yourself left of location ①.
2. Pull the material to the corner of the frame with your hand while your left hand
snaps in the fix plate on location ①(the third red dot).
3. Then insert and snap in the fix plate on location②.
4. Next, move and position yourself on location ③，then pull the edge to the
frame and fasten plates on locations ③and④.
5. Finally, fasten the last fix plate on location⑤. (Fig.8)
①②
③
⑤
④
Pull
Fig.8
Fig.9
E
G
H
F
2/3/2016 www.elitescreens.com5
(6) Fasten the remainder of the fix plates in the empty locations in the red markings to complete attaching the
screen material. (Fig.11)
Black backing for AcousticPro Models
This procedure only applies to AcousticPro models. Disregard this section if your Fixed Frame does not
include an acoustically transparent screen material. The purpose of the black backing material is to block out
any light penetration that may reflect off of anything mounted behind the screen, which can cause distortion to
the projected image.
Fi
g
.10
Fig.11
Interval markings reveal the best points for inserting the fix plates (Fig.
12). The prongs on the fix plates insert to the lip on the back of the frame
creating a friction hold that will firmly keep the material and black
backing in place (Fig. 13-14).After the material has been installed, the
backing will lay over the back of the white (Acoustic) material and then
b
e held in
p
lace b
y
the Velcro on the fix
p
lates
(
Fi
g
15
)
.
TheblackbackingisheldinplacebytheVelcrothatisonthefixplates.
Blackbackin
g
Fixplates secure theAcousticmaterialandtheblackbackingbehindit.
I
J
K
L M
N
O
P
(Fig.12) (Fig.14)
(Fig.13) (Fig.15)
2/3/2016 www.elitescreens.com6
Center Support Bar
1. Center Support Bar may be packed in a plastic tube with the screen material.
Center support bar
2. Insert the Center Support Bar into the upper top groove on the back of the frame (note: this not the same
groove where the fix plate inserts) with the bottom end near the center point of the frame, and place it in
at an angle so that both ends of the bar are aligned with the groove.
3. Slide the top end of the bar into the top center point location (as shown below) to complete the center
support bar installation. This will provide added stability to the frame and added tension to the
material.
Installation
For165”andabovemodels
2/3/2016 www.elitescreens.com7
1. Use butterfly screws to install the upper bracket as shown in following diagrams
2. Locate the height where you want the screen installed, and draw an upper base line. Install the wall
bracket (J) in the middle area of the upper base line as shown below. Confirm the distance between
the two brackets on the level direction following the data E of P10 diagram. Mark the hole location on
the wall by following the base line and the upper bracket’s screw hole site, and then drill the hole.
Insert the wall anchor and tighten the upper bracket using the provided screw.
Note: The upper base line must align with the upper bracket’s top edge
3. Draw a lower base line according to the data F of P10 diagram and the upper base line, and then make a
hole on the wall according to the screw hole location for the lower bracket, then insert the anchor and
tighten the lower bracket with the provided screw.
Wall
Upperbracket
Lowerbracket
HollowwallanchorWoodscrew
Use two 1.77” brackets to assemble an
upper bracket for models
b
elow 125”
Use one 1.77” bracket and one 3.54” bracket to
assemble an upper bracket for models 125” and above.
P10
2/3/2016 www.elitescreens.com8
Note: Two (2) or more people must install the frame for added safety.

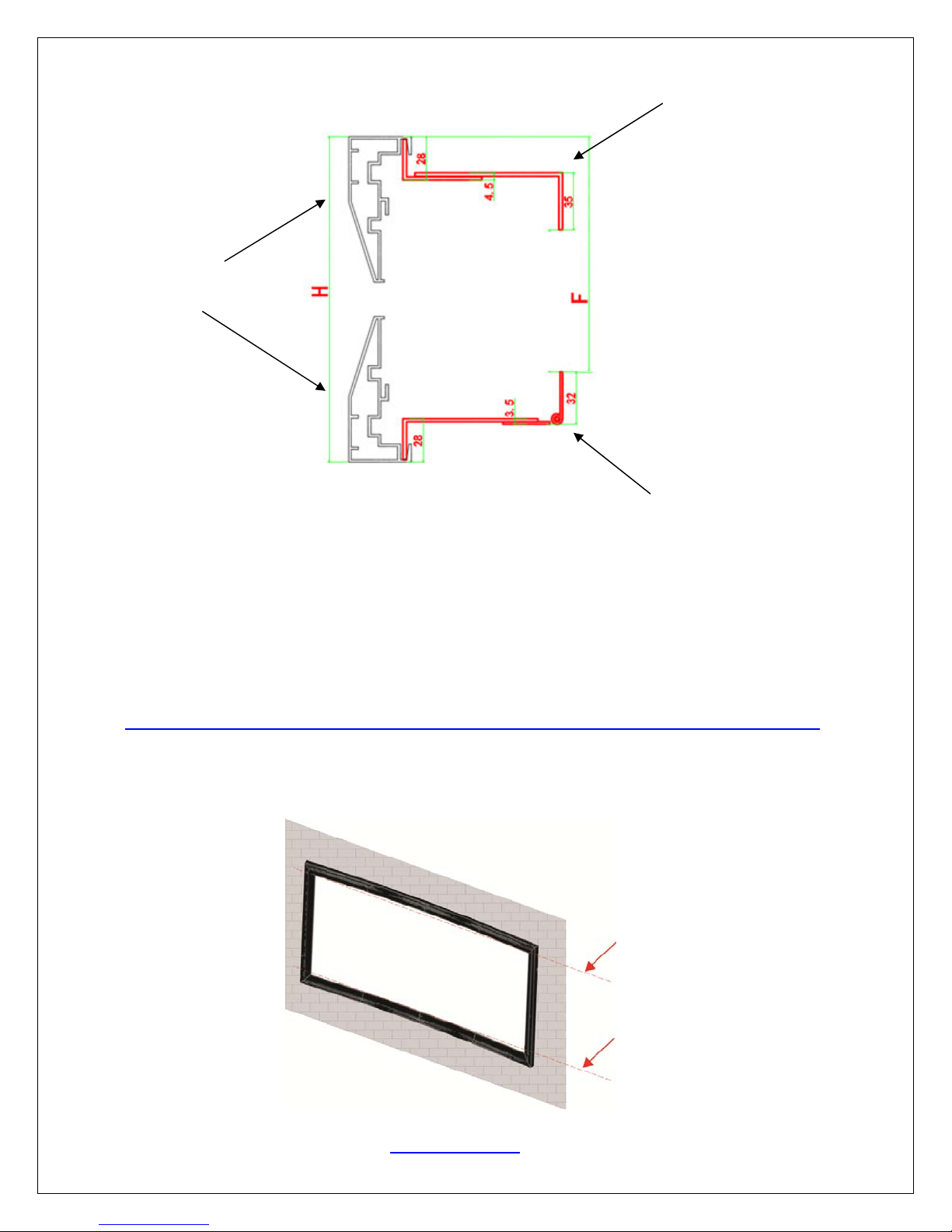

4. Mount the frame on the wall mount in the center. Then, slide the upper brackets over to the frame
grooves and gently pull the frame down onto the bracket. The lower bracket will also slide into the groove of
the lower frame.
Upperbaseline
Lowerbaseline
TopBracket
BottomBracket
Frame
H=Overallheight
F=H‐149.9mm(5.9”)
ForHMeasurement,pleaseviewthedimensionstableat:
www.elitescreens.com/index.php/download/product‐dimension‐table‐and‐line‐drawings
2/3/2016 www.elitescreens.com9
ForalocalEliteScreenscontactorTechnicalSupport,pleasevisit
www.elitescreens.com
Baseline
Swingthebottom
brackettotheleftor
righttofititinthe
grooveofthelower
frame.
Installationdiagram
offrame andbracket
