Extra-Capacity Kit
Item #1044
Assembly & Installation Instructions
Page 2
CONTENTS
6
1
2
3
4
5
Please DO NOT contact or return this
item to the retailer. Seek assistance
directly from ELEY Corporaon using
the informaon below.
PHONE:
1-866-523-2363 (toll free)
MON- FRI, 8am to 5pm (CST)
E-MAIL:
MON- FRI, 8am to 5pm (CST)
ONLINE:
The SUPPORT secon on our website
www.eleyhosereels.com is available
24/7/365 and contains assembly
videos, repair instrucons and FAQ’s.
QUESTIONS?
PROBLEMS?
STEP 1
STEP 2
Page 3
Insert Cage Nut (4030)
into Front Flange
(4027) as shown.
Locate the 3 screw tube guides inside the Hub
Extension (2564) directly over 3 cage nuts in
the Rear Flange (4028).
Page 4
STEP 3
STEP 1
STEP 2
For Models:
1041 Wall Mount Reel
1042 Free Standing Reel
1043 Two Wheel Cart (see page 9-11)
Page 5
IMPORTANT!
Loosen the bottom screw
ONLY three rotations. DO
NOT completely remove.
STEP 3
STEP 4
Page 6
STEP 5
STEP 6
Page 7
Align the holes on the
axle with the tabs on
the frame.
STEP 7
STEP 8
Page 8
Once completed, return to hose reel assembly
manual and proceed with the next step.
Page 9
STEP 1
STEP 2
For Model:
1043 Portable Cart Reel
Page 10
STEP 3
STEP 4

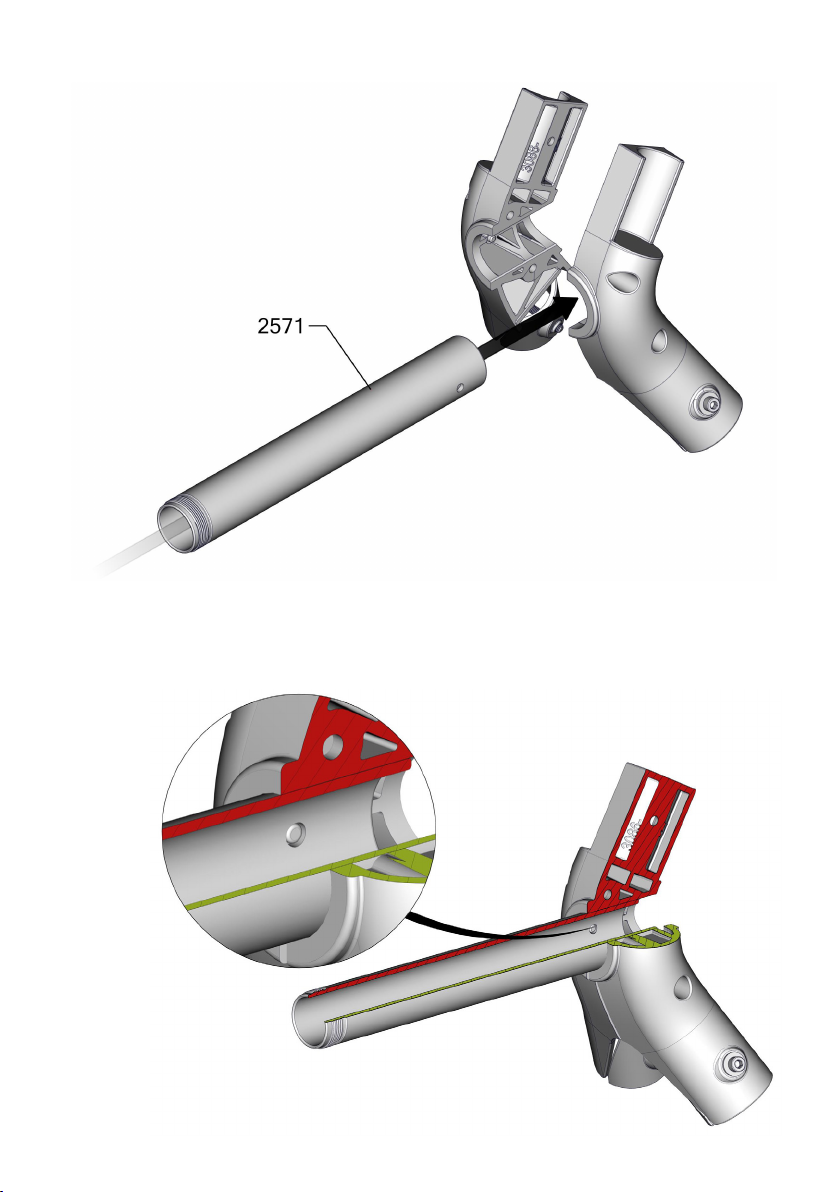

Align the holes on the
axle with the tabs on
the frame wye.
