Eletech NTP-100S Manuel utilisateur

NTP-100S

Private Network Time Server

User’s Manual

First Edition

（C）2022 Eletech Enterprise Co., Ltd

- 1-

TABLE OF CONTENTS

Package Contents................................................................................................. 2

Panel Descriptions ............................................................................................... 3

Connection Diagram......................................................................................................5

Installing NTPClock Client Software..................................................................... 6

LCD Information............................................................................................... 13

Device Configuration.........................................................................................14

- 2-

Package Contents

QUANTITY

ITEM DESCRIPTION

NTP-100S

GPS Receiver with 10 meters long PS2 cable

RJ-45 Network Cable

Power Adapter

Installation CD

If any item is missing or broken upon opening of the package, please contact your

dealer immediately.

- 3-

Panel Descriptions

Top Panel

LED

Color

Status

Indicating

Power

Green

- Solid

- Off

- Power On

- Power Off

Program

Green

- Solid

- Off

- System is ready

- System is not ready

LAN

Green

- Solid

- Flashing

- Off

- Network link established

- Network data activity

- Network link not established

GPS

Green

- Solid

- Off

- GPS signals is acquired

- Acquiring GPS signal or GPS not found

LCD

Display

- 4-

Rear Panel

LAN:RJ-45 Ethernet jack

RS-232:Pin5 & Pin9 output 1PPS signals for time correction

Reset: Reset to factory settings

GPS Ant.:GPS Receiver input jack

DC 12V: Power jack

GPS Receiver

- 5-

Connection Diagram

Connect the NTP-100S to the network as shown in the following diagram.

The NTP-100S Time Server is designed to provide very accurate time obtained from

GPS satellites, so that all PCs in the same network can be precisely synchronized

without accessing any outside NTP servers.

- 6-

Installing NTPClock Client Software

In order to obtain time from the NTP-100S, the PC needs to have the NTPClock client

software installed.

1. Insert the installation CD and open the NTP Clock folder. Double-click setup.exe.

The following dialog box will appear:

- 7-

2. Click Next.

3. Click Next.

- 8-

4. NTPClock is installing..

5. Click Close to finish the installation.

- 9-

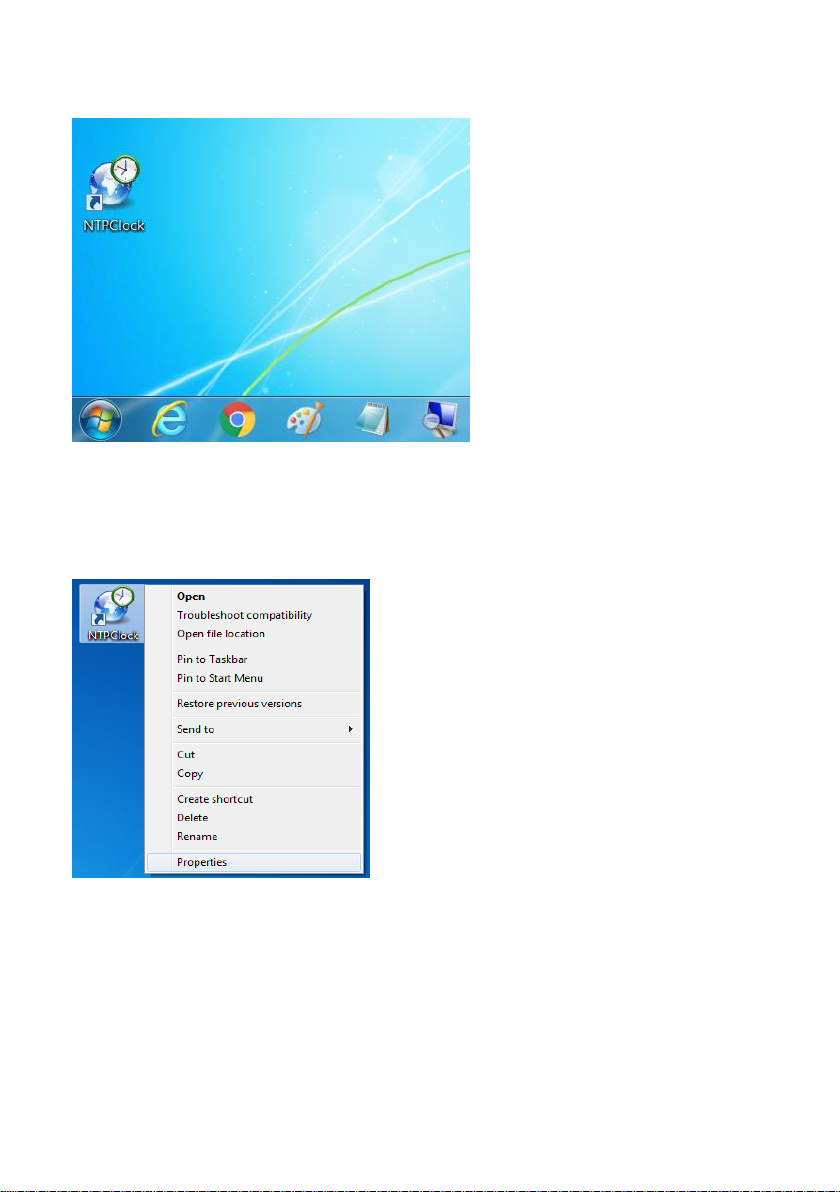

6. After installation, a NTPClock icon will be created on the Windows desktop.

7. Execution of the NTPClock program requires administrator privilege. If you are

not logged in as administrator, you must do the following:

Right click on the NTPClock icon and select Properties.
