Washing machines,

frontloading

EWM2000

Software

W2C01450

WASHING

- 2 -

HV 844-N 11.0 C.D. 599 51 37 57 EN

Electronic EWM2000

The Service Manual to electronic unit EWM2000 serves as a basis.

The main-electronic unit EWM2000 is e uipped with a new software W2C01450.

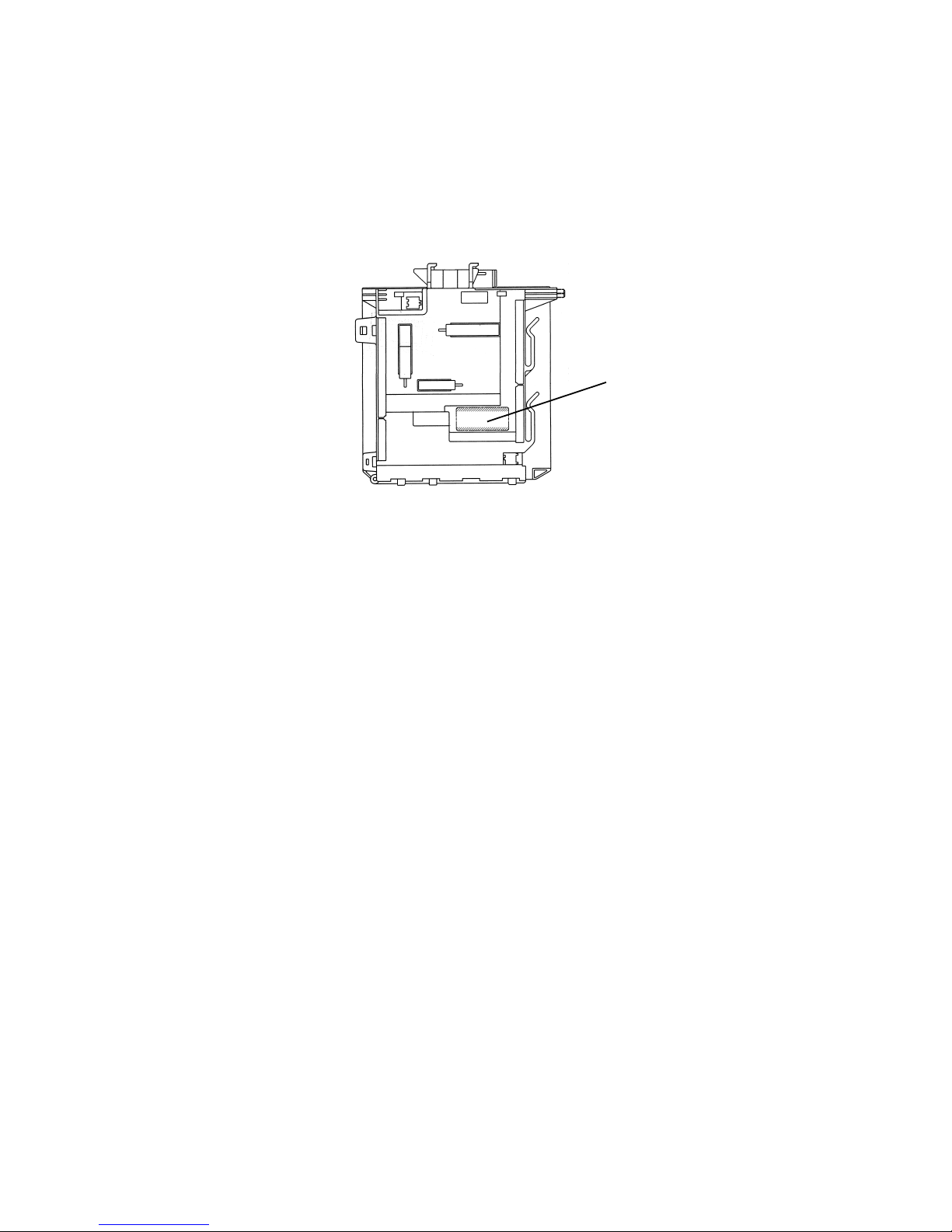

The software version is shown on the type plate of the electronic kit.

SW Ver. W2C01450

The replacement of the main-electronic in appliances with software version W2C01352 / W2C01353 to

software version W2C01450 will change all programs except cotton A/A 40°C / 40 - 60 MIX.

User-interface

Also the different user-interfaces have been changed.

The replacement of the electronic input/ output unit in devices with software W2C01352 / W2C01353 will

not change any previously programs.

- 3 -

HV 844-N 11.0 C.D. 599 51 37 57 EN

Compared to electronic unit EWM2000 with software W2C013 2 / W2C013 2 the following

changes have taken place:

Night cycle

- This function is available for all cotton and synthetic cycles.

- Depending on device version, this function can be selected via the spinning key or a separate key.

- The number of rinses increased from 3 to 6 rinses. All rinses are without a spin phase.

- The program ends with rinse hold.

Super rinse

- More water during rinses.

- One extra rinse added.

- No recirculation pump during every rinse.

- The mainwash and the first rinse are without a spin phase.

- The second and the third rinse end with spinning at 450 1/min.

- Final spin at max. speed.

Extra quick for cotton 40° - 60°

- Very uick program (duration of cycle is about 60 min.) for daily worn laundry.

- The washload is 3,5kg (average houshold load).

- The number of rinses increased from one rinse to two rinses.

- The program cotton/linen 50° is not longer to combine with the option uick or time-saving.

Extra quick for synthetics 40° - 60°

- Very uick program (duration of cycle is about 45 min.) for daily worn laundry.

- The washload is 1,5kg.

- The number of rinses increased from one rinse to two rinses.

Cotton A/A 40° / 40 - 60MIX

- The washing performance and the energy-label increased to "A".

- The temperature and the mechanics have been coordinated.

- By using lower temperature the length of the washing cycle increased.

- The cycle duration is about 140 min.

- The replacement of the electronic EWM2000 and the user-interface unit in devices with software

W2C01352 / W2C01353 will change the cotton/coloured 40°C program to 40 A/A / 40 - 60 MIX.

- 4 -

HV 844-N 11.0 C.D. 599 51 37 57 EN

Temperature (°C) Temperature (°C)

Rpm Rpm

Night-Cycle

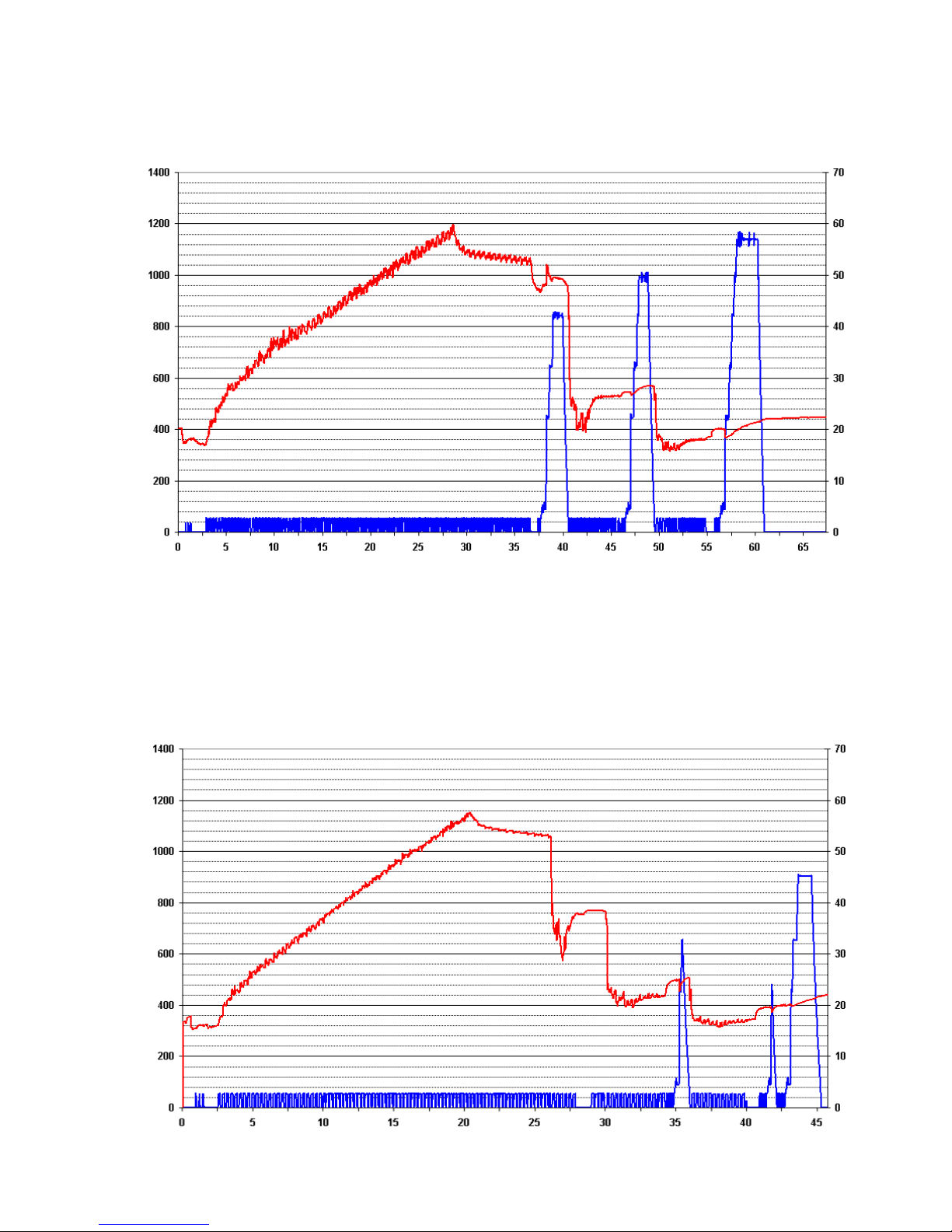

Program diagrams

Cotton 40 A-A / 40-60 MIX

Time (min.)

- 5 -

HV 844-N 11.0 C.D. 599 51 37 57 EN

Temperature (°C)Temperature (°C)

Time (min.)

RpmRpm

Cotton 60° Extra-Quick

Synthetics 60° Extra-Quick
