SERVICE MANUAL

AFFINITY

HORIZONTALAXIS

WASHER

6000 & 7000

SERIES

5995456851 April 2006

ELECTROLUX MAJOR APPLIANCES OF NORTH AMERICA

White-Westinghouse

ATTENTION!!!

This service manual is intended for use by persons having electrical and mechanical

training and a level of knowledge of these subjects generally considered acceptable in the

appliance repair trade. Electrolux Home Products cannot be responsible, nor assume any

liability, for injury or damage of any kind arising from the use of this manual.

SAFE SERVICING PRACTICES - ALL APPLIANCES

To avoid personal injury and/or propertydamage, it is important that Safe Servicing

Practices be observed. The following are some limited examples of safe practices:

1. DO NOT attempt a product repair if you have any doubts as to your ability to

complete it in a safe and satisfactory manner.

2. Before servicing or moving an appliance:

• Remove the power cord from the electrical outlet, trip the circuit breaker to the

OFF position, or remove the fuse.

• Turn off the gas supply.

• Turn off the water supply.

3. Never interfere with the proper operation of any safety device.

4. USE ONLY REPLACEMENT PARTS CATALOGED FOR THIS APPLIANCE.

SUBSTITUTIONS MAY DEFEAT COMPLIANCE WITH SAFETY

STANDARDS SET FOR HOME APPLIANCES.

5. GROUNDING: The standard color coding for safety ground wires is GREEN, or

GREEN with YELLOW STRIPES. Ground leads are not to be used as current

carrying conductors. It is EXTREMELY important that the service technician

reestablish all safety grounds prior to completion of service. Failure to do so will

create a hazard.

6. Prior to returning the product to service, ensure that:

• All electrical connections are correct and secure

• All electrical leads are properly dressed and secured away from sharp edges,

high-temperature components, and moving parts

• Allnon-insulated electrical terminals, connectors, heaters, etc. areadequately

spaced away from all metal parts and panels

• All safety grounds (both internal and external) are correctly and securely

connected

• All panels are properly and securely reassembled

SAFE SERVICING PRACTICES 2

QUICK REFERENCE SHEET 7

Serial nameplate location 7

Serial number breakdown 7

Tech sheet location 7

Component resistance chart 8

Water fill height 8

Electrical requirements 8

Incoming water pressure 8

Drain requirements 8

Motor 8

Operation speeds 9

Tub pulley to motor pulley ratio 9

Tub capacity 9

Auto temp control temperature specifications 9

Sample schematic (6000) 10

Sample schematic (7000) 11

SECTION A - INSTALLATION INSTRUCTIONS 12

What to do if you smell gas 12

Pre-installation requirements 12

Tools required for installation 12

Electrical requirements 12

Circuit 12

Power supply 12

Outlet receptacle 12

Grounding requirements 12

Water supply requirements 13

Drain requirements 13

Rough-in dimensions 14

Location of your washer 16

Do not install your washer 16

Minimum installation clearances 16

Unpacking 16

Drain hose installation 17

Installation 18

Leveling the washer 18

Replacement parts 19

SECTION B - Washer & Dryer Pedestal Installation Instructions 20

Washer Installation 20

Dryer installation 22

SECTION C - OPERATING INSTRUCTIONS (6000) 25

Before operating your washer 25

Operating steps 25

Cycle selection 26

Heavy duty 26

Normal wash 26

Perm press 26

Quick 26

Delicates 26

Hand wash 26

Spin only 26

Cycle settings 26

Wash/rinse water temperature 26

Auto temp 27

Spin Speed 27

Soil level 27

Water Level 27

Cycle options 27

Stain clean 27

Extra rinse 27

Extended spin 27

Signal volume 27

Washer features 27

Delay start 27

Control lock 28

Estimated cycle time 28

Status lights 28

Start/Pause 28

Cancel 28

Cycle selection chart 29

SECTION D - OPERATING INSTRUCTIONS (7000) 30

Before operating your washer 30

Operating steps 30

Cycle selection 31

Deep Clean Sanitary 31

Heavy duty 31

Normal wash 31

Perm press 31

Delicates 31

Hand wash 31

Spin only 31

Cycle settings 32

Wash/rinse water temperature 32

Auto temp 32

Spin Speed 32

Soil level 32

Water Level 32

Cycle options 32

Stain clean 32

Extra rinse 32

Extended spin 33

Signal volume 33

Washer features 33

Delay start 33

Control lock 33

Estimated cycle time 33

Status lights 33

Drum light 33

Start/Pause 33

Cancel 33

Cycle selection chart 34

SECTION E - OWNER’S GUIDE 35

Product record 35

Your safety and the safety of others is very important 35

Important safety instructions 35

Read all instructions before using this washer 35

Prevent fire 36

Protect Children 36

Prevent Injury 36

Washing procedures 37

Sort laundry into loads that can be washed together 37

Prepare items for washing 38

Pretreat stains and heavy soil 38

Add laundry load to washer 38

Add detergent, bleach and fabric softener to automatic dispenser 39

Start the washer 40

Remove items when the cycle is completed 40

General precautions 40

Stain removal 41

Safe stain removal procedures 41

Successful stain removal 41

Stain removal 42

Common washing problems 43

Care and cleaning 44

Outside 44

Cleaning the dispenser drawer area 44

Winterizing instructions 45

Avoid service checklist 46

Warranty 49

SECTION F - OPERATION 50

Control 50

Drum light assembly 50

Door Switch Assembly 50

Pressure Switch 51

Electronic water level sensor 52

Water Inlet Valve 52

Valve operation 52

Auto temp system 54

Automatic Dispenser 55 - 58

Drain Pump 59

Speed Control 59

Motor 59

SECTION G - CONSTRUCTION 60

Cabinet 60

Front Panel and Door Assembly 60

Bellows (Door Boot) 60

Outer Tub Assembly 60

Spin Basket Assembly 60

SECTION H - TROUBLESHOOTING 61

Reading error codes 61

Quick check 61

To clear latest stored error code 61

Troubleshooting the Drum Light Circuit 61

Diagnostic test 62

To start the test 62

Exiting diagnostic mode 62

Failure code chart 63

Jacks and plugs 65

Test 67

SECTION I - TEARDOWN 69

Removing the detergent drawer 69

Detergent drawer disassembly 69

Removing door strike 70

Removing loading door 70

Disassembling the door 70

Removing the top panel 71

To remove light switch 71

Releasing the bellows from the front panel 72

Removing the door safety switch 72

Releasing the console 73

Removing the electronic control 74

Removing the delay start button 74

Removing the interface board 74

Removing the selector knob 74

Removing the front panel 75

Removing the drain pump assembly 75

Disassembling the drain pump 76

Removing the pressure switch 77

Removing the electronic water level sensor 77

Removing the heater control board 78

Removing the light transformer 78

Removing the light socket 78

Removing the transformer and heater control board mounting bracket 79

Removing the console mounting brace 79

Removing the bellow or boot 79

Reinstalling or replacing the boot 80

Removing the weight ring 82

The water inlet and overflow/vent tube grommet 82

Removing the water inlet grommet 82

Removing the overflow/vent tube grommet 83

Removing the overflow/vent tube 83

Removing the water inlet valve assembly 84

Removing the water inlet screens 85

Removing the top rear brace 85

Removing the suspension springs 85

Removing the top center brace 86

Removing the detergent cavity assembly 86

Removing the detergent dispenser outlet hose 88

Removing the siphon break hose 88

Removing the drain sump 88

Removing the hose between the drain pump and the drain hose coupler 88

Removing the external drain hose 89

Removing the drain hose coupler 89

Removing the rear access panel 89

Drive belt 90

Removing or replace the drive belt 90

Removing the large pulley 90

Removing the drive motor 91

Removing the speed control board assembly 91

Removing the right hand air shock absorber 93

Removing the left hand air shock absorber 93

Removing the drum element 94

Removing the drum water NTC 94

Removing the air bell 95

Removing the tub assembly 95

Spin basket vanes 98

Removing the spin basket vanes 98

QUICK REFERENCE SHEET

1. Serial nameplate location:

2. Serial number breakdown.

3. Tech sheet location

XC60215693

Incremented unit number

Production week

Last digit of production year

Product identification

Manufacturing facility

On the inner liner of the loading door

On the left-hand bodyside behind the front

panel.

Resistance 

Electrical component @ 77F (25C)

Dispenser valve soleniods 800 ± 7%

Door lock solenoid 1325 ± 10%

Pump motor 12 ± 7%

NTC Thermistor dispenser 3K

NTC Thermistor heater 4.8K

Water heater 14 ± 10%

M1 TO M2 5.3 ± 7%

M2 TO M3 5.3 ± 7%

M1 TO M3 5.3 ± 7%

M4 TO M5 118 ± 7%

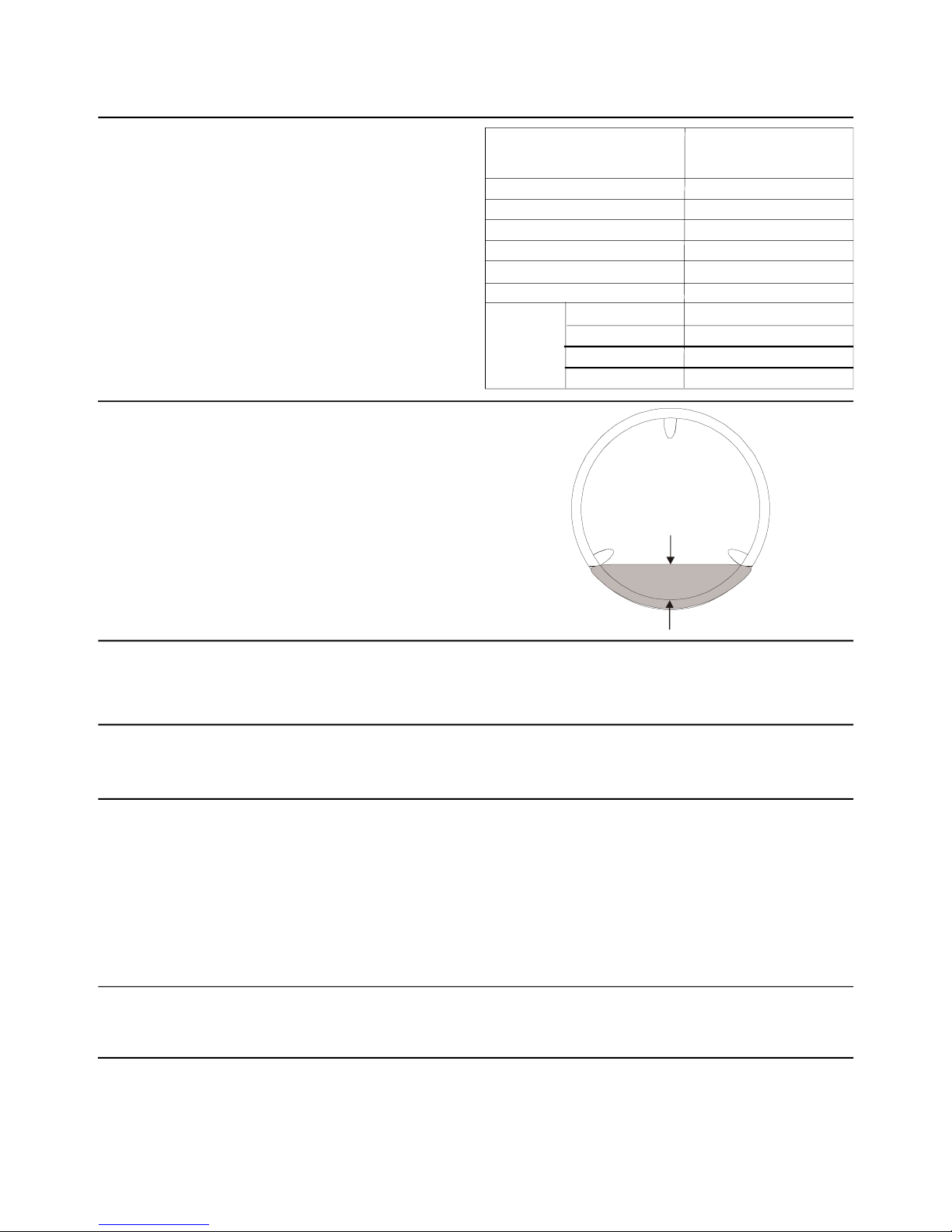

QUICK REFERENCE SHEET

Component resistance chart.

Water fill height 3.5 ± .5 “

No load, start position of permanent press cycle.

Electrical requirements.

Incoming water pressure.

Drain requirements.

Motor.

Water usages

Per fill

Per cycle

Based on 1 wash and 3 rinse fills

Circuit - Individual, properly polarized and grounded 15

amp. branch circuit fused with 15 amp. time delay fuse

or circuit breaker.

30 and 120 pounds per square inch (maximum

unbalance pressure, hot vs. cold, 10 psi.)

Drain capable of eliminating 17 gals (64.3 L) per minute.

A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.

The standpipe height above the floor should be:

Minimum height: 24 in. (61 cm)

Maximum height: 96 in. (244 cm)

Motor

No load agitate wattage - Max 150

No load spin wattage - Max 550

4.23 gallons

16.92 gallons

Operation speeds:

Agitate Speed - RPM (Deep Clean Sanitary, Heavy, Normal, Quick, and Prem Press ) 47

Agitate Speed - RPM (Hand Wash, Delicate, and Wool) 32

Spin speeds 6000 Series Models 7000 Series Models

Deep Clean Sanitary

Heavy Duty, Normal & Quick RPM Sec. RPM Sec. RPM Sec. RPM Sec.

Spin Speed R.P.M.(Max) 1000 150 1050 240 1000 150 1100 240

Spin Speed R.P.M. (Fast) 1000 150 1050 210 1000 150 1100 210

Spin Speed R.P.M. (Medium) 1000 150 1020 180 1000 150 1100 180

Spin Speed R.P.M. (Slow) 1000 300 1000 300

Perm Press

Spin Speed R.P.M.(Max) 1000 90 1000 90

Spin Speed R.P.M. (Fast) 1000 60 1000 60

Spin Speed R.P.M. (Medium) 1000 45 1000 45

Spin Speed R.P.M. (Slow) 1000 30 1000 30

Delicate & Hand Wash

Spin Speed R.P.M.(Max) 1000 40 1000 40

Spin Speed R.P.M. (Fast) 1000 30 1000 30

Spin Speed R.P.M. (Medium) 1000 15 1000 15

Spin Speed R.P.M. (Slow) 1000 10 1000 10

Spin Only

Spin Speed R.P.M.(Max) 1000 150 1050 240 1000 150 1100 240

Spin Speed R.P.M. (Fast) 1000 150 1050 210 1000 150 1100 210

Spin Speed R.P.M. (Medium) 1000 150 1020 180 1000 150 1100 180

Spin Speed R.P.M. (Slow) 300 1000 300

Tub Pulley to Motor Pulley Ratio 16 TO 1

Tub Capacity 3.5 cu. ft.

Automatic Temperature Control Specifications.

Auto Temp Sanitary Cycle 152 ± 7F

Auto Temp hot/cold setings 120 ± 7F

Auto Temp warm/warm and warm /cold settings 90 ± 7F

Auto Temp cold/cold settings 65± 7F

SAMPLE SCHEMATIC FOR 6000 SERIES

ALWAYS USE DIAGRAM WITH PRODUCT

LEVEL SENSOR

C5.5

C5.3

C5.1

J9 C4.1

C4.3

C4.4

BLU

WHT

RED

J12 C3.1

J4 C4.4

BLACK/RED

J4 C4.3

C4.2

C4.1

PURP

TAN

RED

BLK

BLEACH

WASH

HOT

BLACK/RED

DISPENSER VALVE

EVENT

WASH

BLEACH

DETERGENT

SOFTENER

X = CLOSED

O = OPEN

GROUND

GRN

CABINET TUB SPEED

CONTROL

WHT

C2.1

C2.2

J14

J13

C4.1

C4.2

C4.3 C4.3

C4.4 C4.4

YEL

INTERFACE BOARD

+T NTC

(SELECT MODELS)

BRN

C3.1

C3.3

C5.1

C5.3

C5.5

ORG

GRAY

PINK

DOOR LOCK

AUXILIARY SWITCH

4.1 4.2

DOOR LOCK

2.1 4.4

3.1 3.3

WAX MOTOR

DOOR SWITCH

2.2 4.3

RED/BLK

BLK

J2 C2.2

C2.2 C2.2

C2.1

BLU C7.1

C7.3

C7.4

GRN

GARY

WHT

MOTOR

FRAME

TACHO

GENERATOR

MOTOR

BRN

RED

ORG

C7.5

C7.6

C7.7

MOTOR CONTROL BOARD

C5.1

C5.2

C5.3

C5.4

C5.5

C5.5 RED

WHT

BLK

BLU

YEL

WIRING CODES

CONNECTION

NO CONNECTION

CABINET GROUND

LOCAL GROUND

BLACK/RED

PUMP

PINK/BLK

Autres manuels pour 6000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Rondelle

Electrolux

Electrolux EWF12942 Manuel utilisateur

Electrolux

Electrolux EWF 14580 W Manuel utilisateur

Electrolux

Electrolux EWF 1486 HDW Manuel utilisateur

Electrolux

Electrolux EW6F5348B5 Manuel utilisateur

Electrolux

Electrolux EWT1074M5WA Manuel utilisateur

Electrolux

Electrolux EW 1100 F Guide rapide

Electrolux

Electrolux SATF7000FS1 Manuel utilisateur

Electrolux

Electrolux LAVAMAT 64850L Manuel utilisateur

Electrolux

Electrolux EWF14012 Manuel utilisateur

Electrolux

Electrolux EW 705 F Guide rapide

Electrolux

Electrolux EWF1141SEWA Manuel utilisateur

Electrolux

Electrolux EWFLW65H - 27'' Front-Load Washer Manuel utilisateur

Electrolux

Electrolux EW7T3372 Manuel utilisateur

Electrolux

Electrolux W5105N Manuel utilisateur

Electrolux

Electrolux LAVAMAT 62610 Manuel d'utilisation

Electrolux

Electrolux ews 1042 edu Manuel utilisateur

Electrolux

Electrolux EW 934 S Manuel utilisateur

Electrolux

Electrolux WD001326 Manuel utilisateur

Electrolux

Electrolux EWG 14550 W Manuel utilisateur

Electrolux

Electrolux EWT 1466 HDW Manuel utilisateur

Electrolux

Electrolux EWS1066EDW Manuel utilisateur

Electrolux

Electrolux EIFLW55HIW - 27" Front-Load Washer Manuel utilisateur

Electrolux

Electrolux EW 1235 F Guide rapide

Electrolux

Electrolux EWP 1274 TDW Manuel utilisateur

Manuels Rondelle populaires d'autres marques

Tricity Bendix

Tricity Bendix AW 1000 W Guide produit

Panasonic

Panasonic NA-F60L5WRB Manuel utilisateur

GE WSLP1500 Manuel

Bosch

Bosch WAN2829BSN Manuel utilisateur

LG TV2516DV3B Manuel utilisateur

LG TH2517DSAV Manuel utilisateur

VESTEL

VESTEL CMH-XL 7510 TE Manuel utilisateur

AEG

AEG 74335 Manuel d'utilisation

Johnson

Johnson JWF721A Manuel utilisateur

Beko

Beko WTE7604XLW0 Manuel utilisateur

Danby

Danby DTT100A1WDB Instructions de montage

Amica

Amica WA 14 Ex Manuel utilisateur

Daewoo

Daewoo DWD-F1222 Manuel utilisateur

Bosch

Bosch WAS28461AU Manuel utilisateur

Miele

Miele PW 6080 Vario Manuel utilisateur

Finlux

Finlux FLX108CF220 Manuel utilisateur

Whirlpool

Whirlpool 3LBR5132AN0 Manuel utilisateur

Beko

Beko WKB 51231 PTMA Manuel utilisateur
