Warming Drawer

EN User Manual

2 WWW.ELECTROLUX.COM

CONTENTS

SAFETY INFORMATION........................................................................................3

SAFETY INSTRUCTIONS......................................................................................5

PRECAUTIONS DURING USE ..............................................................................6

APPLIANCE DESCRIPTION..................................................................................7

USE.........................................................................................................................8

LOAD CAPACITY.................................................................................................11

CLEANING AND MAINTENANCE........................................................................12

WHAT SHOULD I DO IF THE CROCKERY WARMER DOESN’T WORK? ........13

INSTALLATION INSTRUCTIONS........................................................................13

ENVIRONMENT CONCERNS..............................................................................14

INSTALLATION ....................................................................................................15

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips.

Environmental information.

Subject to change without notice.

ENGLISH 3

SAFETY INFORMATION

Carefully read the instructions before installing and

using the equipment. The manufacturer is not

liable for improper installation and use of the

equipment that may cause injuries and damage.

Always keep the instructions at hand, so they can

be easily referred to during use.

Safety of children and vulnerable adults

WARNING!

Risk of choking, injury or permanent disability.

This appliance can be used by children aged 8

years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they are given

supervision or instructions concerning how to

use the appliance in a safe way and understand

the hazards involved.

Children should not play with the appliance.

Keep packaging materials away from children.

Keep children and pets away from the appliance

during operation or when cooling.

Cleaning and maintenance should not be done

by children without supervision.

Installation

Make sure that the Warming Drawer is not

damaged in any way. Check that the drawer

opens and closes correctly. If you find any

damage, contact the Technical Assistance

Service.

4 WWW.ELECTROLUX.COM

Electrical installation must be performed by an

electrician qualified in accordance with the

legislation in force.

Warnings on general safety

During installation, follow the instructions

supplied separately.

Only qualified personnel can install the

appliance and replace the cable.

WARNING: The appliance and its accessible

parts become hot during use. Care should be

taken to avoid touching heating elements.

Children less than 8 years of age shall be kept

away unless continuously supervised.

During use the appliance becomes hot. Care

should be taken to avoid touching heating

elements inside the oven.

WARNING: Accessible parts may become hot

during use. Young children should be kept

away.

Do not use harsh abrasive cleaners or sharp

metal scrapers to clean the oven door glass

since they can scratch the surface, which may

result in shattering of the glass.

Do not use steam cleaners to clean the

appliance.

Do not use abrasive detergents or metal

scrapers to clean the appliance.

The electric connection is made via an

omnipolar switch, which is suitable for the

intensity to be tolerated and which has a

minimum gap of 3mm between its contacts,

ENGLISH 5

which will ensure disconnection in case of

emergency or when cleaning the Warming

Drawer. If a plug is used for the electric

connection, then it must be accessible after

installation.

The connection should include correct earthing,

in compliance with current norms.

Disconnect the appliance from the power supply

before carrying out any maintenance operation.

SAFETY INSTRUCTIONS

WARNING!

Before connecting the appliance

compare the power data (voltage and

frequency) indicated on the

characteristics plate with those of the

power supply in question. If these data

do not match there may be problems.

In case of doubt, contact an electrician.

WARNING!

If the electrical wire plug is removed,

the appliance must be installed and

connected by a technician. Contact a

qualified electrician who knows and

respects current safety standards. The

manufacturer cannot be held

responsible for damage resulting from

fitting or connecting errors.

WARNING!

The electrical safety of the appliance

can only be guaranteed if it is earthed.

The manufacturer cannot be held

responsible for damage resulting from

the absence of or defects in the

installation’s protection system (e.g.

electrical shock).

WARNING!

Only use the appliance once it has

been fitted into its built-in position.

Only in this manner can it be

guaranteed that users cannot access

the electrical components.

WARNING!

Never open up the appliance’s frame.

Possible contacts with electrical

conducting parts or changes to

electrical or mechanical components

may represent a danger to users’

safety and prejudice the correct

working of the appliance.

WARNING!

Repairs and maintenance, especially

of parts carrying electrical current,

must only be done by technicians

authorised by the manufacturer. The

manufacturer and retailers do not

accept responsibility for any damage

caused to people, animals or property

as a result of repairs and maintenance

carried out by non-authorised

personnel.

6 WWW.ELECTROLUX.COM

WARNING!

Repairs undertaken during the

guarantee period must only be done

by technicians authorised by the

manufacturer. If this is not the case

then any damage resulting from the

repair in question is excluded from the

guarantee.

WARNING!

The appliance must be disconnected

from the electrical current when

installation and repair work is being

done. To disconnect the appliance

from the current, one of the following

conditions must apply:

The switchboard fuses / circuit

breakers must be disconnected.

The plug should be removed from

the socket. To remove the plug from

the socket do not pull on the electric

cable but rather pull out the plug

itself directly.

PRECAUTIONS DURING USE

This appliance complies with current

safety standards. Improper use of

the appliance may put the user at

risk.

Read the operating instructions

carefully before using the appliance

for the first time. In this way you will

avoid the risk of injuring yourself or

damaging the appliance.

Depending on the temperature

selected and the operating time, the

temperature inside the appliance

may reach 80 ºC. To take crockery

out of the crockery warmer protect

your hands by using oven gloves or

an oven cloth.

Do not sit or hang on the drawer.

The telescopic runners will be

damaged. The maximum load

capacity of the drawer is 25 kg.

Do not store synthetic containers or

easily inflammable objects inside the

crockery warmer. When you switch

on the appliance such containers

and objects may melt or catch fire.

Fire danger.

Do not use the appliance to heat up

the air temperature in the kitchen.

The high temperatures reached may

cause easily inflammable objects

close to the appliance to catch fire.

Do not use high pressure or steam

jet cleaning devices. The steam may

affect electrical components and

cause a short circuit. The steam

pressure may also cause damage to

the appliance’s surface and

components in the long term.

When you stop using the appliance

at the end of its working life,

disconnect it from the power supply

and render the electrical cable

unusable so that the appliance is not

a danger if, for example, children use

it for playing.

ENGLISH 7

APPLIANCE DESCRIPTION

MAIN COMPONENTS

HOW THE CROCKERY WARMER WORKS

This appliance is equipped with a

warm air circulation system. A fan

distributes the heat generated by an

electrical heating element throughout

the interior of the appliance.

The thermostat allows the user to

define and control the temperature

wanted for the crockery.

The circulating hot air that is generated

heats up the crockery quickly and

evenly.

A metal grille protects both the heating

element and the fan.

The base of the drawer is fitted with a

non-slip mat to prevent plates and

dishes sliding around, when the

drawer is opened and closed.

Thermostat

Handle

On/Off switch

Anti-Slip mat

Control Lamp

Drawer Grid *

*Drawer Grid only available with the model EED 29800

EED 14650 / 14700 / 29800

8 WWW.ELECTROLUX.COM

USE

BEFORE USING FOR THE

FIRST TIME

Before using the appliance for the first

time you should clean the interior and

the exterior, following the cleaning

instructions given in the section

“Cleaning and Maintenance”.

Then heat the crockery warmer for at

least 2 hours. For this, turn the

temperature control to the maximum

position (see section ‘Selecting

temperature”).

Make sure the kitchen is well-

ventilated when you are doing this.

The appliance’s parts are protected by

a special product. For this reason,

during the first heating an odour will be

released. Both the odour and any

smoke that may form will disappear

after a short time and neither signifies

that there is anything wrong with the

connection or the appliance.

CONTROL PANEL

The control panel has a Thermostat

and on/off switch. The control panel is

only visible when the drawer is open.

USING THE CROCKERY

WARMER

To use the crockery warmer, proceed

as follows:

Put the crockery in the drawer.

Select the function you want by

turning the thermostat control to the

desired position.

Switch on the appliance by pressing

the switch, which will light up.

Close the drawer.

Be careful not to use too much force

when closing the drawer since it may

open up again. Before taking out the

warm crockery you must switch off

the crockery warmer by pressing the

switch again.

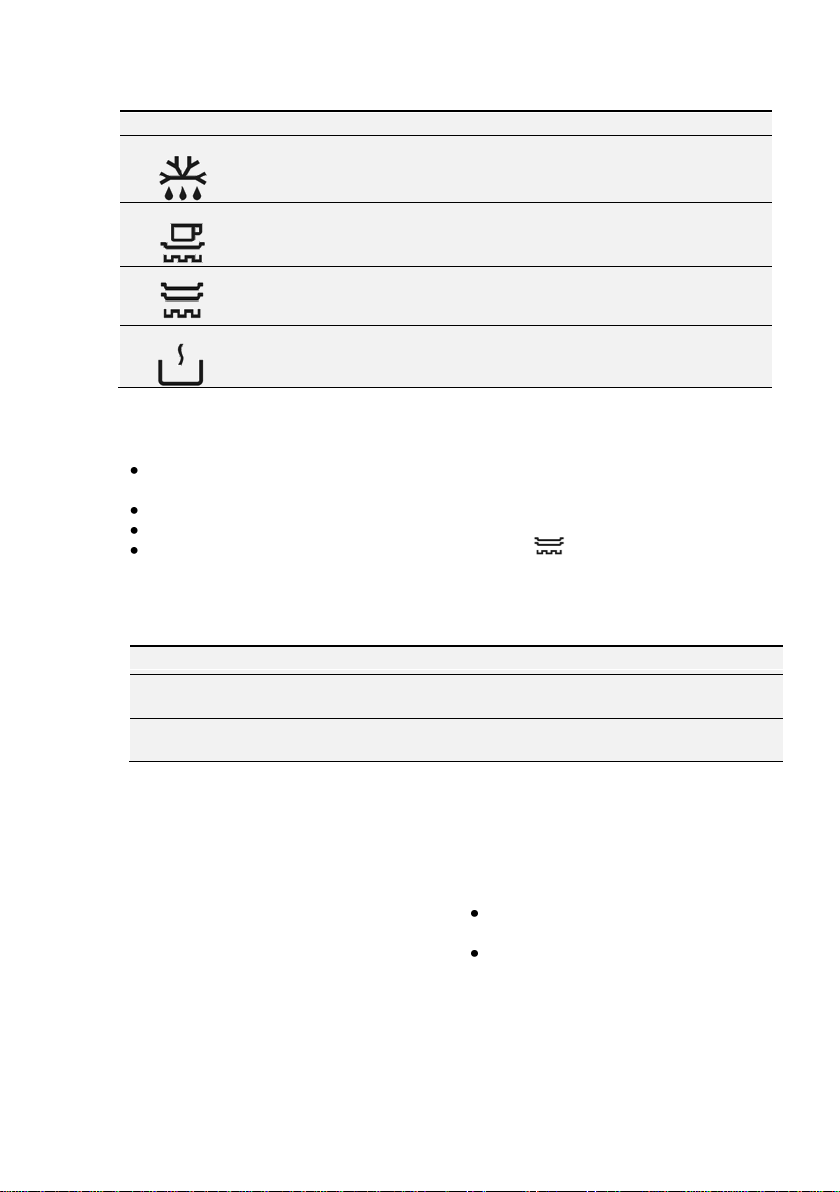

SELECTING FUNCTION

By turning the thermostat control you

can select temperatures between 30

and 80 °C.

Do not force the thermostat control to

the left of the “0” position or to the right

of the maximum position since this

may damage the appliance.

As soon as the selected temperature is

reached, the heating is turned off.

When the temperature drops to a

value below than the one selected, the

heating is turned back on.

The temperature scale is marked with

absolute temperatures in ºC and

symbols which correspond to the

optimum temperatures for groups of

crockery:

ENGLISH 9

Symbol

ºC

Function

30ºC

Defrosting

40ºC

Proving dough

Cups / glasses warming

60ºC

Crockery warming

Keep food warm

80ºC

Food Warming

Low temperature cooking

(Only avaliabe for the EED 29800 Model)

HEATING TIMES

Various factors affect heating times:

Material and thickness of the

crockery;

Load quantity;

How the crockery is arranged;

Temperature setting.

It is therefore not possible to give any

precise heating times.

As you use the crockery warmer more

and more you will learn the best

settings for your crockery.

However, as a guide, the following

times are given for the thermostat

setting and for uniform heating of

the crockery:

Load

Time (min)

Crockery for 6 people

30 –35

Crockery for 12 people

40 –45

SUGGESTIONS FOR THE

FUNCTION KEEP FOOD

WARM AND FOOD

WARMING:

Preheat the Warming Drawer 15

minutes to ensure the interior space

has the required temperature.

LOW TEMPERATURE

COOKING (ONLY AVALIABE FOR

THE EED 29800 MODEL)

With the low temperature cooking

meat can be gently prepared at low

temperatures over a longer period of

cooking time. The cooking time is

dependent on the piece of meat’s size.

Use dishes made of glass, china or

ceramics.

Preparation:

Preheat the device with the dishes at

80°C for 10 minutes.

Sear the meat in a pan using fat and

place it into the heat drawer on the

preheated dishes. Keep the setting

at 80° C.

10 WWW.ELECTROLUX.COM

Table: Low Temperature Cooking (Reference Values)

Application

Quantity

Roast gently on the

cooking plate

Cooking

times

Beef

Completely rare

1kg

on all sides, on each 2min.

1hr

Rare

1kg

on all sides, on each 3min

1.25hrs

Medium

1kg

on all sides, on each 3min

1.75 hrs

Well-done

1kg

on all sides, on each 3min

2.25hrs –

2.5hrs.

Roast beef in

one piece

1kg

on all sides, on each 3min

3 hrs rare

4.5 hrs

medium

Veal

Filet, whole

1kg

on all sides, on each 2min.

1.75 –

2hrs.

Loin, in one

piece

1kg

on all 4 sides, on each 3min.

2 –2.5hrs.

Roast, vat

1kg

on all sides, on each 3min.

2 –2.5hrs.

Roast, shoulder

1kg

on all sides, on each 3min.

2.5hrs.

Porc

Filet, whole

500-600 g

on all sides, on each 2min.

1.5hrs

Loin

600 -

1000g

all around 10-15min.

2 - 3hrs

Lamb

Gigot with

haunch

2kg

on all sides, on each 4min.

3 –4hrs

Gigot steak of

the haunch

2kg

on all sides, on each 2min

0.75-1hr

Filet

400g

on all sides, on each 2min

1 –

1.25hrs.

If you wish to keep the cooked meat warm, put the settingback to 60° C. We

recommend not to use the warming function for more than 1hr

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux tiroir chauffant

Electrolux

Electrolux E30WD75EPS3 Manuel utilisateur

Electrolux

Electrolux EW27WD55GS3 Manuel utilisateur

Electrolux

Electrolux EEDP1470AX Manuel utilisateur

Electrolux

Electrolux WARMER DRAWER Manuel utilisateur

Electrolux

Electrolux WARMER DRAWER Manuel utilisateur

Electrolux

Electrolux 318 201 017 Manuel utilisateur

Electrolux

Electrolux EW30WD55GS Manuel utilisateur

Electrolux

Electrolux EW27WD55GS3 Manuel utilisateur

Electrolux

Electrolux EWD1402DSD Manuel utilisateur

Electrolux

Electrolux 318201810 Manuel utilisateur

Electrolux

Electrolux EW27WD55GS Manuel utilisateur

Electrolux

Electrolux E30WD75EPS Manuel utilisateur

Electrolux

Electrolux E30WD75ESS1 Manuel utilisateur

Electrolux

Electrolux 318202107 Manuel utilisateur

Electrolux

Electrolux WARM & SERVE DRAWER Manuel utilisateur

Electrolux

Electrolux 318 201 016 Manuel utilisateur

Electrolux

Electrolux E30WD75GPS3 Manuel utilisateur

Electrolux

Electrolux E30WD75GTT2 Manuel utilisateur

Electrolux

Electrolux EED29600X Manuel utilisateur

Electrolux

Electrolux Icon E30WD75GSS Manuel utilisateur

Electrolux

Electrolux ICON E39WD75GTT Manuel utilisateur

Electrolux

Electrolux 318201808 Manuel utilisateur

Electrolux

Electrolux WS16 Manuel utilisateur

Electrolux

Electrolux WARMER DRAWER Manuel utilisateur

Manuels tiroir chauffant populaires d'autres marques

Siemens

Siemens HW 290 Series Manuel utilisateur

Hatco

Hatco HDW-1 Instructions d'installation

APW Wyott

APW Wyott WD-2CMF Manuel utilisateur

Viking

Viking DEWD102SS Manuel utilisateur

Miele

Miele ESW 6229 Manuel utilisateur

Brandt

Brandt WD1014X Manuel utilisateur

KitchenAid

KitchenAid KOWT107ESS Manuel utilisateur

Gaggenau

Gaggenau WSP 222 Manuel utilisateur

DCS

DCS WDI Manuel utilisateur

Fisher & Paykel

Fisher & Paykel OR90SCG6R1 Manuel utilisateur

Fisher

Fisher PROFESSIONAL WB76SPEX1 Manuel utilisateur

Hanseatic

Hanseatic TCN14J6D-S Manuel utilisateur

Jenn-Air

Jenn-Air JWD6030CDX Manuel utilisateur

Gaggenau

Gaggenau WS482710 Manuel utilisateur

Bosch

Bosch HWD2720UC Manuel utilisateur

NEFF

NEFF N29HA11Y2 Instructions d'utilisation et d'entretien

Fisher & Paykel

Fisher & Paykel WB60SMTB1-SET Manuel utilisateur

Bull

Bull W85747 Manuel utilisateur
