Electrolux EL8600 Series Instructions d'installation

EL8600 Series Assembly / Disassembly Guide

Table of Contents

Soleplate & Brushroll Section A Page 2

Hood Section B Page 3

Brushroll Motor & Drive Assembly Section C Page 4

Front Housing Section D Page 5

Suction Motor Section E Page 6

Tools Required:

Saey Glasses

Clean Pad or So Cloth (to prevent scratching of plastic parts during repair)

Phillips Head Screwdriver

Flathead Screwdriver

Torx-20 Screwdriver

Torx-10 Screwdriver

Note: Before any repair work is performed make sure the unit is unplugged.

Note: Prior to performing any maintenance look at the RPL to become familiar with the

part names and locations.

Before servicing remove on-board tools, hose, and dust cup to allow easier access to ma-

chine.

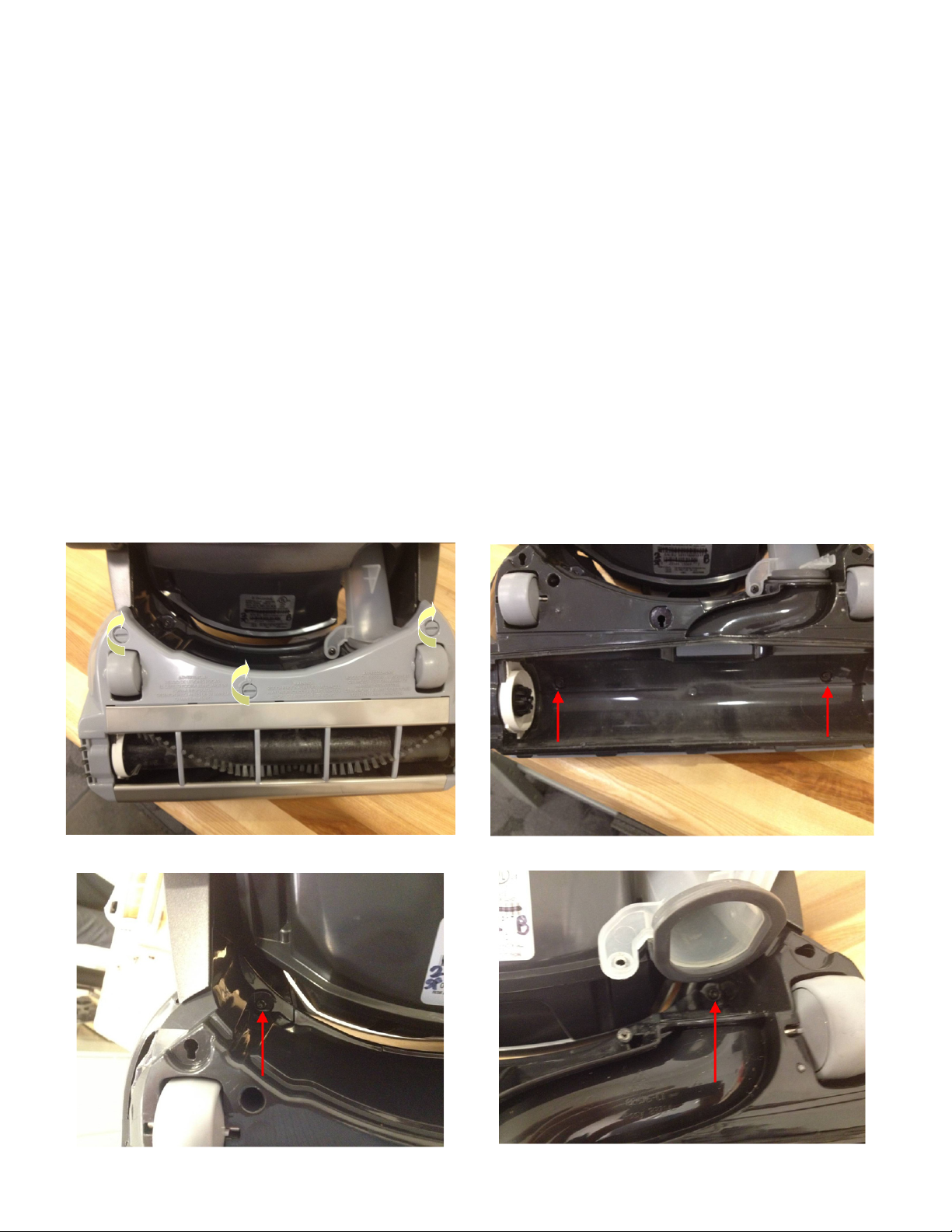

A. Soleplate & Brushroll Assembly Removal / Installation

•Rotatethethree1/4TurnLockstothe“Unlock”positiontoremovesoleplate(PictureA.1)

•Removethebrushroll 

•Remove2xT-20screwsunderbrushroll(PictureA.2)

•Remove2xT-20screwstowardsthebackofthebase.Oneispartiallyhiddenbytheclear 

 airtube,soyoumayneedtoremovethephillipsscrewandmoveitoutoftheway  

 (PictureA.3andA.4)

•Reassembleinreverseorder

Picture A.1 Picture A.2

Picture A.3 Picture A.4

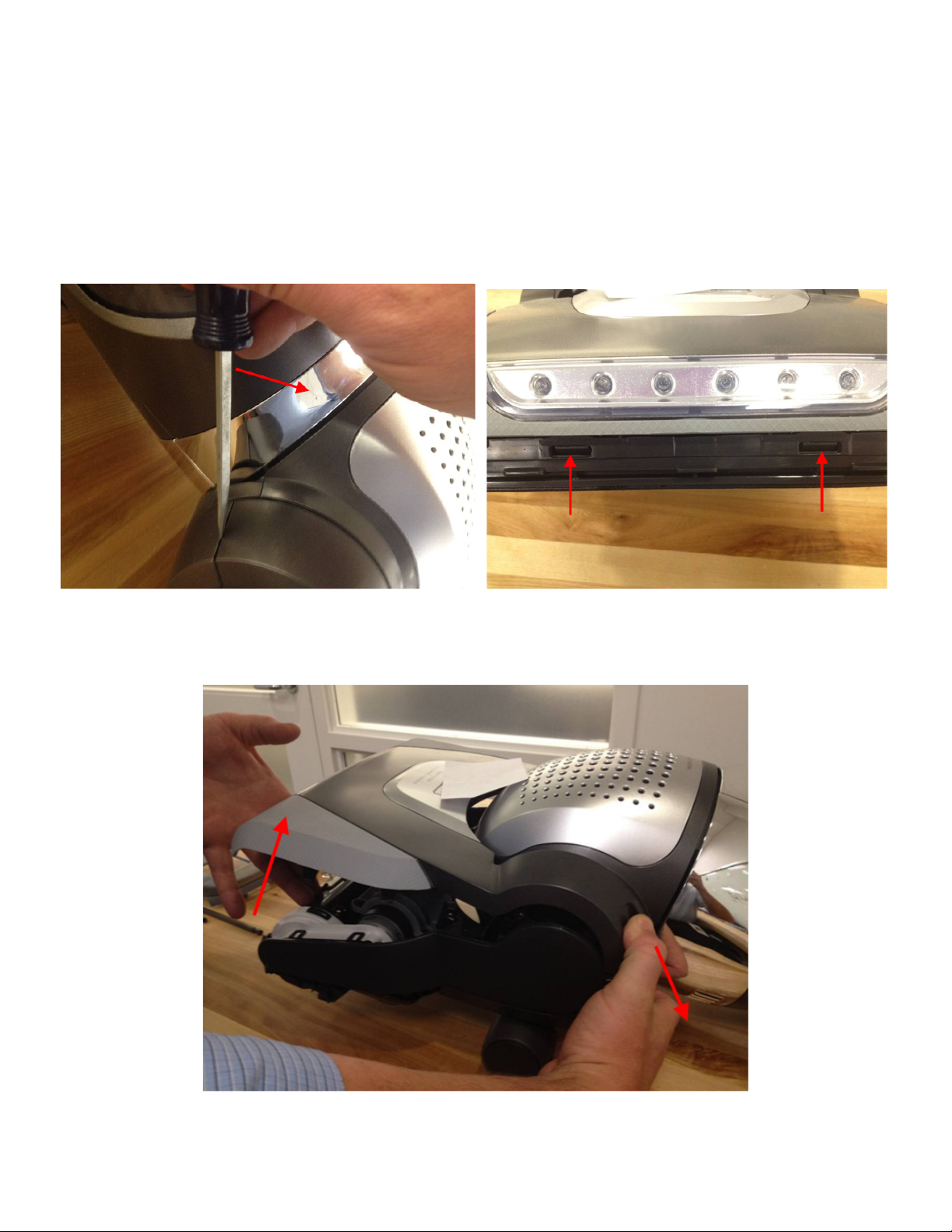

B. Hood Removal / Installation

•RemovetheSoleplate&Brushroll(SectionA)

•UsingFlatheadScrewdriver,prybewteenhoodandbaseonleside,whilefacingtheunit,

 toreleasehoodclip(PictureB.1)

•Pressinonfrontsnapstodisengagefrombase(PictureB.2)

•Whilepullingthehandlereleasepedalback,liupwardsonthehooduntilthesnap

 disengagesfromtherightside(PictureB.3)

•Reassembleinreverseorder

  PictureC.1      PictureC.2









PictureC.3

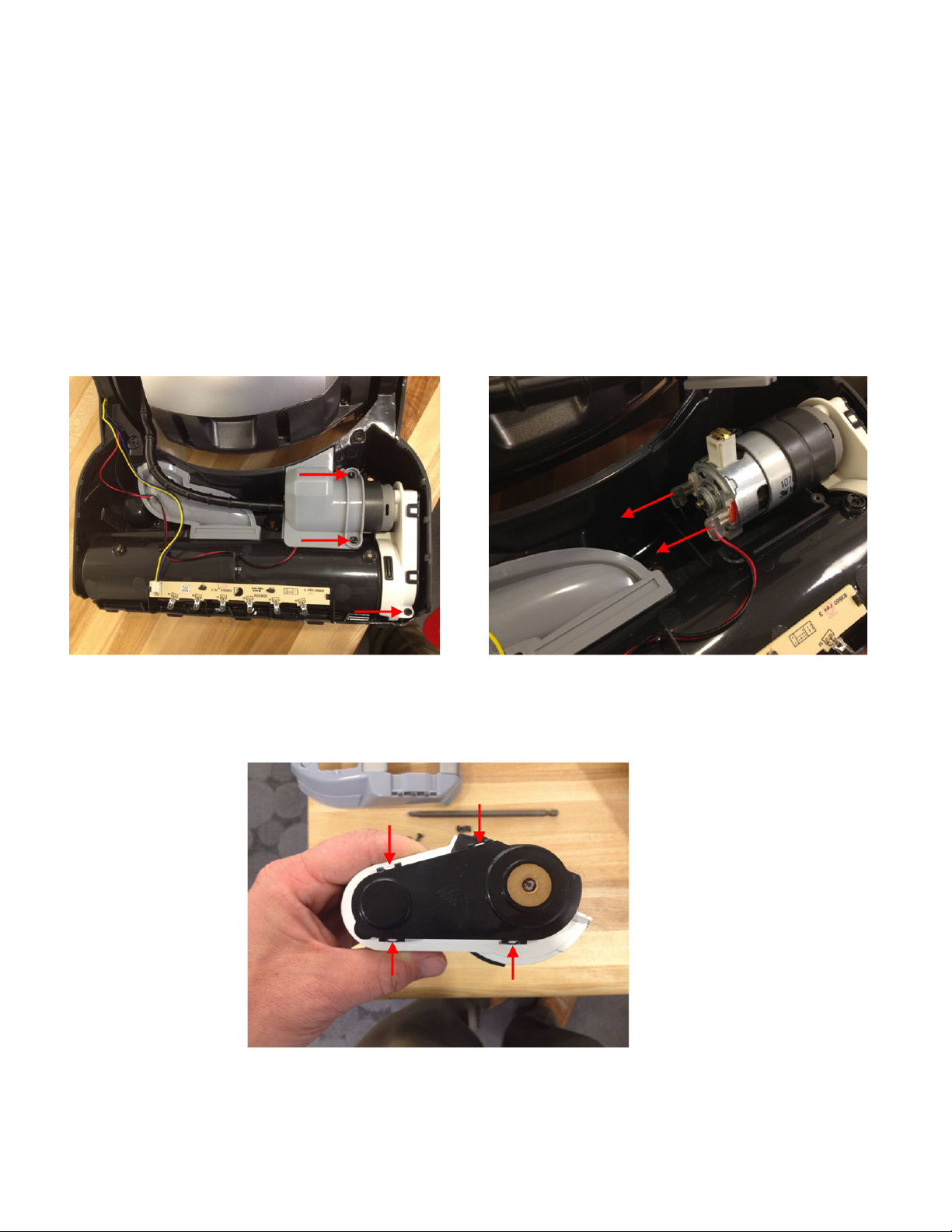

C. Brushroll Motor Removal / Installation

•RemovetheSoleplate&Brushroll(SectionA)

•RemoveHood(SectionB)

•Remove2xT-20screwsfromtheBrushrollMotorCover(PictureC.1)

•Disconnectthepositiveandnegativeterminalsfromthemotor(PictureC.2)

•Remove1xT-20screwfromtheDriveAssembly(PictureC.1)

•LitheDriveassemblyoutofbaseanduseatheadscrewdrivertodisengagethefour

 clipswhichholdthecoverinplace(PictureC.3)

•Nowbeltisaccessibleforreplacement

•Reassembleinreverseorder

  PictureC.1      PictureC.2

      PictureC.3

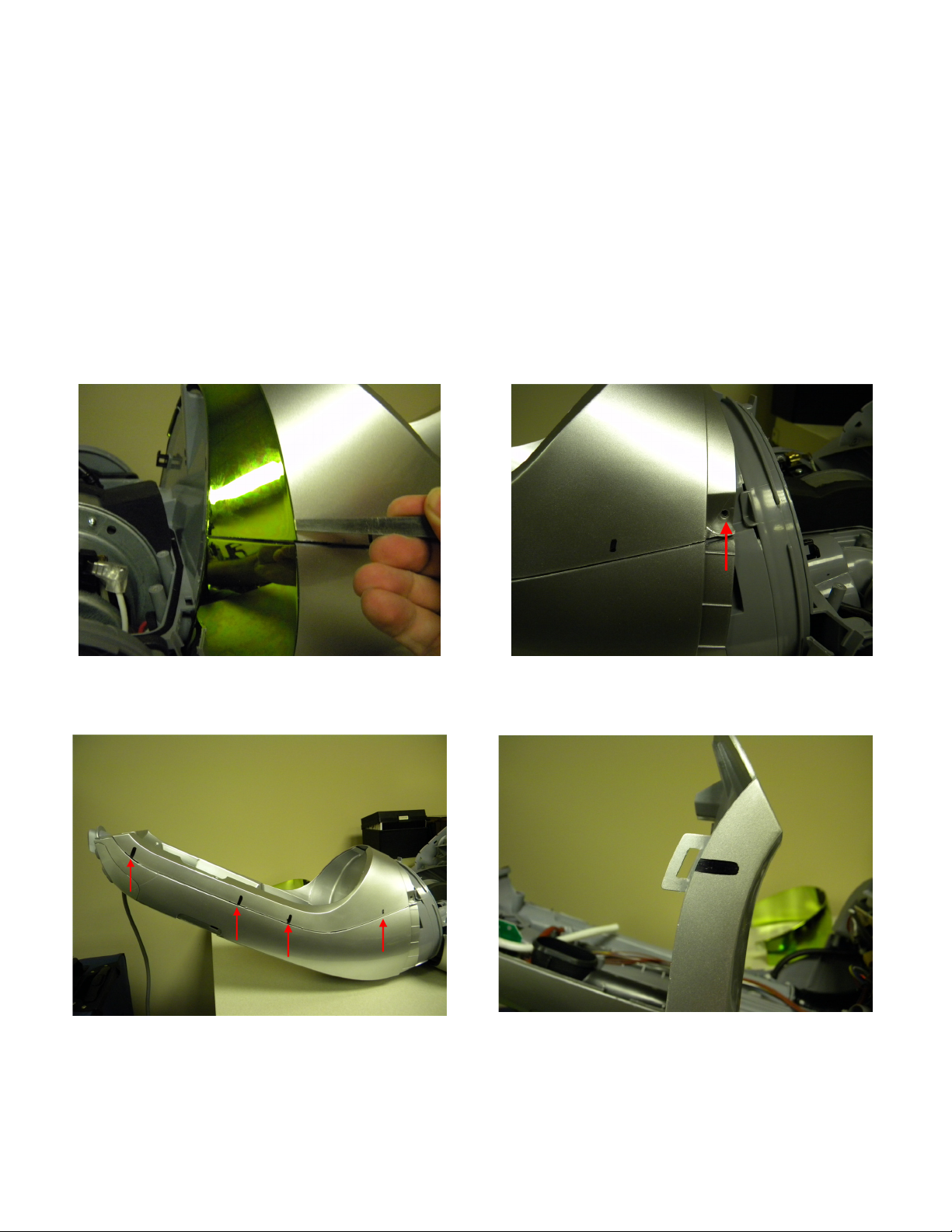

D. Front Housing Assembly Removal / Installation

•RemovetheDustCup

•Remove7xT-20screwsfromfronthousingassembly

•RemovetheBeautyRingFrontFasciabycarefullypryingtodisengageclip(PictureD.1)

•Remove2xT-20screwsholdingtheBeautyRingRearFasciatothebody(PictureD.2)

•Startingwherethelastscrewswereremovedworkupthesidewherethefrontandrear 

 housingsjoin.ereareclipsholdingthehousingstogetherthatneedtobedisengaged 

 beforeremovingthefronthousing(PictureD.3)

•Youmayneedtousetwoatheadscrewdrivers,puttyknives,etc.toworkuptheseam. 

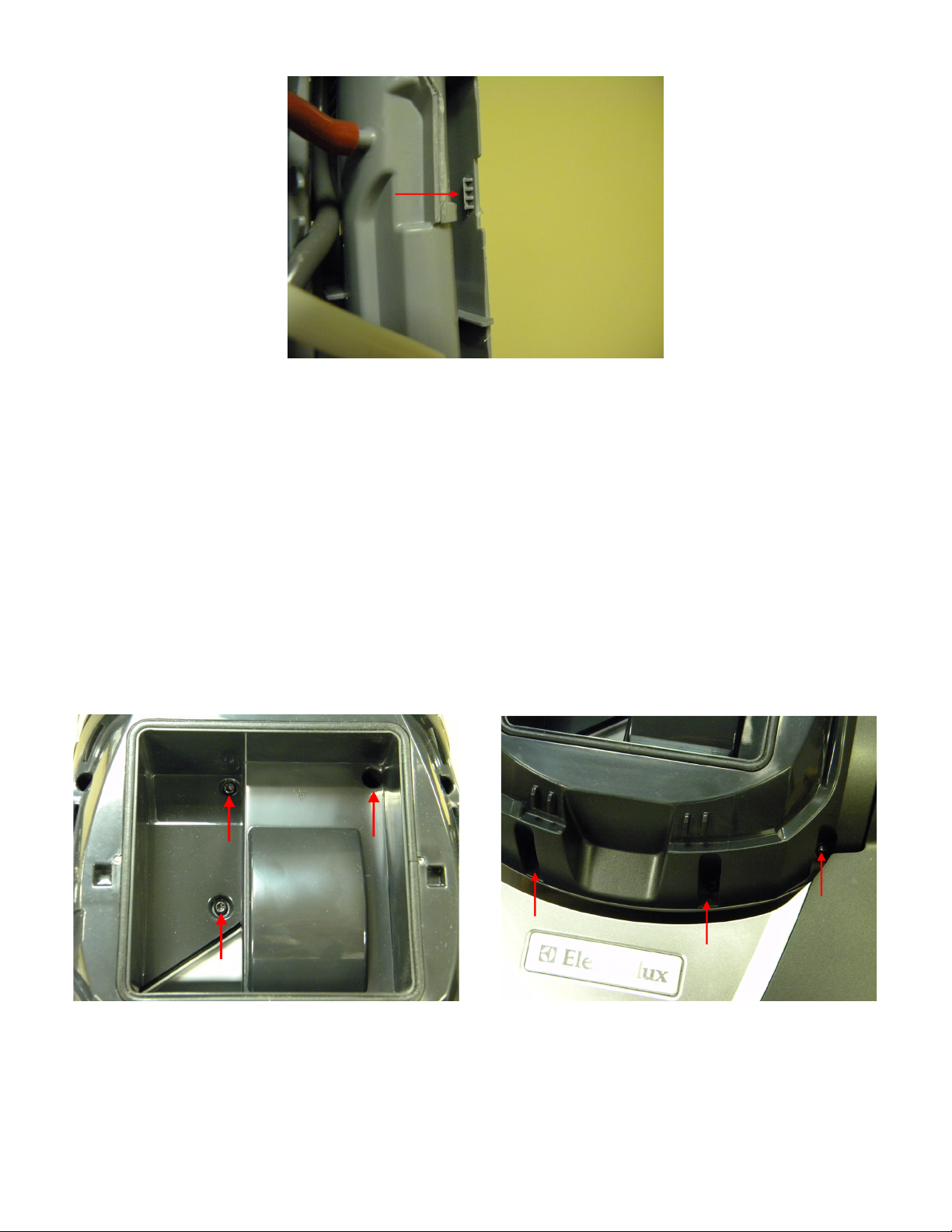

 PicturesD.4andD.5showtheclipsinmoredetail

•Reassembleinreverseorder

PictureD.1      PictureD.2



   PictureD.3      PictureD.4

Picture D.5

E. Suction Motor Removal / Installation

•Remove the Filter Cover and HEPA lter

•Remove 3x T-20 screws from beneath the HEPA lter (Picture E.1)

•Remove 3x T-20 screws from front of motor housing, you will need to tilt the handle back

in order to access the screws (Picture E.2)

•Remove the Front Motor Cover to access the motor

•Reassemble in reverse order

Picture E.1 Picture E.2
