3
KEY PART
NO. NO. DESCRIPTION
4 532 19 10-79 Pulley, Impeller
5 532 18 89-09 Bearing Assembly, Flange
6 532 15 53-77 Nut, Hex Flange 5/16-18
7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8
8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8
9 532 17 88-20 Nut, Cage 3/8-16
10 532 18 45-28 Housing, Auger
11 532 18 40-97 Bar, Scraper
12 532 18 40-95 Bracket, Corner Discharge
13 532 17 53-22 Base, Discharge Chute
14 819 11 15-07 Washer, Flat
15 810 04 05-00 Washer, Lock 5/16
16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4
18 532 17 95-82 Screw, Hex Head 5/16 x 1
19 873 80 04-00 Nut, Hex Lock 1/4-20
20 873 80 05-00 Nut, Hex Lock 5/16-18
21 532 15 54-15 Washer, Flat 5/16
22 532 18 40-94 Skid Plate, RH
23 532 17 92-46 Washer, Nylon, Friction
24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4
25 532 18 56-00 Bolt, Shoulder 1/4-20
26 532 17 46-58 Bearing, Auger
27 532 17 46-97 Washer, Thrust, 1"
28 532 19 20-90 Bolt, Shear
29 532 18 40-93 Skid Plate, LH
30 532 19 30-67 Auger Assembly, RH
31 532 19 30-66 Auger Assembly, LH
32 532 17 46-99 O-Ring
33 532 17 47-00 Bushing, Flange 3/4
34 532 17 46-81 Washer, Thrust 3/4
35 532 17 46-84 Bearing, Thrust 3/4
36 532 17 46-60 Shaft, Impeller
37 532 17 46-83 Washer, Thrust 5/8
38 532 17 46-86 Bushing, Flange 5/8
39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4
40 532 08 64-47 Plug, Case
41 532 17 46-88 Housing, Gearbox, RH
42 532 17 46-98 Seal, Oil
43 532 17 47-01 Bushing, Flange, 1"
44 532 18 92-82 Key, Square 1/4 x 1/4 x 7/8
45 532 17 46-59 Gear, Worm
46 532 17 46-57 Shaft, Auger
47 532 17 46-87 Housing, Gearbox, LH
48 532 18 41-05 Impeller Assembly
49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8
50 532 17 53-11 Gasket, Gearbox
51 532 18 42-05 Pin, Roll 3/16 x 1-1/8
54 532 05 38-47 Washer, Flat 1/4
55 532 18 82-43 Kit, Shear (Contains 6 each of Key Numbers 19 and 28)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

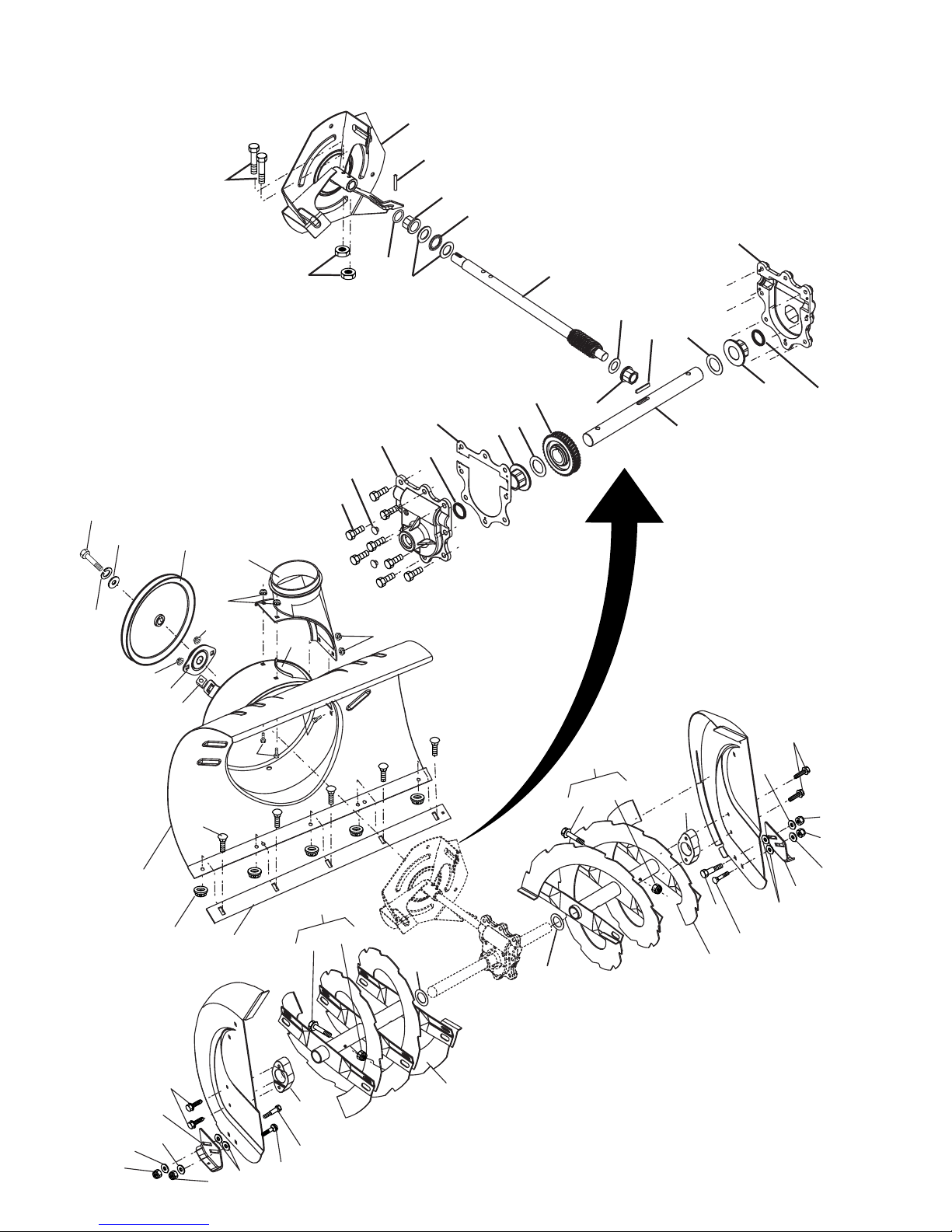

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NUMBER PM85C
