IK010 Integration kit

Installation manual

EN Refrigeration

CONGRATULATIONS

Congratulations and thank you for choosing our integration

kit. Before you install the integration kit, we recommend

that you read through the entire installation manual.

To avoid the risks that are always present when you install

an electrical appliance, it is important that the integration

kit and appliance is installed correctly. Please read the

safety instructions in this installation manual as well as the

appliance’s user manual to carefully to avoid misuse

and hazards.

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners.

After unpacking the integration kit, please check it is not

damaged. If in doubt, do not use the integration kit but

contact your local Electrolux Customer Care Centre.

BEFORE YOU CALL

Please ensure you read the instruction manual fully before

you call for service, or a full service fee could be applicable.

INFORMATION ON DISPOSAL

FOR USERS

ENVIRONMENT!

• Mostofthepackagingmaterialsarerecyclable.

Please dispose of these materials through your local

recycling depot or by placing them in appropriate

collection containers.

• Ifyouwishtodiscardthisproduct,pleasecontact

your local authorities and ask for the correct method

of disposal.

CONTENTS

3General warnings

4Refrigerator integration kit items

5Cupboard dimensions

8Installation of 120˚ hinge

9Preparation

9Attaching top hinge bracket

10 Attaching slide-housing to refrigerator doors

12 Placing refrigerator in cupboard

12 Refrigerator alignment

13 Securing refrigerator in cupboard

14 Attaching slide-bar to cupboard door

FLAT

GENERAL WARNINGS

Please read the user manual carefully and store in a

handy place for later reference. Pass the user manual

on to possible new owners of the appliance.

NOTE: We strongly recommend that a professional

builder/cabinetmaker builds this unit into required

cabinetry prior to ﬁnished installation in customer’s

kitchen. Electrolux cannot take responsibility for

any installation issues when customer retroﬁts

this product into cabinetry. Cabinet door height

built in excess of refrigerator door height will be

unsupported and risk bowing.

NOTE: Please refer to your Appliance User Manual for

warnings relating to the appliance.

SYMBOLS

IMPORTANT!

This symbol indicates tips and information about

use of the appliance.

ENVIRONMENT!

This symbol indicates tips and information about

economical and ecological use of the appliance.

Slide-housing 2 2 1

(Curve door)

PNº 1445132

Slide-housing 2 2 1

(Flat door)

Slide-bar 2 2 1

PN º 1421620

1 1 1

front footing

PNº 1444993

Note: this part is to be used

on all models other than

Refrigerator 8 8 4

screws

PN º 74124 9

Cupboard screws

PN º 1449422

12 12 8

120º hinge 55 (3+2) 3

Mounting plate

for hinge

PNº 1458211

55 (3+2) 3

Self tapping 20 20 12

wood screws

PNº 1458212

Z bracket 1 1 0

IK foot location

PNº 808958001

Item Quantity in kit Quantity required Description

Two door model

Single door model

120° hinge

mounting plate

120° hinge

mounting plate

Top hinge bracket

PNº 1433129 1 1 1

120° hinge

mounting plate

120° hinge

mounting plate

120° hinge

mounting plate

120° hinge

mounting plate

REFRIGERATOR INTEGRATION KIT ITEMS

Because this kit is common to a variety of models, you

need to select the items required to suit your model. The

items required for the models covered in this instruction

booklet are shown below.

Those items not required on your particular model should

be discarded.

WTB2300, WTB2500, WTB2800

WTB3100, WTB3400

WBB3100 & WBB3400.

(Used in models WTB2300,

WTB2500, WTB2800, WTB3100,

WTB3400, WBB3100 & WBB3400)

PN” A04098602

Location bracket

PN” 1457832

CUPBOARD DIMENSIONS

IMPORTANT!

Pages 5, 6, 7 and 8 should be given to the person

responsible for cupboard design and construction.

The cupboard dimensions required for each model are

shown on page 6, 7 & 8.

1. All sizes are internal and measured in millimetres.

2. It is important to ensure that the correct cupboard

sizes are used to ensure adequate air ﬂow around

the refrigerator.

3. Cupboard hinges should be a 120° opening type.

(Use hinges supplied).

4. Three hinges should be used on each cupboard

door higher than 1000mm.

5. Ensure the refrigerator is not connected to a power

supply whilst installation takes place.

6. Each operation should be carried out in the sequence

speciﬁed in this instruction sheet.

Step 1

Measure and conﬁrm Dimension ‘A’.

Step 2

To calculate Dimension ‘I’ use the equation below.

Dim ‘I’ = Dim ‘A’ - (Dim ‘D’ + 5mm) mm

NOTE: All sizes are internal and in millimetres.

Model

Dim ‘A’

(mm)

minimum

Dim ‘B’

(mm)

Dim ‘C’

(mm)

Dim ‘D’*

(mm)

Dim ‘E’

(mm)

Dim ‘G’

(mm)

Dim ‘H’

(mm)

Dim ‘I’*

(mm)

2 door top freezer models

Please

use the

calculation

below to

measure

Dimension

‘I’ for your

speciﬁc

model.

WTB2300

WTB2500

WTB2800

WTM2800, KTM2800

WTM3000, KTM3000

WTM3300, KTM3300

WTB3100

KTM3600

WTB3400

WTM3900, KTM3900, STM3900

WTM4200, WTE4200, KTM4200, STM4200

WTM4400, KTM4400

WTM5200, WTE5200, KTM5200

1485

1550

1650

1640

1710

1810

1690

1730

1800

1810

1730

1810

680

715

680

715

680

740

645

700

795

700

795

895

910

975

1075

1047

1117

1217

1110

1137

1220

1217

1137

1217

450

500

600

500

600

270

219

298

241

298

241

278

250

300

395

300

395

495

2 door bottom freezer models

single door models

WFM3000

WFM3600

WRM3700

WRM4300

1810

680

700

795

700

795

–

500

600

500

600

219

241

219

241

300

395

300

395

Step 3

*Add cabinetry thickness to Dimension ‘D’ and

Dimension ‘I’ for ﬁnal measurement before construction.

WBB3100

WBB3400

WBM3700

1690 715 700 1110 500 298 395

1800 715 700 1220 500 298 395

1660 740 745 702 600 241 395

WBM3800, KBM3800, SBM3800

WBM4000

WBM4300, WBE4300, KBM4300, SBM4300

WBM5100, WBE5100, KBM5100

1810 680 795 702 600 241 395

1760 740 745 702 600 241 395

1810 740 795 702 600 278 395

1810 740 895 702 600 495

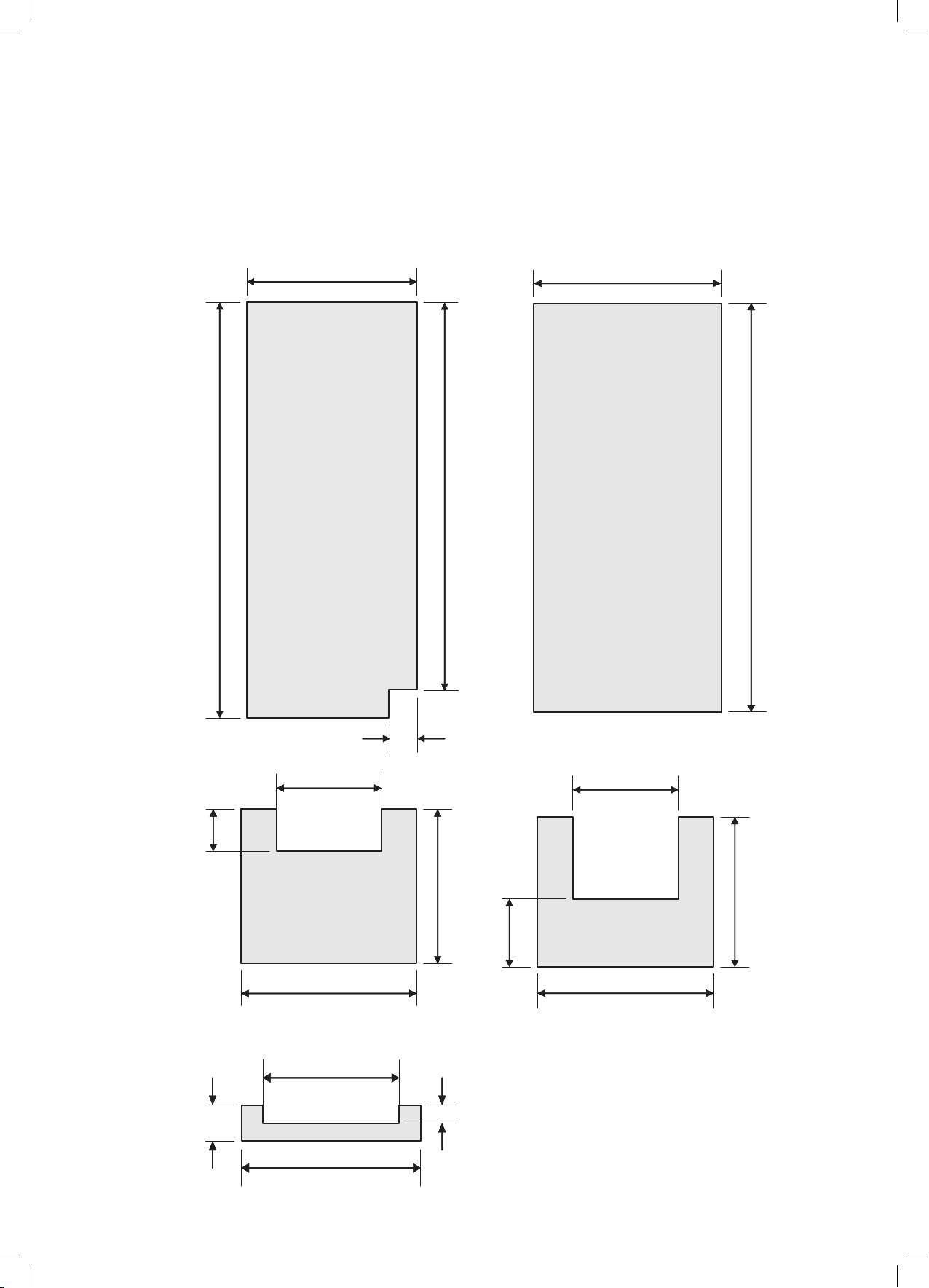

CUPBOARD DIMENSIONS

NOTE: All sizes are internal and measured in millimetres.

For ‘lettered’ dimensions refer to the table on page 5.

Panel A

(sides)

Dim B

100mm

Dim A

Dim A + Skirting height

Panel B

(back)

Dim A + Skirting height + board thickness

Dim C + 2x Board

thickness

Dim B

Dim C

Dim E

80mm

Panel D

(bottom)

Panel C

(top)

130mm

Dim C

Dim B

Dim H

Dim C + 2x Board

thickness

Dim E

50mm

Skirting

height

CUPBOARD DIMENSIONS

Clearances

When installed the refrigerator needs to have adequate

air ventilation. It is important to ensure there is good airﬂow

from the front to underneath and up the rear to the top of

the cabinet (see diagrams).

Front airflow cut-out

Dim E

Front airflow cut-out

50mm

NOTE: A decorative grill can be ﬁtted so long as it does not

obstruct airﬂow and is removable for cleaning.

Bottom rear airflow cut-out

Dim E

Bottom rear airflow cut-out

130mm

Top rear airflow cut-out

Dim E

80mm

Airflow

CUPBOARD DIMENSIONS

When positioned in a corner the clearance of Dim G on the

hinge side of the cabinet will allow the doors to be opened

enough to enable the removal of the crisper bins.

Dim C Dim G

120°

NOTE: Use the 120° hinges supplied with the kit to attach the

cupboard door to the cupboard.

Attach the hinge to the door to ensure that door can have

maximum opening, i.e. the door edge should not hit the

cabinet when the door is fully open.

Cabinet construction

(top mount cupbord shown below)

Dim D

Dim I

5mm gap

between doors

NOTE: If Dim D is bigger than 1000mm in height, 3 hinges

are required to attach the cupboard door to the cupboard.

If Dim D is smaller than 1000mm in height, 2 hinges are

required/sufﬁcient.

INSTALLATION OF 120˚ HINGE

Please follow the instructions below to install the

120º hinge.

120° hinge

mounting plate

120° hinge

mounting plate

Attach mounting plate with 120º hinge and tighten

the screw.

screw

screws

120° hinge

mounting plate

37mm

cabinet cupboard door

This dimension is typically 37mm

(from centre line of mounting plate

to the cupboard cabinet edge)

Use screws provided with the hinge to attach the

cupboard door to the cupboard.

screw

screws

120° hinge

mounting plate

37mm

cabinet cupboard door

This dimension is typically 37mm

(from centre line of mounting plate

to the cupboard cabinet edge)

Use 120º hinge to attach the cupboard door to the cabinet.

screw screws

120° hinge

mounting plate

37mm

cabinet cupboard door

This dimension is typically 37mm

(from centre line of mounting plate

to the cupboard cabinet edge)

PREPARATION

1. Unpack refrigerator, removing foam packing.

2. Lay the refrigerator down on its back on a piece of

soft packing material. Use caution and two people

while laying the appliance down.

3. Remove top door stopper if ﬁtted (Figure 1).

4. Place adjustable rollers in the fully retracted position

by screwing height adjusting screw fully anti-clockwise

(Figure 2). Do not remove the adjusting nut completely.

5. Stand upright.

Figure 1

Figure 2

Plastic roller nut

ATTACHING THE TOP HINGE BRACKET

1. Remove top hinge cover (Figure 3), cover clips off.

2. Remove the three (3) top hinge screws.

3. Elevate hinge.

4. Slide the top hinge bracket into position below

the hinge.

5. Re-attach hinge and screws ensuring that refrigerator

door is still correctly positioned.

IMPORTANT!

You must ensure that the refrigerator door is:

• Parallelwithsidesandtopofcabinet.

• Thegapbetweenthedoorandcabinetistypically

12mm allowing the door gasket to act correctly

(Figure 4).

Note: Ensure the gasket acts correctly, i.e. doesn’t make

a noise or leave gaps when the door is closed.

6. Recap hinge cover into position.

Figure 3

Top hinge cover

Top hinge

bracket

Figure 4

12mm

Top hinge bracket ﬁtted

Figure 4

In case left side hinge In case right side hinge

ATTACHING SLIDE-HOUSING TO REFRIGERATOR DOORS

1. Ensure slide-housing is positioned squarely as shown.

2. Ensure that the slide-housing is positioned on the door

as shown in the diagrams.

Note: The slide-housing ‘protruding edge’ side must always

be closest to the door handle side (diagram right).

...and secure with tape.

two door single door

70mm

235mm

70mm

235mm

2 door bottom freezer 2 door top freezer single door

235mm

360mm

235mm

2 door single door

slide housing

door handle

Slide housing (Curve door version) Slide housing (Flat door version)

70mm

protruding edge

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Electrolux Réfrigérateur

Electrolux

Electrolux IK2070SR Manuel utilisateur

Electrolux

Electrolux ERG19610 Manuel utilisateur

Electrolux

Electrolux EI24RD65HS - 6.0 cu. Ft. Double Drawer... Manuel de service

Electrolux

Electrolux ER1620T Guide rapide

Electrolux

Electrolux ICON Designer E23BC78ISS Manuel utilisateur

Electrolux

Electrolux ERD 165 C Manuel utilisateur

Electrolux

Electrolux ER6247T Guide rapide

Electrolux

Electrolux LRC5ME38W1 Manuel utilisateur

Electrolux

Electrolux EI33AR80WS Manuel utilisateur

Electrolux

Electrolux ERT 1646 Manuel utilisateur

Electrolux

Electrolux LRC4DF35X Manuel utilisateur

Electrolux

Electrolux PWE9038-M Manuel utilisateur

Electrolux

Electrolux FRT21LRGW5 Manuel du propriétaire

Electrolux

Electrolux SC310 Manuel utilisateur

Electrolux

Electrolux LNT5MF36U0 Manuel utilisateur

Electrolux

Electrolux FI252/2T Manuel utilisateur

Electrolux

Electrolux SC320 Manuel utilisateur

Electrolux

Electrolux EI24RD65HS - 6.0 cu. Ft. Double Drawer... Instructions de montage

Electrolux

Electrolux ER 2341B Manuel d'installation et d'exploitation

Electrolux

Electrolux KFS4DF18S Manuel utilisateur

Electrolux

Electrolux TR1770 Multi-zone Manuel utilisateur

Electrolux

Electrolux 730182 Manuel utilisateur

Electrolux

Electrolux ER 3162BN Manuel utilisateur

Electrolux

Electrolux ER 1530 T Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
