PERFORMANCE DATA NO LOAD & NO DOOR OPENINGS AT MID-POINT

CONTROL SETTING

Capacitor Run or

Induction Run

70°F (21°C) Ambient 90°F (32°C) Ambient

Operating Time 10 to 20% 20 to 30%

Refrigerator Temperature 35° to 40° F

2° to 4° C

35° to 40° F

2° to 4° C

Low Side Pressure

(cut-in)

25 to 30 psig

175 to 205 kPa

25 to 30 psig

175 to 205 kPa

Low Side Pressure

(cut-out)

10 to 15 psig

70 to 100 kPa

10 to 15 psig

70 to 100 kPa

High Side Pressure

(last 1/3 cycle)

120 to 130 psig

810 to 880 kPa

175 to 185 psig

1180 to 1260 kPa

Wattage (last 1/3 cycle) 120 to 180 140 to 155

Amps (running) .8 to 1.3 1.0 to 1.5

Base Voltage 115 vac (127 vac max)

DEFROST SPECIFICATIONS

Cabinet Size

Thermostat Heater

Cut-in Cut-out Watts Ohms

19’ 37° F (3° C) 47° F (8° C) 550 24

Electronic Timer - Defrost 30 minutes every 12 hours of compressor run time.

CONDENSER FAN MOTOR

Watts RPM Amps

2.3 1100 CW Opposite Shaft 0.13 Running

IMPORTANT: PLEASE RETURN THIS SHEET TO IT’S ORIGI-

NAL LOCATION

SERvICE DATA SHEET - 297299900

STANDARD - AUTOMATIC DEFROST

REFRIGERATOR MODELS (R134a)

IMPORTANT SAFETy NOTICE

The information provided herein is designed to assist qualiﬁed repair

personnel only. Untrained persons should not attempt to make repairs

due to the possibility of electrical shock. Disconnect power cord before

servicing.

IMPORTANT

If any green grounding wires are moved during servicing, they must

be returned to their original position and properly secured.

CAUTION: All electrical parts and wiring must be shielded

from torch ﬂame. Do not allow torch to contact insulation; it

will char at 200°F.

NOTE: Products come equipped with an Electronic Defrost Control.

To initiate defrost, press and hold air ﬁlter and alarm reset key

simultainiously for three seconds. To terminate defrost, press and

hold air ﬁlter and alarm reset key simultainiously for three seconds

Autres manuels pour Icon E32AR75JPS

Ce manuel convient aux modèles suivants

Autres manuels Electrolux Réfrigérateur

Electrolux

Electrolux A Guide de démarrage rapide

Electrolux

Electrolux EI23BC56IW - 22.6 cu. Ft Manuel utilisateur

Electrolux

Electrolux ER 8115B Manuel utilisateur

Electrolux

Electrolux EI23BC30KS Manuel utilisateur

Electrolux

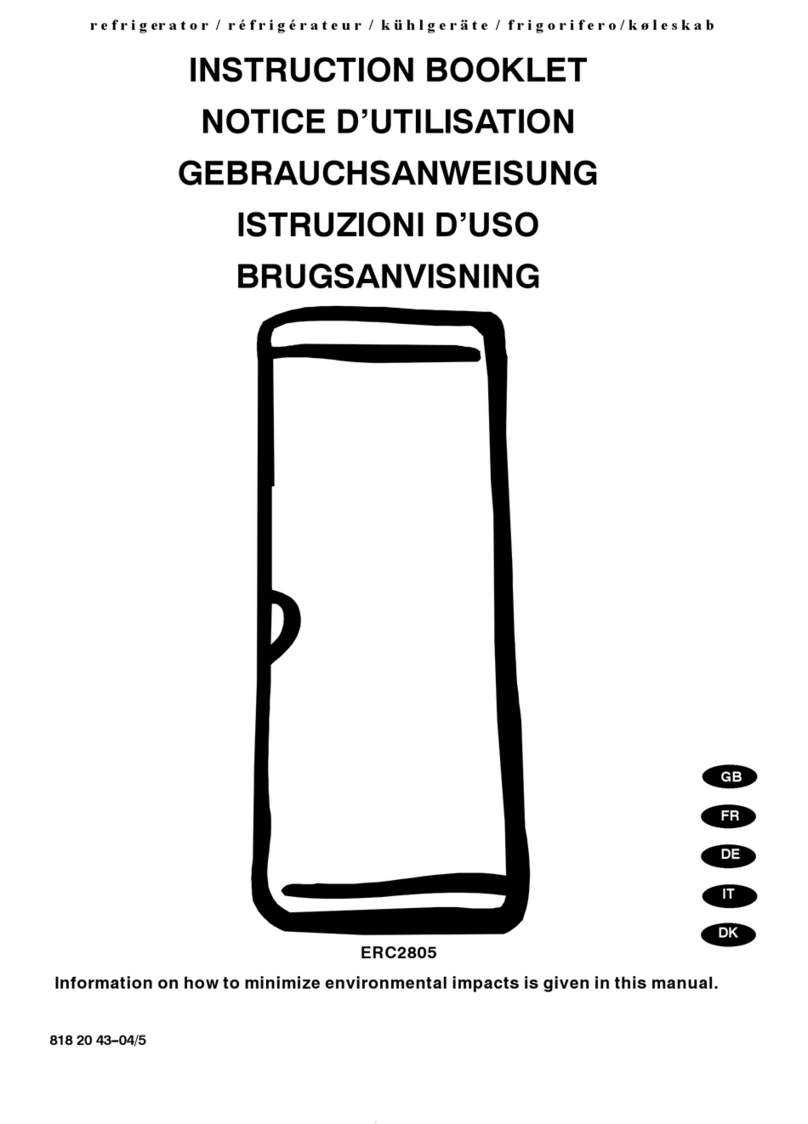

Electrolux ERC2805 Manuel utilisateur
