Electrolux HD-Line 726573 Manuel utilisateur

Electrolux HD-Line

590 lt refrig. counters - upstand

The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage

located below. This range of counters is constructed in 304 AISI stainless steel to meet the highest hygiene

standards. The range is comprised of three sizes of counters with built-in or remote compressor units, in

various door or drawer configurations and in refrigerator or freezer versions. The models detailed on this sheet

are refrigerated counters with four sections and operate over the temperature range of –2°C to +10°C.

726574

EASY TO INSTALL

• Mounted on legs with height

adjustment.

• Built-in compressor to suit

operating conditions.

• Suitable for use in ambient

temperatures of up to 43°C.

EASY TO CLEAN

• Constructed in 304 AISI

stainless steel to meet the highest

hygiene standards.

• Rounded internal corners for

ease of cleaning.

• Mounted on stainless steel legs

to provide 150 mm clearance for

easy floor cleaning.

EASY TO USE

• Adjustable temperature range

from –2°C to +10°C to suit meat,

fish and dairy storage

requirements.

• Anti-tilt runners accept GN1/1

containers.

• Combination of doors and

drawers to suit varying needs, with

the possibility to change the

configuration on site.

• Electronic microprocessor

control with external digital

temperature display.

• Forced air circulation for rapid

cooling and an even temperature

distribution.

• Worktop in 304 AISI stainless

steel 50 mm in thickness.

• Integrated rear upstand.

EASY TO MAINTAIN

• Access to all components from

the front.



EASY ON THE ENVIRONMENT

• CFC and HCFC free (ecological

refrigerant type: R134a, - gas in

foam: cyclopenthane).

• 60 mm insulation thickness for

energy saving.

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

• All models comply with the

standards required by the main

international approval bodies and

are H marked.

Electrolux HD-Line

590 lt refrig. counters - upstand

Internet: http://www.electrolux.com/foodservice

HBAB0802010-05-28Subject to change without notice

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457

PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038 881038 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040 881040 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451 811451 811451

LOCK FOR REFRIGERATED COUNTERS 881499 881499 881499 881499

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166 922166

KIT 3 DRAWERS 1/3+RACK-HD REF.COUNTERS 881515 881515 881515 881515

KIT 2 DRAWERS 1/2+RACK-HD REF.COUNTERS 881514 881514 881514 881514

KIT 1 DOOR FOR REFRIGER.COUNTER 881517 881517 881517 881517

KIT 1 BOTTLER+1 DRAWER FOR REFR.COUNTER 881516 881516 881516 881516

2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539 880539 880539 880539

1/1 GN GREY "RILSAN" GRID 881435 881435 881435 881435

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 4 3 3 2

INCLUDED ACCESSORIES

Net weight - kg. 187 195 187 187

installed-electric 0.38 0.38 0.38 0.38

Power - kW

at evaporation temperature - °C -10 -10 -10 -10

Refrigerant power

Refrigeration power - W 378 378 378 378

Refrigerant quantity - g. 290 290 290 290

Refrigerant type R134a R134a R134a R134a

N° defrost in 24 hrs. 3/15' 3/15' 3/15' 3/15'

Compressor power - HP 1/4 1/4 1/4 1/4

N° and type of grids (included) 4, GN 1/1 3, GN 1/1 3, GN 1/1 2, GN 1/1

Door hinges 2 Left+2 Right 2 Left+1 Right Left Left

N° of drawers 2 3x1/3 6x1/3

Min/Max internal humidity - % 80/95 80/95 80/95 80/95

Top material 304 AISI 304 AISI 304 AISI 304 AISI

Worktop type Stainless Steel with

Splashback

Stainless Steel with

Splashback

Stainless Steel with

Splashback

Stainless Steel with

Splashback

height 950 950 950 950

depth/with open doors 700, 1110 700, 1110 700, 1110 700, 1110

width 2244 2244 2244 2244

External dimensions - mm

Cooling unit Built-In Built-In Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 590 590 590 590

Operating mode Ventilated Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10

TECHNICAL DATA

RCDR4M40U

726573

RCDR4M32U

726574

RCDR4M33U

727084

RCDR4M26U

727086

Electrolux HD-Line

590 lt refrig. counters - upstand

Internet: http://www.electrolux.com/foodservice

HBAB0802010-05-28Subject to change without notice

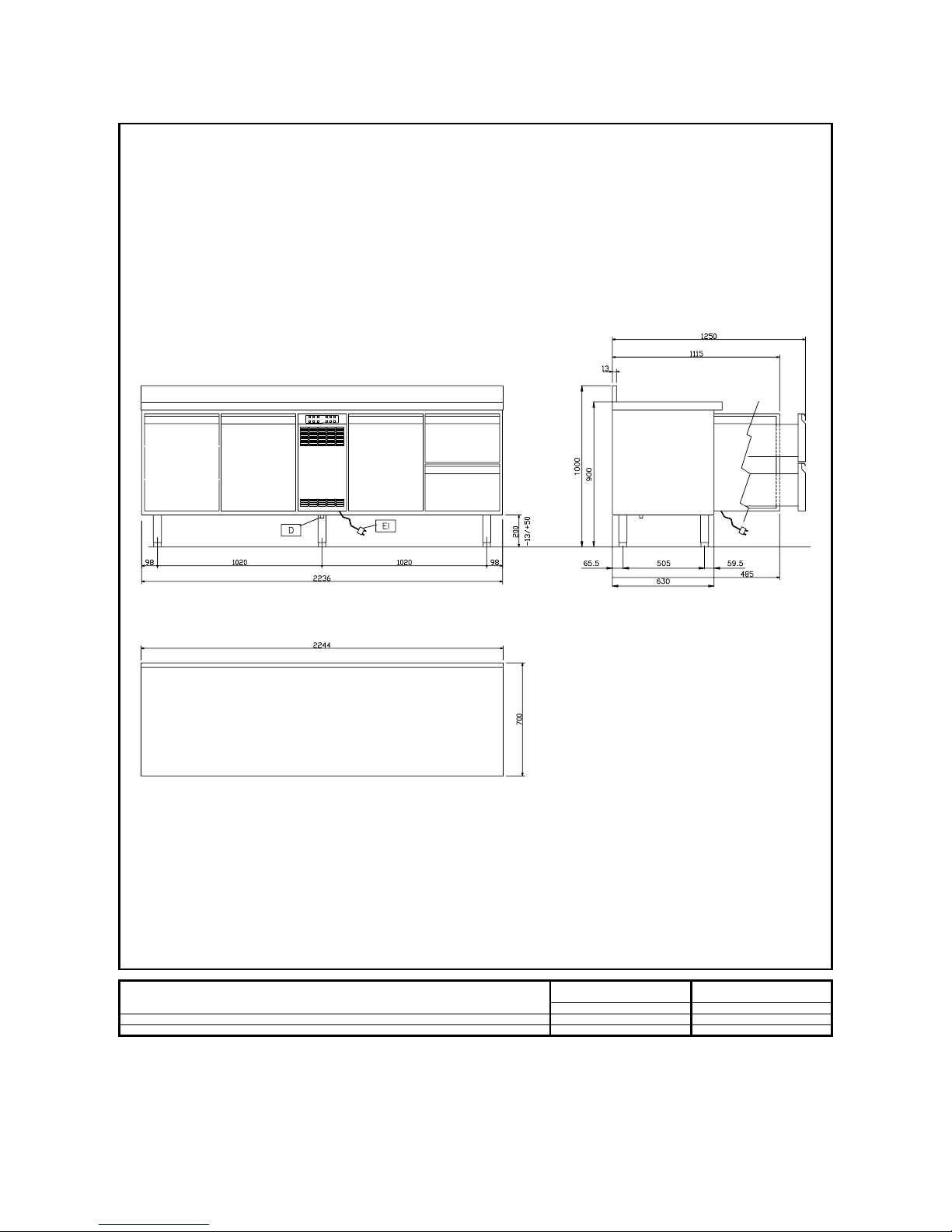

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50

D - Water drain 16mm 16mm

LEGEND

RCDR4M40U

726573

RCDR4M32U

726574

726573, 726574
