Electrolux HD-Line

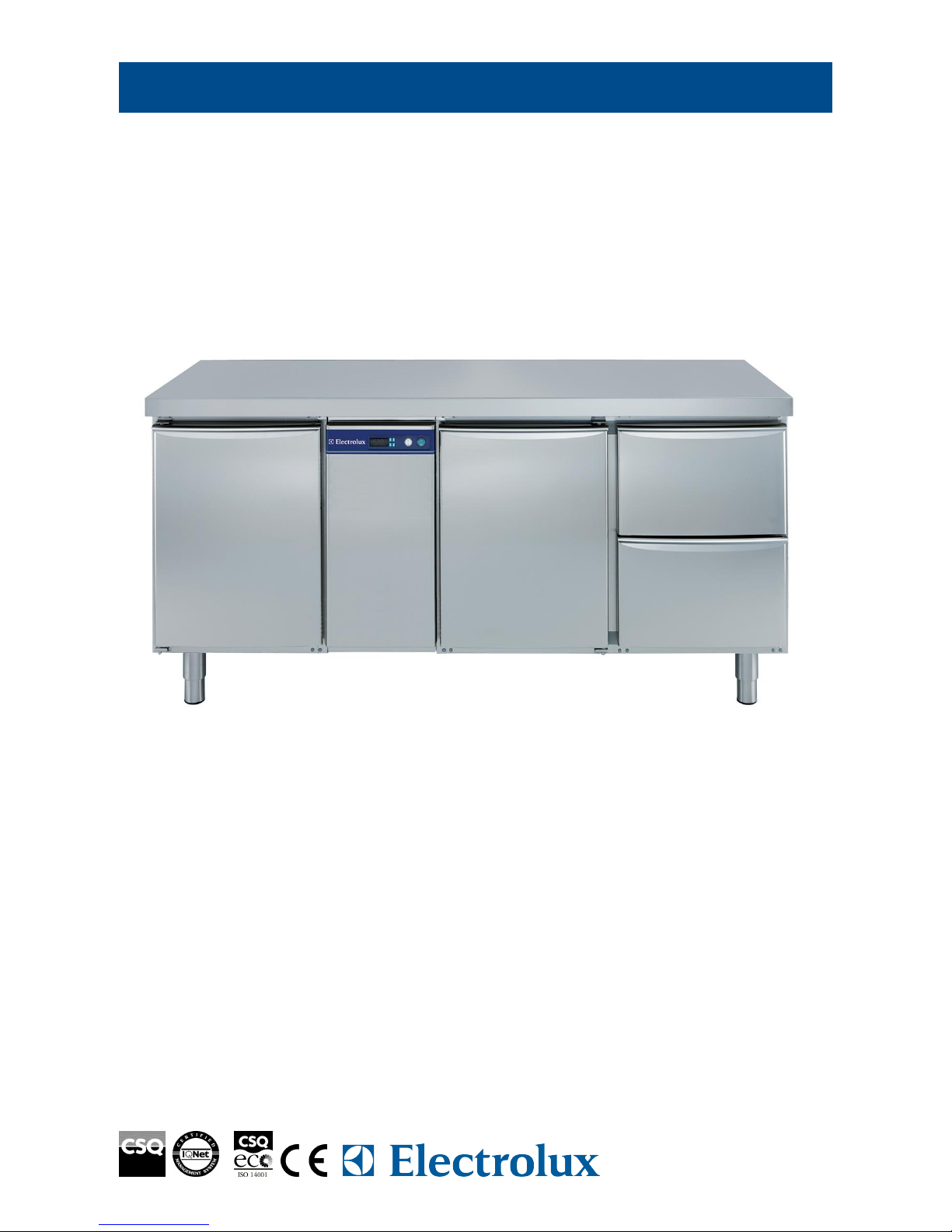

440 lt refrigerated counters - remote

The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage

located below. This range of counters is manufactured throughout in AISI 304 stainless steel to meet the

highest hygiene standards.

The range comprises three sizes of cabinet, with built-in or remote compressor units, in various door or drawer

configurations and in refrigerator or freezer versions. The four models detailed on this sheet are refrigerated

counters with 3 sections and operate over the temperature range of –2°C to +10°C.

726568

EASY TO INSTALL

• Mounted on legs with height

adjustment.

• Remote compressor to suit

operating conditions.

• Suitable for use in ambient

temperatures of up to 43°C.

EASY TO CLEAN

• Constructed from AISI 304

stainless steel throughout to meet

the highest hygiene standards.

• Rounded internal corners for

ease of cleaning.

• Mounted on stainless steel legs

to give 150 mm clearance for ease

of cleaning the floor.

EASY TO USE

• Adjustable temperature range

from –2°C to +10°C to suit meat,

fish and dairy storage

requirements.

• Anti-tilt runners accept GN1/1

containers.

• Combination of doors and

drawers to suit varying needs, with

the possibility to change the

configuration on site.

• Electronic microprocessor

control with external digital

temperature display.

• Forced air circulation for rapid

cooling and an even temperature

distribution.

• Worktop in AISI 304 stainless

steel with a 50 mm thickness.

EASY TO MAINTAIN

• Access to all components from

the front.

• With compliance with H

requirements.

EASY ON THE ENVIRONMENT

• CFC and HCFC free (ecological

refrigerant type: R134a, - gas in

foam: cyclopenthane).

• 60 mm insulation thickness for

energy saving.

• Developed and produced in ISO

9001 and ISO 14001 certified

factory.

Electrolux HD-Line

440 lt refrigerated counters - remote

Internet: http://www.electrolux.com/foodservice

HBAB0602010-05-28Subject to change without notice

REMOTE UNIT -2+10°C FOR 550/650 L 881463 881463 881463 881463

PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457

PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038 881038 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040 881040 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451 811451 811451

LOCK FOR REFRIGERATED COUNTERS 881499 881499 881499 881499

KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205 880205

KIT HACCP EKIS 922166 922166 922166 922166

KIT 3 DRAWERS 1/3+RACK-HD REF.COUNTERS 881515 881515 881515 881515

KIT 2 DRAWERS 1/2+RACK-HD REF.COUNTERS 881514 881514 881514 881514

KIT 1 DOOR FOR REFRIGER.COUNTER 881517 881517 881517 881517

KIT 1 BOTTLER+1 DRAWER FOR REFR.COUNTER 881516 881516 881516 881516

2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539 880539 880539 880539

1/1 GN GREY "RILSAN" GRID 881435 881435 881435 881435

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 3 2 1

INCLUDED ACCESSORIES

Net weight - kg. 130 138 146 154

installed-electric 0.04 0.038 0.038 0.038

Power - kW

at evaporation temperature - °C -10 -10 -10 -10

Refrigerant power

Refrigerant type R134a R134a R134a R134a

N° defrost in 24 hrs. 3/15' 3/15' 3/15' 3/15'

N° and type of grids (included) 3, GN 1/1 2, GN 1/1 1, GN 1/1 GN 1/1

Door hinges 1 Left+2 Right 1 Left+1 Right Left

N° and type of door 3 2 1

N° of drawers 2½ 4 6

Min/Max internal humidity - % 80/95 80/95 80/95 80/95

height 850 850 850 850

depth/with open doors 700, 1110 700, 1110 700, 1110 700, 1110

width 1759 1759 1759 1759

External dimensions - mm

Cooling unit Remote Remote Remote Remote

Gross capacity (D.I.N. 8952) - l. 440 440 440 440

Operating mode Ventilated Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10

TECHNICAL DATA

RCDR3M30R

726567

RCDR3M22R

726568

RCDR3M14R

726569

RCDR3M06R

726570

Electrolux HD-Line

440 lt refrigerated counters - remote

Internet: http://www.electrolux.com/foodservice

HBAB0602010-05-28Subject to change without notice

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50 230 V, 1N, 50

ED - Remote electrical connection ●●●●

D - Water drain 16mm 16mm 16mm 16mm

LEGEND

RCDR3M30R

726567

RCDR3M22R

726568

RCDR3M14R

726569

RCDR3M06R

726570

726567, 726570, 726569, 726568
