installation manual

built-in

refrigeration

2 installation manual electrolux built-in refrigeration

Fully assembled fridge bottom

1Kit bottom hinge bracket assembly (non-hinge side)

2Bottom front roller assembly

3Sheet metal spacer

4 Kit bottom hinge mounting bracket assembly

5 Kit top hinge mounting bracket assembly (hinge side)

6Kit top hinge mounting bracket assembly (non-hinge side)

Hinge side Non-hinge sideNon-hinge side Hinge side

1 14

Fully assembled fridge top

Fridge front

M5x10 screws

Thin metal spacer installed between

refrigerator cabinet and mounting

brackets on both sides.

NOTE:

We strongly recommend that a professional builder/

cabinetmaker builds this unit into required cabinetry

prior to ﬁnished installation in customer’s kitchen.

Electrolux can not take responsibility for any

installation issues when customer retroﬁts this

product into existing cabinetry.

warning

R600a refrigerant warning

This appliance contains a small quantity of environmentally

friendly, but ﬂammable, non-synthetic R600a refrigerant:

• Ensure that the tubing of the refrigerant circuit is not

damaged during transportation and installation.

• Leaking refrigerant may cause eye injuries or ignite.

• The room for installing appliance must be at least 1m3

per 8g of refrigerant. The amount of refrigerant in the

appliance can be found on the rating plate inside the

appliance.

To reverse the door swing from a right hand swing to

a left hand swing.

Unscrew two M5 screws from Kit bottom mounting (hinge

side) and remove the hinge. Unscrew the two M5 screws

from Kit top mounting (non-hinge side) and remove the

plastic cover and the L-bracket. Swap the hinge and the

plastic cover and the L-bracket and re mount them on the

steel main brackets. Reﬁt the screws and ensure they are

fully tightened. Unscrew two M5 screws from Kit Top hinge

mounting (hinge side) and remove the hinge. Unscrew the

two M5 screws from kit bottom hinge mounting (non-hinge

side) and remove the plastic cover and the L-bracket.

Swap the hinge and the plastic cover with the L-bracket

and re-mount them on the steel main brackets. Reﬁt the

screws and ensure they are fully tightened. Do the opposite

of above if left hand swing is to be reversed with right hand

swing. In either case, follow the steps 1 to 27 of the general

installation pages.

tips and information

min. 438cm² airflow space

min. 152 cm²

airflow space

min. 625mm

max. 628mm

min. 690mm

min. 50mm

1772mm

1702mm

1780mm 1665mm

604mm

595mm 628mm

300mm

223mm

200mm

■External dimensions depend on thickness of cabinet materials used.

■Cabinet door widths should not exceed total cabinet width to allow proper door opening.

NOTE: kitchen cabinetry is not included with the appliance

min 690mm

639mm

max. external

cabinet width

min. 625mm

max. 628mm

approx. 240mm

depending on

external door width

max. 113°

min. 438cm² airflow space

Installation guide

electrolux built-in refrigeration installation manual 3

Keep ventilation openings in the appliance enclosure

or the built-in structure clear of obstruction.

warning

We strongly recommend that these

units are built into new cabinetry prior

to installation in the kitchen, by a

professional builder / cabinet maker.

Electrolux can not take responsibility

for any installation issues when

customer retroﬁts these products into

existing cabinetry.

Package contents and parts list

description qty

Kit top mounting bracket assembly

(non-hinge side)

Kit top hinge mounting bracket

assembly (hinge side)

Kit bottom hinge mounting bracket

assembly (non-hinge side)

Kit bottom mounting bracket

assembly (hinge side)

Door-on-door adjustable screw 2

Hexagonal nut 2

Washer (metal) 2

Wood screw 33

Template assembly 2

Clamp cover 8

Interior clamp 8

Sheet metal spacer 2

Black spacer 1

Pan head screw M5x10 8

Pan head screw M4x8 16

Washer (nylon) 4

Top hinge screws 3

Assembly literature 1

description qty

Assembly top hinge

bracket cover

Bottom hinge bracket cover 1

Door hanger bracket 1

Door Bracket cover 1

Dairy door - left hand side 1

Dairy door - right hand side 1

Half-width bin 4

Dairy bin 1

Bottle bin assembly 2

Can bin 1

4 installation manual electrolux built-in refrigeration

electrolux built-in refrigeration installation manual 5

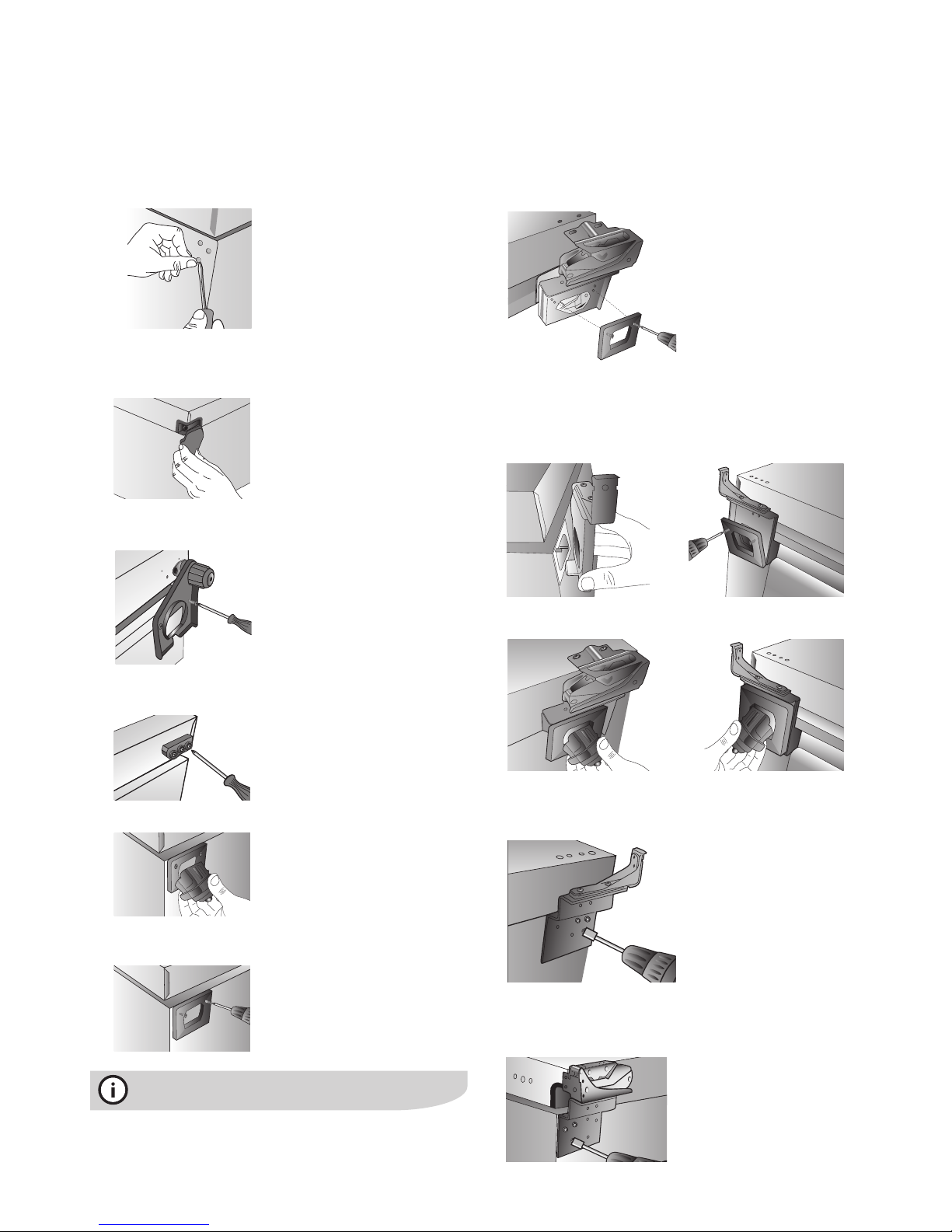

1. Unpack the refrigerator. Place masonite or similar

underneath to protect the floor – especially in the area

of the compressor back plate – and lay refrigerator on

its back. Using a screwdriver remove the 3 plastic hole

plugs from the non hinge side.

2. Remove the top hinge cover located on top of the

refrigerator and then unscrew the three hinge screws

holding the top hinge in place. Remove the top hinge.

3. Remove the bottom hinge roller assembly. Unscrew the

2 screws holding the bottom hinge and remove it.

4. Unscrew the two screws and remove the door stop

which is located on the bottom flange of the door.

5. Remove non hinge-side bottom front roller.

6. Unscrew the two screws holding the black plastic

spacer and remove.

tips and information

Please retain all the items removed in steps 1 to 6 above

just in case you need to remove the refrigerator from the

cabinet sometime in the future.

General Installation

7. Place the bottom hinge kit bracket assembly ensuring

that the thin sheet metal spacer (supplied with kit) is

placed between the bottom bracket assembly and the

base of the refrigerator, align to existing holes, place the

black spacer piece with the two screws.

8. Assemble the non hinge side bottom hinge bracket

assembly (supplied with kit) ensuring that the thin

sheet metal spacer is placed between the assembly.

Add new black spacer piece supplied with the kit then

reassemble and apply the two screws.

9. Replace the front roller assemblies on both sides.

10. Assemble the non hinge side top mounting bracket

assembly (supplied with kit). Secure the assembly using

the three screws supplied with the kit.

11. Assemble the top hinge bracket assembly supplied with

the kit. Secure the assembly using the three screws

previously removed.

12. Assemble the two door on door adjustment screws to

the top flange of the refrigerator door.

13. Secure the top side hinge on to the door using two

M5x10 screws. Secure the bottom side hinge on to

the door using two M5x10 screws.

14. Stand the refrigerator upright ensuring masonite or

similar is placed under the door to protect the floor

and the refrigerator from damage.

Note: Grab the power cord behind the refrigerator. Using a

piece of string approximately 2m long, tie a knot at the plug

end of power cord. Pull the other end of the string through

the top ventilation gap till the power cord plug is pulled

close enough to the top ventilation gap. Anchor the string

with the power cord to be accessible later.

15. Carefully tilt then slide the refrigerator into the cabinet,

resting on rear rollers initially and then the front rollers.

Please take care to avoid damage to refrigerator and

cabinet.

16. Refrigerator cabinet needs to be aligned with the front

edge of the wooden cabinet. To do this, adjust the

height of the refrigerator by turning the adjusting nut.

Turn the adjusting nut by inserting a screwdriver into

one of the slots and turn clockwise or anti-clockwise to

raise and lower.

17. Check alignment using a straight edge – such as a ruler

– at two positions: top and bottom.

6 installation manual electrolux built-in refrigeration

General Installation

18. Pull the refrigerator slightly forward and attach the

bottom hinge bracket cover and top hinge bracket

cover with the nylon washer and the screws supplied.

19. Move the refrigerator into the cabinet till both top and

bottom cover flanges touch the cabinet.

20. Screw the top and bottom hinge to the cabinet using

the wood screws supplied.

21. Slide across the top and bottom non-hinge side

mountings until they touch the cabinet and tighten the

M5 countersunk screws. Then using the wood screws,

attach the bracket to the cabinet.

22. Set the 2 plastic setting gauges – one on each

adjustment screw. Ensure that the leg of the plastic

gauge rests on top of the door using door adjustment

screws as a jig for left and right side. Adjust the gauge

so the slot on the gauge matches the top face of the

wooden cabinet as well as aligning with surrounding

kitchen cabinetry.

electrolux built-in refrigeration installation manual 7

1. Engage the can bin in the lugs available on either side

on the door inner panel as shown.

2. Engage the bottle bin in the lugs available on either side

on the door inner panel as shown. Repeat above for the

second bottle bin at suitable location above.

3. Engage the half bin in the lugs available on either side

on the door inner panel as shown. Repeat above for the

all the four half-bins at suitable locations.

4. Engage the dairy bin in the lugs available on either side

on the door inner panel as shown.

5. Engage the dairy bin door in the lugs available on either

side on the door inner panel as shown. Repeat above

for the second dairy bin door.

23. Mark your cabinet door from the hinge side edge at

exactly 328mm. Set the door hanger bracket supplied

with the kit, aligning with previously marked line and

using the previously set plastic gauges. Engage the tabs

on the hanger bracket - one each into the plastic gauge

without disturbing the setting on the gauges.

24. Attach the bracket with the 9 of the wood screws

supplied with the kit.

25.

Stand the cabinet door alongside the refrigerator door.

Lift the wooden door and engage the bracket (assembled

in the previous step), ensuring that the two lugs on the

bracket align with the door-on-door adjustment screws

on top of the refrigerator door. Turn the adjusting screws

clockwise or anti-clockwise using a screwdriver until the

wooden door aligns with the cabinet. Secure with the metal

washer and hexagonal nut on both sides before attaching

the door bracket cover.

26.

Attach the 8 door brackets supplied. Apply M4x8 screws

first and leave them loose. Tighten the wood screws

before tightening the M4x8 screws and attaching the

plastic bracket covers supplied with the kit.

27.Push the plastic bracket cover assembled in previous

step until it clicks into position. Check the door gasket

seals properly by ensuring wooden door does not touch

the wooden cabinet.

28.Pull the power cord with previously tied string and

plug into a power socket.

NOTE: The power socket must be accessible after

the refrigerator is installed (eg. located in an adjacent

cupboard).

General Installation Door bin assembly

328mm to edge

of door

Electrolux Home Products Australia

telephone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.electrolux.com.au

P/No. 1450920

Print code: EBIFRIIM

Issue date: Jan 09

The Thoughtful Design Innovator.

Do you remember the last time you opened a gift that made you say

“Oh! How did you know? That’s exactly what I wanted!” That’s the kind of

feeling that the designers at Electrolux seek to evoke in everyone who chooses

or uses one of our products. We devote time, knowledge, and a great deal of

thought to anticipating and creating the kind of appliances that our customers

really need and want.

This kind of thoughtful care means innovating with insight. Not design for

design’s sake, but design for the user’s sake. For us, thoughtful design means

making appliances easier to use and tasks more enjoyable to perform, freeing

our customers to experience the ultimate 21st century luxury: ease of mind.

Our aim is to make this ease of mind more available to more people in more

parts of their everyday lives, all over the world.

The “Thinking of you” promise from Electrolux goes beyond meeting the needs

of today’s consumers. It also means we’re committed to making appliances

safe for the environment—now and for future generations.

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com.au

Table des matières

Autres manuels Electrolux Réfrigérateur

Electrolux

Electrolux ERC39250W Manuel utilisateur

Electrolux

Electrolux SMART 727028 Manuel utilisateur

Electrolux

Electrolux ER 8218C Manuel utilisateur

Electrolux

Electrolux SMART 726594 RH06RE1FEU Manuel utilisateur

Electrolux

Electrolux ERY1401AOW Manuel utilisateur

Electrolux

Electrolux EI28BS51I S Manuel utilisateur

Electrolux

Electrolux ERH 3620 X Manuel utilisateur

Electrolux

Electrolux IK245SEEV Manuel utilisateur

Electrolux

Electrolux R600a Manuel utilisateur

Electrolux

Electrolux ER 6641 T Manuel utilisateur

Electrolux

Electrolux ER8761B Manuel utilisateur

Electrolux

Electrolux EI23BC56IS Instructions de montage

Electrolux

Electrolux ER 1623 T Guide rapide

Electrolux

Electrolux IK2581BNR Manuel utilisateur

Electrolux

Electrolux HD-Line 726563 Manuel utilisateur

Electrolux

Electrolux MRT18CSHD1 Manuel utilisateur

Electrolux

Electrolux Benefit Counters 726147 Manuel utilisateur

Electrolux

Electrolux FI259/2TA++ Manuel utilisateur

Electrolux

Electrolux LRC4DE35X Manuel utilisateur

Electrolux

Electrolux WRT17MG4BW8 Manuel utilisateur

Electrolux

Electrolux EI28BS80KS Instructions de montage

Electrolux

Electrolux TK14012 Manuel utilisateur

Electrolux

Electrolux U24384 ER 7826/1 B Manuel utilisateur

Electrolux

Electrolux S64166TK Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
