Electrolux ERE5047 Manuel utilisateur

Handle Installation

manual

ERE5047, EFE4227

2 electrolux.com.au

GENERAL WARNINGS LOCATE HANDLE BAR AND

HANDLE KIT

Please read the user manual carefully and store in a handy

place for later reference. Pass the user manual on to

possible new owners of the appliance.

Read the following carefully to avoid damage or injury.

Note: You must read these warnings carefully

before installing or using the accessory. If you need

assistance, contact your Customer Care Department.

The manufacturer will not accept liability, should these

instructions or any other safety instructions incorporated in

this book be ignored.

ENVIRONMENT!

Remove and discard any packaging material before

using this accessory. Most of the packaging materials are

recyclable. Please dispose of those materials through your

local recycling depot or by placing them in the appropriate

collection containers.

WARNING!

Risk of suffocation, injury or permanent disability.

• This accessory is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instructions concerning the use of the appliance by

a person responsible for their safety.

• This accessory may contain small parts that are

a choking hazard. Not suitable for children under

3 years of age.

CAUTION

It is important to use your appliance safely. Check these

safety points before using your appliance.

• Do not use or place the accessory near the edge

of the table or counter, near hot gas, stove, electric

burner or heated oven.

• This accessory is for indoor use only.

• This accessory is intended for domestic use only.

Electrolux will not accept any liability for possible

damage caused by improper or incorrect use.

• When cleaning, use only a soft cloth with an

unscented mild soap and lukewarm water.

• Never use hot water, solvents, commercial kitchen

cleaners, aerosol cleaners, metal polishes, caustic or

abrasive cleaners, or scourers to clean the accessory,

as they may damage it. Many commercially available

cleaning products and detergents contain solvents

that will damage your accessory.

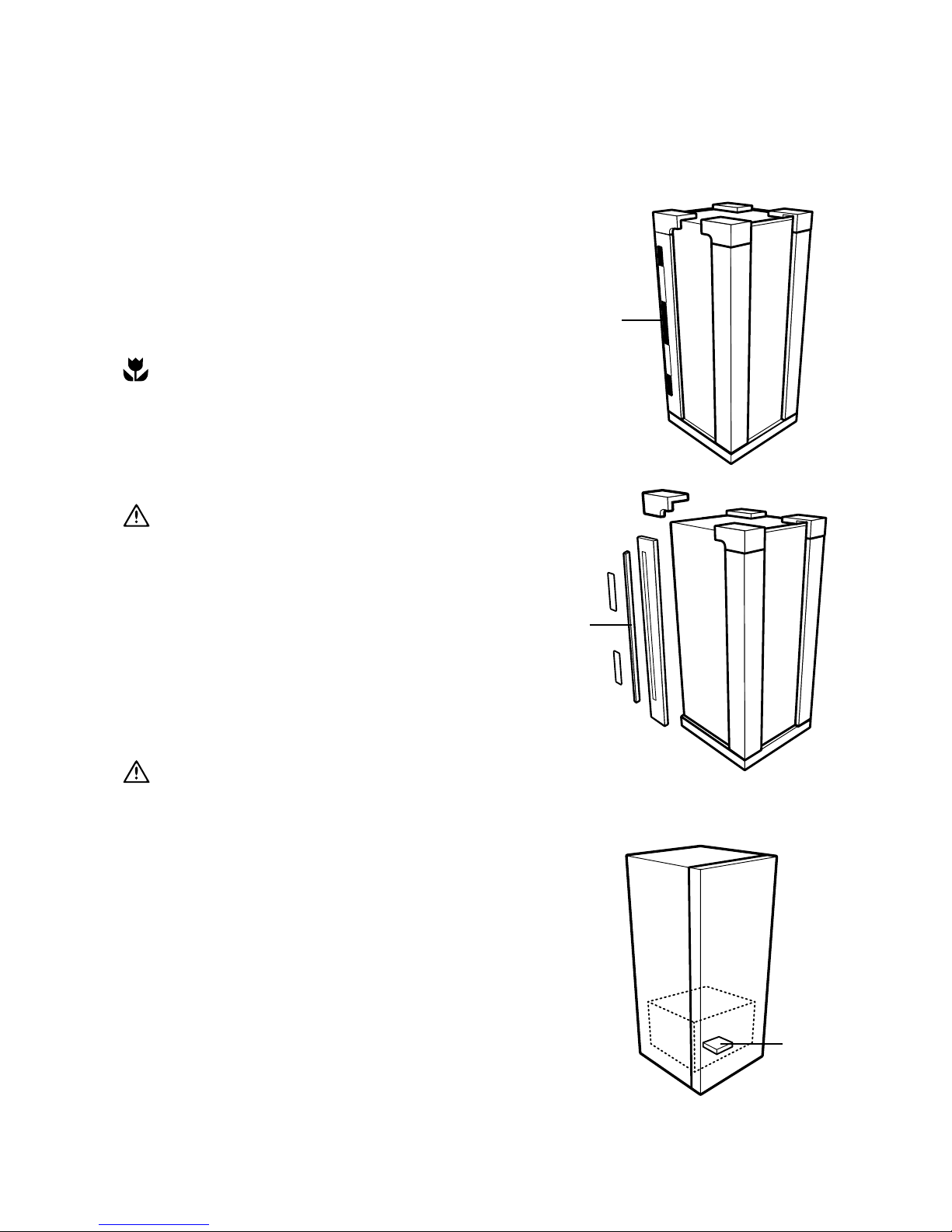

• The bar handle is securely packed in the rear left

hand EPS corner post packing.

Handle enclosed

Bar handle

Handle Kit

• The handle kit is located in the bottom of your

refrigerator crisper or freezer drawer

KIT CONTENTS (ANC A03621901)

Read and follow instructions carefully when installing the

handles on this appliance, you may not be eligible to make

a claim under warranty for damage caused by incorrect

installation techniques. Please refer to warranty card in the

product user manual for further warranty information.

Handle bar (ANC 811583305)

(located in rear left hand corner eps packaging)

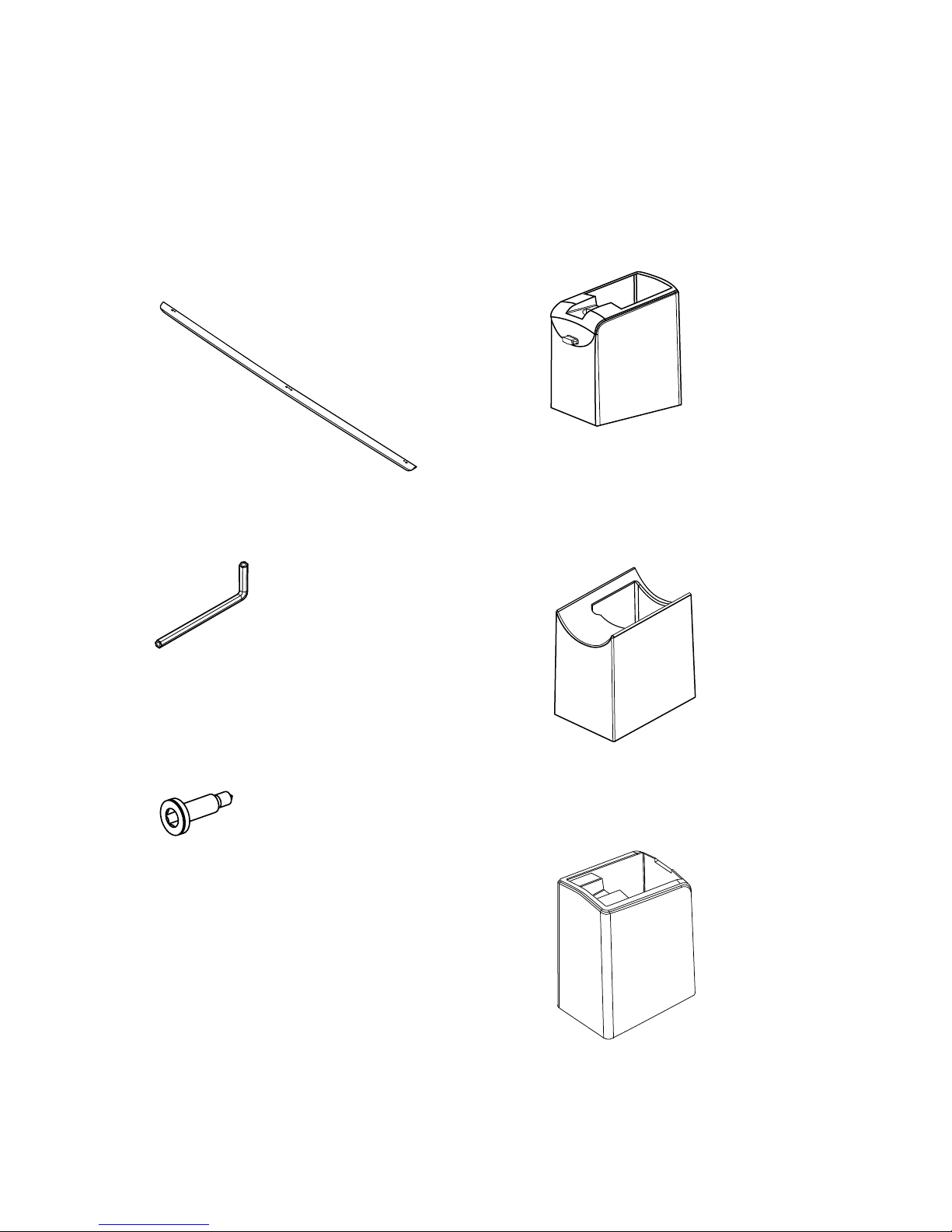

KIT CONTENTS

3mm Allen key x1 (ANC A03207301)

Screw M4 x 3 (ANC A03207202)

Pedestal (Top) x1 (ANC 1459143)

Pedestal (Center) x1 (ANC 1459147)

Pedestal (Bottom) x1 (ANC 1459145)

4 electrolux.com.au

INSTALLATION

Bar handle assembly

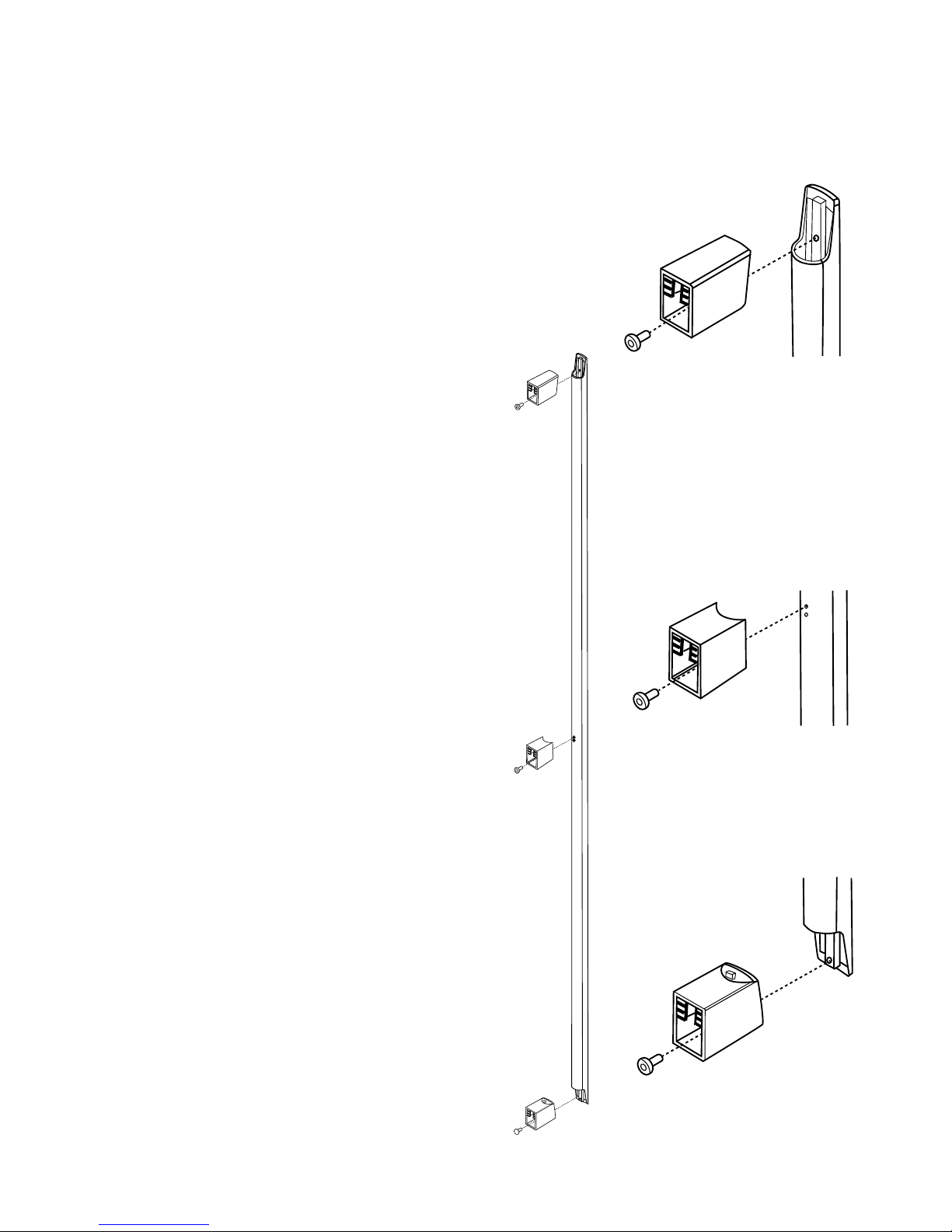

• Using a suitable work space, place handle bar with

screw holes facing up on a soft surface to prevent

damage to handle.

• Locate and position the three handle pedestals on

handle bar so that the pins locate in holes and screw

holes align. Note that the pedestals are identiﬁed top,

bottom and centre to aid assembly.

• Using Allen key, assemble the handle brackets to

handle bar using the M4 screws provided.

• Ensure all screws are tight.

TOP

CENTRE

BOTTOM

INSTALLATION

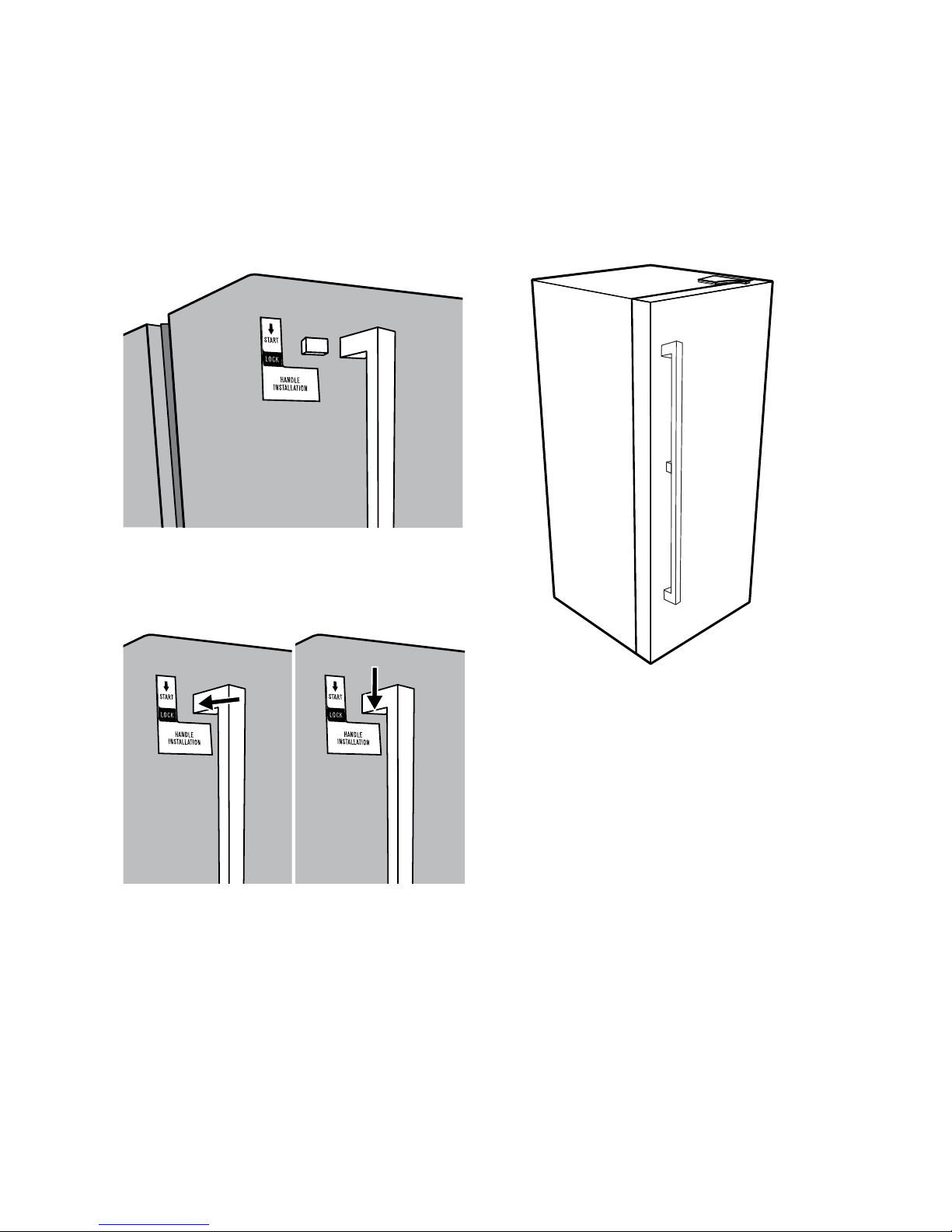

Assemble bar handle to door

Step 1.

Position top door handle over handle mounts and align

with template on the door.

Step 2.

Pull handle down until it locks into position and aligns

with template on the door.

Step 3.

Remove templates after handle ﬁtment.

6 electrolux.com.au

NOTES

Electrolux Home Products Australia

telephone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: electrolux.com.au

Electrolux Home Products New Zealand

telephone: 0800 234 234

fax: 0800 363 600

email: customercare@electrolux.co.nz

web: electrolux.co.nz

P/No. A04916503

Print code: EMAN_Handle_IM_Jul16

Issue date: Jul16
